Top » Piese de schimb » PIESE DEWALT » DWE349 Type 1

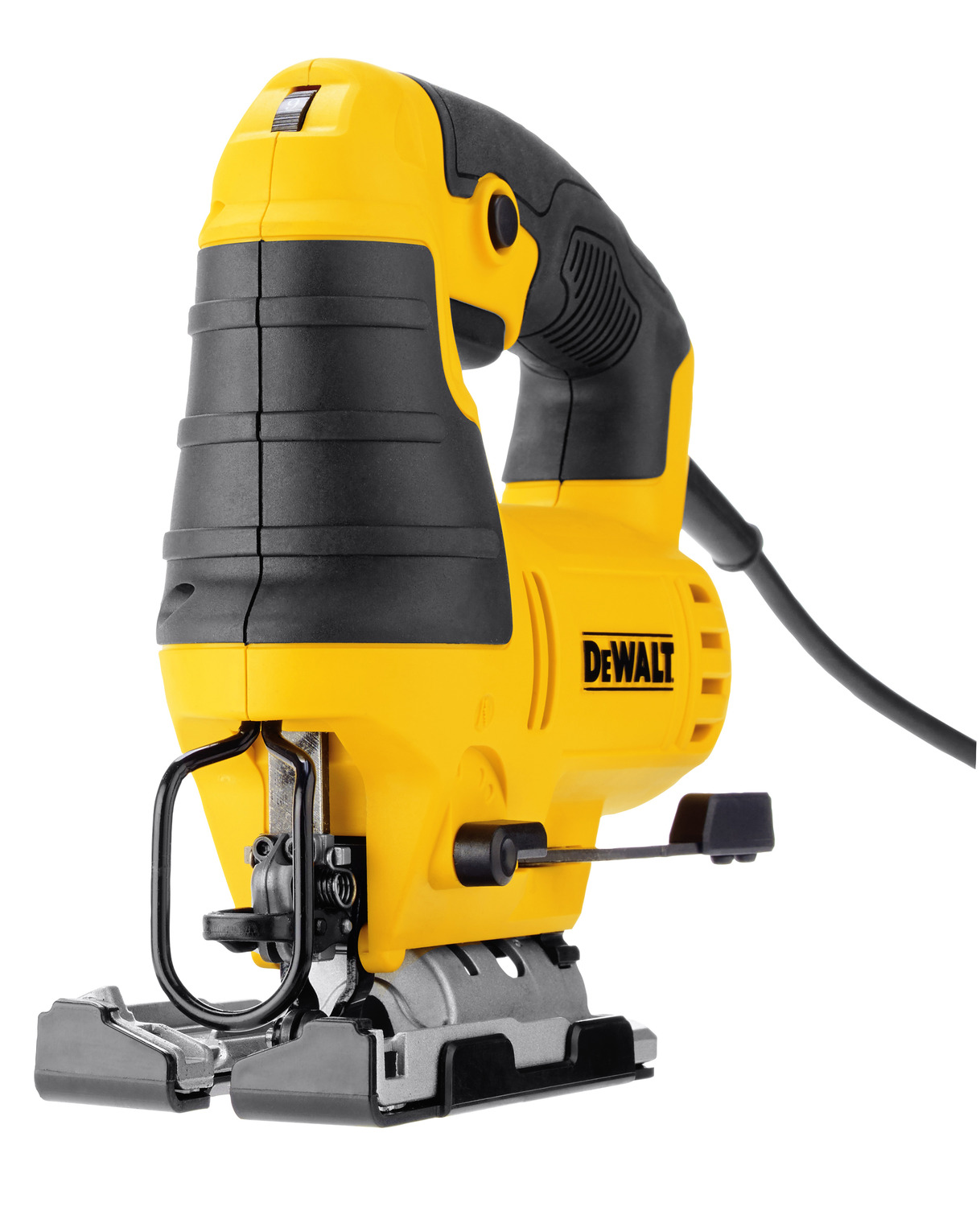

FIERASTRAU PENDULAR DEWALT DWE349 Type 1
[DWE349 Type 1]
FIERASTRAU PENDULAR DEWALT DWE349 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU PENDULAR DEWALT DWE349 Type 1
Click pentru a mari
FIERASTRAU PENDULAR DEWALT DWE349 Type 1
Click pentru a mari

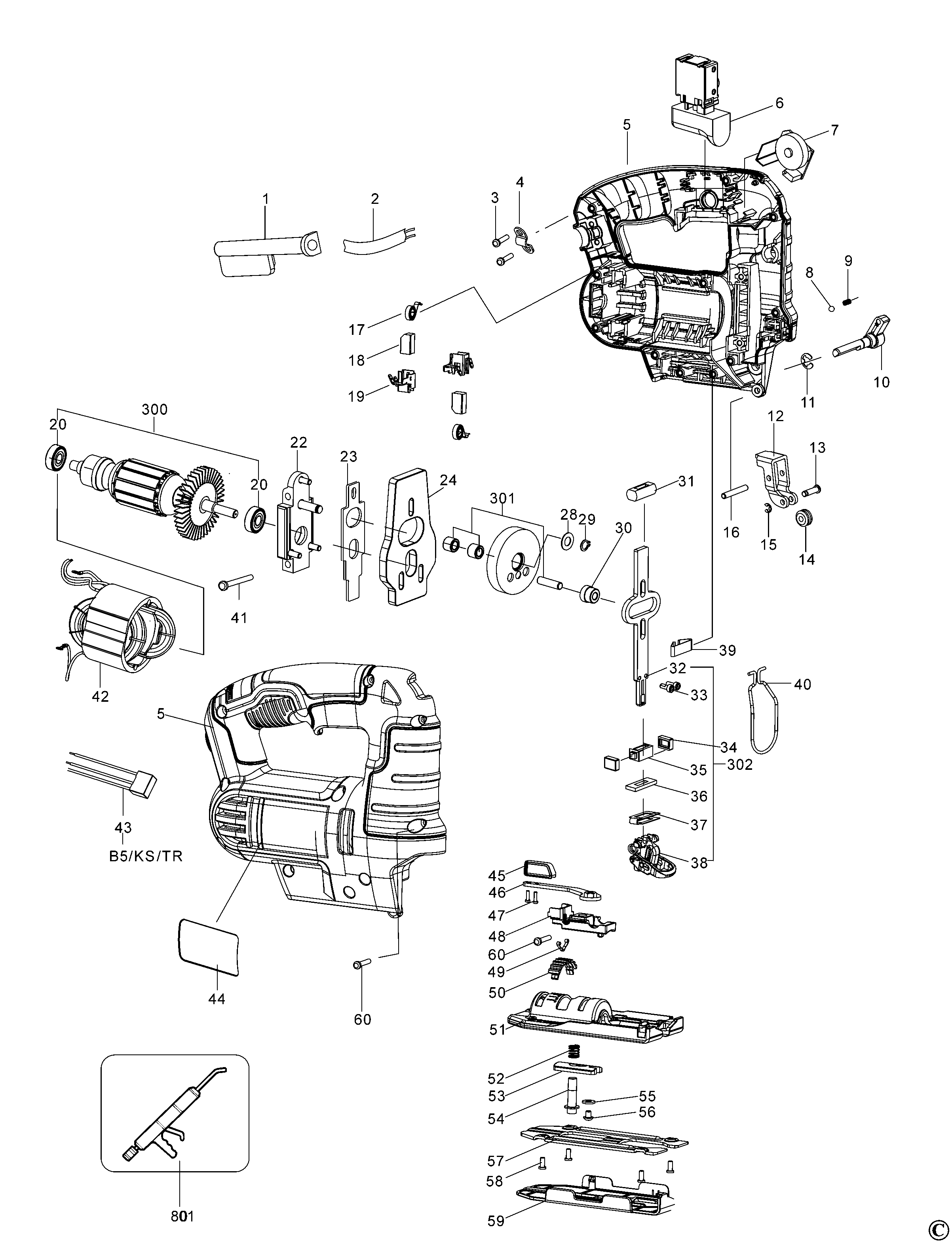

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CORD PROTECTOR (N686256) 944 RON
2 1 1 CORDSET (N871330) 10241 RON
3 1 2 SCREW (N822470) 588 RON
4 1 1 CORD CLAMP (4240301011) 588 RON
5 1 1 HOUSING SA (N747697) 20216 RON
6 1 1 SWITCH (N715263) 23244 RON
7 1 1 PCB CONTROLLER (N844149) 49114 RON
8 1 1 BALL (N547089) 588 RON
9 1 1 SPRING (N547090) 588 RON
10 1 1 KNOB (N688419) 2556 RON
11 1 1 RING (N822471) 588 RON
12 1 1 GUIDE SUPPORT (N688189) 6688 RON
13 1 1 ROLL PIN (N819789) 2796 RON
14 1 1 ROLLER (N547069) 82 RON
15 1 1 RING (N547073) 588 RON
16 1 1 PIN (N543596) 588 RON
17 1 1 TORSION SPRING (562204-00) 558 RON
18 1 1 BRUSH PAIR (N871547) 2182 RON
19 1 2 BRUSH HOLDER (N688695) 944 RON
20 1 2 BEARING (49111013) 944 RON
22 1 1 PLATE SA (N686264) 21676 RON
23 1 1 SHAFT (N687499) 4355 RON
24 1 1 COUNTER BALANCE (N543564) 4355 RON
28 1 1 WASHER (N543575) 588 RON
29 1 1 RING (N547068) 588 RON
30 1 1 DRIVE ROLLER (N543584) 588 RON
31 1 1 BEARING (810893) 558 RON
32 1 1 RECIP SHAFT (479190-00) 4827 RON
33 1 2 SCREW (N552203) 588 RON
34 1 2 CARRIER (N543592) 588 RON
35 1 1 BEARING (N544379) 588 RON
36 1 1 FELT SEAL (N719332) 588 RON
37 1 1 PLATE (N719331) 82 RON
38 1 1 BLADE CLAMP (90563039) 5031 RON
39 1 1 WASHER (N544380) 588 RON
40 1 1 GUARD (N688665) 114 RON
41 1 2 SCREW (N547082) 588 RON
42 1 1 FIELD SA (N687340) 10241 RON
43 1 1 CAPACITOR (N747956) 1772 RON
44 1 1 RATING PLATE (NA031210) 588 RON
45 1 1 LEVER (N736271) 668 RON
46 1 1 LEVER SA (N736267) 1630 RON
47 1 2 SCREW (N520083) 588 RON
48 1 1 BLOCK (N736251) 1630 RON
49 1 1 DETENT (N736250) 944 RON
50 1 1 INSERT (N736266) 668 RON
51 1 1 SHOE (N736259) 21676 RON
52 1 1 SPRING (N736258) 668 RON
53 1 1 PLATE LOCK (N736257) 4827 RON
54 1 1 BOLT (N736248) 2556 RON
55 1 1 WASHER (N736256) 668 RON
56 1 1 SCREW (N736249) 668 RON
57 1 1 PLATE (N736264) 18568 RON
58 1 4 SCREW (N736265) 588 RON
59 1 1 COVER (N736272) 5370 RON
60 1 11 SCREW (N468889) 588 RON
300 1 1 ARMATURE SA (N868596) 15469 RON
301 1 1 GEAR SA (N868598) 33797 RON
302 1 1 SHAFT SA (N868599) 15469 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
