Top » Piese de schimb » PIESE DEWALT » DW788 Type 1

FIERASTRAU DEWALT DW788 Type 1
[DW788 Type 1]
FIERASTRAU DEWALT DW788 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU DEWALT DW788 Type 1
Click pentru a mari
FIERASTRAU DEWALT DW788 Type 1
Click pentru a mari

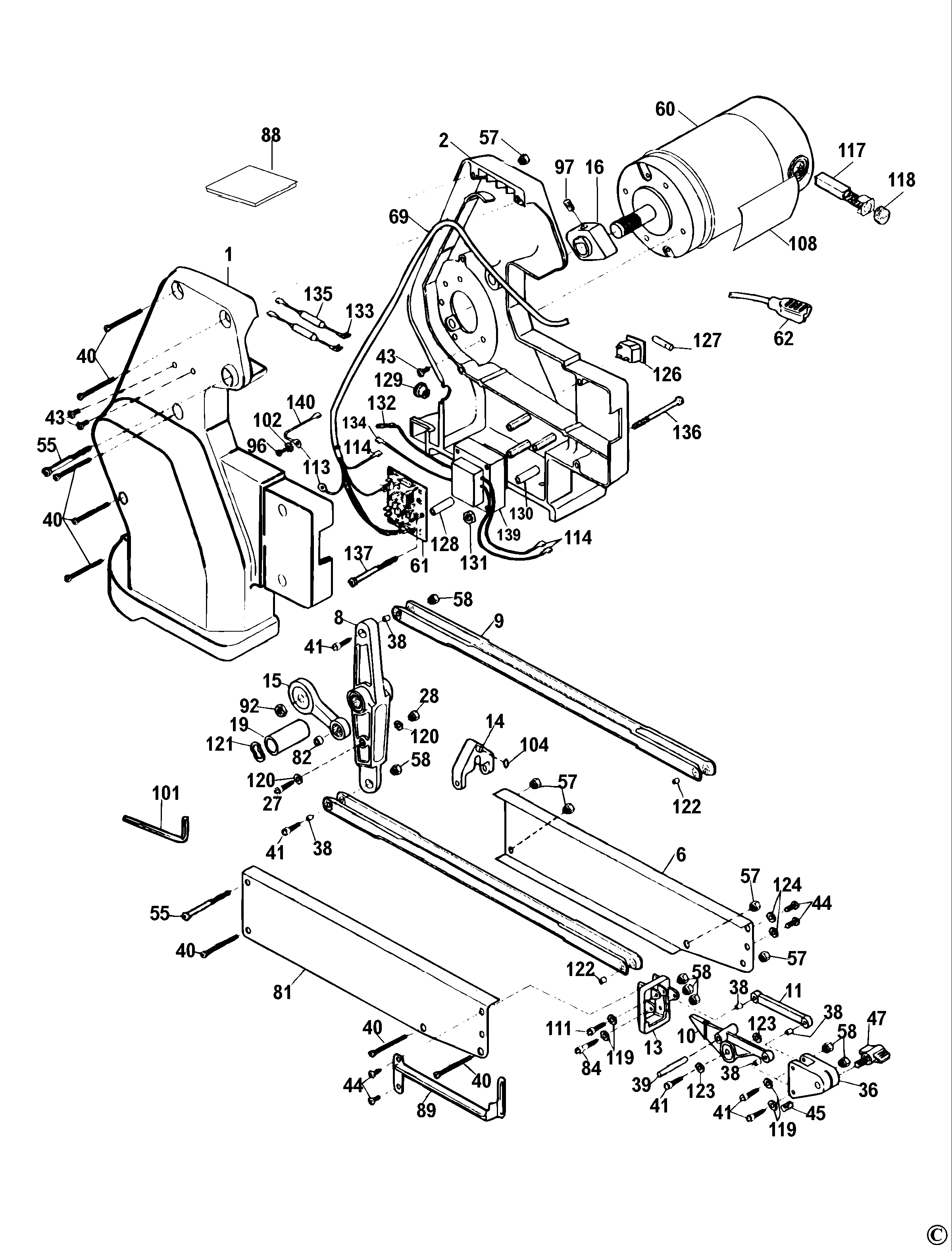

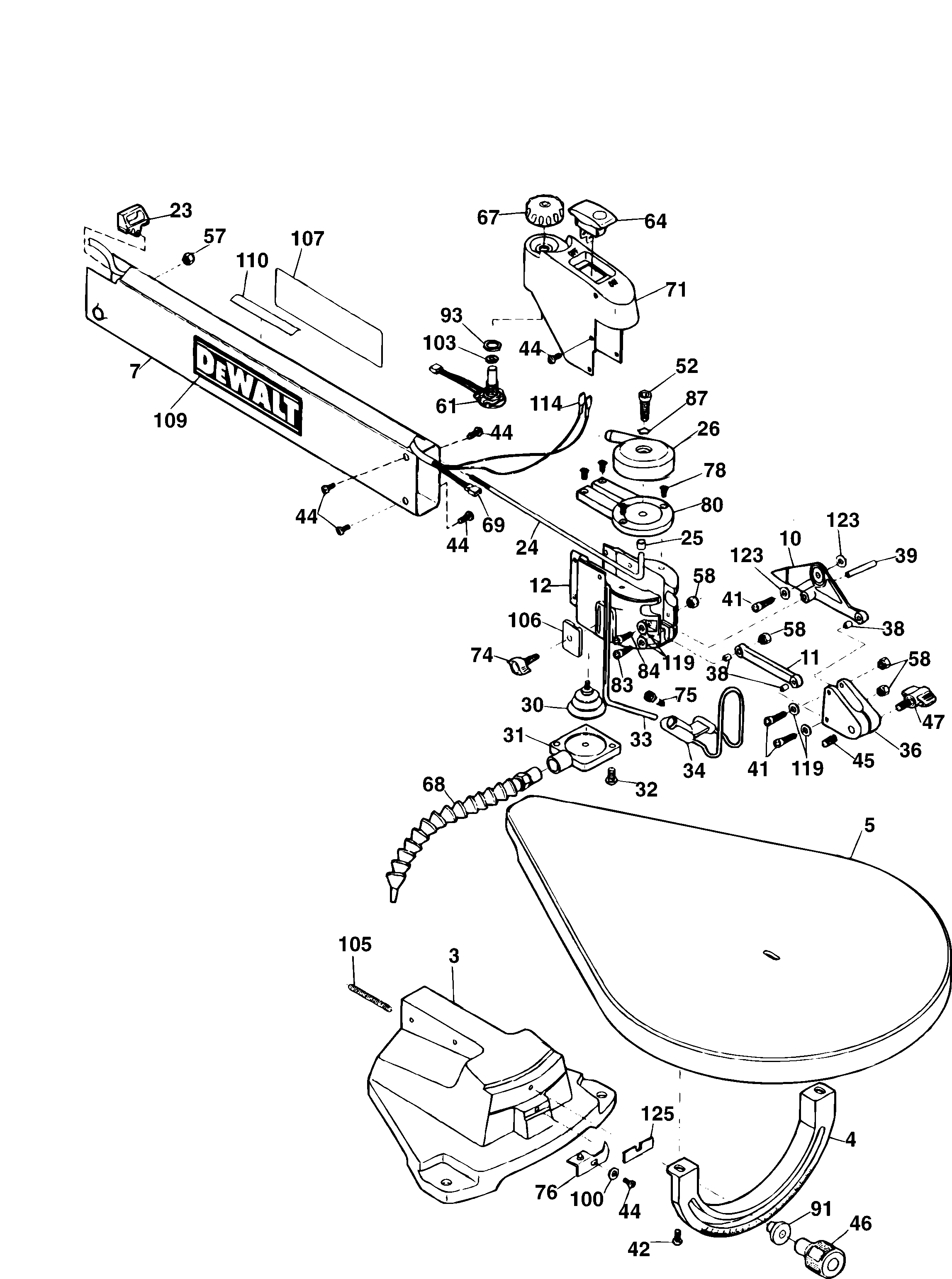

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 286380-00 - Indisponibil
2 1 1 429565-00 - Indisponibil
3 1 1 286263-00 - Indisponibil
4 1 1 TRUNNION (286264-00) 22144 RON
5 1 1 286265-00 - Indisponibil
6 1 1 COVER RH (286266-00) 14315 RON
7 1 1 ARM HORIZONTAL (286267-00) 15993 RON
8 1 1 ARM LINK (286268-00) 3592 RON
9 1 2 ARM STROKE (286269-00) 9282 RON
10 1 2 PIVOT (286270-00) 32770 RON
11 1 2 STRUT (286276-00) 1891 RON
12 1 1 HOUSING FRONT (286277-00) 14315 RON
13 1 1 BRACKET INNER (286278-00) 5591 RON
14 1 1 MOUNTING BRACKET (286279-00) 4472 RON
15 1 1 CON ROD SA (286280-00) 17335 RON
16 1 1 COUNTERWEIGHT (286281-00) 2124 RON
19 1 1 PIVOT (286282-00) 5031 RON
23 1 1 TENSION BLOCK (286283-00) 2795 RON
24 1 1 ROD (286284-00) 4137 RON
25 1 1 BEARING (286285-00) 893 RON
26 1 1 CAM (286286-00) 10512 RON
27 1 1 SCREW (286287-00) 781 RON
28 1 1 NUT M5 (286288-00) 781 RON
30 1 1 BELLOWS (286289-00) 2347 RON
31 1 1 CAP (286290-00) 2795 RON
32 1 2 SCREW (98003-10) 781 RON
33 1 1 BAR (286291-00) 4472 RON
34 1 1 FOOT (286292-00) 4472 RON
36 1 2 286293-00 - Indisponibil
36 1 2 286293-01 - Indisponibil
38 1 8 286294-00 - Indisponibil
39 1 2 SLEEVE (286295-00) 4472 RON
40 1 8 SCREW (286296-00) 1117 RON
41 1 8 SCREW (286297-00) 781 RON
42 1 2 SCREW (286298-00) 781 RON
43 1 4 screw dw733 (429711-00) 893 RON
44 1 13 SCREW (286300-00) 781 RON
45 1 2 GRUB SCREW (286301-00) 893 RON
46 1 1 KNOB (145439-04) 1788 RON
47 1 2 KNOB SA (286303-00) 14315 RON
52 1 1 SCREW (286304-00) 3018 RON
55 1 2 SCREW (286305-00) 1117 RON
57 1 9 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
58 1 12 NUT (330021-00) 558 RON
60 1 1 286306-00 - Indisponibil
61 1 1 PCB SA (286308-00) 39145 RON
62 1 1 CABLE (429541-00) 15993 RON
64 1 1 SWITCH (286309-00) 14315 RON
67 1 1 KNOB (286310-00) 1788 RON
68 1 1 NOZZLE BLOWER (286311-00) 9282 RON
69 1 1 429566-00 - Indisponibil
71 1 1 HOUSING (286313-00) 4472 RON
74 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
75 1 1 SCREW (286316-00) 781 RON
76 1 1 INDICATOR (286317-00) 2795 RON
78 1 4 SCREW (98012-10) 558 RON
80 1 1 LEAD (286319-00) 3466 RON
81 1 1 COVER LH (286320-00) 14315 RON
82 1 1 CON ROD SA (286280-00) 17335 RON
82 1 1 SLEEVE (286321-00) 14315 RON
83 1 1 SCREW (286322-00) 893 RON
84 1 2 SCREW (286323-00) 105 RON
87 1 1 WASHER SPRING (286326-00) 558 RON
88 1 1 INSERT (286327-00) 781 RON
89 1 1 LOWER GUARD SA (286328-00) 5031 RON
91 1 1 SPACER (286330-00) 558 RON
92 1 1 NUT LH (286331-00) 105 RON
93 1 1 NUT (286332-00) 558 RON
96 1 1 SCREW (99289-07) 558 RON
97 1 1 SCREW (286333-00) 781 RON
100 1 1 WASHER (330016-07) 558 RON
101 1 1 98000-11 - Indisponibil
101 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
102 1 1 WASHER (286334-00) 558 RON
103 1 1 WASHER (286335-00) 558 RON
104 1 1 286336-00 - Indisponibil
105 1 1 BOLT (286337-00) 558 RON
106 1 1 COLLAR (286338-00) 1117 RON
107 1 1 WARNING LABEL (286339-00) 105 RON
108 1 1 NAMEPLATE (429542-00) 1229 RON
109 1 1 IDENTITY LABEL (286036-00) 2347 RON
110 1 1 WARNING LABEL (429539-00) 1117 RON
111 1 1 SCREW (286343-00) 893 RON
113 1 1 TERMINAL (94593-03) 781 RON
114 1 8 TERMINAL (450213-00) 781 RON
117 1 2 BRUSH (286346-00) 5591 RON
118 1 2 286347-00 - Indisponibil
119 1 8 WASHER CUP (286427-00) 558 RON
120 1 2 WASHER CUP (286428-00) 893 RON
121 1 1 WASHER SPRING (286429-00) 781 RON
122 1 2 SLEEVE (286430-00) 4137 RON
123 1 4 WASHER THRUST (286431-00) 558 RON
124 1 2 WASHER (286432-00) 558 RON
125 1 1 PAD (286455-00) 2795 RON
126 1 1 429528-00 - Indisponibil
127 1 1 FUSE (429529-00) 7940 RON
128 1 3 SUPPORT (429532-00) 3466 RON
129 1 1 429537-00 - Indisponibil
130 1 4 NUT (429536-00) 558 RON
130 1 4 SUPPORT (429535-00) 1229 RON
131 1 4 NUT (429536-00) 558 RON
132 1 3 TERMINAL (429547-00) 2347 RON
133 1 2 TERMINAL (429548-00) 2347 RON
134 1 2 TERMINAL (429549-00) 190 RON
135 1 2 SUPPRESSOR (429550-00) 17335 RON
136 1 4 SCREW (429531-00) 2347 RON
137 1 3 SCREW (429533-00) 2795 RON
139 1 1 429530-00 - Indisponibil
139 1 1 429530-01 - Indisponibil
140 1 1 EARTH LEAD (429540-00) 5591 RON
