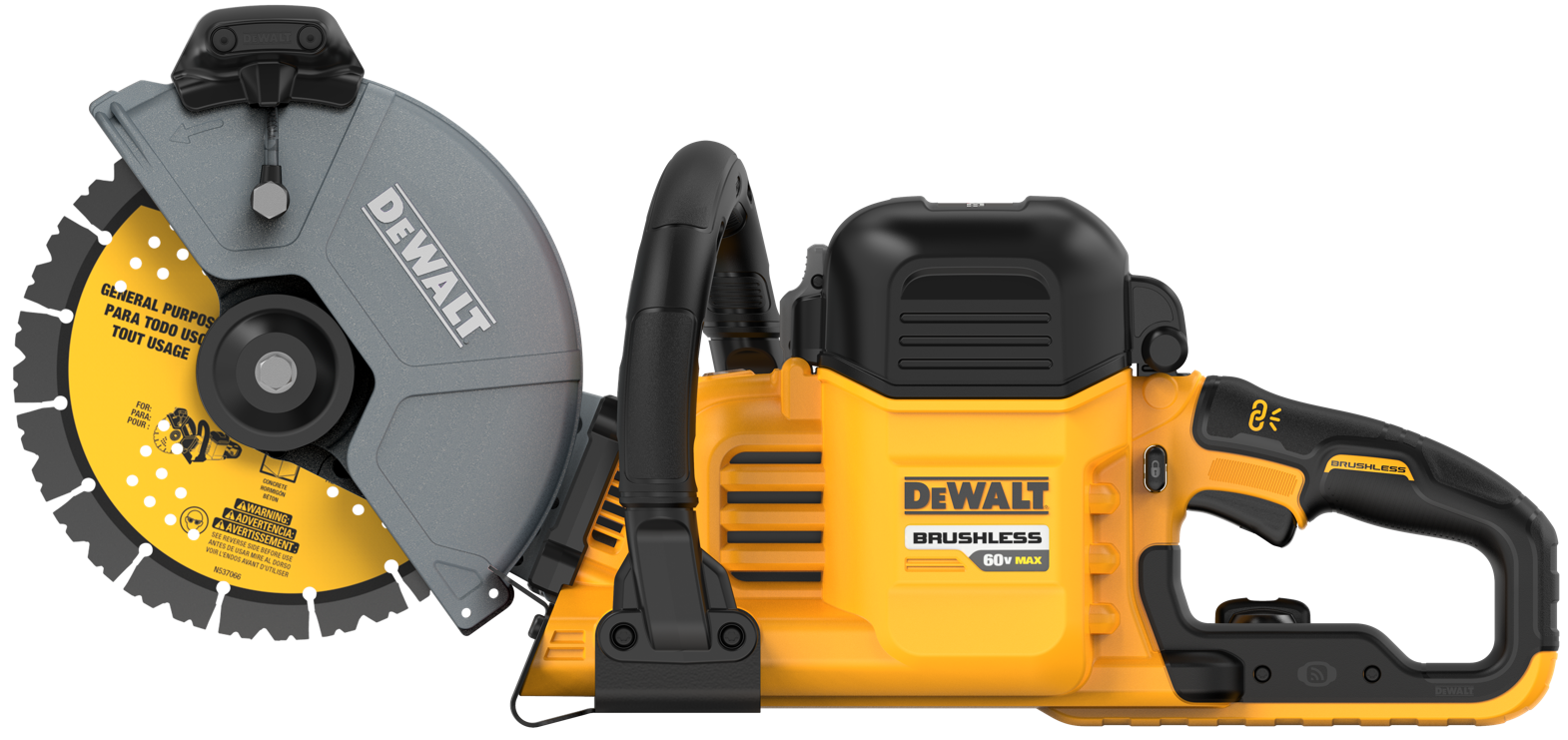

FIERASTRAU DEWALT DCS691X2 Type 1
[DCS691X2 Type 1]
FIERASTRAU DEWALT DCS691X2 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU DEWALT DCS691X2 Type 1
Click pentru a mari
FIERASTRAU DEWALT DCS691X2 Type 1
Click pentru a mari
FIERASTRAU DEWALT DCS691X2 Type 1
Click pentru a mari

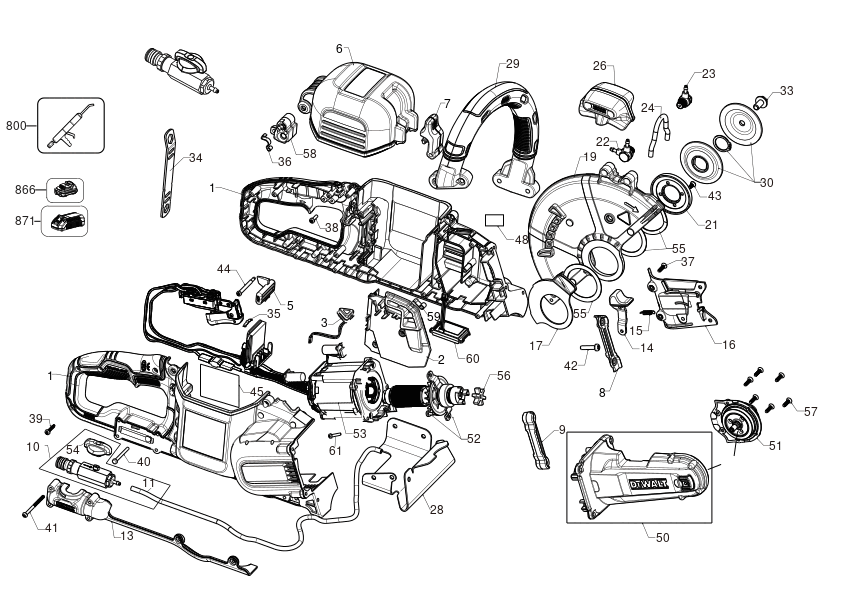

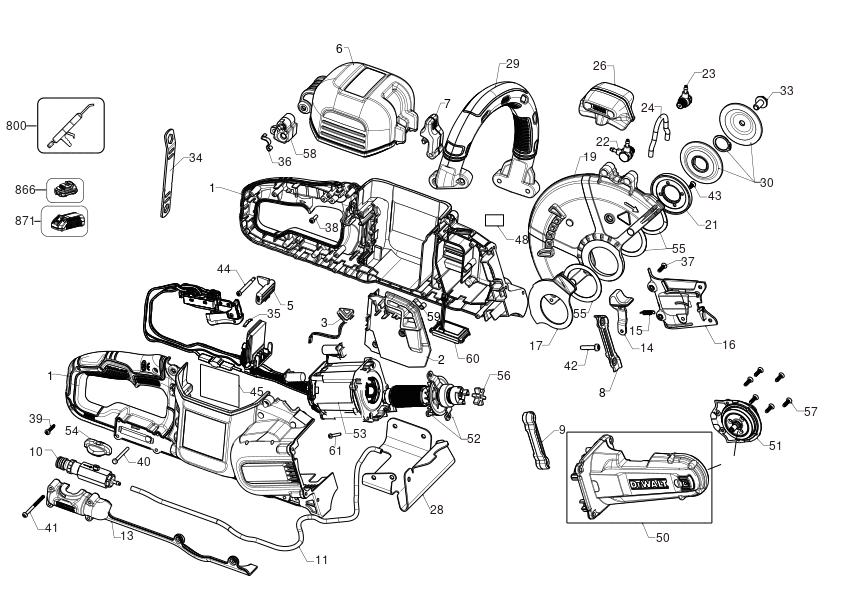

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SA (N873234) 30769 RON
2 1 1 INTERPLATE (N484489) 1933 RON
3 1 1 LED LIGHT (N520758) 3268 RON
5 1 1 SWITCH LOCK OFF (N500094) 588 RON
6 1 1 DOOR (N814314) 11337 RON
7 1 1 LATCH (NA161241) 10241 RON
8 1 1 INSERT (N607141) 668 RON
9 1 1 INSERT (N607143) 668 RON
10 1 1 VALVE (N569169) 35435 RON
11 1 1 HOSE SA (N569170) 4827 RON
13 1 1 COVER (N513083) 1933 RON
14 1 1 LEVER SA (N588277) 6688 RON
15 1 1 SPRING (N517849) 588 RON
16 1 1 COVERPLATE (N648295) 3268 RON
17 1 1 GUARD (N603098) 668 RON
19 1 1 GUARD (N503701) 30769 RON
21 1 1 PLATE (N518761) 4827 RON
22 1 1 CONNECTOR (N648296) 12361 RON
23 1 1 CONNECTOR (N648299) 5370 RON
24 1 1 HOSE SA (N569174) 4355 RON
26 1 1 HANDLE SA (N569324) 2796 RON
28 1 1 SHOE (N510353) 5370 RON
29 1 1 LOOP HANDLE (N493800) 9012 RON
30 1 1 BLADE CLAMP (N569343) 12361 RON
33 1 1 SCREW SPECIAL (145344-00) 781 RON
34 1 1 SPANNER (N420180) 1933 RON
35 1 1 DETENT SPRING (N087259) 558 RON
36 1 1 SPRING (N821157) 588 RON
37 1 4 SCREW (N563689) 588 RON
38 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
39 1 14 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
40 1 1 SCREW (330019-07) 558 RON
41 1 6 SCREW (N582524) 588 RON
42 1 12 SCREW (N563581) 588 RON
43 1 4 SCREW (N569458) 588 RON
44 1 1 SCREW (N535932) 588 RON
45 1 1 RATING LABEL (NA146213) 668 RON
46 1 1 LABEL (NA146955) 588 RON
47 1 1 LABEL (NA146953) 588 RON
48 1 1 LABEL (N575267) 588 RON
49 1 1 LABEL (N587383) 588 RON
50 1 1 GEAR CASE SA (NA213537) 125542 RON
51 1 1 GEARCASE COVER SA (N648306) 23244 RON
52 1 1 ROTOR SA (NA213533) 96047 RON
53 1 1 STATOR SA (NA161771) 200340 RON
54 1 1 KNOB (N587679) 2556 RON
54 1 1 NA213538 - Indisponibil
54 1 1 N589679 - Indisponibil
55 1 1 GUARD KIT (N569172) 741 RON
56 1 1 Gear (N569943) 944 RON
57 1 6 SCREW (N563689) 588 RON
58 1 1 PIVOT (NA108195) 1772 RON
59 1 1 SPRING (N516892) 588 RON
60 1 1 MODULE (N747545) 25728 RON
61 1 4 SCREW (330045-07) 558 RON
800 1 1 GREASE (N017298) 4825 RON
866 1 2 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
871 1 1 CHARGER QW (N473860) 73079 RON
871 1 1 N408120 - Indisponibil
