Top » Piese de schimb » PIESE DEWALT » DCMPS567 Type 1

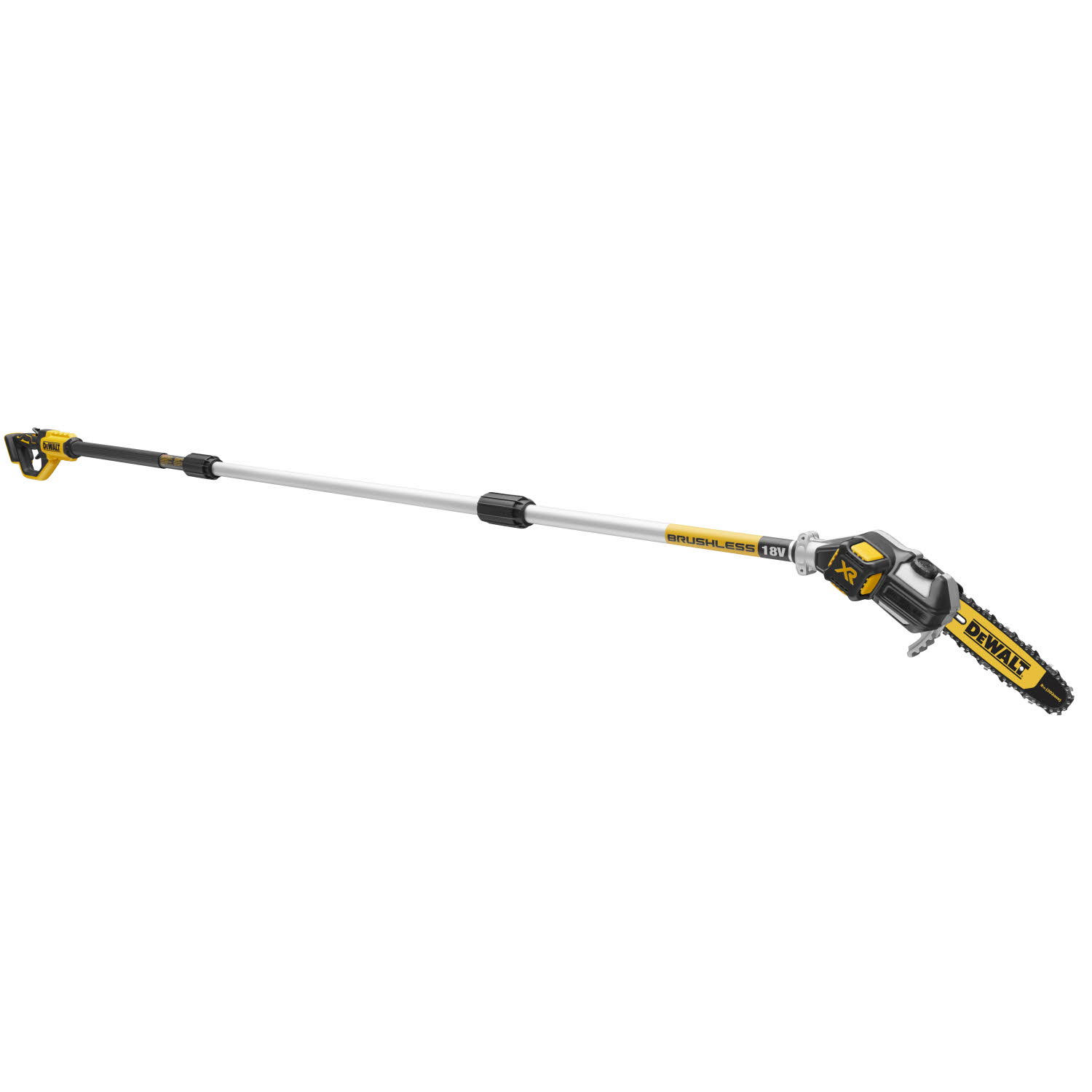

FIERASTRAU DEWALT DCMPS567 Type 1
[DCMPS567 Type 1]
FIERASTRAU DEWALT DCMPS567 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU DEWALT DCMPS567 Type 1
Click pentru a mari
FIERASTRAU DEWALT DCMPS567 Type 1
Click pentru a mari
FIERASTRAU DEWALT DCMPS567 Type 1
Click pentru a mari

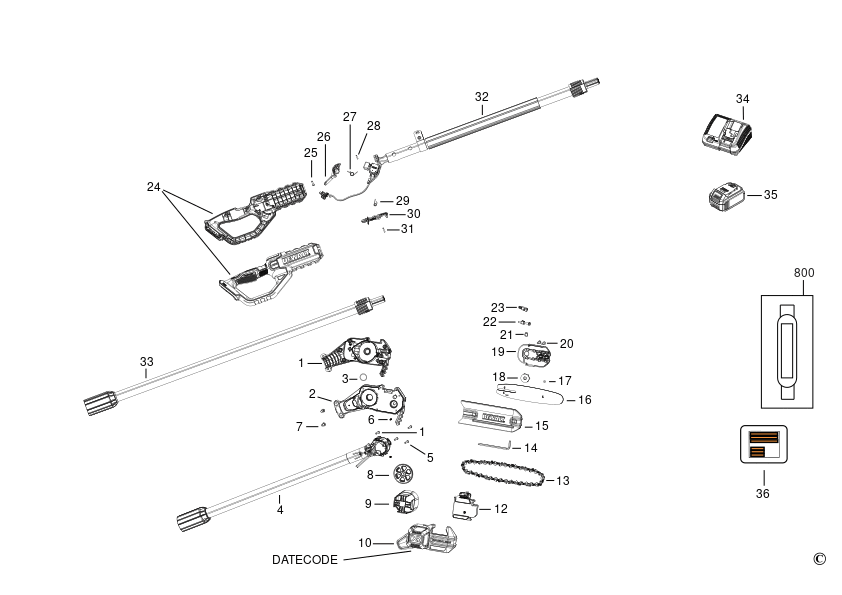

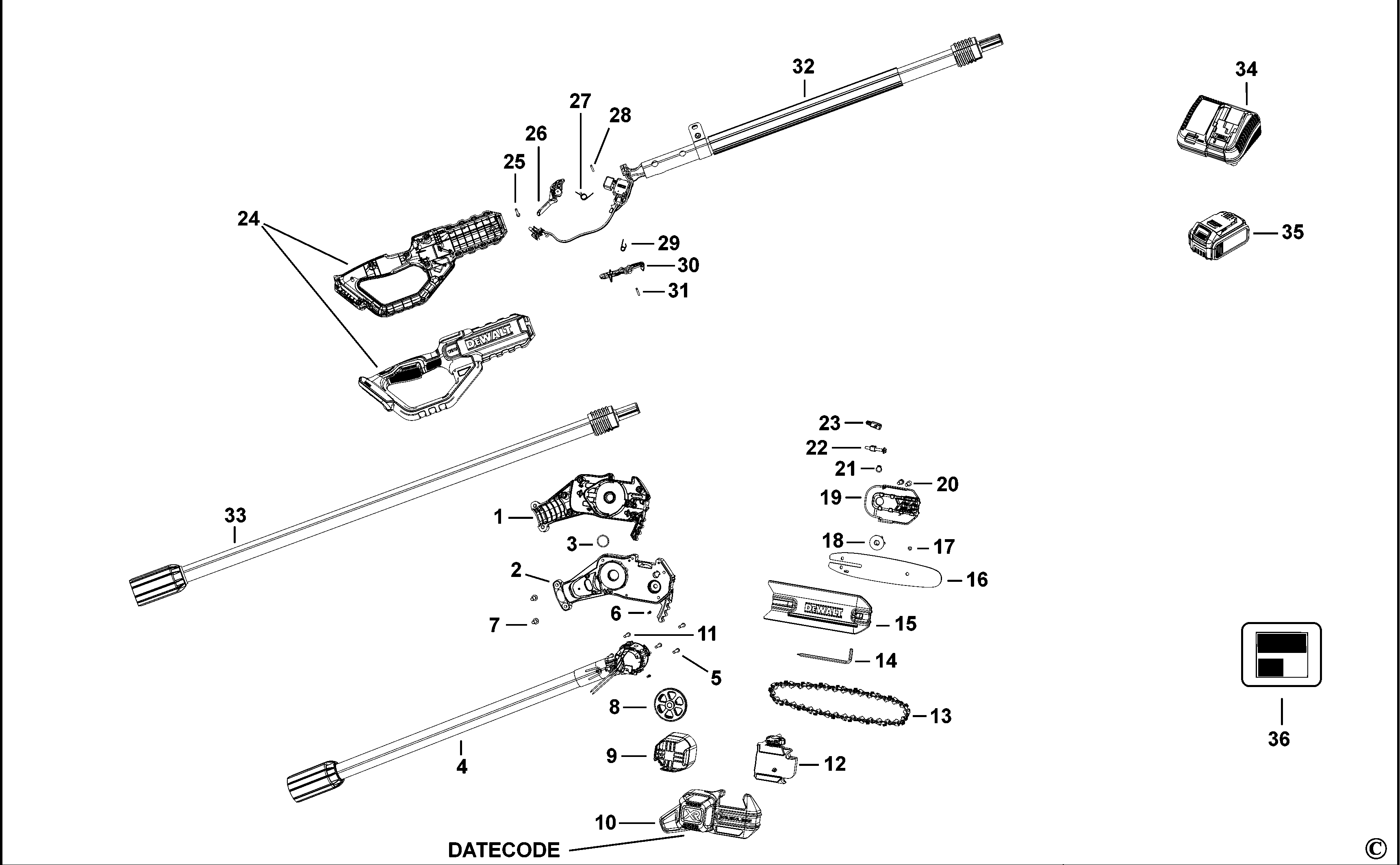

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE COVER (N597815) 11337 RON
2 1 1 COVER (N597816) 13697 RON
3 1 1 O RING (N119639) 558 RON
4 1 1 MOTOR SA (N810082) 78485 RON
5 1 5 SCREW (330019-45) 558 RON
6 1 2 SCREW (176951-00) 558 RON
7 1 2 SCREW (153778-02) 558 RON
8 1 1 N635401 - Indisponibil
8 1 1 OUTPUT SHAFT SA (NA144900) 13697 RON
9 1 1 CAP (N637496) 1933 RON
10 1 1 CAP (N597817) 3954 RON
11 1 3 SCREW (330019-05) 558 RON
12 1 1 TANK (N808747) 741 RON
13 1 1 CHAIN (N603750) 6688 RON
14 1 1 HEX KEY 5 MM (624736-00) 558 RON
15 1 1 SHEATH (N656402) 3268 RON
15 1 1 SHEATH (N897811) 2182 RON
16 1 1 BAR (N735015) 11337 RON
17 1 1 O RING (90104270) 588 RON
18 1 1 SPROCKET (N597159) 114 RON
19 1 1 N597820 - Indisponibil
19 1 1 COVER (NA032230) 2556 RON
20 1 2 SCREW (N656621) 588 RON
21 1 1 LOCKING RING (624521-00) 558 RON
22 1 1 TENSIONING PULLEY (N810076) 1630 RON
23 1 1 PUMP SA (N619179) 3954 RON
24 1 1 N686172 - Indisponibil
24 1 1 HANDLE SA (NA879205) 13697 RON
25 1 16 Screw M3.5X16 T15 (330019-03) 558 RON
26 1 1 TRIGGER (N646128) 1630 RON
27 1 1 SPRING (N659016) 588 RON
28 1 1 PIVOT (N670326) 588 RON
29 1 1 SPRING (N664433) 588 RON
30 1 1 ACTUATOR (N674967) 1772 RON
31 1 1 PIVOT (N664030) 588 RON
32 1 1 HARNESS (N686175) 44688 RON
32 1 1 HANDLE SA (NB109131) 39318 RON
32 1 1 NB433353 - Indisponibil
33 1 1 POLE PIECE SA (N611762) 16689 RON
33 1 1 POLE PIECE SA (NB436931) 18568 RON
34 1 1 N406063 - Indisponibil
34 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
34 1 1 CHARGER CORDED 4A DCB1104 XE MS4272 (NA007574) 35435 RON
35 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
35 1 1 N475921 - Indisponibil
36 1 1 RATING LABEL (N662093) 668 RON
800 1 1 STRAP (N502343) 4355 RON
