Top » Piese de schimb » PIESE DEWALT » DWE5615 Type 1

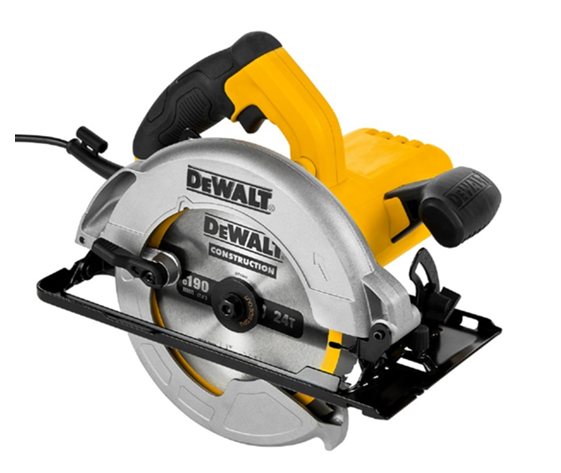

FIERASTRAU CIRCULAR DEWALT DWE5615 Type 1
[DWE5615 Type 1]
FIERASTRAU CIRCULAR DEWALT DWE5615 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR DEWALT DWE5615 Type 1
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT DWE5615 Type 1
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT DWE5615 Type 1
Click pentru a mari

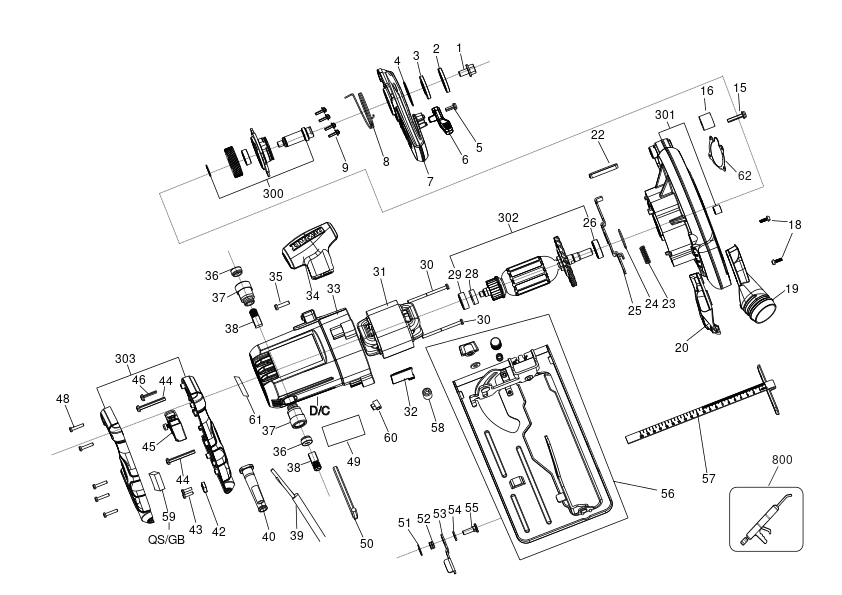

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (N560559) 668 RON
2 1 1 FLANGE (N554842) 1772 RON
3 1 1 FLANGE (N553909) 1933 RON
4 1 1 RETAINER (N529425) 588 RON
5 1 1 SCREW (N582370) 588 RON
6 1 1 Plastic Mouldings (N572460) 668 RON
7 1 1 GUARD (NA156696) 10241 RON
8 1 1 SPRING (N100006) 893 RON
9 1 4 SCREW (NA304665) 588 RON
15 1 1 SCREW (N582381) 588 RON
15 1 1 SCREW-SCREW METAL THD FORM, M5X25 T25 (NA616082) 588 RON
16 1 1 RING (N575496) 588 RON
18 1 2 SCREW (N520084) 588 RON
19 1 1 DUST PORT (NA315116) 2182 RON
20 1 1 DUST PORT (NA315141) 944 RON
22 1 1 PIN (389562-00) 781 RON
23 1 1 SPRING (N573373) 588 RON
24 1 1 RING (N602219) 588 RON
25 1 1 SHAFT (N552648) 2182 RON
26 1 1 BEARING (N650408) 1630 RON
28 1 1 BEARING (49111013) 944 RON
29 1 1 SLEEVE BEARING (NA309602) 588 RON
30 1 2 SCREW PLSTC THD FORM M4.06X62 (330019-82) 588 RON
31 1 1 STATOR (N580293) 11337 RON
32 1 1 CLAMP (N567977) 588 RON
33 1 1 FIELD CASE (NA149438) 13697 RON
34 1 1 HANDLE (N896826) 2182 RON
35 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
36 1 2 CAP (90632247) 588 RON
37 1 2 BRUSH HOLDER (N602473) 1630 RON
38 1 2 BRUSH SA (N580276) 1933 RON
39 1 1 CORDSET (NA205266) 12361 RON
40 1 1 CORD PROTECTOR (90568797) 588 RON
42 1 1 CORD CLAMP (4100301008) 588 RON
43 1 2 SCREW (N582387) 588 RON
44 1 2 SCREW (N582376) 588 RON
45 1 1 SWITCH (N092201) 5031 RON
46 1 1 SCREW (N582378) 588 RON
48 1 5 SCREW (N582383) 588 RON
49 1 1 RATING LABEL (NA246140) 668 RON
50 1 1 HEX KEY (90579371) 668 RON
51 1 1 RING (N603500) 588 RON
52 1 1 NUT (N642344) 588 RON
53 1 1 KNOB (NA286375) 82 RON
54 1 1 WASHER (N641688) 588 RON
55 1 1 BOLT (N642342) 588 RON
56 1 1 SHOE SA (NA157002) 12361 RON
57 1 1 FENCE (NA309050) 2182 RON
58 1 1 SCREW (N094309) 558 RON
59 1 1 CAPACITOR (NA255344) 668 RON
60 1 1 TERMINAL (N681831) 588 RON
61 1 1 LABEL (NA246150) 588 RON
62 1 1 HUB (NA265294) 82 RON
300 1 1 GEARSHAFT SA (NA263419) 9012 RON
301 1 1 GUARD SA (NA263517) 24962 RON
302 1 1 ARMATURE SA (NA263730) 27287 RON
303 1 1 HANDLE SA (NA181098) 12361 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
