Top » Piese de schimb » PIESE DEWALT » DCS565 Type 1

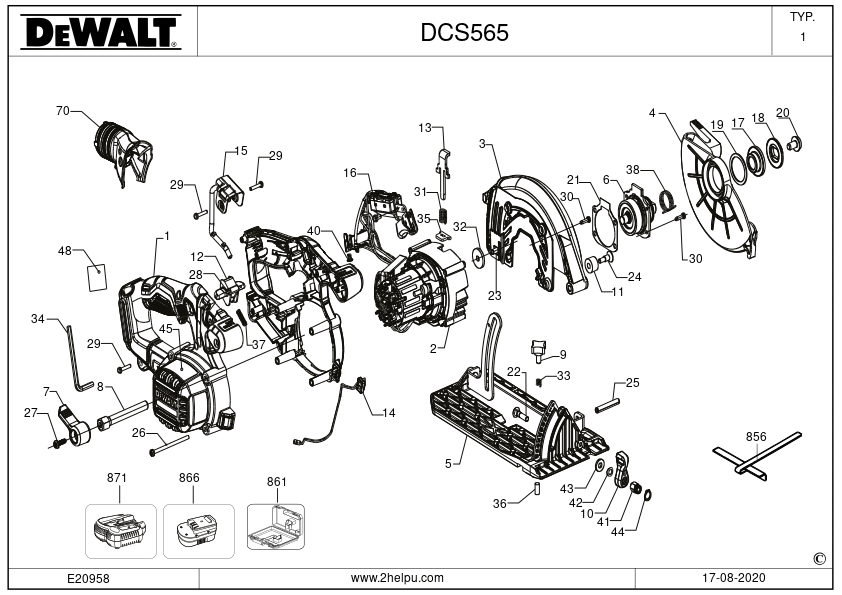

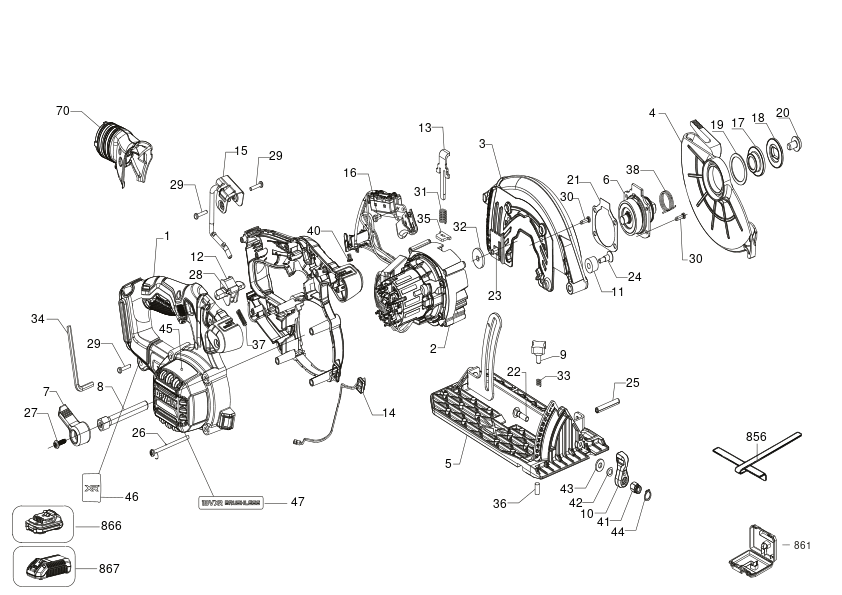

FIERASTRAU CIRCULAR DEWALT DCS565 Type 1
[DCS565 Type 1]
FIERASTRAU CIRCULAR DEWALT DCS565 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR DEWALT DCS565 Type 1
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT DCS565 Type 1
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT DCS565 Type 1
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT DCS565 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N876173 - Indisponibil
1 1 1 N859051 - Indisponibil
1 1 1 CLAMSHELL SA (N889848) 23244 RON
2 1 1 STATOR SA (N884299) 104961 RON
3 1 1 GUARD UPPER (N828880) 11337 RON
4 1 1 GUARD LOWER (611925-00) 7940 RON
5 1 1 SHOE SA (N491713) 25728 RON
6 1 1 SPINDLE SA cod vechi 659417-00 (659417-00SV) 15993 RON
6 1 1 NA897156 - Indisponibil
7 1 1 LEVER (605105-00) 1117 RON
8 1 1 SHAFT (618901-00) 2795 RON
9 1 1 KNOB (396992-02) 781 RON
10 1 1 LEVER (N594277) 82 RON
11 1 1 BUMPER (N248899) 588 RON
11 1 1 BUMPER (389132-00) 558 RON
12 1 1 BUTTON LOCK-OFF (605107-00) 105 RON
12 1 1 BUTTON LOCK-OFF (NA575073) 741 RON
13 1 1 SPINDLE LOCK (629444-00) 105 RON
14 1 1 LED LIGHT (N363247) 3268 RON
15 1 1 N845618 - Indisponibil
15 1 1 HOOK SA (N914941) 5370 RON
16 1 1 SCREW DW007K (330019-40) 558 RON
17 1 1 WASHER INNER CLAMP (610046-00) 1788 RON
18 1 1 WASHER OUTER CLAMP (N621119) 1933 RON
19 1 1 RETAINER (150383-00) 781 RON
20 1 1 BLADE BOLT LH M8X1.25 BLADE BOLT (648697-00) 781 RON
21 1 1 GASKET (605081-01) 781 RON
22 1 1 CARRIAGE BOLT (N625602) 588 RON
23 1 1 CARRIAGE BOLT (098128-85) 558 RON
24 1 1 SCREW (610134-00) 558 RON
25 1 1 SPIROL PIN (614048-00) 781 RON
26 1 4 SCREW (398987-00) 558 RON
27 1 1 SCREW (330045-14) 558 RON
28 1 1 PIN DW007K (388531-00) 781 RON
29 1 8 SCREW (90611830) 588 RON
30 1 8 SCREW (613783-00) 558 RON
31 1 1 58698-00 - Indisponibil
32 1 1 WASHER (N112241) 558 RON
33 1 1 SPRING (058287-00) 558 RON
34 1 1 98000-11 - Indisponibil
34 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
35 1 1 WIPER (605094-00) 558 RON
36 1 1 SCREW DW007K (381069-00) 558 RON
37 1 1 SPRING DW007K (389120-00) 2124 RON
38 1 1 SPRING (N035365) 781 RON
40 1 1 SPRING (N453948) 3268 RON
41 1 1 SCREW (N594297) 1630 RON
42 1 1 WASHER LOCK (N690988) 588 RON
43 1 1 WASHER (N620480) 588 RON
44 1 1 RETAINING RING (444793-00) 558 RON
45 1 1 N910800 - Indisponibil
45 1 1 RATING LABEL (NA050088) 588 RON
46 1 1 LABEL ELECTRONIC (N881367) 668 RON
47 1 1 BRAND LABEL (N927577) 668 RON
70 1 1 N834249 - Indisponibil
70 1 1 DUST PORT (N914936) 3268 RON
856 1 1 FENCE DW936 (381091-01) 2124 RON
861 1 1 KITBOX (N445186) 39318 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
