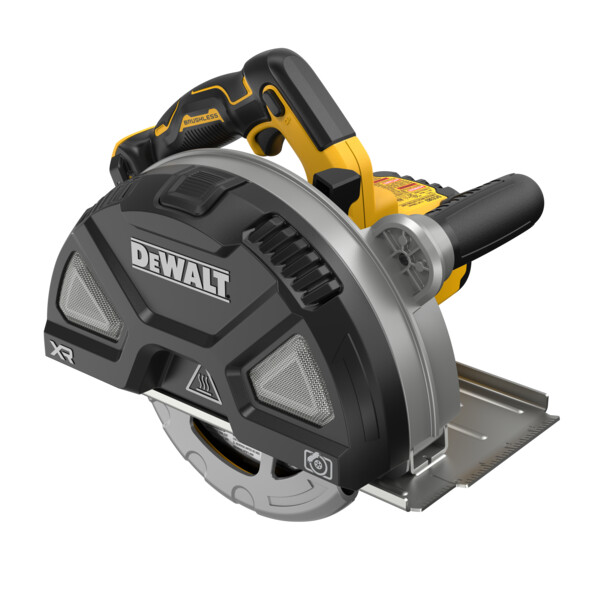

FIERASTRAU CIRCULAR DEWALT DCS383N Type 1
[DCS383N Type 1]
FIERASTRAU CIRCULAR DEWALT DCS383N Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR DEWALT DCS383N Type 1
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT DCS383N Type 1
Click pentru a mari

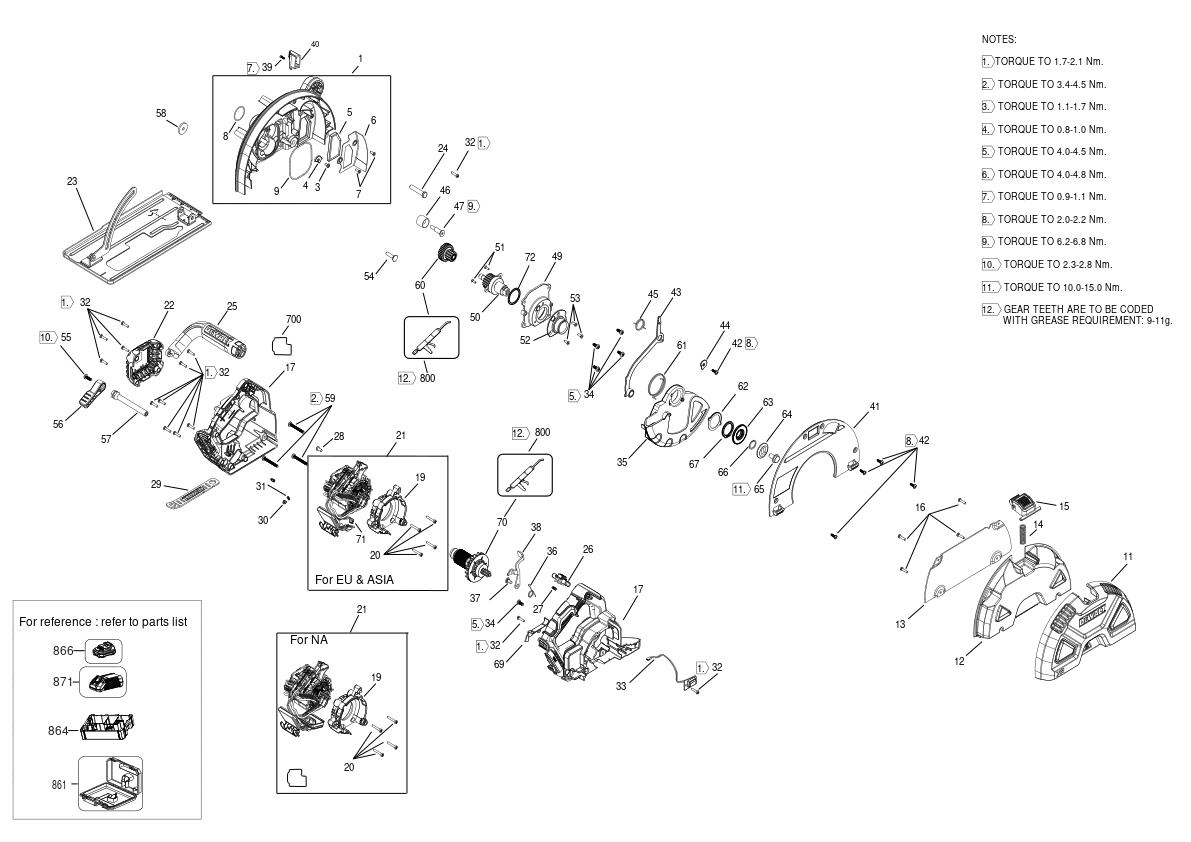

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (NA638025) 60451 RON
3 1 1 LIMITER-DEFLECTION LIMITER (NA165152) 668 RON
4 1 2 SCREW (N514767) 588 RON
5 1 1 WINDOW (NA334827) 11337 RON
6 1 1 PLATE-BLAST PLATE (NA295246) 3954 RON
7 1 2 SCREW (N503419) 588 RON
8 1 1 O-RING (N380571) 588 RON
9 1 1 SEAL (NA201075) 2182 RON
11 1 1 CLAMSHELL (NA261889) 16689 RON
11 1 1 CLAMSHELL (NA859019) 11337 RON
12 1 1 COLLECTOR-COLLECTOR BODY (NA261890) 20216 RON
13 1 1 COVERPLATE-COLLECTOR PLATE (NA277859) 5370 RON
14 1 1 SPRING (NA352707) 588 RON
15 1 1 BUTTON (NA266447) 1933 RON
15 1 1 BUTTON (NA989170) 1318 RON
16 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
17 1 1 HANDLE SA (NA577272) 13697 RON
19 1 1 BAFFLE (NA407615) 2556 RON
20 1 4 SCREW (330019-05) 558 RON
21 1 1 MOTOR & SWITCH SA (NA662752) 148269 RON
22 1 1 END CAP (NA411963) 3268 RON
23 1 1 SHOE SA (NA430008) 23244 RON
24 1 1 PIN (NA133400) 114 RON
25 1 1 HANDLE (NA143683) 741 RON
26 1 1 BUTTON LOCK-OFF (N422878) 668 RON
27 1 1 SPRING (N433343) 588 RON
28 1 1 SCREW (330019-10) 558 RON
29 1 1 SPANNER (N420180) 1933 RON
30 1 1 SPRING GUIDE (N091479) 558 RON
31 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
32 1 14 Screw M3.5X16 T15 (330019-03) 558 RON
33 1 1 LED LIGHT (NA315291) 4827 RON
34 1 5 SCREW (330045-49) 558 RON
35 1 1 GUARD LOWER (NA410409) 16689 RON
36 1 1 SPRING (N100123) 558 RON
37 1 1 SCREW (385915-04) 558 RON
38 1 1 LEVER LOCK (N090570) 190 RON
39 1 1 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
40 1 1 PAD-LGL THUMB PAD (NA357953) 944 RON
41 1 1 GUARD (NA277861) 16689 RON
42 1 5 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
43 1 1 LEVER-SA LOWER GUARD LEVER (NA322871) 3954 RON
44 1 1 BUSHING (NA296408) 944 RON
45 1 1 SPRING (NA352622) 588 RON
46 1 1 BUMPER (381066-00) 558 RON
47 1 1 SCREW (N086135) 558 RON
49 1 1 GEARCASE COVER (NA410410) 13697 RON
50 1 1 SPINDLE SA (NA638024) 16689 RON
51 1 2 SCREW-M3 (N796738) 588 RON
52 1 1 HUB (NA252752) 4827 RON
53 1 3 SCREW (N503419) 588 RON
54 1 1 CARRIAGE BOLT (NA415942) 588 RON
55 1 1 SCREW (330045-14) 558 RON
56 1 1 LEVER (N419350) 668 RON
57 1 1 THREADED ROD (NA412111) 3954 RON
58 1 1 WASHER (NA398628) 944 RON
59 1 3 SCREW TEMP (330045-19) 558 RON
60 1 1 GEAR SA (NA638017) 10241 RON
61 1 1 SPRING TORSION (NA246667) 1630 RON
62 1 1 WASHER (NA206066) 588 RON
63 1 1 WASHER INNER CLAMP (N084137) 190 RON
64 1 1 OUTER FLANGE (N123200) 3954 RON
65 1 1 SCREW SPECIAL (145344-00) 781 RON
66 1 1 RETAINER (N120426) 558 RON
67 1 1 SPRING-RETAINING RING (NA252290) 588 RON
69 1 1 HOLDER (NA596767) 82 RON
70 1 1 ROTOR SA (NA638638) 32327 RON
71 1 1 PLUG (NA615367) 588 RON
72 1 1 SEAL (NA664119) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
