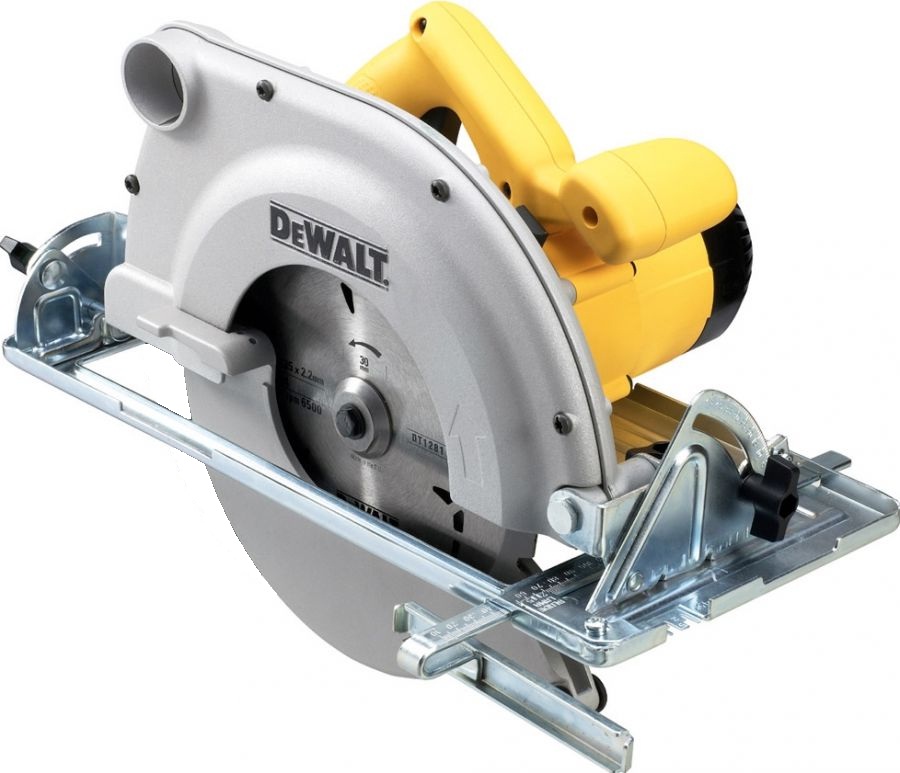

FIERASTRAU CIRCULAR DEWALT D23700 Type 3
[D23700 Type 3]
FIERASTRAU CIRCULAR DEWALT D23700 Type 3
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR DEWALT D23700 Type 3
Click pentru a mari
FIERASTRAU CIRCULAR DEWALT D23700 Type 3
Click pentru a mari

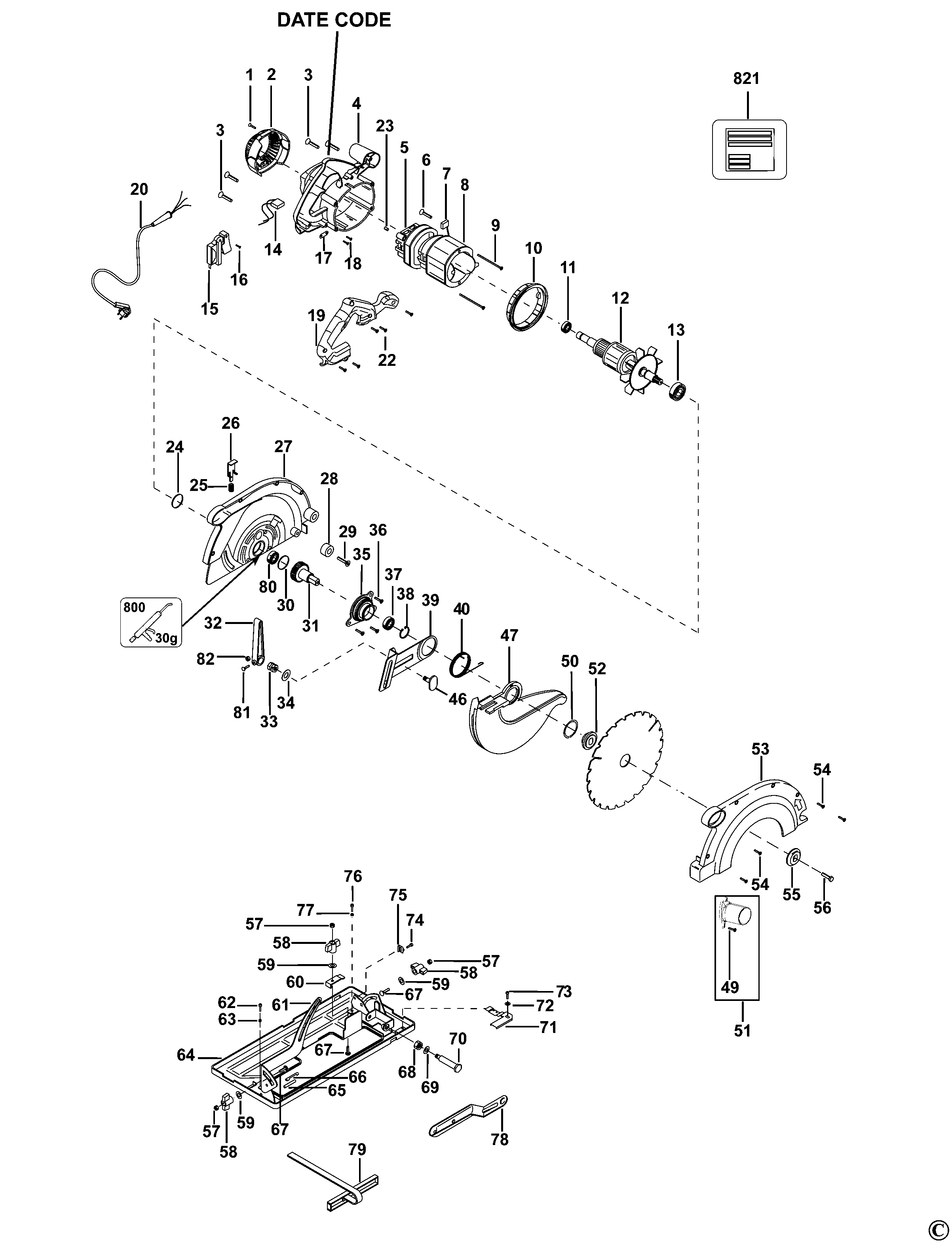

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
2 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
3 1 4 SCREW (98094-56) 781 RON
3 1 4 SCREW (98094-55) 588 RON
4 1 1 S A FIELDCASE (DEWALT) D23700 (N393404) 13697 RON
5 1 1 SA BRUSH HOLDER DW777 (N458123) 11337 RON
6 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
8 1 1 FIELD 240V. DW717, SERVICE (N503672) 27287 RON
9 1 2 SCREW PLASTITE (330019-19) 781 RON
10 1 1 BAFFLE (391375-00) 1788 RON
11 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
13 1 1 BEARING BALL (330003-13) 4137 RON
14 1 1 CAPACITOR (N458817) 3268 RON
15 1 1 SWITCH (625425-00) 7940 RON
16 1 1 SCREW M4 55X16 (330013-22) 558 RON
16 1 1 SCREW (330013-04) 558 RON
18 1 2 SCREW M4 55X16 (330013-22) 558 RON
18 1 1 SCREW (330013-04) 558 RON
19 1 1 COVER HANDLE D23700 (N393405) 3954 RON
22 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
23 1 1 RUBBER PLUG (145312-00) 558 RON
24 1 1 O-RING FOR FA AND BEARING (696519-00) 558 RON
25 1 1 SPRING (941586-00) 558 RON
26 1 1 LOCK SPINDLE D23700 (625854-00) 1452 RON
27 1 1 ARM MCHD D23700 (N384927) 35435 RON
28 1 1 DAMPER (146753-00) 558 RON
29 1 1 SCREW 8X14 T40 (N409486) 1318 RON
30 1 1 O RING 47 35X1 78 (616979-00) 558 RON
31 1 1 SHAFT & GEAR D23700 (869219-05) 28296 RON
32 1 1 LEVER (931460-00) 105 RON
33 1 1 NUT (931463-00) 190 RON
34 1 2 WASHER (933168-00) 781 RON
35 1 1 COVER GEARCASE D23700 (625421-00) 17335 RON
36 1 3 SCREW (330045-14) 558 RON
37 1 1 BEARING (330003-74) 4472 RON
38 1 1 GUIDE (629746-00) 781 RON
46 1 1 SCREW SPECIAL (N008397) 2347 RON
47 1 1 GUARD BOTTOM D23700 (N390572) 21676 RON
47 1 1 GUARD BOTTOM D23700 (N384925) 20216 RON
49 1 2 SCREW (330045-49) 558 RON
50 1 1 RETAINING RING (629745-00) 893 RON
51 1 1 KIT DUST SPOUT CIRC.SAW SERVICE (N147704) 3466 RON
52 1 1 WASHER INNER CLAMP (145442-03) 2795 RON
54 1 4 Screw Metal (330045-15) 781 RON
55 1 1 WASHER OUTER CLAMP (145446-00) 105 RON
56 1 1 SCREW SPECIAL (145344-00) 781 RON
57 1 3 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
58 1 3 NUT WING (931406-00) 781 RON
59 1 3 WASHER (931407-00) 558 RON
60 1 1 LOCK (931484-00) 2795 RON
61 1 1 GUIDE (933415-00) 14315 RON
62 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
63 1 1 SCREW (930224-00) 558 RON
64 1 1 SHOE SA D23700 (626663-00) 37579 RON
65 1 1 PIN (931420-00) 781 RON
66 1 1 PIN (931419-00) 558 RON
67 1 3 SCREW (931405-00) 558 RON
68 1 1 NUT (931449-00) 558 RON
69 1 1 WASHER (933168-00) 781 RON
70 1 1 PIN (931447-00) 2124 RON
71 1 1 POINTER (931408-00) 4137 RON
72 1 1 WASHER D4 (933652-00) 558 RON
73 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
74 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
75 1 1 INDICATOR (933410-00) 2347 RON
76 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
77 1 1 NUT (930244-00) 558 RON
78 1 1 WRENCH (145378-01) 1452 RON
79 1 1 FENCE (931464-00) 3466 RON
80 1 1 BEARING (135937-00) 190 RON
81 1 1 SCREW (930224-00) 558 RON
82 1 1 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
800 1 1 GREASE (5140061-28) 34336 RON
