Top » Piese de schimb » PIESE DEWALT » DCS575 Type 3

FIERASTRAU CIRCULAR CU ACUMULATOR DEWALT DCS575 Type 3
[DCS575 Type 3]
FIERASTRAU CIRCULAR CU ACUMULATOR DEWALT DCS575 Type 3
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR CU ACUMULATOR DEWALT DCS575 Type 3
Click pentru a mari
FIERASTRAU CIRCULAR CU ACUMULATOR DEWALT DCS575 Type 3
Click pentru a mari

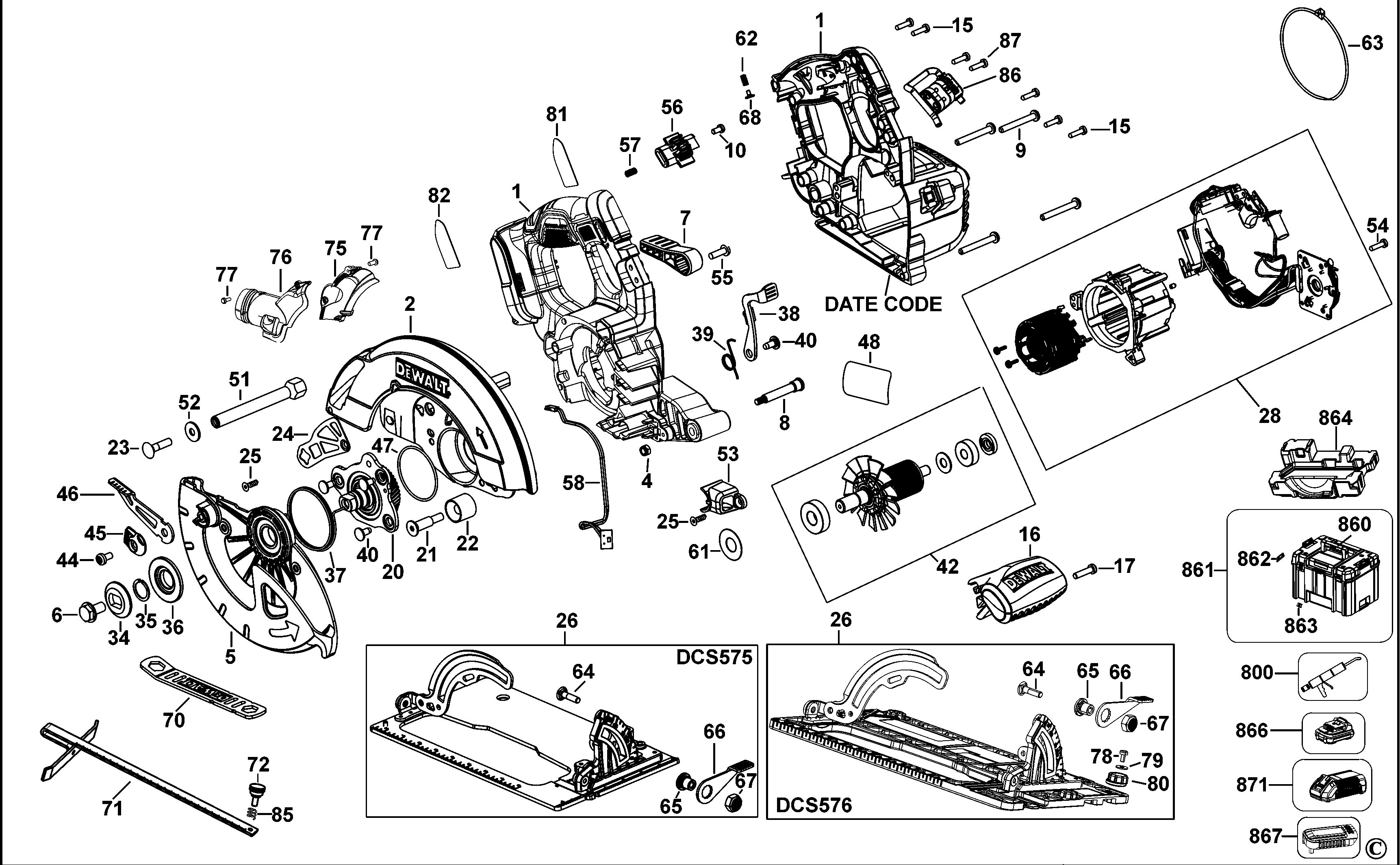

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N519971) 18568 RON
2 1 1 GEARCASE SA (N484889) 20216 RON
4 1 1 NUT (N461154) 588 RON
5 1 1 LOWER GUARD SA (N461005) 15469 RON
6 1 1 SCREW SPECIAL (145344-00) 781 RON
7 1 1 LEVER (N419350) 668 RON
8 1 1 BOLT (N461157) 668 RON
9 1 4 SCREW TEMP (330045-19) 558 RON
10 1 1 SCREW (330019-10) 558 RON
15 1 7 Screw M3.5X16 T15 (330019-03) 558 RON
16 1 1 HANDLE (N510174) 1933 RON
17 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
20 1 1 SPINDLE SA (N472351) 13697 RON
21 1 1 SCREW (N086135) 558 RON
22 1 1 BUMPER (381066-00) 558 RON
23 1 1 CARRIAGE BOLT (098128-90) 558 RON
24 1 1 PLATE (N461456) 82 RON
25 1 2 SCREW (N461159) 588 RON
26 1 1 SHOE SA (N472353) 32327 RON
28 1 1 ELECTRONIC AND SWITCH (N549477) 78485 RON
34 1 1 OUTER FLANGE (N120428) 1788 RON
35 1 1 RETAINER (N120426) 558 RON
36 1 1 WASHER INNER CLAMP (N084137) 190 RON
37 1 1 SPRING (N100006) 893 RON
38 1 1 LEVER LOCK (N090570) 190 RON
39 1 1 SPRING (N100123) 558 RON
40 1 4 SCREW (385915-04) 558 RON
42 1 1 ROTOR SA (N548510) 28836 RON
44 1 1 SCREW (098094-13) 558 RON
45 1 1 LEVER (N094953) 114 RON
46 1 1 LEVER (N086628) 105 RON
47 1 1 O RING (N361499) 781 RON
48 1 1 N722181 - Indisponibil
48 1 1 RATING LABEL (NA049843) 668 RON
51 1 1 SHAFT (N420031) 4827 RON
52 1 1 WASHER (N620480) 588 RON
52 1 1 N434869 - Indisponibil
53 1 1 COVER (N421358) 588 RON
54 1 4 SCREW (N034545) 588 RON
55 1 1 SCREW (330045-14) 558 RON
56 1 1 BUTTON LOCK-OFF (N422878) 668 RON
57 1 1 SPRING (N433343) 588 RON
58 1 1 LED LIGHT (N363247) 3268 RON
58 1 1 NA618729 - Indisponibil
61 1 1 WASHER FIBRE (N447499) 588 RON
62 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
63 1 1 CABLE TIE (90504014) 588 RON
64 1 1 CARRIAGE BOLT (098128-90) 558 RON
65 1 1 SCREW (N094731) 2347 RON
66 1 1 LEVER (145347-00) 105 RON
67 1 1 STOP NUT (N117921) 781 RON
68 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
70 1 1 SPANNER (N420180) 1933 RON
71 1 1 FENCE (N074939) 4137 RON
72 1 1 SCREW (N287119) 893 RON
75 1 1 DUST PORT (N168420) 781 RON
76 1 1 DUST PORT (N108974) 105 RON
77 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
81 1 1 RIGHT XR FLEXVOLT LABEL DCS575/DCS576 EA (N459249) 1318 RON
82 1 1 LEFT XR FLEXVOLT LABEL DCS575/DCS576 EAN (N459248) 1318 RON
85 1 1 SPRING (058287-00) 558 RON
86 1 1 HOOK (N560335) 5370 RON
87 1 2 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 TRAY (N498615) 741 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
