Top » Piese de schimb » PIESE DEWALT » DW1251----B Type 1 France

FIERASTRAU CU BRAT RADIAL DEWALT DW1251----B Type 1 France
[DW1251----B Type 1 France]
FIERASTRAU CU BRAT RADIAL DEWALT DW1251----B Type 1 France
Click pentru a mari
Imagini suplimentare
FIERASTRAU CU BRAT RADIAL DEWALT DW1251----B Type 1 France
Click pentru a mari

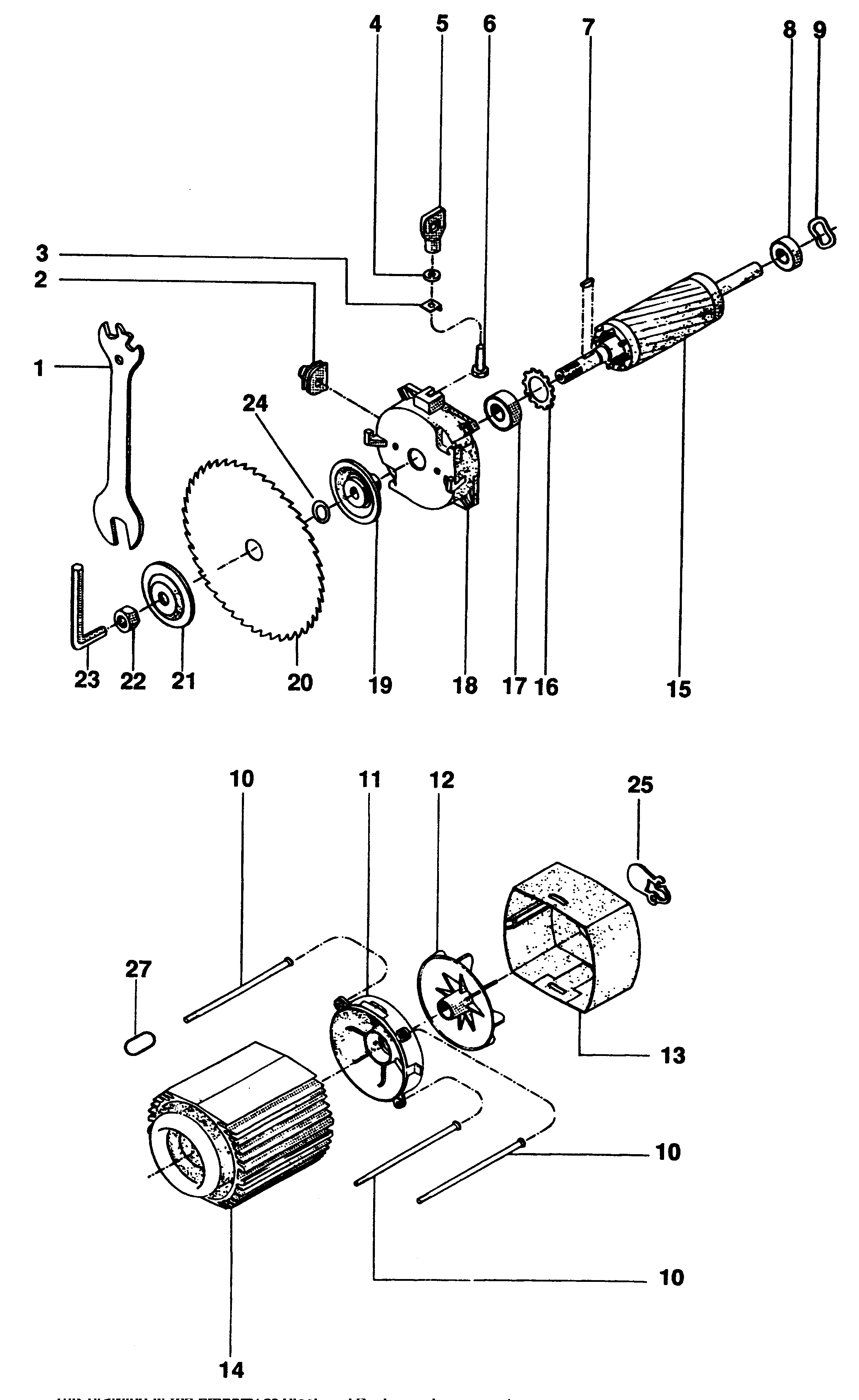

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 WRENCH 13-17-24 BLANK (860153-00) 4472 RON
2 1 1 BUSHING CABLE MOTOR DW 320 (860447-00) 4137 RON
3 1 1 PLATE RETAINING SCREWS M8 (860807-00) 893 RON
3 1 1 PLATE (31436) 893 RON
4 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
5 1 1 NUT WING B M.8 UNI 5448 ZINC. (860655-01) 781 RON
5 1 1 WING NUT HIGH (71186) 190 RON
5 1 1 NUT END HANDLE M.8X22 (860143-00) 1788 RON
6 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
7 1 1 PIN (11624) 781 RON
7 1 1 KEY WOODRUFF 4X5 UNI 6606 (860318-01) 781 RON
8 1 1 860155-04 - Indisponibil
8 1 1 BEARING 6202 (868768-07) 4137 RON
8 1 1 BEARING BALL (330003-13) 4137 RON
9 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
10 1 3 ROD THREADED HEX M.5X145 (860446-00) 558 RON
11 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
12 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
13 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
14 1 1 STATOR+HOUSING V.220 DW1251 86 (868413-00) 165534 RON
14 1 1 198836 - Indisponibil
15 1 1 196743 - Indisponibil
16 1 1 RING SPRING S.LOCK HOLE ZJ-40 (860806-00) 893 RON
17 1 1 BEARING ISO 6202-2RSL (868768-08) 5591 RON
17 1 1 BEARING BALL ISO 6203-2RS (860155-00) 3466 RON
17 1 1 BEARING 6203 2RS ISB (861721-12) 2347 RON
18 1 1 BELL FRONT END MTR DW320 CAST (860808-00) 1891 RON
18 1 1 CALOTTE (76462) 14315 RON
19 1 1 860838-00 - Indisponibil
19 1 1 TUBE (32012) 14315 RON
21 1 1 FLANGE DW320 (861241-00) 190 RON
22 1 1 ARBOR NUT (33445) 2347 RON
22 1 1 NUT ARBOR M.16X1.5 LH (860126-01) 5591 RON
23 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
24 1 1 11438 - Indisponibil
25 1 1 CAP FOR FAN COVER GUARD DW320 (863112-00) 558 RON
27 1 1 34443 - Indisponibil
