Top » Piese de schimb » PIESE DEWALT » DW1251----A Type 1 France

FIERASTRAU CU BRAT RADIAL DEWALT DW1251----A Type 1 France
[DW1251----A Type 1 France]
FIERASTRAU CU BRAT RADIAL DEWALT DW1251----A Type 1 France
Click pentru a mari
Imagini suplimentare
FIERASTRAU CU BRAT RADIAL DEWALT DW1251----A Type 1 France
Click pentru a mari

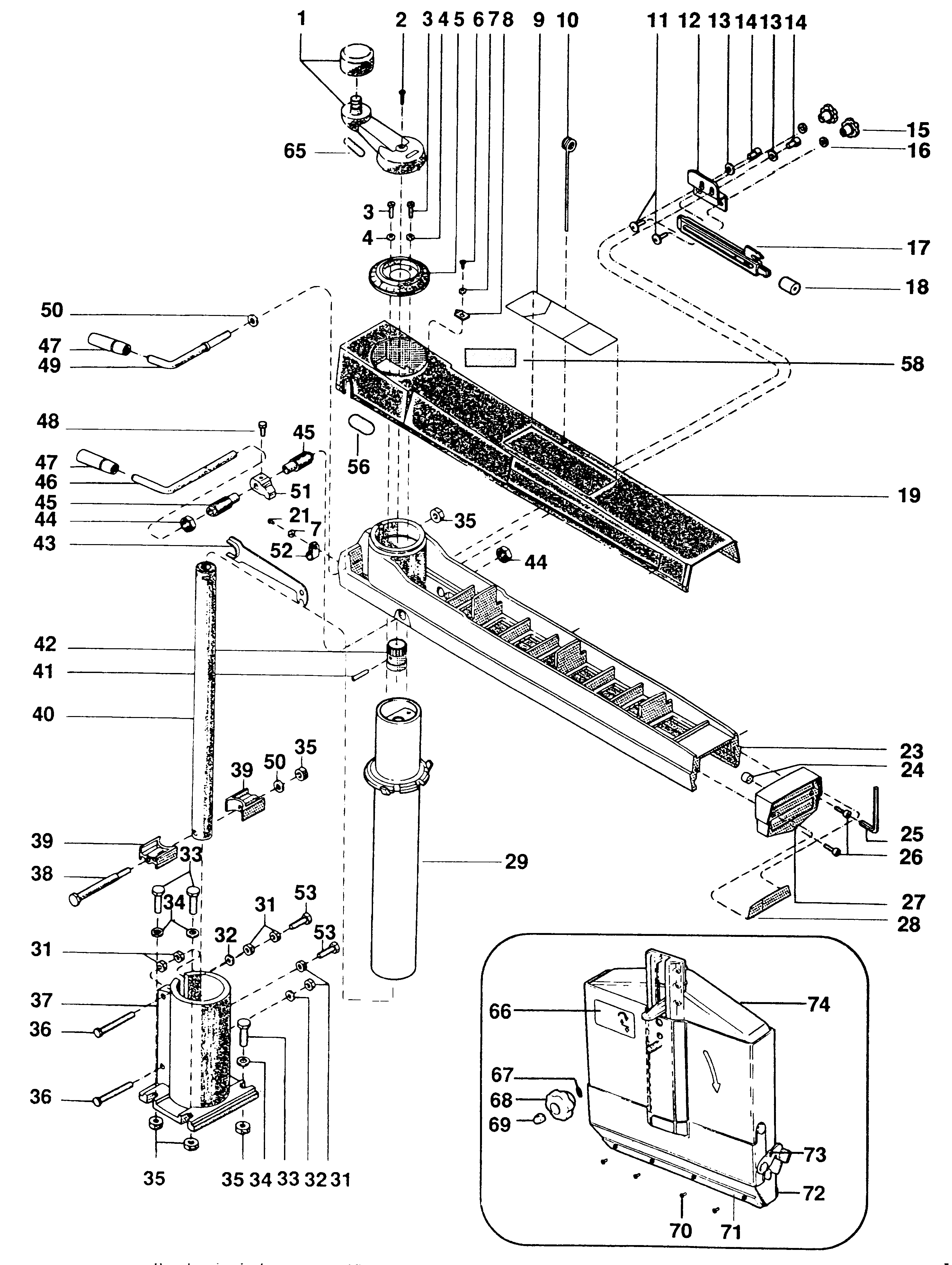

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 199006 - Indisponibil
2 1 1 SCREW (11495) 558 RON
2 1 1 SCREW (934401-00) 558 RON
3 1 2 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
4 1 2 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
5 1 1 CAP (31288) 3466 RON
5 1 1 CAP COLUMN DW1251 (860784-00) 3466 RON
6 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
7 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
8 1 1 POINTER MITRE 7790 (860237-00) 1452 RON
8 1 1 MITRE POINTER (33106) 1229 RON
9 1 1 31079 - Indisponibil
10 1 1 CABLE SUPPORT (32569) 893 RON
10 1 1 CABLE SUPPORT DW125 (863723-00) 1452 RON
11 1 2 SCREW (11365) 558 RON
11 1 2 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
12 1 1 SUPPORT (32530) 2347 RON
12 1 1 SUPPORT FOR STOP ROD BLANK (860787-90) 3018 RON
13 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
14 1 2 SCREW SOCKET M.8X12 UNI 5931 (860093-14) 558 RON
15 1 2 31898 - Indisponibil
15 1 2 KNOB (946469-00) 781 RON
15 1 2 32964 - Indisponibil
16 1 2 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
17 1 1 190572 - Indisponibil
18 1 1 BUMPER FOR STOP D. 16X22 (860786-00) 781 RON
18 1 1 RUBBER CAP FOR BAR (32533) 781 RON
19 1 1 CASING FOR ARM (32577) 10512 RON
19 1 1 SHROUD ARM DW 125 (860839-00) 9282 RON
21 1 3 SCREW (11294) 781 RON
21 1 3 SCREW FIL.HD B M4X10 DIN 7513 (860531-00) 781 RON
23 1 1 ARM (860799-04) 153454 RON
23 1 1 BAR (177401) 86681 RON
24 1 1 BUMPER D.16X10 BLACK (860429-00) 893 RON
25 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
26 1 2 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
27 1 1 76381 - Indisponibil
27 1 1 76514 - Indisponibil
28 1 1 31237 - Indisponibil
29 1 1 197176 - Indisponibil
31 1 6 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
32 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
33 1 4 SCREW (11263) 781 RON
33 1 4 SCREW HEX M.10X45 UNI 5739 (860085-05) 781 RON
34 1 4 WASHER FLAT 10.5X21 UNI6592 Z (860073-04) 558 RON
35 1 6 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
36 1 2 SCREW HEX M.8X70 UNI 5739 (860085-02) 781 RON
36 1 2 SCREW (11133) 781 RON
37 1 1 860016-03 - Indisponibil
37 1 1 COLUMN (177400) 51337 RON
38 1 1 SCREW HEX M.10X110 UNI 5737 (860086-00) 1788 RON
38 1 1 HEXAGONAL HEAD SCREW (11161) 1788 RON
39 1 2 SPACER ELEVATING TUBE (860065-00) 1229 RON
39 1 2 SPACER FOR ELEVATING TUBE (32575) 105 RON
40 1 1 SA SCREW ELEV.L.227+TUBE (860791-00) 5484 RON
40 1 1 TUBE ELEVATING (197116) 34336 RON
41 1 1 PIN SPIRAL 5X28 UNI 6875 (860096-06) 558 RON
42 1 1 131292 - Indisponibil
42 1 1 SLEEVE ELEV.SCREW DW1251BLANK (860831-90) 2347 RON
43 1 1 WRENCH 22-10 SPECIAL (860423-00) 4472 RON
44 1 2 NUT HEX 22X8 M.18X1.5 SPEC. (860232-00) 2124 RON
44 1 2 NUT (32586) 893 RON
45 1 2 SCREW HD13 SET MTR LTCM18X1.5 (860231-00) 4137 RON
45 1 2 SCREW (32585) 4137 RON
46 1 1 33966 - Indisponibil
47 1 2 KNOB (34510) 1229 RON
47 1 2 HANDLE D.20X67XD.10 BLACK (860796-01) 1229 RON
48 1 1 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
49 1 1 860797-90 - Indisponibil
49 1 1 CLAMP ROD (32559) 5031 RON
50 1 2 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
51 1 1 MITRE LATCH (864672-01) 6821 RON
51 1 1 LATCH (190569) 6821 RON
52 1 1 STRAP CABLE N6 3/8 NYLON (860843-02) 558 RON
52 1 1 BRACKET (11712) 781 RON
53 1 2 SCREW SET M.8X35-UNI5925 BRASS (949853-11) 10512 RON
53 1 2 SCREW (12417) 105 RON
56 1 1 34440 - Indisponibil
58 1 1 32010 - Indisponibil
65 1 1 34441 - Indisponibil
66 1 1 31855 - Indisponibil
67 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
68 1 1 865557-00 - Indisponibil
68 1 1 KNOB (131431) 6821 RON
69 1 1 860201-02 - Indisponibil
69 1 1 NUT (11341) 781 RON
70 1 4 SCREW PAN.PHAB 3.5X9.5UNI6954 (860084-05) 558 RON
71 1 1 COVER (31786) 1452 RON
71 1 1 860869-00 - Indisponibil
72 1 1 COVER (31785) 1452 RON
72 1 1 860870-00 - Indisponibil
73 1 1 860868-01 - Indisponibil
73 1 1 SPRING (31434) 6821 RON
74 1 1 860851-00 - Indisponibil
74 1 1 GUARD (198834) 231524 RON
