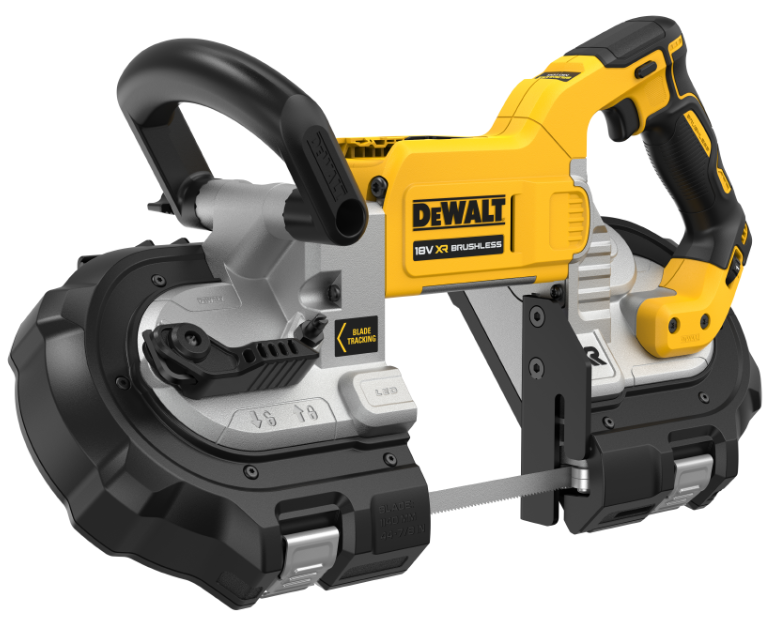

FIERASTRAU CU BANDA DEWALT DCS374N Type 1
[DCS374N Type 1]
FIERASTRAU CU BANDA DEWALT DCS374N Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU CU BANDA DEWALT DCS374N Type 1
Click pentru a mari
FIERASTRAU CU BANDA DEWALT DCS374N Type 1
Click pentru a mari
FIERASTRAU CU BANDA DEWALT DCS374N Type 1
Click pentru a mari

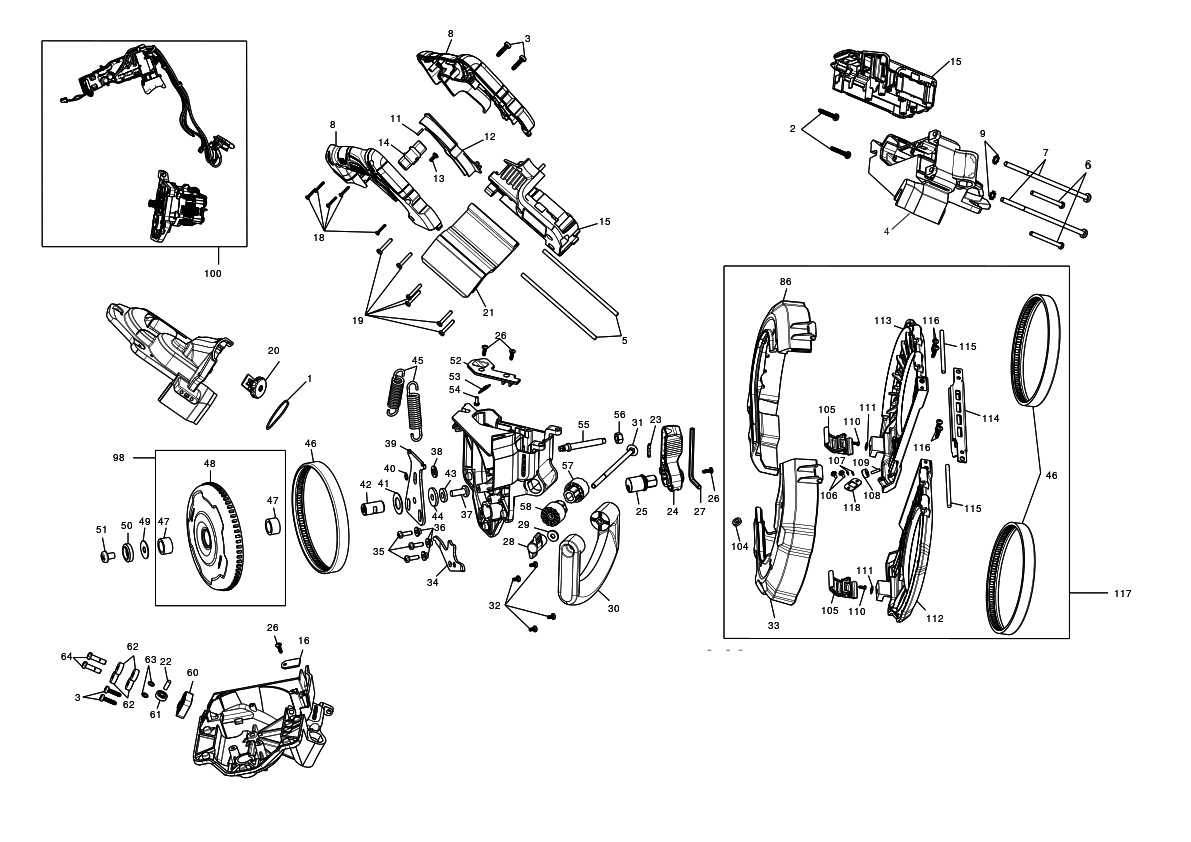

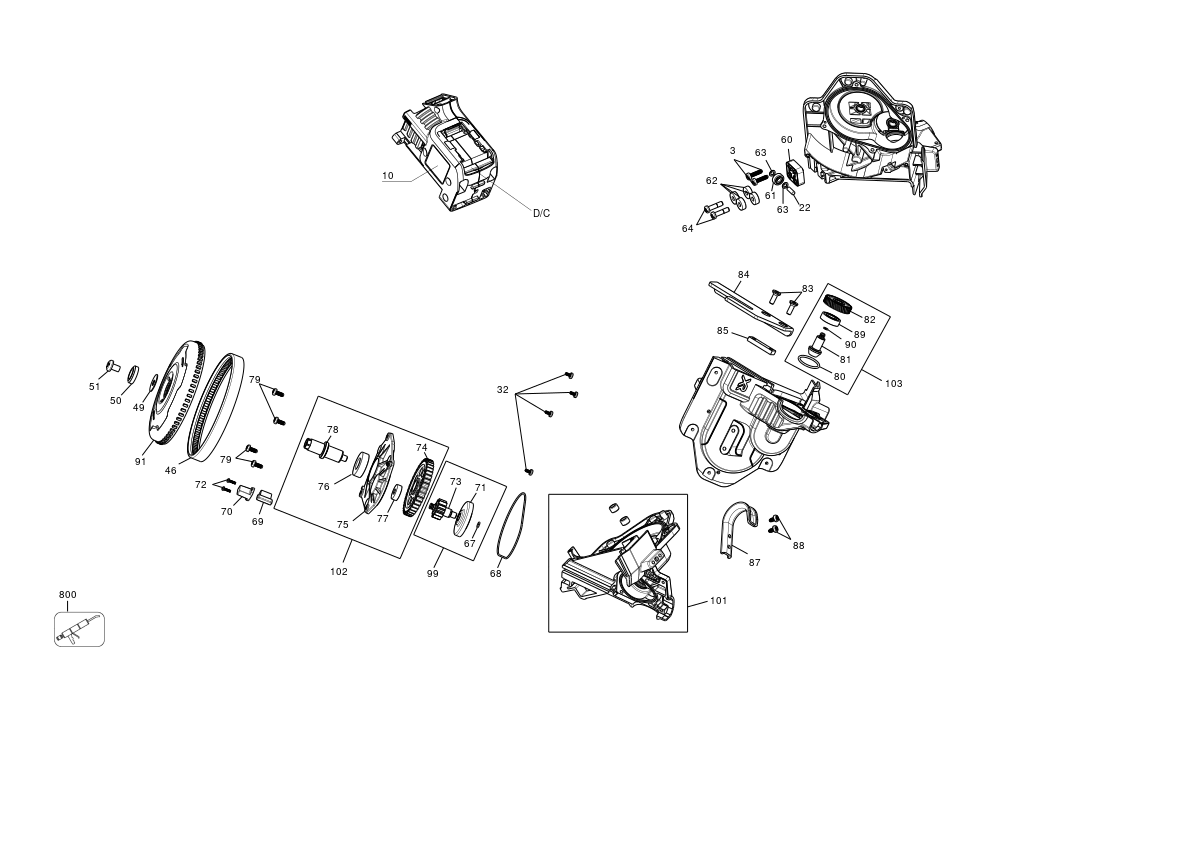

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 O RING (N422502) 588 RON
2 1 2 SCREW (330045-17) 558 RON
3 1 6 Screw Metal (330045-15) 781 RON
4 1 1 SHROUD (N421115) 23244 RON
5 1 2 ROD (652853-00) 82 RON
6 1 2 SCREW (330019-74) 588 RON
7 1 2 BOLT (N467435) 944 RON
8 1 1 HANDLE SA (N476480) 5370 RON
9 1 2 WASHER LOCK (638064-00) 588 RON
10 1 1 RATING LABEL (NA799548) 588 RON
11 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
12 1 1 TUBE. EXHAUST (N413576) 588 RON
13 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
14 1 1 BUTTON LOCK-OFF (N400495) 588 RON
15 1 1 HOUSING SA (N476319) 6688 RON
16 1 1 INSERT (654622-00) 588 RON
18 1 5 SCREW PLASTITE (682211-00) 781 RON
19 1 6 SCREW (330019-14) 558 RON
20 1 1 SPEED REGULATOR (N410778) 4827 RON
21 1 1 COVERPLATE (N404513) 4827 RON
22 1 2 PIN (650732-00) 588 RON
23 1 1 DETENT SPRING (N087259) 558 RON
24 1 1 LEVER (N416205) 944 RON
25 1 1 SHAFT (651756-00) 2796 RON
26 1 4 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
27 1 1 SPANNER (658553-00) 1630 RON
28 1 1 KNOB (656970-00) 944 RON
29 1 1 WASHER (657027-00) 588 RON
30 1 1 HANDLE (N489902) 5370 RON
31 1 1 BOLT (655185-00) 668 RON
32 1 8 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
33 1 1 SHROUD (NA583201) 3954 RON
34 1 1 YOKE (651749-00) 1772 RON
35 1 3 SCREW (N242699) 588 RON
36 1 3 BEARING HOUSING (660104-00) 588 RON
37 1 1 SCREW (330024-52) 588 RON
38 1 1 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
39 1 1 PLATE (651748-00) 2182 RON
40 1 1 CIRCLIP (037653-00) 558 RON
41 1 1 WASHER (803679) 588 RON
42 1 1 SHAFT (656999-00) 2556 RON
43 1 1 WASHER CON ROD D.8XD.25X3 (330016-21) 781 RON
44 1 1 SPACER (656922-00) 588 RON
45 1 2 SPRING (873581) 1630 RON
46 1 2 BAND (NA760196) 741 RON
47 1 2 BEARING (803858) 1772 RON
48 1 1 WHEEL (N414374) 6688 RON
49 1 2 WASHER FIBRE (803435) 82 RON
50 1 2 WASHER (863134) 82 RON
51 1 2 SCREW (330024-51) 588 RON
52 1 1 COVER (N414348) 588 RON
53 1 1 LED (N401707) 3954 RON
54 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
55 1 1 SCREW (653513-00) 1318 RON
56 1 1 NUT (330015-12) 588 RON
57 1 1 BUTTON (N418174) 944 RON
58 1 1 SLEEVE (N407055) 944 RON
60 1 2 BLOCK (N448267) 2182 RON
61 1 2 BEARING (605040-66) 1772 RON
62 1 8 BEARING (605040-65) 1630 RON
63 1 4 WASHER BEARING BLOCK (N447838) 588 RON
64 1 4 BOLT (650736-00) 588 RON
67 1 1 O RING (N421125) 588 RON
68 1 1 O RING (N422503) 1318 RON
69 1 1 BRUSH (N419842) 944 RON
70 1 1 BRUSH CAP (N423878) 588 RON
71 1 1 RIVET (N413892) 5370 RON
72 1 2 SCREW (330045-01) 558 RON
73 1 1 GEARSHAFT (N405345) 5370 RON
74 1 1 Gear (NA809408) 10241 RON
75 1 1 GEARCASE COVER (N521873) 741 RON
76 1 1 BEARING (605040-41) 3268 RON
77 1 1 BEARING 608 (605040-55) 2124 RON
78 1 1 OUTPUT SHAFT (N395263) 4355 RON
79 1 4 SCREW (330045-49) 558 RON
80 1 1 O RING (N439121) 588 RON
81 1 1 SPINDLE (N413891) 6688 RON
82 1 1 Gear (N398341) 4827 RON
83 1 2 SCREW (660010-00) 588 RON
84 1 1 SHOE (650716-00) 2556 RON
85 1 1 SHOE (659418-00) 944 RON
86 1 1 SHROUD (NA583202) 3954 RON
87 1 1 HOOK (651744-00) 2182 RON
88 1 2 SCREW (330045-13) 558 RON
89 1 1 Bearing Ball CWMFG (605040-24) 190 RON
90 1 1 O RING (608115-00) 558 RON
91 1 1 WHEEL REAR (N413634) 9012 RON
98 1 1 FRONT WHEEL (N458860) 10241 RON
99 1 1 GEAR & SHAFT (N454810) 12361 RON
100 1 1 MOTOR & SWITCH SA (N483898) 99395 RON
100 1 1 N450122 - Indisponibil
101 1 1 CASTING SA (N458861) 35435 RON
102 1 1 GEARCASE SA (NA812282) 24962 RON
103 1 1 BEVEL GEAR ASSY (N454812) 16689 RON
104 1 1 SPACER (NA752958) 588 RON
105 1 2 LATCH (NA738599) 1318 RON
106 1 2 SCREW-ROUND HEAD SCREW M3X8 (NA738501) 588 RON
107 1 2 WASHER (NA738503) 588 RON
108 1 1 BUSHING (NA738499) 944 RON
109 1 1 DOWEL (NA738498) 588 RON
110 1 2 SCREW (593478-00) 558 RON
111 1 2 WASHER (NA738495) 588 RON
112 1 1 COVER LH-BLADE COVER LEFT (NA700583) 3268 RON
113 1 1 COVER RH-BLADE COVER RIGHT (NA700741) 3268 RON
114 1 1 LINKAGE SA (NA708291) 2556 RON
115 1 2 ROLL PIN (NA700279) 944 RON
116 1 4 SCREW (330065-08) 558 RON
117 1 1 COVER SA (NA810743) 36994 RON
118 1 1 PLATE (NB085521) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
