FIERASTRAU CU BANDA DEWALT DCS371N Type 2
[DCS371N Type 2]
FIERASTRAU CU BANDA DEWALT DCS371N Type 2
Click pentru a mari
Imagini suplimentare
FIERASTRAU CU BANDA DEWALT DCS371N Type 2
Click pentru a mari
FIERASTRAU CU BANDA DEWALT DCS371N Type 2
Click pentru a mari

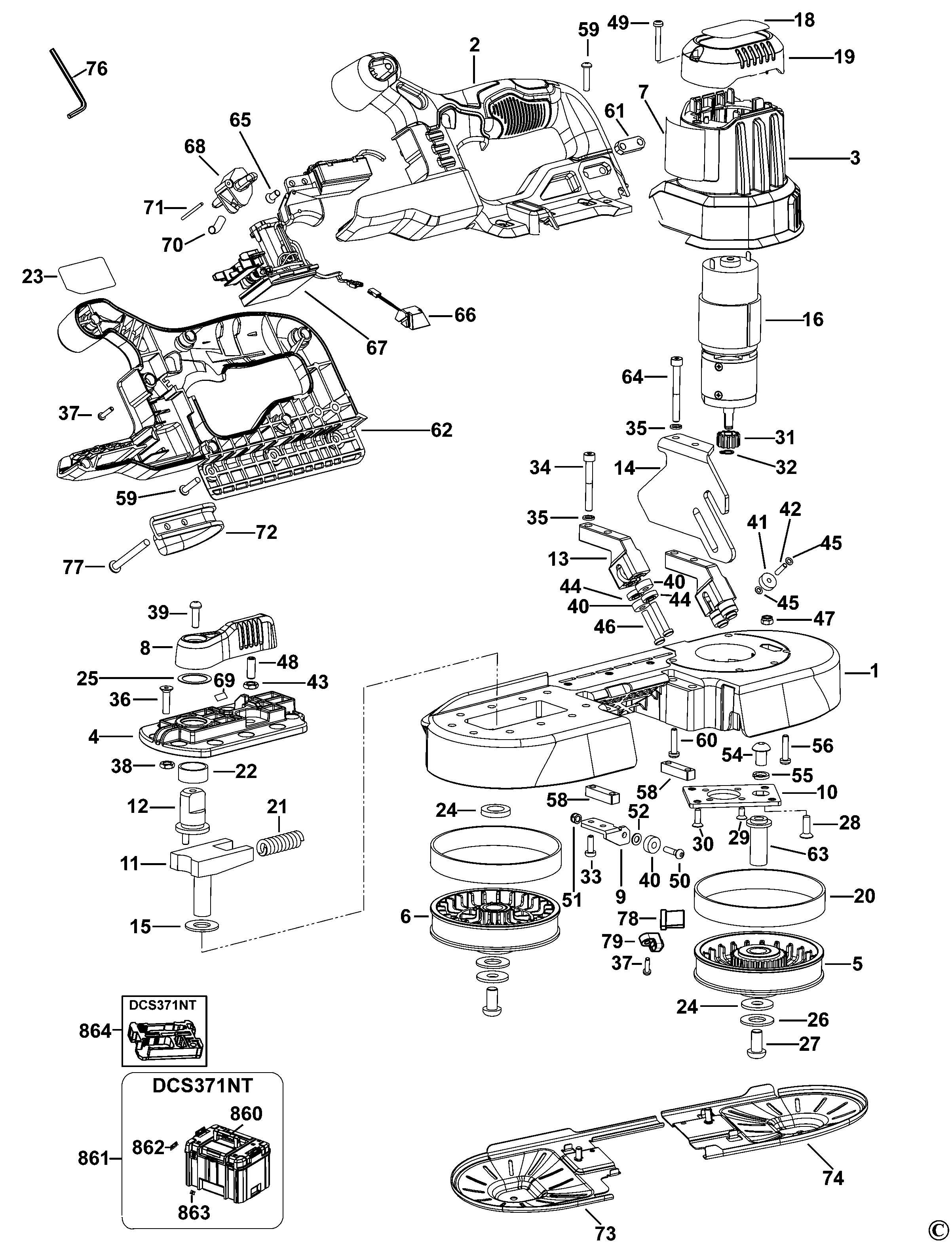

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE (N388446) 44688 RON
2 1 1 CLAMSHELL PAIR (N272142) 24962 RON
3 1 1 HOUSING MOTOR (N071023) 11519 RON
4 1 1 COVERPLATE (N271599) 16689 RON
5 1 1 DRIVER SA (N270220) 40734 RON
6 1 1 WHEEL (N270221) 32327 RON
7 1 1 N333439 - Indisponibil
8 1 1 LEVER (N271605) 3268 RON
9 1 1 N270289 - Indisponibil
10 1 1 PLATE SA (N272128) 6821 RON
11 1 1 BLOCK SA (N271621) 12361 RON
12 1 1 CAM (N271606) 4355 RON
13 1 2 N270285 - Indisponibil
14 1 1 N272132 - Indisponibil
15 1 1 N271625 - Indisponibil
16 1 1 MOTOR AND GEARCASE (N343759) 60451 RON
18 1 1 N333499 - Indisponibil
19 1 1 END CAP (N071024) 4137 RON
20 1 2 WHEEL UPPER BAND (N270205) 3268 RON
21 1 1 SPRING (N271622) 3268 RON
22 1 1 BUSHING (N271601) 2556 RON
23 1 1 RATING PLATE (NA127440) 668 RON
24 1 3 WASHER NYLON (N271623) 668 RON
25 1 1 WASHER BOW (N271602) 82 RON
26 1 2 WASHER (N271624) 588 RON
27 1 2 SCREW (N271626) 82 RON
27 1 2 SCREW (NA001022) 588 RON
28 1 1 SCREW (N272122) 558 RON
29 1 4 SCREW (N271627) 893 RON
30 1 3 SCREW (N271639) 588 RON
31 1 1 PINION (N266472) 741 RON
32 1 1 RETAINER (N266473) 588 RON
33 1 2 SCREW (N271620) 668 RON
34 1 2 SCREW (N271659) 668 RON
35 1 4 WASHER LOCK (N271660) 588 RON
36 1 10 SCREW (N272119) 588 RON
37 1 8 SCREW (N270199) 588 RON
38 1 10 NUT M5 (N272120) 588 RON
39 1 1 SCREW (N271607) 588 RON
40 1 5 BEARING (N270279) 1772 RON
41 1 2 N270280 - Indisponibil
42 1 2 DOWEL (N270281) 588 RON
43 1 2 NUT M6 (N271603) 588 RON
44 1 4 ROLLER (N270282) 1933 RON
45 1 4 WASHER THRUST (N270283) 588 RON
46 1 4 SCREW (N270284) 82 RON
47 1 1 STOP NUT (N123103) 558 RON
48 1 2 SCREW (N271604) 588 RON
49 1 2 SCREW (N272126) 82 RON
50 1 1 SCREW (N270286) 668 RON
51 1 1 N270287 - Indisponibil
52 1 1 WASHER (N270288) 588 RON
54 1 1 SCREW (N271610) 114 RON
55 1 1 WASHER (N271611) 588 RON
56 1 4 SCREW (N272123) 588 RON
58 1 2 GUIDE BLOCK (N272134) 1318 RON
59 1 6 SCREW (N272125) 588 RON
60 1 1 SCREW (N272124) 668 RON
61 1 1 PLATE (N053823) 781 RON
62 1 1 CLAMSHELL PAIR (N272142) 24962 RON
63 1 1 PLATE SA (N272128) 6821 RON
64 1 2 SCREW (N271661) 668 RON
65 1 1 SCREW DW007K (330019-40) 558 RON
66 1 1 LED LIGHT (N272137) 5031 RON
67 1 1 ELECTRONIC AND SWITCH (N314180) 60451 RON
68 1 1 BUTTON LOCK-OFF (NA575073) 741 RON
69 1 2 LABEL-ADJUST (N333519) 588 RON
70 1 1 SPRING DW007K (389120-00) 2124 RON
71 1 1 PIN DW007K (388531-00) 781 RON
72 1 1 HOOK (651744-00) 2182 RON
73 1 1 GUARD SA (N381410) 16689 RON
74 1 1 GUARD SA (N381405) 15469 RON
76 1 1 HEX KEY 3 MM (N272127) 1933 RON
76 1 1 3EX KEY (NA001029) 82 RON
77 1 2 N270202 - Indisponibil
78 1 1 WIPER (N401363) 114 RON
79 1 1 COVER (N401362) 944 RON
860 1 1 HANDLE (H1400198008) 2347 RON
861 1 1 000000-04 - Indisponibil
862 1 1 000000-04 - Indisponibil
863 1 1 000000-04 - Indisponibil
864 1 1 000000-04 - Indisponibil
