FIERASTRAU ALTERNATIV DEWALT RS3100 Type 1
[RS3100 Type 1]
FIERASTRAU ALTERNATIV DEWALT RS3100 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU ALTERNATIV DEWALT RS3100 Type 1
Click pentru a mari

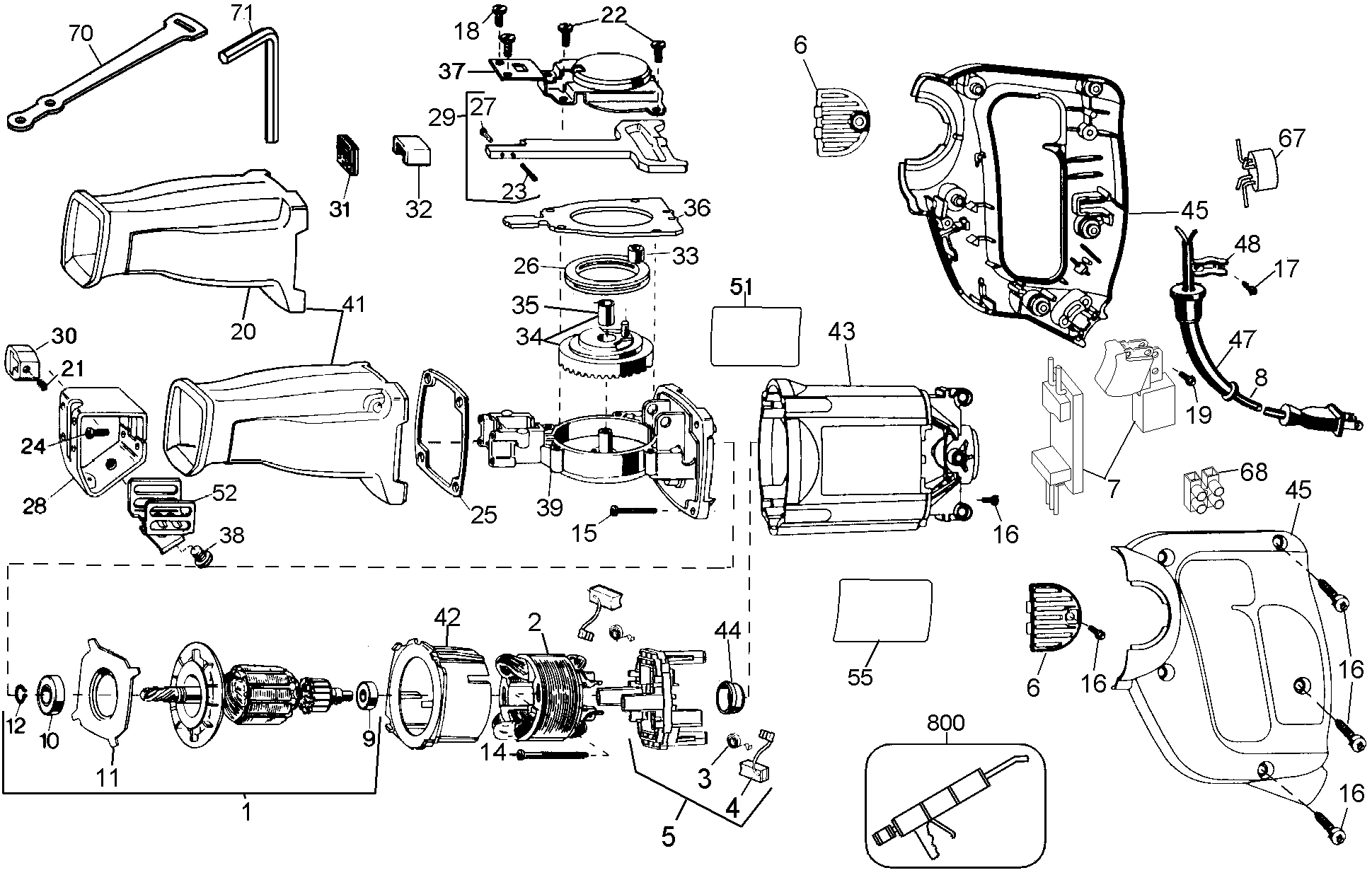

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (383475-01SV) 39145 RON
1 1 1 ARMATURE & FAN (383475-01) 37579 RON
2 1 1 448719-78SV - Indisponibil
2 1 1 FIELD (448719-78) 15993 RON
3 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
4 1 2 384719-03 - Indisponibil
4 1 2 BRUSH 230V SA ( cod vechi 384719-03 ) (N501035) 4137 RON
5 1 1 BRUSH SA (N402490) 741 RON
5 1 1 BRUSHPLATE DW309K (383597-03) 7940 RON
6 1 2 COVER BRUSH DW309K (382751-00) 781 RON
7 1 1 ELECTRONIC & SWITCH (382642-06) 62298 RON
8 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 Ball Brg (605040-20) 2182 RON
10 1 1 BEARING BALL (330003-09) 2795 RON
10 1 1 Ball Brg (605040-20) 2182 RON
11 1 1 PLATE (383476-00) 1117 RON
12 1 1 RETAINER (696060-00) 558 RON
14 1 1 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
14 1 1 SCREW PLASTITE (330019-18) 558 RON
15 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
16 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
17 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
18 1 2 SCREW (158472-00) 558 RON
19 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
20 1 1 BOOT (146583-00) 4137 RON
20 1 1 COVER (N028019) 5591 RON
20 1 1 COVER (NA575106) 15469 RON
21 1 1 SCREW (385927-00) 558 RON
22 1 4 SCREW (144457-02) 558 RON
23 1 1 PIN (144434-00) 558 RON
24 1 4 SCREW (142940-00) 558 RON
25 1 1 GASKET (616609-00) 781 RON
25 1 1 GASKET (146576-00) 105 RON
26 1 1 RING (144424-01) 2347 RON
26 1 1 RING (N401394) 5370 RON
26 1 1 RING (616393-00) 2347 RON
27 1 1 PIN (158466-00) 558 RON
28 1 1 SHOE (399725-00) 3466 RON
29 1 1 SHAFT (679869-00) 4137 RON
30 1 1 BLADE CLAMP (381749-01) 7940 RON
31 1 1 SEAL SA (386698-00) 781 RON
32 1 1 BEARING (450865-00) 781 RON
33 1 1 BEARING NEEDLE (385238-00) 1788 RON
34 1 1 BEARING NEEDLE (606113-00) 17335 RON
35 1 1 ROLLER BEARING (135531-00) 1452 RON
36 1 1 PLATE (143462-02) 2347 RON
36 1 1 616344-00 - Indisponibil
36 1 1 PLATE (N083910) 2347 RON
36 1 1 PLATE (616394-00) 2347 RON
37 1 1 COVER PLATE (448489-03) 2124 RON
38 1 1 SCREW (099279-08) 558 RON
38 1 1 99279-08 - Indisponibil
39 1 1 449824-09 - Indisponibil
39 1 1 GEARCASE (616333-00) 17335 RON
39 1 1 GEARCASE (616333-00SV) 15469 RON
41 1 1 COVER SA (605737-00) 6821 RON
41 1 1 COVER SA (621608-00) 5591 RON
42 1 1 BAFFLE FAN DW309K (382750-01) 1788 RON
43 1 1 FIELDCASE (382747-13) 12861 RON
44 1 1 SLEEVE (137382-02) 558 RON
45 1 1 CLAMSHELL SET (383598-05) 7940 RON
47 1 1 N542553 - Indisponibil
47 1 1 PROTECTOR CORD (330005-01) 105 RON
47 1 1 CORD PROTECTOR (N918736) 668 RON
48 1 1 CORD CLAMP (86634-00) 558 RON
51 1 1 NAMEPLATE (617654-00) 781 RON
52 1 1 GUARD (157325-00) 190 RON
55 1 1 IDENTITY LABEL (617653-00) 781 RON
67 1 1 SUPPRESSOR (608357-00) 10512 RON
67 1 1 ELECTRONIC & SWITCH (382642-06) 62298 RON
68 1 1 BLOCK TERMINAL (320078-00) 1452 RON
70 1 1 HOLDER (449817-00) 781 RON
71 1 1 98000-11 - Indisponibil
71 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
800 1 1 GREASE (429698-00) 62298 RON
