Top » Piese de schimb » PIESE DEWALT » DCS388 Type 1

FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS388 Type 1
[DCS388 Type 1]
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS388 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS388 Type 1
Click pentru a mari
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS388 Type 1
Click pentru a mari

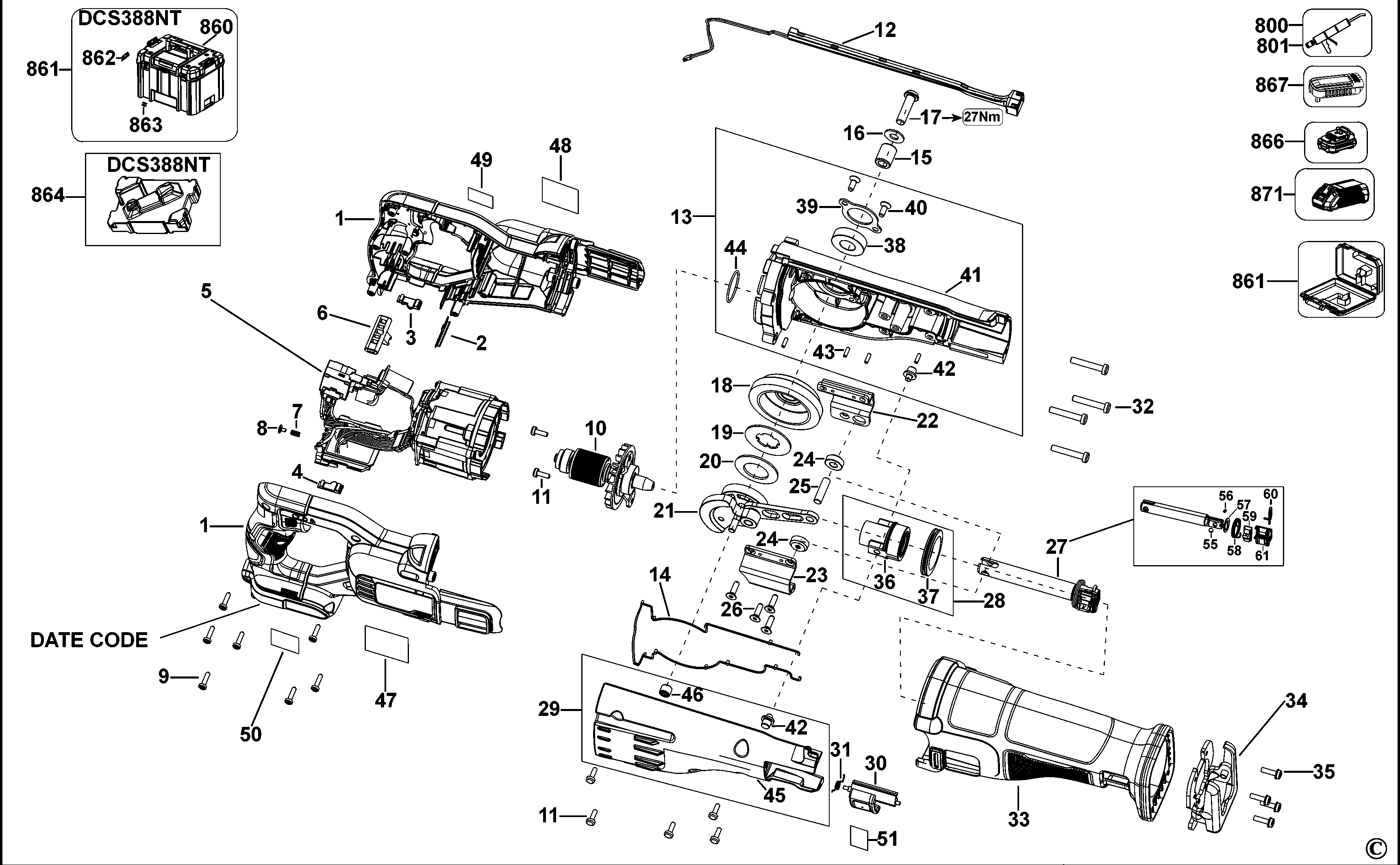

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N456253) 13697 RON
2 1 1 PLATE (N466021) 588 RON
3 1 1 INSERT (N728012) 588 RON
3 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
4 1 1 INSERT (N728013) 588 RON
4 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
5 1 1 MOTOR SA (N808739) 125542 RON
5 1 1 N470077 - Indisponibil
6 1 1 BUTTON LOCK-OFF (N425240) 588 RON
7 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
8 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
9 1 7 Screw M3.5X16 T15 (330019-03) 558 RON
10 1 1 N469235 - Indisponibil
11 1 7 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
12 1 1 LED LIGHT (N469234) 5370 RON
13 1 1 GEARCASE SA (N463923) 20216 RON
14 1 1 GASKET (N451939) 1933 RON
15 1 1 BEARING (N410605) 1772 RON
16 1 1 WASHER (N431139) 588 RON
17 1 1 SCREW (N410607) 588 RON
18 1 1 Gear (N463922) 11337 RON
19 1 1 WASHER SPECIAL (N410604) 668 RON
20 1 1 WASHER (N410595) 82 RON
21 1 1 CRANKSHAFT (N463918) 11337 RON
22 1 1 GUIDE (N451098) 2182 RON
23 1 1 GUIDE (N451099) 2182 RON
24 1 2 ROLLER (N410597) 668 RON
25 1 1 PIN (N422091) 668 RON
26 1 4 SCREW (N465031) 588 RON
27 1 1 SHAFT SA (N463921) 20216 RON
28 1 1 BUSHING (N469236) 12361 RON
29 1 1 GEARCASE COVER SA (N463925) 15469 RON
30 1 1 LEVER RELEASE (N450135) 1630 RON
31 1 1 SPRING (N455745) 588 RON
32 1 4 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
33 1 1 RUBBER BOOT (N422455) 741 RON
34 1 1 SHOE SA (N436884) 5370 RON
35 1 4 SCREW (142940-00) 558 RON
36 1 1 BUSHING (N475464) 10241 RON
37 1 1 RUBBER SEAL BL61 RECIP SAW (N410601) 944 RON
38 1 1 BEARING BALL CW MFG (605040-25) 2347 RON
39 1 1 BEARING HOLDER (N424451) 588 RON
40 1 1 SCREW (N482531) 588 RON
41 1 1 GEARCASE (N437012) 16689 RON
42 1 2 PIN (N421926) 1318 RON
43 1 4 PIN (330041-04) 588 RON
44 1 1 O RING (N100358) 558 RON
45 1 1 GEARCASE COVER (N502346) 9012 RON
45 1 1 N437380 - Indisponibil
46 1 1 BEARING NEEDLE (330004-20) 1117 RON
47 1 1 N459171 - Indisponibil
48 1 2 BRAND LABEL (N468144) 588 RON
49 1 1 LEFT XR FLEXVOLT LABEL DCS575/DCS576 EAN (N459248) 1318 RON
50 1 1 RIGHT XR FLEXVOLT LABEL DCS575/DCS576 EA (N459249) 1318 RON
51 1 1 LABEL (N468143) 588 RON
55 1 1 BALL (000903-00) 558 RON
55 1 1 903-00 - Indisponibil
56 1 1 PIN (386786-00) 558 RON
57 1 1 WASHER SPECIAL (N473286) 588 RON
58 1 1 SPRING BLADE CLAMP (623343-00) 781 RON
59 1 1 SLIDER (N133647) 105 RON
59 1 1 SLIDER (NA874063) 944 RON
60 1 1 LOCK PIN (620663-00) 781 RON
61 1 1 BLADE CLAMP (604731-00) 5031 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N443156) 23244 RON
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 TRAY (N528735) 741 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
