Top » Piese de schimb » PIESE DEWALT » DCS387N Type 1

FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS387N Type 1
[DCS387N Type 1]
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS387N Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DCS387N Type 1
Click pentru a mari

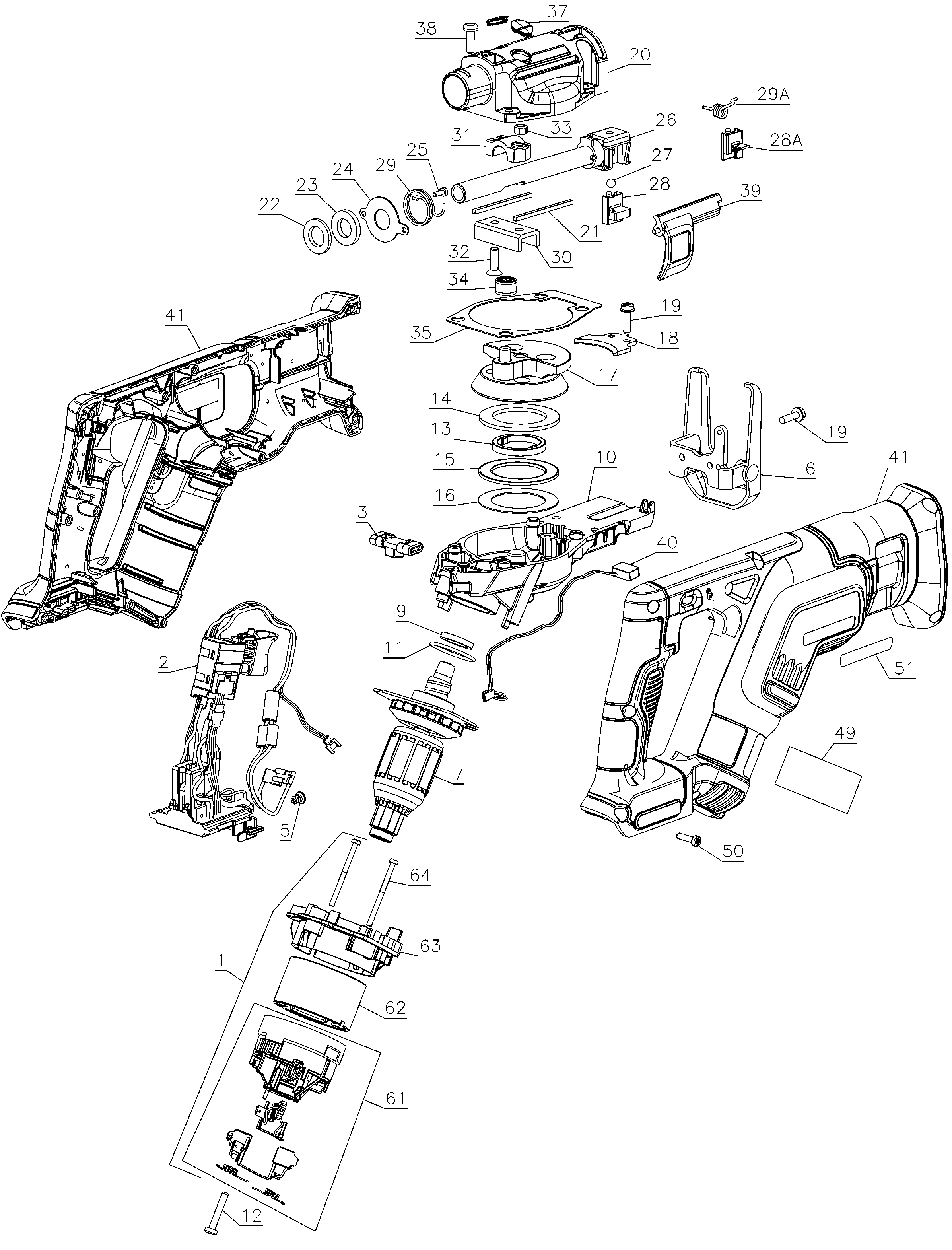

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BAFFLE SA (N406590) 13697 RON
2 1 1 ELECTRONIC AND SWITCH (N406591) 35435 RON
3 1 1 BUTTON LOCK-OFF (N060864) 893 RON
5 1 1 SA TERMINAL BLOCK SPRING (N117271) 588 RON
5 1 1 SPRING (N453948) 3268 RON
5 1 1 SPRING (N117271SV) 668 RON
6 1 1 SHOE SA (N226256) 6688 RON
7 1 1 ARMATURE SA (N406598) 21676 RON
9 1 1 FELT SEAL (N143636) 893 RON
10 1 1 N210493 - Indisponibil
10 1 1 GEARCASE SA (N435110) 15469 RON
11 1 1 O RING (N129171) 558 RON
12 1 3 SCREW (N130874) 558 RON
13 1 1 SPACER (N143177) 893 RON
14 1 1 WASHER THRUST (N124072) 3018 RON
15 1 1 THRUST BEARING (N115646) 2347 RON
16 1 1 WASHER THRUST (N115647) 190 RON
17 1 1 GEAR SA (N406599) 21676 RON
18 1 1 THRUST PLATE (N115642) 105 RON
19 1 4 SCREW (142940-00) 558 RON
20 1 1 GEARCASE COVER SA (N195829) 9282 RON
21 1 2 STRIP (621979-00) 558 RON
22 1 1 SEAL (618733-00) 105 RON
23 1 1 FELT SEAL (618477-00) 781 RON
24 1 1 COVERPLATE (N020720) 781 RON
25 1 1 Screw Taptite (330045-43) 558 RON
26 1 1 N399977 - Indisponibil
26 1 1 N413035 - Indisponibil
26 1 1 SHAFT SA (N026647) 25164 RON
27 1 1 BALL (000903-00) 558 RON
28 1 1 SLIDER (622647-00) 3018 RON
28A 1 1 SLIDER (N252639) 3954 RON
29A 1 1 SPRING (N426742) 82 RON
29 1 1 SPRING TORSION (622659-00) 781 RON
30 1 1 YOKE (658115-00) 3018 RON
31 1 1 Saddle (617000-00) 2124 RON
32 1 2 SCREW (N191614) 668 RON
33 1 2 LOCK NUT (N191590) 588 RON
34 1 1 BEARING (N021857) 3466 RON
35 1 1 GASKET (N115641) 781 RON
37 1 2 COVER (N131037) 558 RON
38 1 4 SCREW (144457-02) 558 RON
39 1 1 LEVER SA (N412063) 3268 RON
40 1 1 SA LED WITH OVERMOLD (N348279) 3268 RON
41 1 1 CLAMSHELL SET (N406597) 18568 RON
49 1 1 RATING PLATE (N388374) 588 RON
50 1 11 Screw M3.5X16 T15 (330019-03) 558 RON
51 1 1 BRAND LABEL (N393845) 1630 RON
61 1 1 BRUSH HOLDER SA (N412223) 6688 RON
62 1 1 N278999 - Indisponibil
62 1 1 MAGNET (NA454570) 12361 RON
63 1 1 BAFFLE FAN (N408888) 1630 RON
64 1 2 SCREW (N388976) 588 RON
