Top » Piese de schimb » PIESE DEWALT » DC385N Type 2

FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DC385N Type 2
[DC385N Type 2]
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DC385N Type 2
Click pentru a mari
Imagini suplimentare
FIERASTRAU ALTERNATIV CU ACUMULATOR DEWALT DC385N Type 2
Click pentru a mari

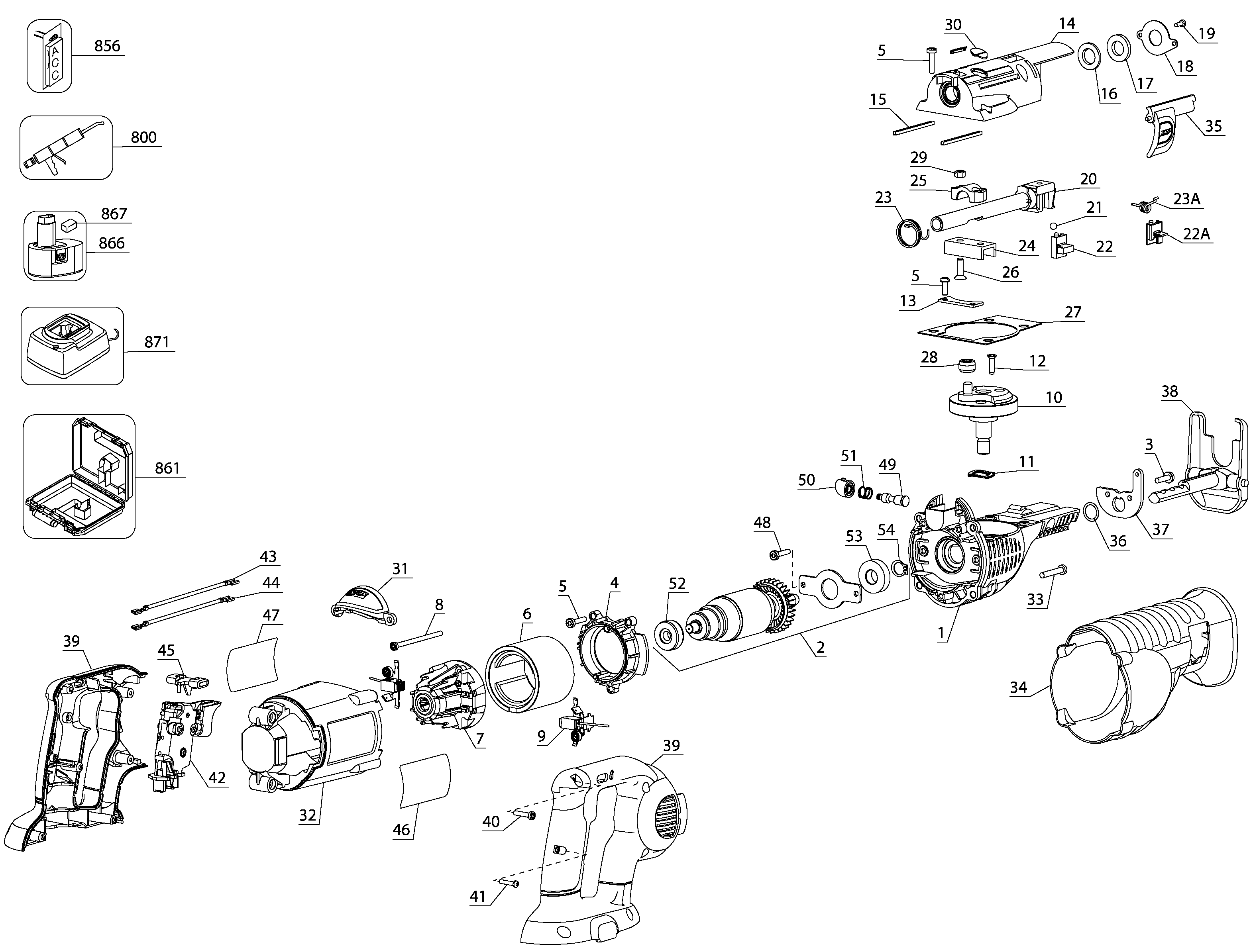

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (613138-00) 22144 RON
1 1 1 GEARCASE SA (613138-00SV) 26730 RON
2 1 1 617376-00SV - Indisponibil
2 1 1 ARMATURE SA (617376-00) 28296 RON
3 1 2 SCREW (142940-00) 558 RON
4 1 1 BAFFLE FAN (613137-00) 2124 RON
5 1 9 SCREW (613619-00) 781 RON
6 1 1 MAGNET (611202-00SV) 9282 RON
6 1 1 SA MAGNET RING (611202-00) 9282 RON
7 1 1 SUPPORT REAR BEARING (610107-00) 2124 RON
7 1 1 SUPPORT BEARING (N171820) 2124 RON
8 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
9 1 2 BRUSH SA (610126-00) 2795 RON
10 1 1 GEAR & SPINDLE (615940-00SV) 3124 RON
10 1 1 GEAR & SPINDLE SA (615940-00) 22144 RON
11 1 1 WASHER SPECIAL (619618-00) 893 RON
12 1 3 SCREW (622484-00) 558 RON
13 1 1 SUPPORT PLATE (621173-00) 558 RON
14 1 1 GEARCASE COVER (N027851) 15993 RON
14 1 1 GEARCASE COVER (N027851SV) 9282 RON
14 1 1 GEARCASE COVER (618612-00) 7940 RON
15 1 2 STRIP (621979-00) 558 RON
16 1 1 SEAL (618733-00) 105 RON
17 1 1 FELT SEAL (618477-00) 781 RON
18 1 1 COVERPLATE (N020720) 781 RON
18 1 1 COVERPLATE (618479-00) 781 RON
19 1 1 Screw Taptite (330045-43) 558 RON
20 1 1 SHAFT SA (629270-00) 29862 RON
20 1 1 SHAFT SA (N026647) 25164 RON
21 1 1 BALL (000903-00) 558 RON
21 1 1 903-00 - Indisponibil
22A 1 1 SLIDER (622647-00) 3018 RON
22 1 1 SLIDER (N252639) 3954 RON
23A 1 1 SPRING (N426742) 82 RON
23 1 1 SPRING TORSION (622659-00) 781 RON
24 1 1 YOKE (658115-00) 3018 RON
24 1 1 YOKE (615946-00) 4137 RON
25 1 1 Saddle (617000-00) 2124 RON
26 1 2 SCREW (622486-00) 558 RON
27 1 1 GASKET (617389-00) 781 RON
27 1 1 GASKET (N063272) 781 RON
28 1 1 647808-00 - Indisponibil
28 1 1 BEARING (N021857) 3466 RON
29 1 2 LOCK NUT (622485-00) 558 RON
30 1 2 COVER (621927-00) 558 RON
31 1 1 INSERT (N030977) 1117 RON
31 1 1 INSERT (621506-00) 2124 RON
32 1 1 HOUSING MOTOR (613143-01) 4472 RON
32 1 1 N264499 - Indisponibil
32 1 1 MOTOR HOUSING SA (N914377) 5370 RON
33 1 4 SCREW (330019-45) 558 RON
34 1 1 BOOT (617390-00) 5591 RON
34 1 1 BOOT (N084697) 5591 RON
35 1 1 LEVER (617208-00) 6821 RON
35 1 1 LEVER (617208-00SV) 11519 RON
37 1 1 BRACKET (617008-00) 105 RON
38 1 1 SHOE SA (623511-00) 1891 RON
38 1 1 SHOE SA (623511-00SV) 26730 RON
39 1 1 CLAMSHELL SET (N104712) 5591 RON
39 1 1 CLAMSHELL SET (650713-00) 6821 RON
39 1 1 CLAMSHELL SET (615943-00) 7940 RON
39 1 1 CLAMSHELL SET (N014989) 6821 RON
40 1 6 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
41 1 1 SCREW PLASTITE (682211-00) 781 RON
42 1 1 SWITCH (152274-19) 32770 RON
42 1 1 SWITCH (152274-19SV) 29862 RON
42 1 1 152274-30 - Indisponibil
43 1 1 LEAD SA (N172278) 3018 RON
45 1 1 SA BUTTON (607100-00) 1117 RON
46 1 1 IDENTITY LABEL (614878-00) 558 RON
47 1 1 RATING PLATE (N049692) 781 RON
47 1 1 RATING PLATE (646731-00) 781 RON
48 1 2 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
49 1 1 LOCK PIN (615983-00) 105 RON
50 1 1 CAP (617733-00) 781 RON
51 1 1 SPRING (618427-00) 558 RON
52 1 1 SA BEARING AND BOOT (391032-00) 2795 RON
53 1 1 BEARING BALL (330003-64) 4137 RON
54 1 1 RETAINER (696060-00) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
856 1 1 628977-01 - Indisponibil
861 1 1 KITBOX (N087255) 25164 RON
861 1 1 KITBOX (619795-00) 22144 RON
861 1 1 SA KITBOX 2 (655351-00) 20467 RON
861 1 1 KITBOX (N152704) 1891 RON
866 1 1 DE9180 - Indisponibil
866 1 1 389795-20 - Indisponibil
867 1 1 CAP (645221-00) 558 RON
871 1 1 DE9135 - Indisponibil
