FERASTRAU DE MASA DEWALT DW719 Type 1
[DW719 Type 1]
FERASTRAU DE MASA DEWALT DW719 Type 1
Click pentru a mari
Imagini suplimentare
FERASTRAU DE MASA DEWALT DW719 Type 1
Click pentru a mari
FERASTRAU DE MASA DEWALT DW719 Type 1
Click pentru a mari
FERASTRAU DE MASA DEWALT DW719 Type 1
Click pentru a mari

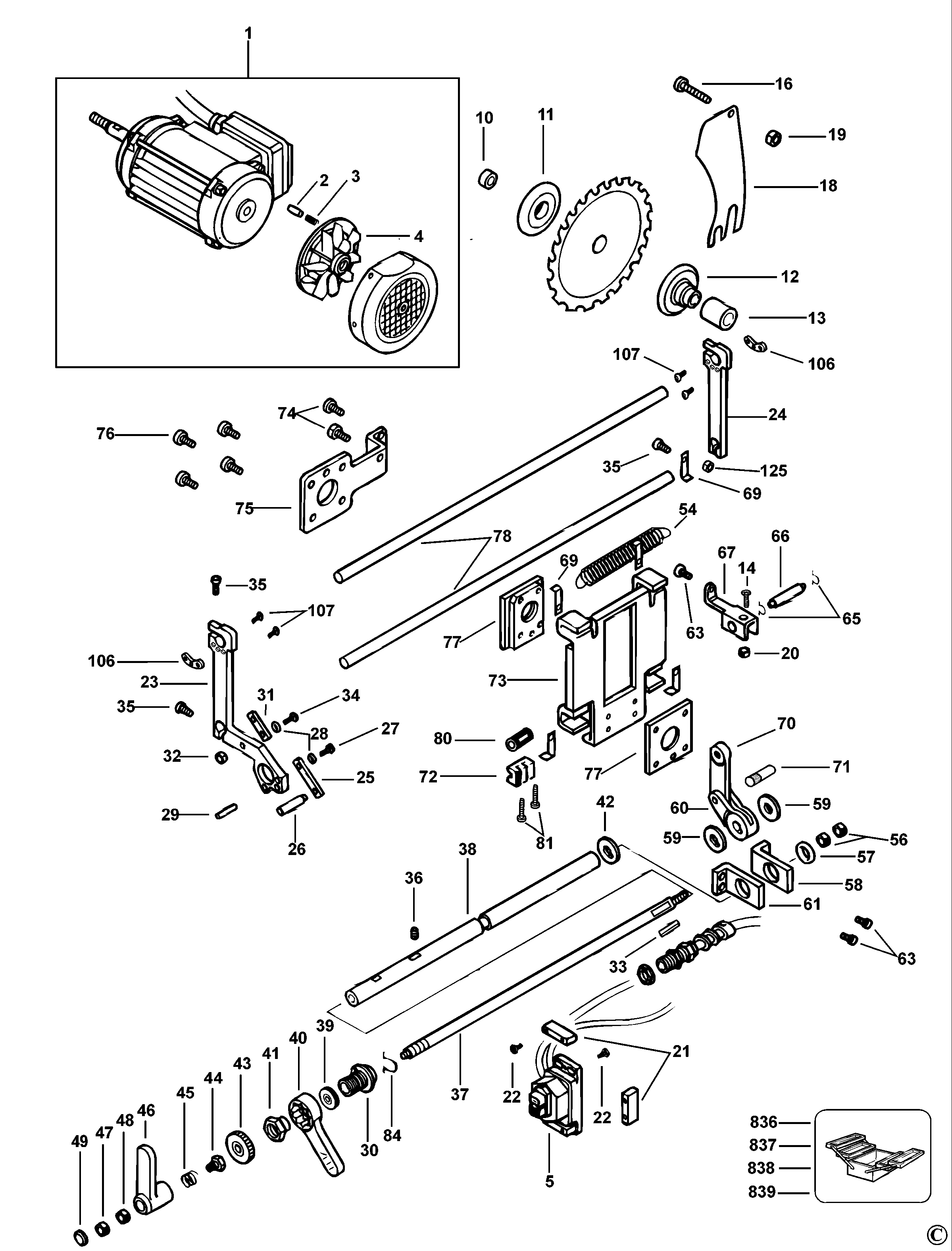

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR (568712-00) 398067 RON
2 1 4 ROD (568713-00) 4137 RON
3 1 4 SPRING (568714-00) 3018 RON
4 1 1 FAN (568715-00) 6821 RON
5 1 1 568716-00 - Indisponibil
6 1 1 GUARD (568719-00) 39145 RON
7 1 1 HOSE (568720-00) 3124 RON
8 1 1 568721-00 - Indisponibil
9 1 1 279315-00 - Indisponibil
10 1 1 NUT (279407-00) 6821 RON
10 1 1 NUT (569282-00) 2347 RON
11 1 1 OUTER FLANGE (568722-00) 15993 RON
12 1 1 INNER FLANGE (568723-00) 10512 RON
13 1 1 BUSH (568724-00) 6821 RON
14 1 1 BOLT (568725-00) 3018 RON
15 1 1 SCREW (568726-00) 3018 RON
16 1 1 BOLT (568727-00) 3018 RON
18 1 1 RIVING KNIFE (568729-00) 1891 RON
19 1 1 NUT (568730-00) 3018 RON
20 1 1 NUT (568731-00) 3018 RON
21 1 2 SPACER (568732-00) 7940 RON
22 1 8 BOLT (569039-00) 190 RON
23 1 1 ARM (568734-00) 70239 RON
24 1 1 ARM (568735-00) 4825 RON
25 1 1 PLATE (568736-00) 5591 RON
26 1 1 LEVER (568737-00) 3018 RON
27 1 1 BOLT (568738-00) 558 RON
28 1 2 WASHER (568739-00) 3018 RON
29 1 1 PIN (568740-00) 3018 RON
30 1 1 BUSH (568741-00) 20467 RON
31 1 1 PLATE (568742-00) 4472 RON
32 1 1 NUT (568743-00) 3018 RON
33 1 1 KEY (568744-00) 3018 RON
34 1 1 SCREW (568745-00) 3018 RON
35 1 4 BOLT (568746-00) 3018 RON
36 1 1 GRUB SCREW (568747-00) 3018 RON
37 1 1 ROD (568748-00) 3018 RON
38 1 1 ROD (568749-00) 43731 RON
39 1 1 RING (568750-00) 5484 RON
40 1 1 LEVER (568751-00) 5031 RON
41 1 1 NUT (568752-00) 14315 RON
42 1 1 WASHER (568753-00) 11519 RON
43 1 1 WHEEL (568754-00) 3018 RON
44 1 1 NUT (568755-00) 9282 RON
45 1 1 SPRING (568756-00) 5031 RON
46 1 1 LEVER (568757-00) 3018 RON
47 1 1 NUT (568758-00) 14315 RON
48 1 1 NUT (568759-00) 3018 RON
49 1 1 CAP (568760-00) 3018 RON
50 1 2 CLAMP (568761-00) 3018 RON
51 1 1 SCREW (568762-00) 3018 RON
52 1 1 SCALE (568763-00) 10512 RON
53 1 1 HOLDER (568764-00) 14315 RON
54 1 1 SPRING (568765-00) 3466 RON
55 1 1 WASHER (568766-00) 3018 RON
56 1 1 NUT (568767-00) 3018 RON
57 1 1 WASHER (568768-00) 3018 RON
58 1 1 REAR BRACKET (568769-00) 12861 RON
59 1 1 WASHER (568770-00) 6821 RON
60 1 1 LEVER (568771-00) 7940 RON
61 1 1 FRONT BRACKET (568772-00) 12861 RON
63 1 4 BOLT (568774-00) 3018 RON
65 1 2 CIRCLIP (568776-00) 3018 RON
66 1 1 PIN (568777-00) 3018 RON
67 1 1 BRACKET (568778-00) 17335 RON
68 1 4 SCREW (568779-00) 3018 RON
69 1 8 PLATE (568780-00) 3018 RON
70 1 1 LEVER (568781-00) 4472 RON
71 1 1 568782-00 - Indisponibil
72 1 4 SUPPORT (568783-00) 3018 RON
73 1 1 SUPPORT (568784-00) 37579 RON
74 1 2 BOLT (569042-00) 190 RON
75 1 1 PLATE (568786-00) 70239 RON
76 1 4 BOLT (568787-00) 190 RON
77 1 2 PLATE (568788-00) 4472 RON
78 1 2 SHAFT (568789-00) 26730 RON
80 1 4 BEARING (568791-00) 3124 RON
81 1 8 BOLT (568792-00) 3018 RON
84 1 1 CIRCLIP (568793-00) 3018 RON
85 1 2 PANEL (568794-00) 39145 RON
86 1 1 PANEL (568795-00) 86681 RON
87 1 1 PANEL (568796-00) 80865 RON
88 1 1 PANEL (568797-00) 1891 RON
89 1 2 PLATE (568798-00) 74937 RON
90 1 2 RAIL (568799-00) 46863 RON
91 1 2 RAIL (568800-00) 5484 RON
92 1 4 PIECE (568801-00) 1891 RON
93 1 16 BOLT (569041-00) 190 RON
94 1 1 GUARD (568803-00) 32770 RON
95 1 1 SCALE (568804-00) 4137 RON
96 1 8 PLATE (568805-00) 3018 RON
97 1 2 PLATE (568806-00) 12861 RON
98 1 2 PLATE (568807-00) 9282 RON
99 1 2 PLATE (568808-00) 37579 RON
100 1 1 PLATE (568809-00) 10512 RON
101 1 2 PLATE (568810-00) 4472 RON
102 1 1 PLATE (568811-00) 10512 RON
103 1 2 BOLT (569039-00) 190 RON
106 1 2 LOCATOR (568814-00) 6821 RON
107 1 4 SCREW (568815-00) 3018 RON
109 1 1 PUSH BLOCK (568817-00) 5031 RON
110 1 4 BRACE (568818-00) 5031 RON
111 1 4 BOLT (568819-00) 3018 RON
112 1 4 FOOT (568820-00) 3018 RON
113 1 8 BOLT (569041-00) 190 RON
114 1 2 ECCENTRIC (279978-00) 4472 RON
115 1 2 STOP (279979-00) 190 RON
116 1 16 BOLT (568822-00) 3018 RON
117 1 12 SCREW (568823-00) 3018 RON
118 1 4 SCREW (568824-00) 3018 RON
119 1 2 SCREW (568825-00) 3018 RON
120 1 1 BOLT (569292-00) 3018 RON
121 1 1 BOLT (569293-00) 3018 RON
122 1 2 568828-00 - Indisponibil
123 1 4 NUT (568829-00) 3018 RON
124 1 4 WASHER (569294-00) 3018 RON
125 1 1 NUT (569295-00) 3018 RON
141 1 1 FENCE SA (568699-00) 91714 RON
142 1 1 KNOB (279311-00) 2124 RON
143 1 1 PIVOT (279361-00) 1788 RON
144 1 1 PROTRACTOR (279401-00) 28296 RON
145 1 1 LEAF SPRING (279402-00) 1117 RON
146 1 1 279403-00 - Indisponibil
147 1 2 SOCKET HEAD SCREW (760219-00) 558 RON
148 1 1 568700-00 - Indisponibil
149 1 1 568704-00 - Indisponibil
150 1 1 KNOB (279395-00) 190 RON
151 1 1 WASHER (568830-00) 190 RON
152 1 1 WASHER (568831-00) 3018 RON
154 1 1 WASHER (568833-00) 190 RON
155 1 1 LEVER (568705-00) 6821 RON
156 1 1 SCREW (279378-00) 190 RON
157 1 1 ECCENTRIC (279399-00) 2795 RON
158 1 1 COVER LH (560239-00) 2347 RON
159 1 1 FENCE (568706-00) 53015 RON
160 1 1 560240-00 - Indisponibil
161 1 1 BOLT (568834-00) 190 RON
162 1 1 WASHER (568835-00) 190 RON
163 1 1 CLAMP (559766-00) 2347 RON
164 1 2 BOLT (569040-00) 190 RON
836 1 1 559622-99 - Indisponibil
837 1 1 559623-99 - Indisponibil
838 1 1 559624-99 - Indisponibil
839 1 1 559625-99 - Indisponibil
