Top » Piese de schimb » PIESE DEWALT » DCS7485 Type 1

FERASTRAU DE MASA DEWALT DCS7485 Type 1
[DCS7485 Type 1]
FERASTRAU DE MASA DEWALT DCS7485 Type 1
Click pentru a mari
Imagini suplimentare
FERASTRAU DE MASA DEWALT DCS7485 Type 1
Click pentru a mari
FERASTRAU DE MASA DEWALT DCS7485 Type 1
Click pentru a mari
FERASTRAU DE MASA DEWALT DCS7485 Type 1
Click pentru a mari
FERASTRAU DE MASA DEWALT DCS7485 Type 1
Click pentru a mari

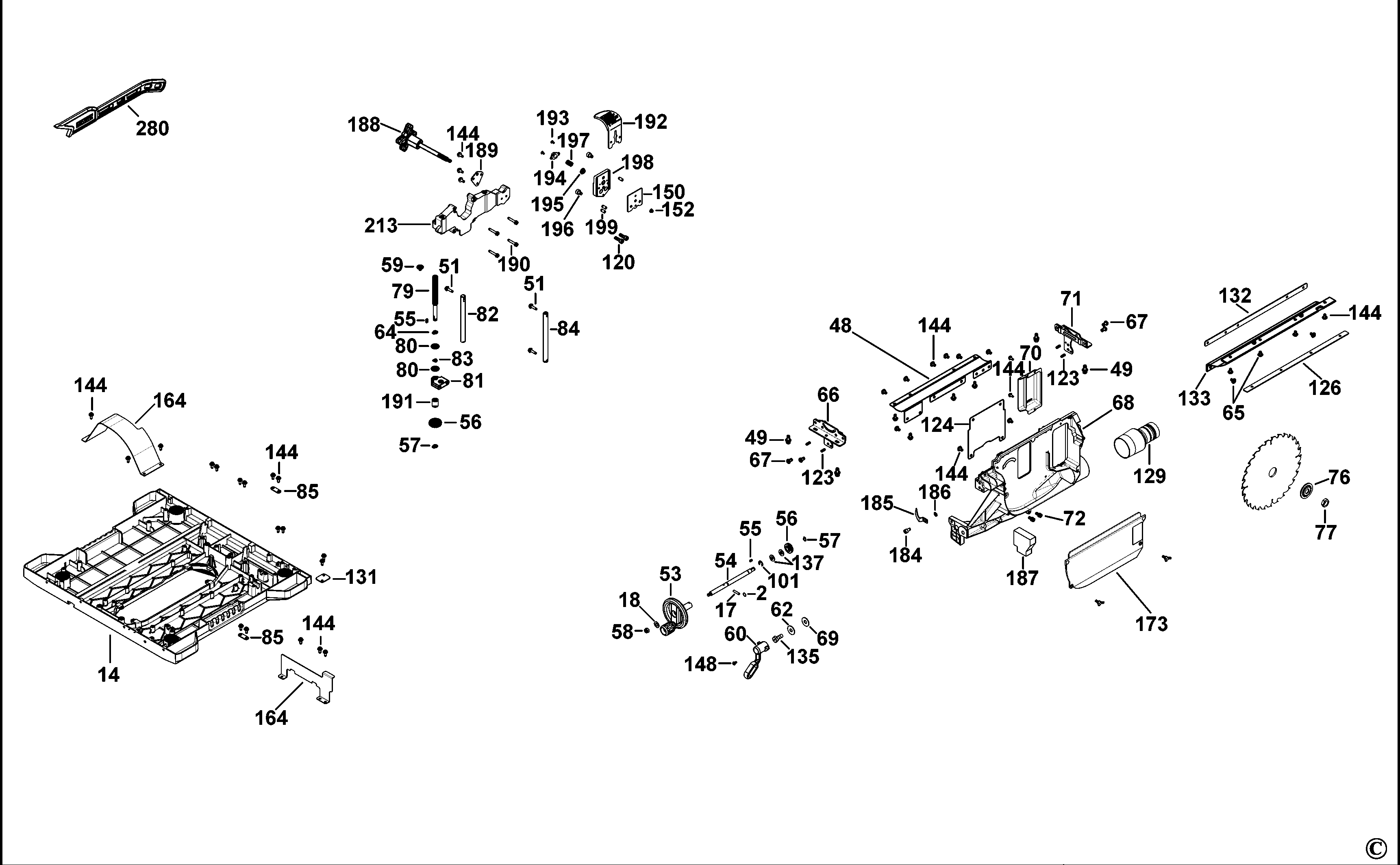

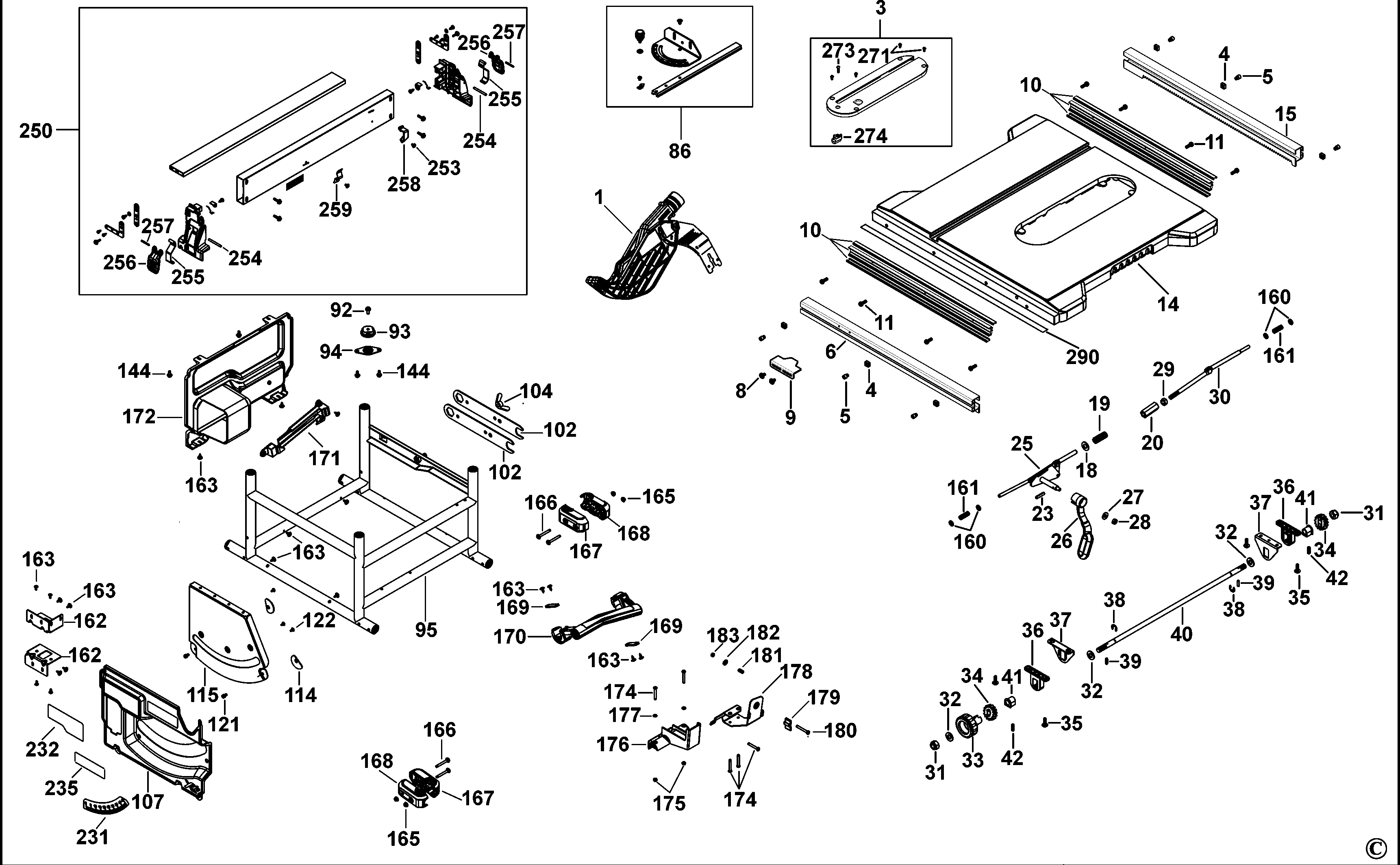

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GUARD SA (N475526) 40734 RON
2 1 1 O RING (1004549-04) 781 RON
3 1 1 PLATE SA (N459141) 20216 RON
4 1 6 NUT M6 (5140032-03) 781 RON
5 1 6 PIN (5140032-02) 781 RON
6 1 1 N433458 - Indisponibil
8 1 2 SCREW.SPECIAL (1004549-00) 781 RON
9 1 1 INDICATOR (1004708-08) 2182 RON
10 1 2 RAIL SA (5140179-60) 15469 RON
11 1 8 SCREW.SPECIAL (1002765-00) 781 RON
14 1 1 TABLE (N433468) 161583 RON
15 1 1 RAIL (N433459) 20216 RON
17 1 1 ROLL PIN (5140179-65) 944 RON
18 1 1 WASHER M8 (5140032-15) 781 RON
19 1 1 SPRING (5140134-75) 105 RON
20 1 1 ADJUSTER (5140032-17) 190 RON
23 1 1 PIN (5140032-21) 781 RON
25 1 1 SHAFT SA (5140179-62) 16689 RON
26 1 1 LOCK HANDLE (N440620) 3268 RON
27 1 1 WASHER M6 (5140032-24) 781 RON
28 1 1 NUT M6 (5140032-25) 781 RON
29 1 1 LOCK NUT (429901-00) 781 RON
30 1 1 SHAFT SA (1004708-11) 5370 RON
31 1 2 LOCK NUT (429901-00) 781 RON
32 1 3 WASHER M10 (5140032-27) 781 RON
33 1 1 FENCE KNOB (5140032-28) 2124 RON
34 1 2 PINION GEAR (5140032-29) 190 RON
35 1 4 SCREW.SPECIAL (1002767-00) 781 RON
36 1 2 BRACKET (5140032-31) 1452 RON
37 1 2 GUARD (5140118-01) 6821 RON
38 1 2 LOCKING RING (5140032-33) 781 RON
39 1 2 PIN (5140032-34) 781 RON
40 1 1 SHAFT (N697158) 4355 RON
40 1 1 N455273 - Indisponibil
41 1 2 BEARING BLOCK (5140032-36) 781 RON
42 1 2 SPRING (5140032-37) 781 RON
48 1 1 GUARD (5140179-71) 2796 RON
49 1 4 SCREW.SPECIAL (1002769-00) 893 RON
51 1 3 SCREW.SPECIAL (5140135-60) 781 RON
53 1 1 WHEEL SA (1004549-07) 5591 RON
54 1 1 SHAFT (N434678) 4827 RON
55 1 1 KEY (5140032-50) 781 RON
56 1 1 BEVEL GEAR (5140118-05) 190 RON
57 1 1 RING (5140032-52) 781 RON
58 1 1 NUT (429898-00) 558 RON
59 1 1 SCREW.SPECIAL (1002773-00) 781 RON
60 1 1 HANDLE (N436291) 4355 RON
62 1 1 Washer Lock (5140032-57) 893 RON
64 1 1 RING (1002774-00) 781 RON
65 1 21 SCREW.SPECIAL (1002775-00) 781 RON
66 1 1 BRACKET SA (5140135-25) 7940 RON
67 1 4 SCREW.SPECIAL (1002776-00) 893 RON
68 1 1 GUARD LOWER (N434812) 49827 RON
69 1 1 WASHER PLASTIC (1002778-00) 781 RON
70 1 1 GUARD (N434696) 2182 RON
71 1 1 BRACKET SA (5140135-30) 7940 RON
72 1 2 SCREW.SPECIAL (1002779-00) 105 RON
76 1 1 WASHER OUTER CLAMP (N447167) 2182 RON
77 1 1 NUT (429989-94) 105 RON
79 1 1 SHAFT (N434670) 5370 RON
80 1 2 WASHER THRUST (5140032-72) 781 RON
81 1 1 BLOCK (5140032-73) 3466 RON
82 1 1 SHAFT (N434666) 4355 RON
83 1 1 WASHER BOW (5140032-75) 781 RON
84 1 1 SHAFT (N434667) 5370 RON
85 1 2 PLATE (5140032-77) 781 RON
86 1 1 MITRE FENCE (N272579) 16689 RON
86 1 1 MITRE FENCE (N435108) 25728 RON
86 1 1 MITRE FENCE (N696327) 18568 RON
92 1 4 SCREW.SPECIAL (5140135-74) 781 RON
93 1 4 BUMPER (5140032-84) 781 RON
94 1 4 PLATE (5140032-85) 781 RON
95 1 1 CAGE (N460151) 46247 RON
101 1 1 RETAINING RING (5140179-79) 588 RON
101 1 1 WASHER BOW (N464191) 2796 RON
102 1 2 SPANNER (N436199) 4827 RON
104 1 1 WING NUT (5140032-95) 1117 RON
107 1 1 PANEL FRONT (N435982) 10241 RON
114 1 2 CAM (N441179) 114 RON
115 1 1 SUPPORT PLATE (N442868) 15469 RON
120 1 2 SCREW (5140135-17) 781 RON
121 1 2 SCREW (5140135-91) 781 RON
122 1 3 SCREW (5140135-89) 558 RON
123 1 2 DOWEL (5140033-40) 781 RON
124 1 1 PLATE (5140179-72) 1630 RON
126 1 1 BAR (5140179-69) 1933 RON
129 1 1 DUST PORT (1004695-90) 2795 RON
131 1 1 PLATE (5140179-73) 82 RON
132 1 1 BAR (5140179-70) 1933 RON
133 1 1 BAR (5140179-68) 3268 RON
135 1 1 LOCK SCREW (N436323) 114 RON
137 1 2 WASHER (5140033-42) 781 RON
144 1 28 SCREW (N435910) 668 RON
148 1 1 SCREW.SPECIAL (5140179-66) 668 RON
150 1 1 PLATE (N436310) 2182 RON
152 1 1 LOCK NUT (N464932) 668 RON
160 1 4 WASHER (5140135-36) 558 RON
161 1 2 SPRING (5140135-37) 781 RON
162 1 2 BRACKET (N452849) 2182 RON
163 1 19 SCREW (5140032-80) 558 RON
164 1 1 GUARD (N437343) 3268 RON
165 1 8 NUT M5 (5140095-74) 781 RON
166 1 8 SCREW.SPECIAL (5140135-64) 558 RON
167 1 4 FOOT (N444103) 3268 RON
168 1 4 FOOT (N444104) 3268 RON
169 1 2 PLATE (N441177) 588 RON
170 1 1 HANDLE (N446306) 11337 RON
171 1 1 BRACKET (5140179-76) 2796 RON
172 1 1 PANEL (N437337) 13697 RON
173 1 1 COVER (N434671) 741 RON
174 1 5 SCREW (5140135-79) 558 RON
175 1 2 NUT M5 (5140032-13) 781 RON
176 1 1 BRACKET (N438026) 5370 RON
177 1 2 WASHER (1004708-12) 588 RON
178 1 1 BRACKET (N450979) 741 RON
179 1 1 KNOB (N450980) 944 RON
180 1 1 BOLT (N451161) 82 RON
181 1 1 SPRING (5140135-73) 781 RON
182 1 1 WASHER (N435470) 588 RON
183 1 2 NUT M5 (5140032-13) 781 RON
184 1 1 SCREW (N447488) 668 RON
185 1 1 INDICATOR (N440766) 114 RON
186 1 1 WASHER LOCK (N454261) 588 RON
187 1 1 DAMPER (5140179-78) 114 RON
188 1 1 KNOB SA (N461705) 741 RON
189 1 1 PLATE (N461707) 944 RON
190 1 1 SCREW (5140179-63) 588 RON
191 1 1 SPACER (5140179-64) 82 RON
192 1 1 RIVING KNIFE (N437875) 13697 RON
193 1 2 SCREW (N448945) 588 RON
194 1 1 COVER (1004708-13) 588 RON
195 1 1 PISTON (1004708-14) 114 RON
196 1 2 SCREW (N448939) 944 RON
197 1 1 SPRING (N448940) 588 RON
198 1 1 MOUNT (N434803) 12361 RON
199 1 3 SCREW.SPECIAL (5140135-11) 781 RON
213 1 1 SUPPORT (N441334) 25728 RON
231 1 1 LABEL (N441023) 2556 RON
232 1 1 BRAND LABEL (N463969) 1933 RON
235 1 1 RATING PLATE (N471048) 1772 RON
250 1 1 FENCE SA (N455463) 63720 RON
253 1 2 SCREW (5140134-61) 558 RON
254 1 2 PIN (5140134-58) 781 RON
255 1 2 SPRING (5140134-57) 190 RON
256 1 2 PADDLE (5140134-56) 1229 RON
257 1 2 PIN (1004696-26) 558 RON
258 1 1 STRAP (5140134-62) 781 RON
259 1 1 CLIP (5140134-60) 893 RON
271 1 4 SCREW (5140033-53) 781 RON
273 1 1 SCREW (5140033-54) 781 RON
274 1 1 CAM (5140033-55) 893 RON
280 1 1 PUSHROD (5140033-44) 3466 RON
290 1 1 SCALE (N458905) 3268 RON
300 1 4 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
301 1 1 END CAP (N436880) 2182 RON
302 1 2 screw dw744 (330019-12) 558 RON
303 1 1 CORDCLAMP (N448564) 668 RON
304 1 4 SCREW (330045-17) 558 RON
305 1 1 FIELDCASE (N436481) 2182 RON
307 1 1 BAFFLE (N440777) 5370 RON
308 1 4 screw dw744 (330019-12) 558 RON
309 1 1 ROTOR SA (N469850) 49114 RON
310 1 1 O RING (N453643) 588 RON
311 1 1 SEAL (700248-00) 558 RON
312 1 1 GEARCASE (N434675) 11337 RON
313 1 1 GASKET (N442722) 668 RON
314 1 1 ARBOR SA (N469847) 24962 RON
315 1 3 SCREW (330045-14) 558 RON
316 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
317 1 1 HOUSING UPPER (N435741) 3268 RON
318 1 1 PIN (N440456) 944 RON
322 1 1 SPRING (N448766) 588 RON
323 1 1 PADDLE (N445218) 1630 RON
324 1 1 HOUSING LOWER (N435742) 3268 RON
325 1 1 CORD CLAMP (N449833) 588 RON
326 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
327 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
328 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
330 1 1 LABEL (N471558) 588 RON
331 1 1 HOUSING SWITCH (N445217) 2556 RON
332 1 1 STATOR SA (N474607) 113822 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
