EXTRACTOR VID DEWALT DWV901L Type 20
[DWV901L Type 20]
EXTRACTOR VID DEWALT DWV901L Type 20
Click pentru a mari
Imagini suplimentare
EXTRACTOR VID DEWALT DWV901L Type 20
Click pentru a mari
EXTRACTOR VID DEWALT DWV901L Type 20
Click pentru a mari

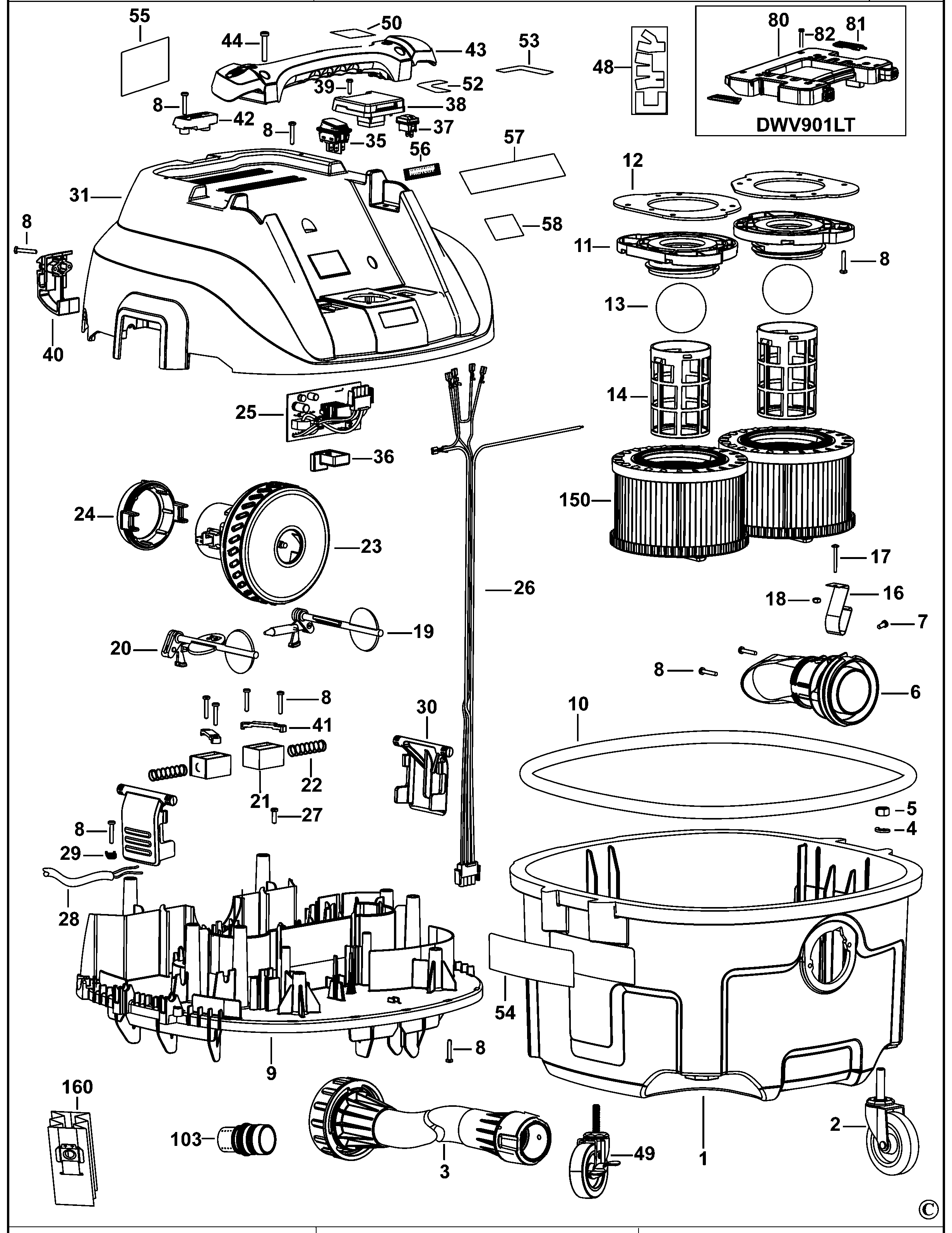

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TANK (N291160) 25728 RON
2 1 3 CASTOR (N289839) 9012 RON
3 1 1 HOSE SA (1004772-20) 63720 RON
4 1 4 WASHER LOCK (N371460) 588 RON
5 1 4 NUT (N371459) 588 RON
6 1 1 INLET (N294562) 5370 RON
7 1 1 SCREW (N142827) 558 RON
8 1 34 SCREW (330019-14) 558 RON
9 1 1 HOUSING (1004772-21) 24962 RON
10 1 1 GASKET (N395128) 3268 RON
11 1 2 MOUNT (N294525) 2796 RON
12 1 2 GASKET (N146653) 781 RON
13 1 2 VALVE FLOATING (N206771) 3466 RON
14 1 2 CAGE (N265199) 1318 RON
16 1 1 PLATE (N137853) 1788 RON
17 1 1 SCREW (N142836) 558 RON
18 1 1 LOCK NUT (N142838) 558 RON
19 1 1 VALVE (1004772-07) 2556 RON
20 1 1 VALVE (1004772-06) 2556 RON
21 1 2 SOLENOID ASSEMBLY (N338941) 9012 RON
22 1 2 SPRING (N362634) 588 RON
23 1 1 MOTOR SA 230V (N483601) 36994 RON
25 1 1 CONTROL MODULE SA (N365860) 44688 RON
26 1 1 LEAD SA (N379709) 35435 RON
27 1 1 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
28 1 1 CORDSET (N383944) 13697 RON
29 1 1 CORD CLAMP (450877-00) 558 RON
30 1 2 LATCH (N294563) 944 RON
31 1 1 HOUSING TOP (N291119) 20216 RON
35 1 1 SWITCH (N296522) 4827 RON
36 1 1 BOOT (N373779) 82 RON
37 1 1 SWITCH (656494-00) 1772 RON
38 1 1 OUTLET (N135489) 12861 RON
39 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
40 1 1 HOOK (N378329) 944 RON
41 1 2 STRAP (N391183) 588 RON
42 1 1 CLAMP (N378050) 668 RON
43 1 1 HANDLE (N135179) 3018 RON
44 1 4 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
48 1 1 FOAM (N409100) 3954 RON
48 1 1 FOAM (1004772-22) 4355 RON
49 1 1 CASTOR (N380031) 9012 RON
50 1 1 WARNING LABEL (N155016) 558 RON
52 1 1 LABEL (N404196) 588 RON
53 1 1 LABEL (N404197) 588 RON
54 1 2 BRAND LABEL (N405022) 668 RON
55 1 1 RATING LABEL (NA669853) 588 RON
56 1 1 LABEL (N177322) 558 RON
57 1 1 WARNING LABEL (N147781) 1117 RON
58 1 1 LABEL (N406852) 588 RON
80 1 1 RACK (N310159) 25164 RON
81 1 2 LATCH (N376128) 1117 RON
82 1 2 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
103 1 1 ADAPTER 35MM TO 35MM W/ STANDARD (N070902) 3466 RON
150 1 2 FILTER SA (1004772-04) 23244 RON
160 1 1 DUST BAG SA (1004772-10) 741 RON
