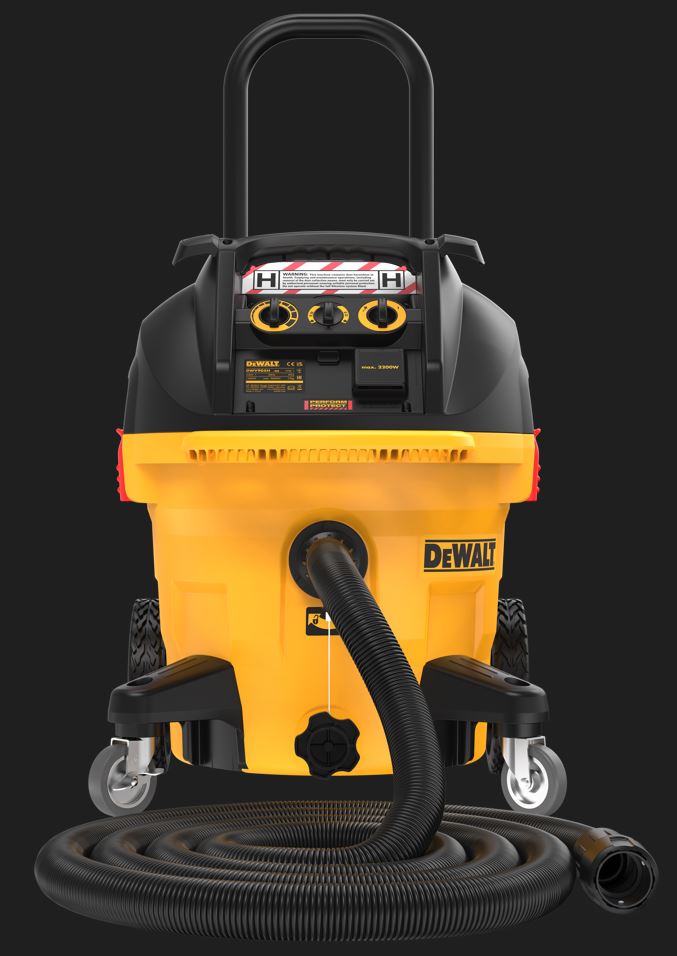

EXTRACTOR DE PRAF DEWALT DWV905H Type 2
[DWV905H Type 2]

Imagini suplimentare

Click pentru a mari

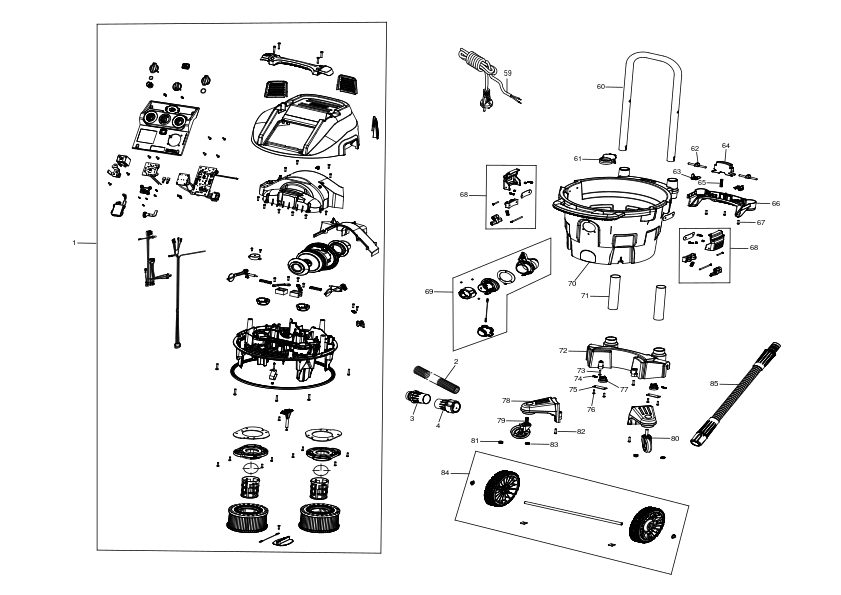

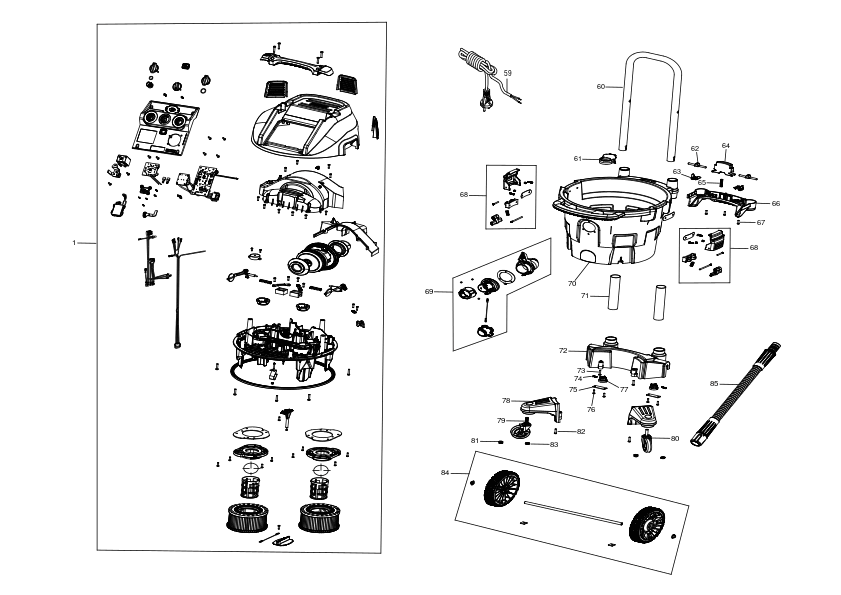

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	HEAD SA (NA364693)	4817⁹³ RON
2	1	1	HOSE (N629965)	511²⁷ RON
3	1	1	HOSE PLATE (N145597)	34⁶⁶ RON
4	1	1	CONNECTOR (N071898)	79⁴⁰ RON
59	1	1	CORDSET (EURO) (N303979)	204⁶⁷ RON
60	1	1	HANDLE UPPER (N138912)	92⁸² RON
61	1	1	CLAMP (N147540)	10⁵ RON
62	1	2	N139136 (N137872)	7⁸¹ RON
63	1	2	LEVER (N139136)	7⁸¹ RON
64	1	1	BUTTON (N137721)	14⁵² RON
65	1	1	SPRING (N142180)	5⁵⁸ RON
66	1	1	COVER (N133363)	34⁶⁶ RON
67	1	3	SCREW PLSTC THD FORM M4X19 T20 (330019-13)	5⁵⁸ RON
68	1	2	LATCH (NA278028)	123⁶¹ RON
69	1	1	INLET (NA278029)	257²⁸ RON
70	1	1	TANK (N116019)	437³¹ RON
71	1	2	TUBE (N139272)	21²⁴ RON
72	1	1	MOUNTING BRACKET (N118223)	128⁶¹ RON
73	1	2	SCREW .TEMP (330019-20)	5⁵⁸ RON
74	1	2	SCREW (N147400)	5⁵⁸ RON
75	1	2	PLATE (N134941)	7⁸¹ RON
76	1	4	SCREW PLSTC THD FORM M4X19 T20 (330019-13)	5⁵⁸ RON
77	1	2	BUNG (N137054)	7⁸¹ RON
78	1	2	MOUNTING BRACKET (N395145)	39⁵⁴ RON
79	1	1	CASTOR (N380031)	90¹² RON
80	1	1	CASTOR (N289839)	90¹² RON
81	1	2	NUT (N371459)	5⁸⁸ RON
82	1	2	SCREW .TEMP (330019-20)	5⁵⁸ RON
83	1	2	WASHER LOCK (N371460)	5⁸⁸ RON
84	1	1	WHEEL SA (NA278030)	232⁴⁴ RON
85	1	1	PIPE (NA253668)	604⁵¹ RON
800	1	1	REMOTE CONTROL (N547456)	446⁸⁸ RON
900	1	1	WARNING LABEL (NA021806)	27⁹⁶ RON
