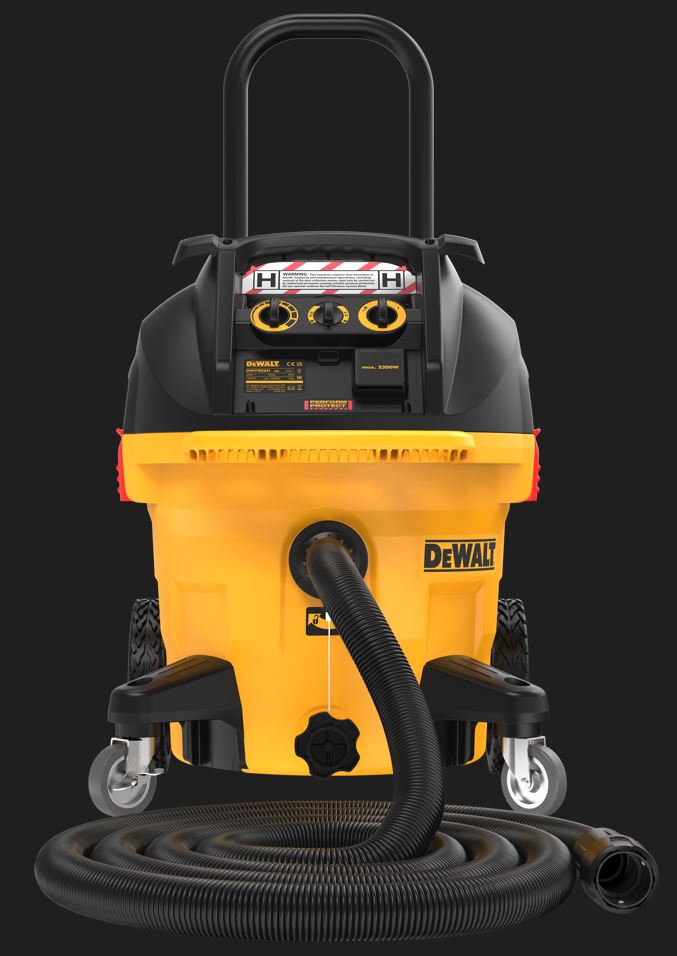

EXTRACTOR DE PRAF DEWALT DWV905H Type 1
[DWV905H Type 1]
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari
Imagini suplimentare
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT DWV905H Type 1
Click pentru a mari

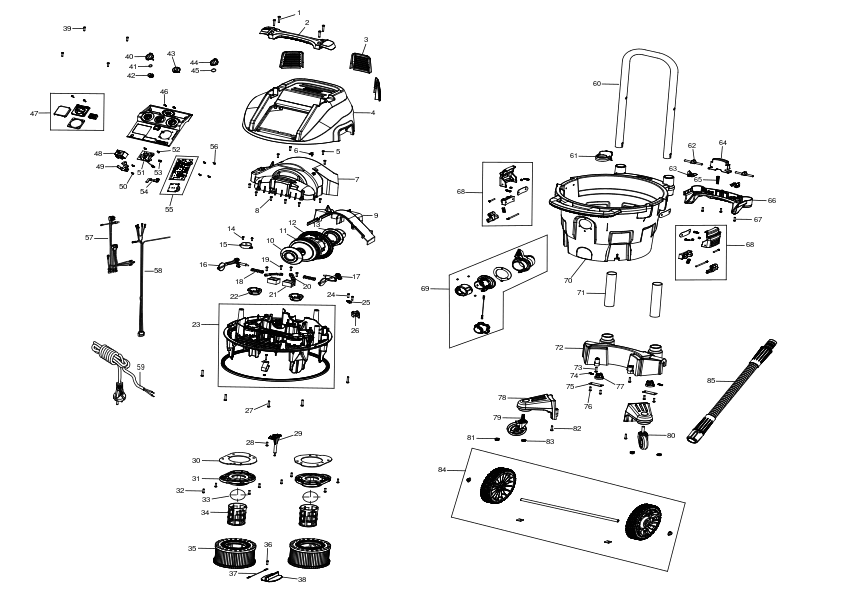

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
2 1 1 HANDLE (N135179) 3018 RON
3 1 3 VENT (NA036361) 2796 RON
4 1 1 HEAD (N316266) 26730 RON
5 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
6 1 1 CONNECTOR (N149299) 558 RON
7 1 1 COVER (NA085229) 18568 RON
8 1 6 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
9 1 1 MOTOR COVER (N395655) 2796 RON
10 1 1 GASKET (NA019410) 10241 RON
11 1 1 MOTOR (NA071448) 63720 RON
12 1 1 BRAKE ADAPTER (NA018715) 9012 RON
13 1 1 PIPE (NA045230) 2182 RON
14 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
15 1 1 SIREN (N139903) 3466 RON
16 1 1 VALVE (NA020057) 3268 RON
17 1 1 VALVE (NA020056) 3268 RON
18 1 2 SPRING (N362634) 588 RON
19 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
20 1 2 STRAP (N395762) 588 RON
21 1 2 SOLENOID ASSEMBLY (N378200) 10241 RON
22 1 2 SEAL SA (N927431) 5370 RON
23 1 1 PLATE SA (NA278021) 73079 RON
24 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
25 1 1 CORD CLAMP (450877-00) 558 RON
26 1 1 CORD PROTECTOR (N135151) 781 RON
27 1 5 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
28 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
29 1 1 FILTER (NA278024) 1772 RON
30 1 2 GASKET (N146653) 781 RON
31 1 2 MOUNT (N294525) 2796 RON
32 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
33 1 2 VALVE FLOATING (N206771) 3466 RON
34 1 2 CAGE (N265199) 1318 RON
35 1 2 FILTER SA (NA097668) 40734 RON
36 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
37 1 1 CABLE (N185285) 893 RON
38 1 1 PLATE (N884233) 2796 RON
39 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
40 1 1 KNOB (N135047) 114 RON
41 1 1 O RING (N141736) 588 RON
42 1 1 DETENT (N179801) 944 RON
43 1 1 KNOB (N170226) 944 RON
44 1 1 BUTTON (NA014751) 114 RON
45 1 1 RING (N141737) 588 RON
46 1 2 SCREW (330065-01) 558 RON
47 1 1 SERVICE KIT (NA278026) 48037 RON
48 1 1 SWITCH SA (N148620) 27287 RON
49 1 1 CLAMP (NA007452) 944 RON
50 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
51 1 1 PCB SA (NA018343) 27287 RON
52 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
53 1 1 SOCKET (N880063) 2556 RON
54 1 1 HOLDER (NA007225) 588 RON
55 1 1 CONTROL MODULE SA (NA073915) 263063 RON
56 1 4 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
57 1 1 CABLE SA (NA157818) 25728 RON
58 1 1 CABLE (NA134394) 23244 RON
59 1 1 CORDSET (EURO) (N303979) 20467 RON
60 1 1 HANDLE UPPER (N138912) 9282 RON
61 1 1 CLAMP (N147540) 105 RON
62 1 2 N139136 (N137872) 781 RON
63 1 2 LEVER (N139136) 781 RON
64 1 1 BUTTON (N137721) 1452 RON
65 1 1 SPRING (N142180) 558 RON
66 1 1 COVER (N133363) 3466 RON
67 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
68 1 2 LATCH (NA278028) 12361 RON
69 1 1 INLET (NA278029) 25728 RON
70 1 1 TANK (N116019) 43731 RON
71 1 2 TUBE (N139272) 2124 RON
72 1 1 MOUNTING BRACKET (N118223) 12861 RON
73 1 2 SCREW .TEMP (330019-20) 558 RON
74 1 2 SCREW (N147400) 558 RON
75 1 2 PLATE (N134941) 781 RON
76 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
77 1 2 BUNG (N137054) 781 RON
78 1 2 MOUNTING BRACKET (N395145) 3954 RON
79 1 1 CASTOR (N380031) 9012 RON
80 1 1 CASTOR (N289839) 9012 RON
81 1 2 NUT (N371459) 588 RON
82 1 2 SCREW .TEMP (330019-20) 558 RON
83 1 2 WASHER LOCK (N371460) 588 RON
84 1 1 WHEEL SA (NA278030) 23244 RON
85 1 1 PIPE (NA253668) 60451 RON
86 1 1 PLATE (NA248788) 741 RON
800 1 1 REMOTE CONTROL (N547456) 44688 RON
900 1 1 WARNING LABEL (NA021806) 2796 RON
