EXTRACTOR DE PRAF DEWALT DWV902L Type 13
[DWV902L Type 13]
EXTRACTOR DE PRAF DEWALT DWV902L Type 13
Click pentru a mari
Imagini suplimentare
EXTRACTOR DE PRAF DEWALT DWV902L Type 13
Click pentru a mari
EXTRACTOR DE PRAF DEWALT DWV902L Type 13
Click pentru a mari

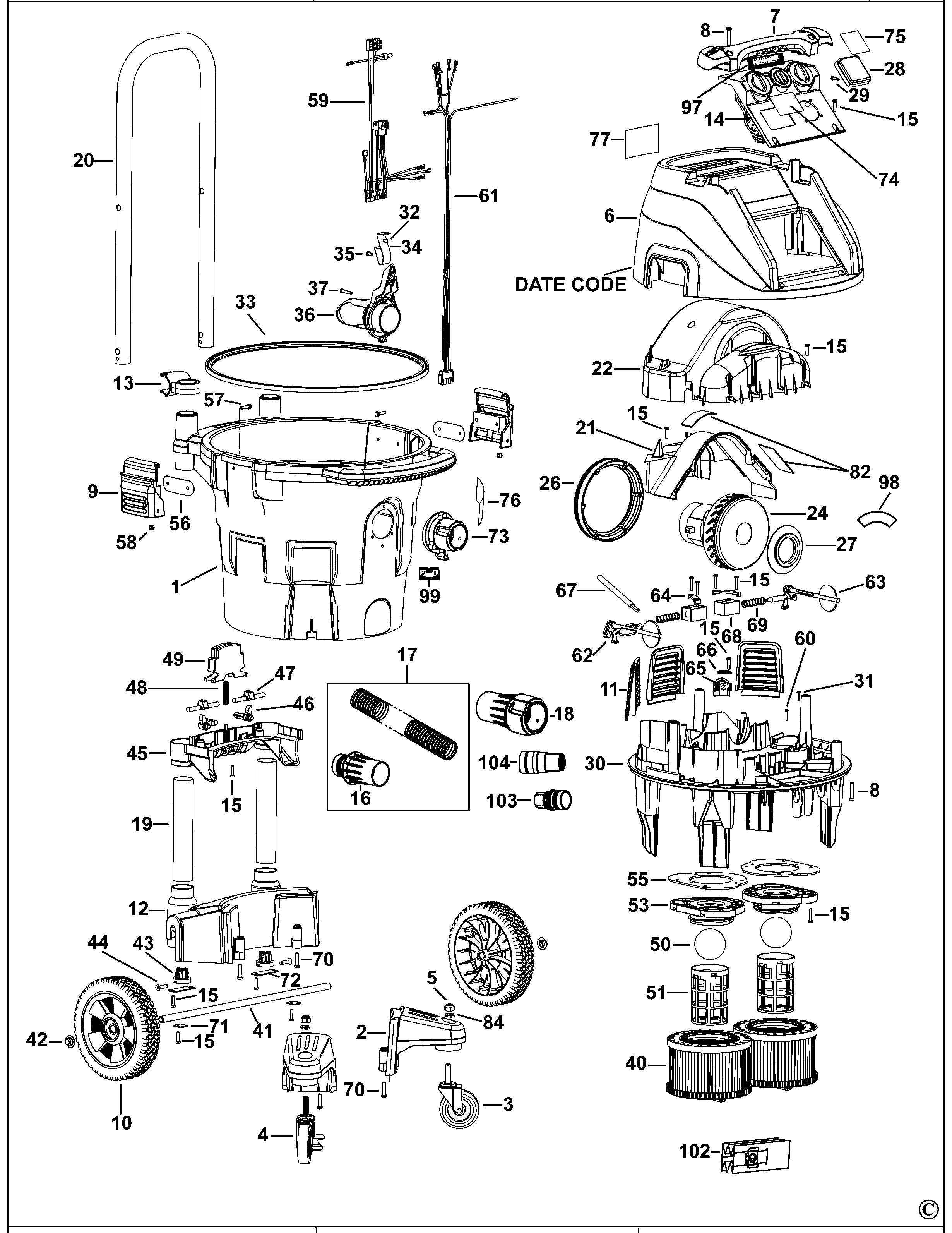

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TANK (N116019) 43731 RON
2 1 2 MOUNTING BRACKET (N395145) 3954 RON
3 1 1 CASTOR (N289839) 9012 RON
4 1 1 CASTOR (N380031) 9012 RON
5 1 2 NUT (N371459) 588 RON
6 1 1 HEAD (N316266) 26730 RON
7 1 1 HANDLE (N135179) 3018 RON
8 1 9 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
9 1 2 LATCH (1004771-97) 3268 RON
10 1 2 WHEEL REAR (N417079) 9012 RON
11 1 3 VENT (N135170) 1788 RON
12 1 1 MOUNTING BRACKET (N118223) 12861 RON
13 1 1 CLAMP (N147540) 105 RON
14 1 1 CONTROL PANEL (1004771-98) 139195 RON
15 1 37 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
16 1 1 HOSE PLATE (N145597) 3466 RON
17 1 1 HOSE SA (N208032) 26730 RON
18 1 1 CONNECTOR (N071898) 7940 RON
19 1 2 TUBE (N139272) 2124 RON
20 1 1 HANDLE UPPER (N138912) 9282 RON
21 1 1 MOTOR COVER (N395655) 2796 RON
22 1 1 COVER (N135152) 741 RON
24 1 1 MOTOR SA 230V (1004772-00) 39318 RON
26 1 1 RING GASKET (N250119) 2124 RON
27 1 1 GASKET (N137847) 2124 RON
28 1 1 OUTLET (N135489) 12861 RON
29 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
30 1 1 MOUNT SA (1004772-03) 38463 RON
31 1 1 SCREW (N142836) 558 RON
32 1 1 LOCK NUT (N142838) 558 RON
33 1 1 GASKET (N124753) 7940 RON
34 1 1 PLATE (N137853) 1788 RON
35 1 1 SCREW (N142827) 558 RON
36 1 1 INLET (N468428) 5370 RON
37 1 3 SCREW (330019-14) 558 RON
40 1 2 FILTER SA (1004772-04) 23244 RON
41 1 1 AXLE (N118225) 2795 RON
42 1 2 RETAINER (N118234) 781 RON
43 1 2 BUNG (N137054) 781 RON
44 1 2 SCREW (N147400) 558 RON
45 1 1 COVER (N133363) 3466 RON
46 1 2 LEVER (N139136) 781 RON
47 1 2 N139136 (N137872) 781 RON
48 1 1 SPRING (N142180) 558 RON
49 1 1 BUTTON (N137721) 1452 RON
50 1 2 VALVE FLOATING (N206771) 3466 RON
51 1 2 CAGE (N265199) 1318 RON
53 1 2 MOUNT (N294525) 2796 RON
55 1 2 GASKET (N146653) 781 RON
56 1 2 PLATE (N146843) 558 RON
57 1 4 Screw Metal (330045-15) 781 RON
58 1 4 LOCK NUT (148641-00) 558 RON
59 1 1 LEAD SA (N166678) 15993 RON
60 1 1 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
61 1 1 LEAD SA (N397036) 11337 RON
62 1 1 VALVE (1004772-06) 2556 RON
63 1 1 VALVE (1004772-07) 2556 RON
64 1 2 STRAP (N395762) 588 RON
65 1 1 CORD PROTECTOR (N135151) 781 RON
66 1 1 CORD CLAMP (450877-00) 558 RON
67 1 1 CORDSET (EURO) (N303979) 20467 RON
68 1 1 SOLENOID ASSEMBLY (N378200) 10241 RON
69 1 2 SPRING (N362634) 588 RON
70 1 4 SCREW .TEMP (330019-20) 558 RON
71 1 2 PLATE (N118226) 558 RON
72 1 2 PLATE (N134941) 781 RON
73 1 1 INLET (N150546) 5591 RON
74 1 1 RATING PLATE (1004772-08) 588 RON
76 1 1 BRAND LABEL (N405022) 668 RON
77 1 1 WARNING LABEL (N147781) 1117 RON
82 1 1 FOAM (N177921) 1788 RON
84 1 2 WASHER LOCK (N371460) 588 RON
97 1 1 LABEL (N177322) 558 RON
98 1 1 LABEL (N183923) 558 RON
99 1 1 LABEL (N199361) 781 RON
102 1 1 DUST BAG SA (1004772-10) 741 RON
103 1 1 ADAPTER 35MM TO 35MM W/ STANDARD (N070902) 3466 RON
104 1 1 CONNECTOR (1004772-11) 4827 RON
