Top » Piese de schimb » PIESE DEWALT » D25304DH Type 1

EXTRACTOR DE PRAF DEWALT D25304DH Type 1
[D25304DH Type 1]
EXTRACTOR DE PRAF DEWALT D25304DH Type 1
Click pentru a mari
Imagini suplimentare
EXTRACTOR DE PRAF DEWALT D25304DH Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT D25304DH Type 1
Click pentru a mari

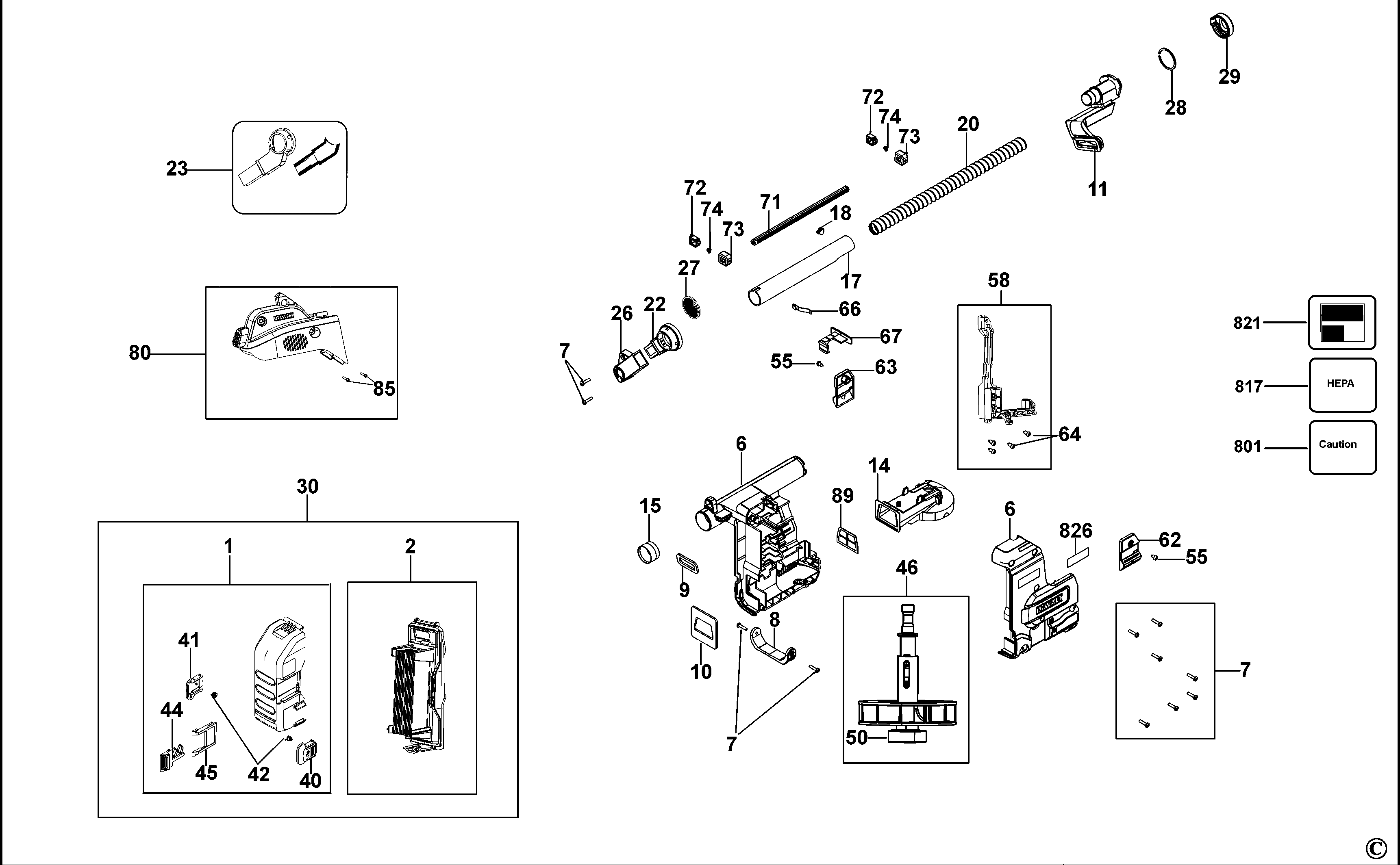

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CANISTER (N548032) 16689 RON
2 1 1 FILTER SA (N548037) 21676 RON
6 1 1 CLAMSHELL (N442601) 36994 RON
7 1 11 SCREW (330065-08) 558 RON
8 1 1 CLAMP (N406485) 2556 RON
9 1 1 SEAL (N416875) 944 RON
10 1 1 SEAL (N466814) 944 RON
11 1 1 HOUSING SA (N483828) 6688 RON
14 1 1 TUBE EXTRACTION (N451316) 3268 RON
15 1 1 TUBE (N484262) 1318 RON
17 1 1 TUBE (N483936) 16689 RON
18 1 1 INSERT (N388456) 114 RON
20 1 1 TUBE (N404443) 6688 RON
22 1 1 HEAD SA (N515831) 2182 RON
23 1 1 HEAD SA (N490675) 5370 RON
26 1 1 HOLDER (N515926) 2556 RON
27 1 1 BRUSH (N490104) 3268 RON
28 1 1 CIRCLIP (N414801) 944 RON
29 1 1 END CAP (N489938) 2182 RON
30 1 1 FILTER SA (N501619) 36994 RON
40 1 1 LATCH (N398724) 944 RON
41 1 1 LATCH (N398726) 114 RON
42 1 2 SPRING (N440706) 588 RON
44 1 1 BUTTON (N511561) 944 RON
45 1 1 FRAME (N511562) 944 RON
46 1 1 FAN SA (N453707) 33797 RON
50 1 1 BEARING BALL (N103974) 2124 RON
55 1 2 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
58 1 1 EJECTOR (N482839) 741 RON
62 1 1 BUTTON (N466560) 1772 RON
63 1 1 BUTTON (N453649) 1772 RON
64 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
66 1 1 SPRING (N466460) 944 RON
67 1 1 RELEASE (N460229) 1933 RON
71 1 1 ADJUSTER (N486724) 4827 RON
72 1 2 KNOB ADJUSTMENT LENGTH (580261-00) 558 RON
73 1 2 HOUSING KNOB (580262-00) 558 RON
74 1 2 SPRING CONICAL (584458-00) 781 RON
80 1 1 ADJUSTER HEIGHT (N457480) 741 RON
85 1 2 SCREW PLSTC THD FORM M3X12 T10 (330065-35) 558 RON
89 1 1 FILTER (N511177) 1933 RON
801 1 1 WARNING LABEL (N517523) 668 RON
817 1 1 LABEL (N517844) 668 RON
821 1 1 RATING LABEL (N522988) 82 RON
826 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
