EXTRACTOR DE PRAF DEWALT D25303DH Type 1
[D25303DH Type 1]
EXTRACTOR DE PRAF DEWALT D25303DH Type 1
Click pentru a mari
Imagini suplimentare
EXTRACTOR DE PRAF DEWALT D25303DH Type 1
Click pentru a mari
EXTRACTOR DE PRAF DEWALT D25303DH Type 1
Click pentru a mari

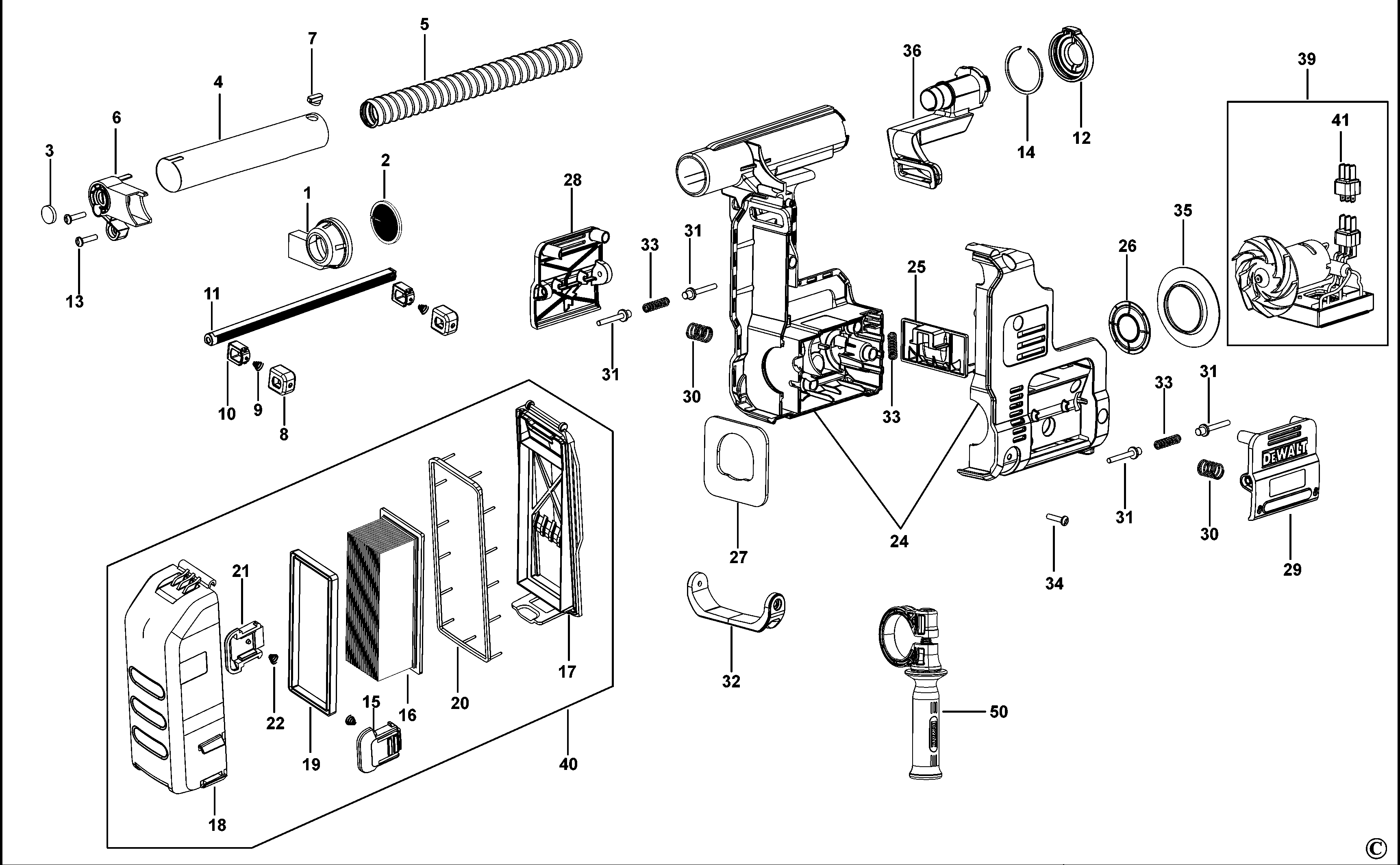

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HEAD (N388472) 1772 RON
2 1 1 BRUSH (580255-00) 3466 RON
3 1 1 FELT (496549-00) 558 RON
4 1 1 VACUUM TUBE SA (N389556) 9012 RON
5 1 1 TUBE (N404443) 6688 RON
6 1 1 HOLDER (N388457) 1318 RON
7 1 1 INSERT (N388456) 114 RON
8 1 2 HOUSING KNOB (580262-00) 558 RON
9 1 2 SPRING CONICAL (584458-00) 781 RON
10 1 2 KNOB ADJUSTMENT LENGTH (580261-00) 558 RON
11 1 1 ADJUSTER (1008326-00) 2124 RON
12 1 1 COVER (N411895) 1933 RON
13 1 2 SCREW (330065-08) 558 RON
14 1 1 CIRCLIP (N414801) 944 RON
15 1 1 LATCH (N398726) 114 RON
16 1 1 FILTER (N684523) 10241 RON
16 1 1 FILTER (6010391-38) 15469 RON
17 1 1 COVER (N393518) 3268 RON
18 1 1 BOX (N393002) 5370 RON
19 1 1 FRAME (N418186) 3268 RON
20 1 1 SEAL (N416874) 3268 RON
21 1 1 LATCH (N398724) 944 RON
22 1 2 SPRING CONICAL (584458-00) 781 RON
24 1 1 HOUSING PAIR (6010391-39) 20216 RON
25 1 1 EJECTOR (N392702) 2796 RON
26 1 1 SEAL (N416875) 944 RON
27 1 1 SEAL (N416876) 944 RON
28 1 1 LATCH (N392627) 2796 RON
29 1 1 LATCH (N392626) 2182 RON
30 1 2 SPRING (N414163) 588 RON
31 1 4 PIN (N400748) 588 RON
32 1 1 CLAMP (N406485) 2556 RON
33 1 2 SPRING (N417064) 588 RON
34 1 10 SCREW (330065-08) 558 RON
35 1 1 FAN PROTECTOR (588804-00) 781 RON
36 1 1 DUCT (N407856) 4355 RON
39 1 1 MOTOR SA (6010391-40) 78485 RON
40 1 1 6010391-37 - Indisponibil
40 1 1 FILTER SA (N501619) 36994 RON
41 1 1 CONNECTOR (N394540) 2556 RON
50 1 1 HANDLE SIDE SA (N411724) 16689 RON
