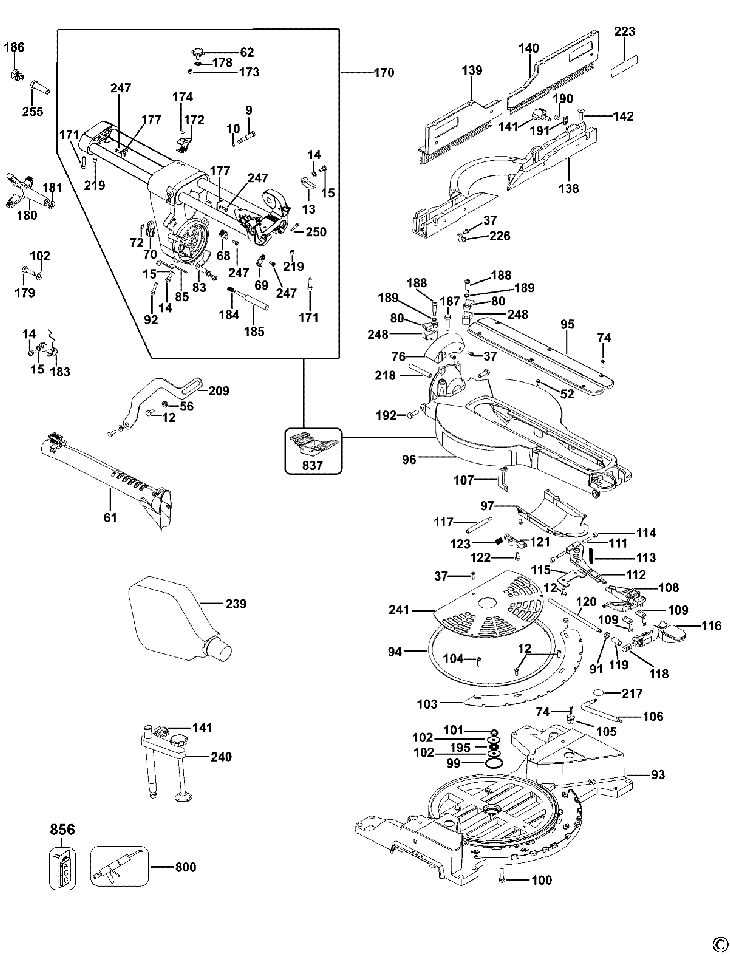

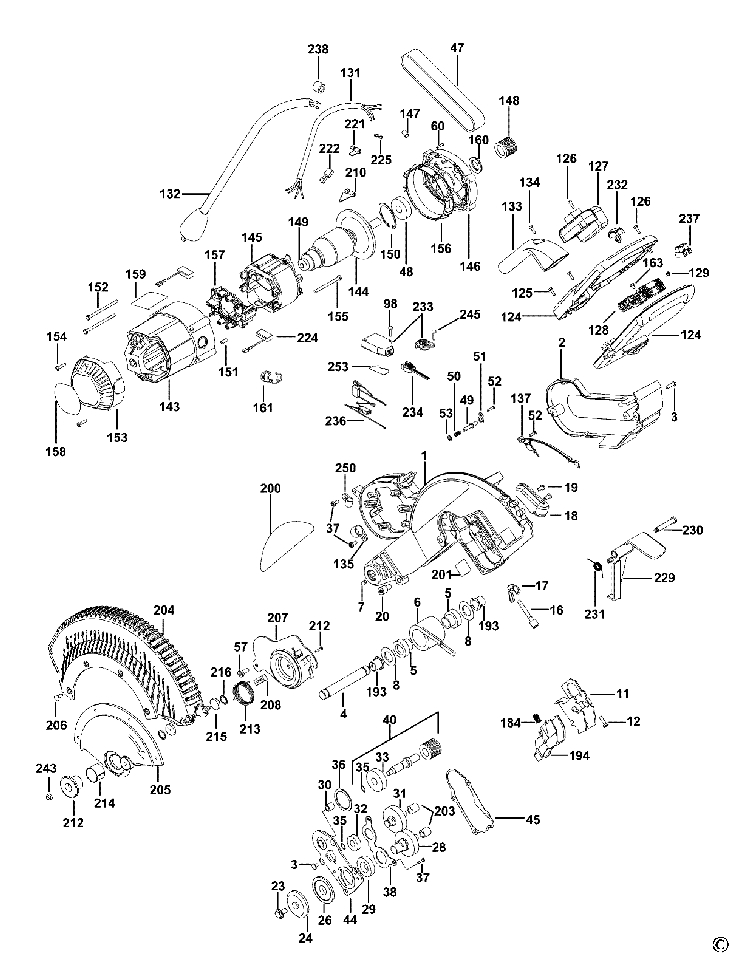

DWS780 MITRE SAW Type 10
[DWS780 Type 10]
DWS780 MITRE SAW Type 10
Click pentru a mari
Imagini suplimentare
DWS780 MITRE SAW Type 10
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARM DWS780 SERVICE (N121002) 70239 RON
1 1 1 SA ARM DWS780 SERVICE (N121002) 70239 RON
2 1 1 BELT COVER (618193-00) 6821 RON
3 1 5 SCREW (330045-14) 558 RON
4 1 1 SHAFT (146751-00) 2124 RON
5 1 2 SPACER (146732-00) 781 RON
6 1 1 SPRING (N039404) 9282 RON
7 1 2 SCREW (150075-00) 781 RON
8 1 2 PLASTIC WASHER (148296-00) 781 RON
9 1 1 PIN LOCKING (387130-00) 2347 RON
10 1 1 GASKET (34158-00) 558 RON
11 1 1 GUARD REAR (N058304) 3018 RON
12 1 6 SCREW (330045-23) 781 RON
13 1 1 STOP PAWL (153603-01) 1117 RON
14 1 1 SHOULDER SCREW (153639-00) 781 RON
15 1 1 WAVY WASHER (153655-00) 558 RON
16 1 1 SCREW (618197-00) 893 RON
17 1 1 NUT WING (150718-00) 558 RON
18 1 1 LED LIGHT (N030317) 17335 RON
18 1 1 LED LIGHT (N030317) 17335 RON
19 1 4 SCREW (385915-01) 558 RON
20 1 1 SCREW (618198-00) 781 RON
23 1 1 BLADE BOLT (647776-00) 781 RON
24 1 1 CLAMP OUTER (604765-00) 3466 RON
26 1 1 INNER BLADE WASHER DW718 SC (N081035) 5031 RON
28 1 1 SPINDLE GEAR (393702-00SV) 37579 RON
29 1 1 BEARING BALL (330003-66) 5591 RON
30 1 1 BEARING NEEDLE (391616-00) 190 RON
31 1 1 SA INTERMEDIATE SHFT/GR (393703-00) 22144 RON
32 1 1 BEARING (605040-59) 2124 RON
33 1 1 BEARING (605040-33) 3018 RON
35 1 1 RING SPRING SHAFT D12 UNI7435 (860079-03) 558 RON
36 1 1 RETAINING PLATE (618244-00) 781 RON
37 1 4 SCREW (330045-49) 558 RON
38 1 1 BEARING PLATE (391310-00) 1452 RON
40 1 1 SA PINION+PULLEY DW718 SERVICE (N105443) 28296 RON
44 1 1 653809-01 - Indisponibil
45 1 1 GASKET (391315-00) 1788 RON
47 1 1 BELT cod vechi 623804-00 (N453995) 10512 RON
48 1 1 KIT BEARING+PULLEY DW718 SERVICE (N101475) 9282 RON
49 1 1 LOCKING PIN (153561-00) 105 RON
50 1 1 SPRING (448176-00) 558 RON
51 1 1 PLATE (393071-00) 558 RON
52 1 4 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
53 1 1 WASHER (153559-00) 558 RON
56 1 2 SLEEVE (146740-00) 781 RON
57 1 2 SCREW (330045-55) 558 RON
60 1 8 Screw Metal (330045-15) 781 RON
61 1 1 SA DUST DUCT HI-CAP cod vechi N106371 (N142121) 10512 RON
62 1 1 KNOB (N080677) 2124 RON
68 1 1 BEVEL POINTER RIGHT (N058308) 893 RON
69 1 1 BEVEL POINTER LEFT (N058309) 893 RON
70 1 1 KNOB (N080199) 1229 RON
72 1 1 RING (60325-01) 558 RON
74 1 9 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
76 1 1 BEVEL SCALE DWS780 (N090294) 4472 RON
80 1 1 PAWL (N043045) 1117 RON
83 1 1 PLATE STOP RH (N049689) 1229 RON
85 1 1 PLATE STOP LH (N051519) 1229 RON
91 1 4 NUT HEX (330015-03) 558 RON
92 1 2 SCREW (N058312) 893 RON
93 1 1 BASE DWS780 (SERVICE) (N121028) 91714 RON
94 1 1 PLATE (618192-00) 9282 RON
95 1 2 KERF PLATE (N057391) 4137 RON
96 1 1 TABLE DWS780 (SERVICE) (N121001) 74937 RON
97 1 1 COVER (618172-00) 2795 RON
98 1 12 SCREW.TEMP (330045-05) 558 RON
99 1 1 RING (49787-00) 558 RON
100 1 1 SCREW M8X1 25 L.27 5 DWS780 (N058318) 781 RON
101 1 1 NUT (N074448) 781 RON
102 1 2 LAP WASHER (153792-00) 558 RON
103 1 1 DETENT PLATE (N059784) 12861 RON
104 1 4 SCREW (604410-00) 558 RON
105 1 1 HOLDER (391358-01) 1117 RON
106 1 1 WRENCH (N040940) 3466 RON
107 1 1 POINTER MITER (N057963) 105 RON
108 1 1 ACTUATOR DETENT SPRING (N050755) 3018 RON
109 1 2 PLATE CLAMP (N066280) 558 RON
111 1 2 PIN DETENT PIVOT (618170-00) 781 RON
112 1 1 DETENT (624477-00) 11519 RON
113 1 1 SPRING COMPRESSION (618176-00) 558 RON
114 1 2 NEEDLE BEARING (93128-00) 1229 RON
115 1 1 RETAINER (618254-00) 1117 RON
116 1 1 LEVER MITER LOCK (N082785) 3466 RON
117 1 1 PIN (N057386) 190 RON
118 1 1 PIN (624460-00) 893 RON
119 1 1 SLEEVE (624461-00) 781 RON
120 1 1 ROD (618186-00) 1452 RON
121 1 1 BLOCK (618185-00) 3466 RON
122 1 1 SCREW (385915-03) 105 RON
123 1 1 SPRING COMPRESSION (618253-00) 558 RON
124 1 1 HANDLE SA (624730-01) 9282 RON
125 1 4 SCREW (330045-18) 558 RON
126 1 5 SCREW PLASTITE (330019-32) 558 RON
127 1 1 SA SUPPLY POWER WRKLITE (N078832) 22144 RON
127 1 1 SA SUPPLY POWER WRKLITE (N078832) 22144 RON
128 1 1 SWITCH 1269.1402-02 1269R164 R.22A cod vechi 606056-00 (N548978V) 7940 RON
129 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
131 1 1 MOTOR CABLE (N029242) 4137 RON
132 1 1 CORDSET GB (330060-91) 28296 RON
132 1 1 CORDSET LX (330061-28) 4825 RON
133 1 1 HANDLE (N083060) 3466 RON
134 1 1 SCREW (CARRY HANDLE) (330019-22) 558 RON
135 1 1 CABLE CLAMP (398443-00) 781 RON
137 1 1 COVER (N030322) 781 RON
138 1 1 FENCE (N071965) 32770 RON
139 1 1 FENCE LH COD VECHI N032324 (N736326) 17335 RON
140 1 1 FENCE RH (N032326) 1891 RON
141 1 2 KNOB LOWER (147107-02) 1117 RON
142 1 5 SCREW (98105-03) 558 RON
143 1 1 FIELDCASE (391317-00) 7940 RON
144 1 1 ARMATURE SA (N030189SV) 74937 RON
144 1 1 SA ARMATURE 115V.DWS780/718 H.I. SERVICE (N093108) 70239 RON
145 1 1 STATORE 230/240V G95 MM. (869045-00) 37579 RON
145 1 1 STATORE 115 V G95 MM. (869045-01) 39145 RON
146 1 1 MOUNTING BRACKET (391282-00) 9282 RON
147 1 1 SCREW (394034-00) 893 RON
148 1 1 DRIVE PULLEY (N004510) 3018 RON
149 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
149 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
150 1 1 RING SPRING SHAFT D15 UNI7435 (930098-00) 558 RON
151 1 1 RUBBER PLUG (145312-00) 558 RON
152 1 4 SCREW (98094-55) 558 RON
153 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
154 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
155 1 2 SCREW PLASTITE (330019-19) 781 RON
156 1 1 BAFFLE (391375-00) 1788 RON
157 1 1 BRUSH HOLDER NYLON 6-ULTRAMID A3X2G5 (389512-01) 10512 RON
158 1 1 DW712 LABEL (610722-00) 781 RON
159 1 1 NAMEPLATE DWS780-GB (N104373) 2124 RON
159 1 1 NAMEPLATE DWS780-LX (N104374) 2124 RON
160 1 1 153783-00 - Indisponibil
161 1 1 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
170 1 1 SA SUPP.HOUSING+RAILS DWS780 SERVICE (N121003) 153454 RON
171 1 8 SCREW (603390-00) 558 RON
172 1 3 WEAR GUIDE (397118-00) 1452 RON
173 1 1 SCREW M8X10 (153576-04) 190 RON
174 1 1 FRICTION DISC (613497-00) 558 RON
177 1 2 RUBBER WASHER (N051244) 781 RON
178 1 1 SPRING (659919-00) 893 RON
179 1 1 SCREW (612008-00) 781 RON
180 1 1 HANDLE BEVEL TIGHTENING (N056883) 5031 RON
181 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
183 1 1 SA SLIDE STOP LEVER (N095579) 2795 RON
184 1 1 SPRING (167785-00) 558 RON
185 1 1 PIN (N041865) 5591 RON
186 1 1 INSULATED BUSHING [POLYONE LM-318-G001] (615851-00) 2795 RON
187 1 1 SCREW 5/16 X 35 (153797-00) 781 RON
188 1 2 SHOULDER SCREW M6 (N058315) 781 RON
189 1 2 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
190 1 2 SCREW (98103-18) 558 RON
191 1 2 PLATE knob keeper (641484-00) 781 RON
192 1 2 SCREW M8X25 (153797-04) 781 RON
193 1 2 BUSHING NYLINER 10L7-5/8 D27111 (645746-00) 1229 RON
194 1 1 DEFLECTOR DUST DWS780 (N075819) 190 RON
195 1 1 BEARING THRUST (153451-00) 781 RON
200 1 1 TARGH.PROTEZIONE SUPERIORE D27105 (621329-00) 2347 RON
201 1 1 WARNING LABEL (N174417) 781 RON
203 1 2 BEARING DW704 TYPE 3 (386780-00) 190 RON
204 1 1 GUARD LOWER (N599317) (N599317) 11519 RON
205 1 1 PLATE (N020822) 4472 RON
206 1 8 SCREW (385915-01) 558 RON
207 1 1 PLATE (N041973) 4137 RON
208 1 1 BUMPER (146768-00) 781 RON
209 1 1 LINK (N142523) 14315 RON
210 1 1 CONTACT (145332-00) 558 RON
212 1 1 KIT GUARD HUB+SCREW SERVICE (N390418) 4472 RON
213 1 1 SPRING (661454-00) 1117 RON
214 1 1 SLEEVE (148295-00) 105 RON
215 1 2 ROLLER (625825-00) 781 RON
216 1 2 RING (142273-00) 558 RON
217 1 2 LABEL (394976-00) 1229 RON
218 1 1 STUD (146760-02) 1117 RON
219 1 2 SCREW (153666-00) 558 RON
221 1 4 CONTACT (145332-00) 558 RON
222 1 1 TERMINAL (450212-00) 781 RON
223 1 2 LABEL (395301-00) 781 RON
224 1 2 BRUSH-LEAD (381028-08) 4137 RON
224 1 2 BRUSH-LEAD (381028-08) 4137 RON
225 1 1 TERMINAL (395716-00) 558 RON
226 1 1 BUSH (153669-00) 558 RON
229 1 1 LEVER LOCK DWS780 (N066282) 2347 RON
230 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
231 1 1 SPRING (386196-00) 105 RON
232 1 1 CONTROL KNOB (392131-00) 105 RON
233 1 1 CONTROL MODULE SA (628744-00) 42277 RON
233 1 1 S/A MODULE 115V. DW718 SERVICE KIT (N033995) 74937 RON
234 1 1 LEAD SA (622950-00) 22144 RON
236 1 1 LEAD SA (618159-00) 7940 RON
237 1 1 BLOCK TERMINAL (393520-00) 2795 RON
238 1 1 FERRITE BEAD (388414-01) 1452 RON
239 1 1 DUST BAG DW708 (147734-06) 3466 RON
240 1 1 CLAMP SA (630065-00) 7940 RON
241 1 1 BLADE COVER EURO (N072222) 4472 RON
243 1 1 KIT GUARD HUB+SCREW SERVICE (N390418) 4472 RON
245 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
247 1 4 SCREW SHOULDER M5X12 (N058314) 1229 RON
248 1 1 PAWL (N043046) 1788 RON
250 1 1 BUSH (153669-00) 558 RON
253 1 1 PAD MODULE THERMAL (609468-00) 1229 RON
255 1 1 CABLE CLIP D.9-11 5 (863259-00) 2124 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
800 1 1 GREASE (429698-00) 62298 RON
837 1 1 559626-99 - Indisponibil
856 1 1 N114019 - Indisponibil
