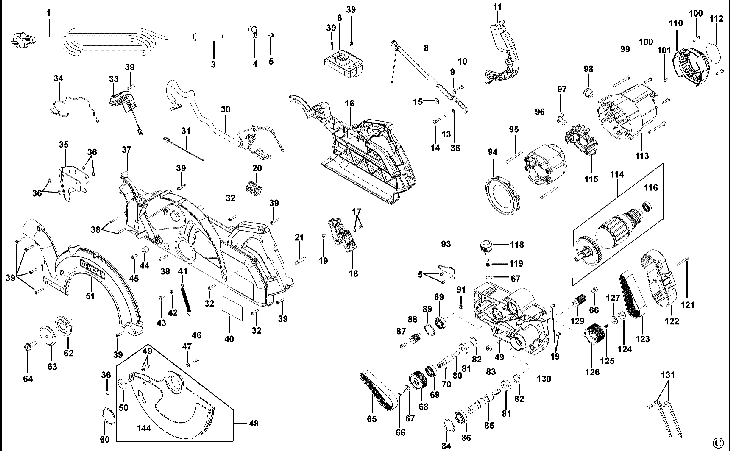

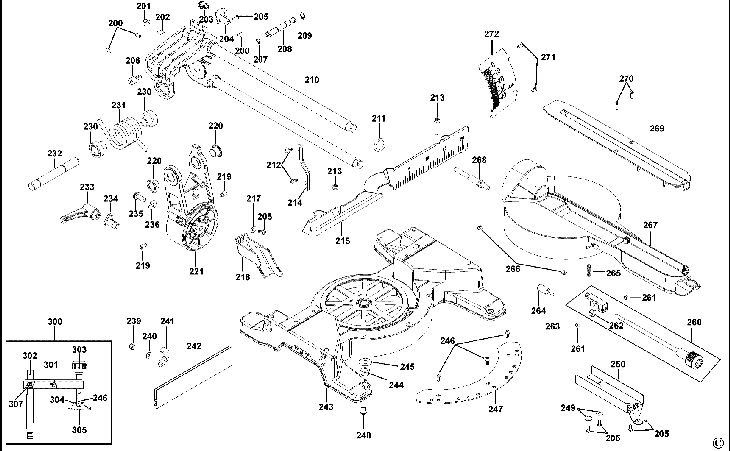

DWS778 MITRE SAW Type 1
[DWS778 Type 1]
DWS778 MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
DWS778 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CABLE H05RN-F 2X1 M.3 DWS778-GB (N243301) 1891 RON
1 1 1 CABLE H05RN-F 2X1 M.3 DWS778-LX (N243302) 23598 RON
3 1 1 CORD PROTECTOR (868520-00) 781 RON
4 1 1 STRAP CABLE N5 5/16 NYLON (860843-01) 558 RON
5 1 3 SCREW.TEMP (330045-05) 558 RON
6 1 1 SA SUPPLY POWER WRKLITE (N078832) 22144 RON
8 1 1 SA LEVER DWS778 (N110339) 5031 RON
9 1 1 WASHER (939625-00) 558 RON
10 1 1 VITE TCB 4 2X16 B 6954 (930076-01) 558 RON
11 1 1 LEVER DW777 (869155-00) 2347 RON
13 1 1 BUSHING X LEVER D.6 DW777 (869295-00) 558 RON
14 1 1 PIN DW777 (869156-00) 893 RON
15 1 1 BUSHING DW777 (869192-00) 781 RON
16 1 1 N324499 - Indisponibil
17 1 2 SCREW MACHINE PAN HD (384127-01) 558 RON
18 1 1 SWITCH 1269.3201-03 cod vechi 394375-02 (394375-02P) 10512 RON
19 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
20 1 1 CONNECTOR (658093-00) 190 RON
21 1 1 PIVOT (760296-01) 781 RON
30 1 1 S/A CAPACITOR 230V. DWS778 (N131928) 6821 RON
30 1 1 S/A CAPACITOR 230V. DWS778 (N131928) 6821 RON
31 1 1 INTERMEDIATE HARNESS XPS DW778 (N210177) 2795 RON
32 1 1 SCREW (761304-01) 558 RON
33 1 1 LED LIGHT DWS778 SERVICE (N231737) 32770 RON
33 1 1 LED LIGHT DWS778 SERVICE (N231737) 32770 RON
34 1 1 S/A CABLE WORK LIGHT DWS778 (N137473) 5031 RON
35 1 1 DEFLECTOR DUST DWS778 (N130455) 2795 RON
36 1 5 RING SPRING S.LOCK D.4 (860077-01) 558 RON
37 1 1 COVER MOT.HOUSING DWS778 (N106549) 14315 RON
38 1 3 SCREW M4X20 (860094-10) 558 RON
39 1 10 SCREW (761304-01) 558 RON
40 1 1 RATING PLATE DWS778-GB (N138772) 3018 RON
40 1 1 RATING PLATE DWS778-LX (N138773) 3018 RON
41 1 1 SPRING DWS778 (N168410) 781 RON
42 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
43 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
44 1 1 BUMPER (761306-00) 781 RON
45 1 1 SELF TAPPING SCREW (949896-13) 558 RON
46 1 1 SCREW 3 5x10 UNI8112 (943022-01) 558 RON
47 1 1 WASHER (941633-00) 558 RON
48 1 1 SA MOVEABLE GUARD DWS778 (N110318) 17335 RON
49 1 6 SLIDE ROLLER (760298-01) 558 RON
50 1 1 ROLLER (146774-00) 1117 RON
51 1 1 UPPER GUARD DWS778 MCHD (N106544) 15993 RON
60 1 1 RING SPRING SHAFT D40 (N142857) 781 RON
62 1 1 BLADE WASHER INNER DWS778 (N106551) 7940 RON
63 1 1 BLADE WASHER OUTER DWS778 (N106550) 5591 RON
64 1 1 SCREW (869245-00) 4137 RON
65 1 1 BELT 11 RIBS DWS778 (N106424) 5591 RON
66 1 2 SOCKET HEAD SCREW (760219-00) 558 RON
67 1 2 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
67 1 1 WASHER(174930434) (760241-01) 558 RON
68 1 1 DRIVEN PULLEY 11 RIBS DWS778 (N106421) 7940 RON
69 1 2 BEARING 6201 2RS ISB (861721-13) 3018 RON
70 1 2 KEY 3X3X10 (N116864) 893 RON
80 1 1 INTERMEDIATE SHAFT DWS778 SERVICE (N231745) 14315 RON
81 1 2 BEARING (605040-59) 2124 RON
82 1 2 ANELLO ELA.27 8X21X0 3 (930122-00) 558 RON
83 1 1 ADJUSTER (946874-00) 558 RON
84 1 1 RETAINING RING D.35 (949729-03) 558 RON
85 1 1 BLADE AXIS DWS778 SERVICE (N231744) 17335 RON
86 1 1 BEARING 6003 2RS ISB (861721-10) 2124 RON
87 1 1 SCREW (949886-26) 781 RON
88 1 1 DRIVE PULLEY 11 RIBS DWS778 (N106420) 3018 RON
89 1 1 STOP RING (949729-02) 558 RON
91 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
93 1 1 PLATE DW777 (869166-00) 781 RON
94 1 1 DEFLECTOR DWS778 (N119659) 781 RON
95 1 2 SCREW PLASTITE (330019-19) 781 RON
96 1 1 FIELD 240V. DWS778 SERVICE (N231738) 39145 RON
96 1 1 FIELD 240V. DWS778 SERVICE (N231738) 39145 RON
96 1 1 FIELD 115V. DWS778 SERVICE (N231739) 39145 RON
96 1 1 FIELD 115V. DWS778 SERVICE (N231739) 39145 RON
97 1 1 BRUSH PAIR SA (659512-00) 6821 RON
97 1 1 BRUSH PAIR SA (659512-00) 6821 RON
98 1 1 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
99 1 4 SCREW (98094-55) 558 RON
100 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
101 1 1 RUBBER PLUG (145312-00) 558 RON
110 1 1 SA END CAP + LABEL (N187409) 3018 RON
112 1 1 DW712 LABEL (610722-00) 781 RON
113 1 1 FIELDCASE (391317-00) 7940 RON
114 1 1 ARMATURE 240V. DWS778 SERVICE (N231746) 57488 RON
114 1 1 ARMATURE 240V. DWS778 SERVICE (N231746) 57488 RON
114 1 1 ARMATURE 115V. DWS778 SERVICE (N231747) 57488 RON
114 1 1 ARMATURE 115V. DWS778 SERVICE (N231747) 57488 RON
115 1 1 SA BRUSH HOLDER DW777 (389512-08) 11519 RON
116 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
118 1 1 LOCKING KNOB (869140-00) 1117 RON
119 1 1 SPRING (868082-00) 558 RON
121 1 1 SCREW PAN PH/TT M.4X35 (330045-10) 558 RON
122 1 1 COVER BELT DWS778 (N106479) 2795 RON
123 1 1 BELT 16 RIBS DWS778 (N115190) 9282 RON
124 1 1 NUT HEX THIN M.12 UNI5589 (860083-17) 558 RON
125 1 1 SPRING DW743N (869246-00) 781 RON
126 1 1 DRIVEN PULLEY 16 RIBS DWS778 (N115189) 9282 RON
127 1 1 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
129 1 1 DRIVE PULLEY 16 RIBS DWS778 (N115188) 3466 RON
130 1 1 N394543 - Indisponibil
130 1 1 TROLLEY DWS778 SERVICE (N231743) 59725 RON
131 1 1 WRENCH (868682-00) 893 RON
144 1 1 MOVEABLE GUARD DWS778 (N106542) 15993 RON
200 1 1 SCREW (150075-00) 781 RON
201 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
202 1 1 SCREW (760242-00) 781 RON
203 1 1 INSULATED BUSHING DWS778 (N137454) 893 RON
204 1 1 BRACKET (N137455) 1117 RON
205 1 1 SCREW.TEMP (330045-05) 558 RON
206 1 1 SCREW (618198-00) 781 RON
207 1 1 GASKET DW250-DW252 (949746-02) 558 RON
208 1 1 PIN DWS778 (N129820) 5591 RON
209 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
210 1 1 SA RAILS DWS778 SERVICE (N231740) 91714 RON
211 1 1 OR 4075 D.18 64 d.3 53 (869141-00) 558 RON
212 1 2 SCREW (949609-03) 558 RON
213 1 2 SCREW (330045-26) 893 RON
214 1 1 CROSS (947613-00) 2795 RON
215 1 1 FENCE DWS778 (N136428) 17335 RON
217 1 2 WASHER (941633-00) 558 RON
218 1 1 DUST CONVEYOR DWS778 (N150087) 105 RON
219 1 2 SCREW (949743-02) 781 RON
220 1 2 BUSHING NYLINER (N083191) 781 RON
221 1 1 SEGMENT DWS778 MCHD (N106395) 25164 RON
230 1 2 SPACER (146732-00) 781 RON
231 1 1 SPRING (N136651) 5591 RON
232 1 1 PIN DWS778 SERVICE (N231736) 7940 RON
233 1 1 LEVER (861840-03) 2795 RON
234 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
235 1 1 SCREW (612008-00) 781 RON
236 1 1 WASHER (933168-00) 781 RON
239 1 1 NUT ELAST.STOP M.6 UNI 7473 (860092-02) 558 RON
240 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
241 1 1 LEVER LOCK DWS778 (N128350) 893 RON
242 1 1 SA SLIDING FENCE DWS778 SERVICE (N231741) 17335 RON
243 1 1 BASE DW777 SERVICE (869313-00) 59725 RON
244 1 1 NUT LOCKING M12X1 25 (860092-07) 558 RON
245 1 1 WASHER (949705-01) 558 RON
246 1 4 SCREW (330045-49) 558 RON
247 1 1 SCALE (868677-00) 6821 RON
248 1 4 RUBBER FEET (868777-00) 558 RON
249 1 2 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
250 1 1 COVER (N109533) 3466 RON
260 1 1 SA TABLE LOCKING DWS778 (N109532) 7940 RON
261 1 2 BUSH DWS778 (N136448) 1117 RON
262 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
263 1 1 BALL 6 3 mm (868708-00) 558 RON
264 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
265 1 1 SPRING (868778-00) 558 RON
266 1 3 SLIDE ROLLER (760298-01) 558 RON
267 1 1 TABLE DWS778 SERVICE (N231742) 59725 RON
268 1 1 SHAFT BEVEL DWS778 (N115187) 3466 RON
269 1 1 TABLE INSERT (N106478) 3466 RON
270 1 2 SCREW PAN PH/TT M.4X14 UNI8112 (860205-08) 558 RON
271 1 2 SCREW (949894-12) 558 RON
272 1 1 SCALE BEVEL DWS778 (N131182) 2347 RON
300 1 1 CLAMP SA PACKED (N171682) 12861 RON
301 1 1 CLAMP MACHINED DW777 (869306-00) 3018 RON
302 1 1 CLAMP BAR DWS778 (N168123) 4137 RON
303 1 1 SCREW+KNOB CLAMP DW777 (869308-00) 1788 RON
304 1 1 PAD CLAMP DW777 (630068-00) 781 RON
305 1 1 CLAMP CAP DW777 (630085-00) 781 RON
307 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
