Top » Piese de schimb » PIESE DEWALT » DWEN102K Type 1

DWEN102K ROTARY HAMMER Type 1
[DWEN102K Type 1]
DWEN102K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
DWEN102K ROTARY HAMMER Type 1
Click pentru a mari

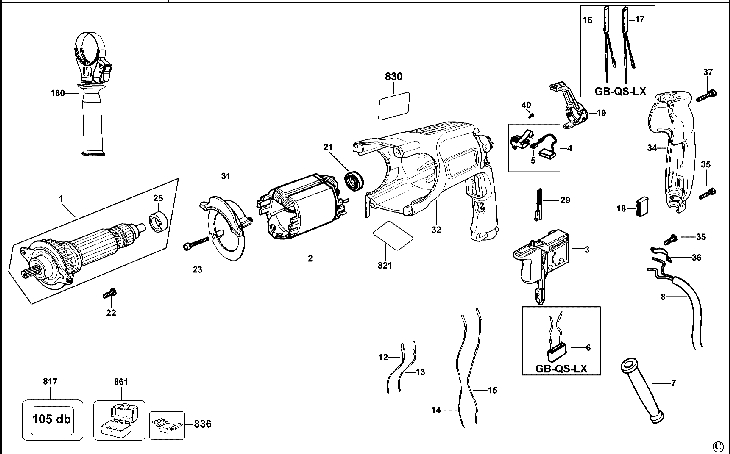

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
12 1 1 LEAD WIRE MQ WHITE/100/FSH3/FST (584304-00) 105 RON
13 1 1 LEAD WIRE MQ BLUE /125/FSH3/FST (584304-10) 105 RON
14 1 1 LEADWIRE MQ GREEN /55/FSH3/FST (584304-04) 105 RON
15 1 1 LEAD WIRE MQ VIOL/100/FSH3/FST (584304-05) 105 RON
18 1 1 BUMPER SPONGE (930026-01) 781 RON
19 1 1 LEVER FRW/REV (479818-00) 105 RON
21 1 1 BEARING COVER (870052) 558 RON
22 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
23 1 4 SCREW PLASTIC (326519-05) 558 RON
25 1 1 CE BEARING (1005895-00) 1788 RON
29 1 1 PIN REVERSE MQ (584551-00) 1452 RON
31 1 1 COVER FAN (577826-00) 2124 RON
32 1 1 FIELDCASE (577810-03) 9282 RON
34 1 1 COVER HANDLE REAR (479817-00) 7940 RON
35 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
36 1 1 CLAMP CORD (821070) 558 RON
37 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
40 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
50 1 1 INTERSHAFT SA (N081985) 20467 RON
52 1 1 SWITCH PLATE (N029727) 1229 RON
53 1 1 SPRING MODE SWITCH (N042799) 558 RON
57 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
58 1 1 RELEASE BUTTON (N034136) 781 RON
59 1 1 MODE SELECTOR SPRING (N074923) 558 RON
60 1 1 FLAT SEAL 4.4X8X0.5 (1005811-00) 558 RON
61 1 1 CAP-1 (N034134) 105 RON
62 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
63 1 1 RING SNAP 29.5 (581836-00) 558 RON
66 1 1 CLUTCH SPRING (N029717) 190 RON
67 1 1 WASHER SPINDLE (577814-00) 1788 RON
68 1 1 FELT-2 (N081515) 558 RON
70 1 1 HOUSING SA (N081983) 11519 RON
72 1 1 O-RING SEAL (578229-00) 893 RON
73 1 1 BEARING BOLT-1 (577801-00) 3018 RON
74 1 2 WASHER (N074454) 781 RON
75 1 1 ISTON (N081750) 6821 RON
76 1 1 O-RING 16X3 (579699-00) 105 RON
77 1 1 RAM SA (N081751) 4137 RON
78 1 1 SPINDLE REAR BEARING (N029731) 2124 RON
79 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
80 1 1 FELT-1 (N038257) 558 RON
81 1 1 O-RING (N042496) 105 RON
90 1 1 RING SNAP (577793-00) 781 RON
90 1 1 N361759 - Indisponibil
92 1 1 RING RAMCATCHER (580990-00) 1117 RON
93 1 2 O-RING 19.5X3.5 (577135-00) 1117 RON
97 1 1 SEAL (577139-00) 1117 RON
101 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
103 1 1 PINION BUSH 2ND REDUCTION (N029726) 4137 RON
104 1 1 GEAR SHIFT COLLAR (N029725) 190 RON
105 1 1 SCREW COLLER 8MM (329794-00) 558 RON
110 1 1 RING WASHER (N059509) 781 RON
114 1 1 N386323 - Indisponibil
114 1 1 N386323 - Indisponibil
115 1 1 WASHER SPINDLE (577814-00) 1788 RON
117 1 1 RING SEAL (577812-00) 1229 RON
118 1 1 HOUSING SA (N081756) 9282 RON
121 1 4 SCREW PLSTC THD FORM M4.06X30 (330019-81) 558 RON
132 1 1 SPRING BEVEL (871690) 558 RON
133 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
134 1 1 BALL 7.0 (583890-00) 781 RON
135 1 1 TUBE (493965-02) 2124 RON
136 1 1 SEAL LIP (323489-00) 893 RON
138 1 1 RING SNAP 21 (579212-00) 781 RON
160 1 1 SIDE HANDLE (N064581) 7940 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
817 1 1 LABEL NOISE 105DB (PRINT) (496620-00) 558 RON
830 1 1 LABEL LOGO (N074584) 558 RON
836 1 1 1003925-99 - Indisponibil
836 1 1 1003926-99 - Indisponibil
836 1 1 596005-99 - Indisponibil
836 1 1 1003924-99 - Indisponibil
861 1 1 SA KIT BOX PISTOL (N064862) 1891 RON
