Top » Piese de schimb » PIESE DEWALT » DWE7491 Type 2

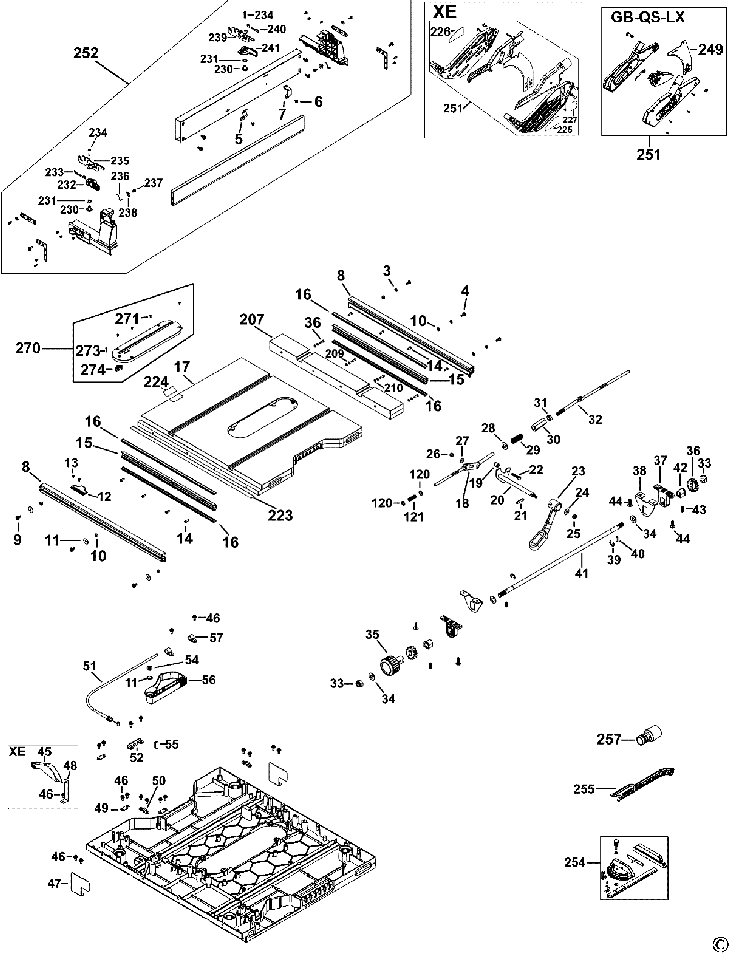

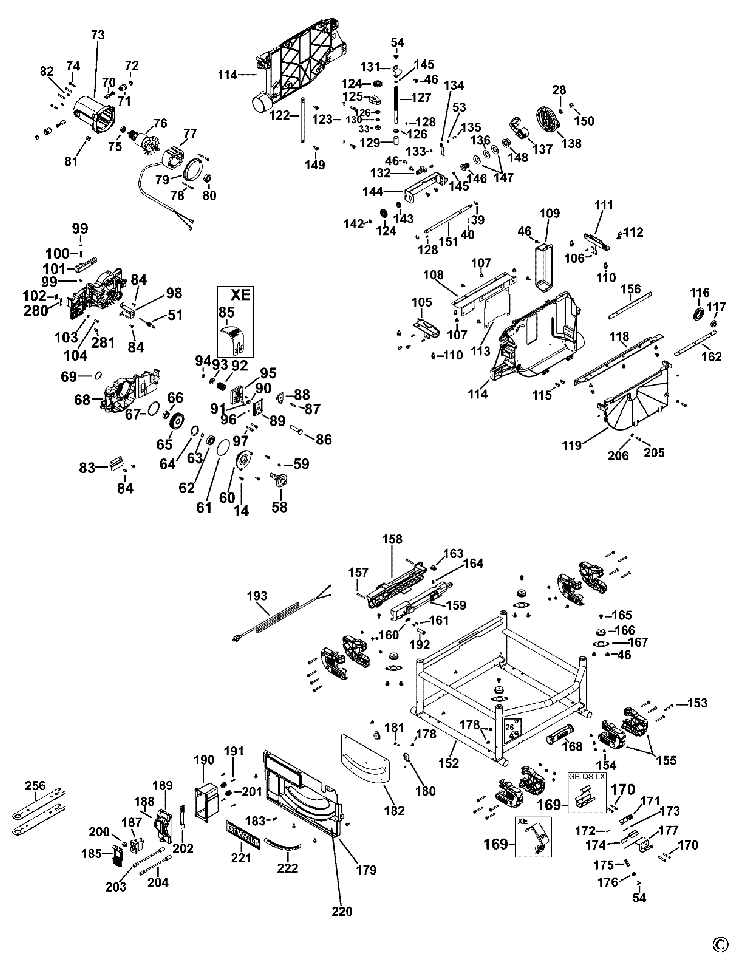

DWE7491 TABLE SAW Type 2
[DWE7491 Type 2]
DWE7491 TABLE SAW Type 2
Click pentru a mari
Imagini suplimentare
DWE7491 TABLE SAW Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 3 WASHER (1004695-74) 558 RON
4 1 3 SCREW (1004695-73) 781 RON
5 1 1 CLIP (5140134-60) 893 RON
6 1 2 SCREW (5140134-61) 558 RON
7 1 1 STRAP (5140134-62) 781 RON
8 1 2 RAIL (5140134-63) 17335 RON
9 1 3 SCREW (1004695-71) 105 RON
10 1 6 NUT M6 (5140032-03) 781 RON
11 1 3 WASHER (1004695-72) 558 RON
12 1 1 POINTER (5140134-65) 190 RON
13 1 2 SCREW.SPECIAL (5140134-66) 558 RON
14 1 11 SCREW.SPECIAL (5140134-67) 558 RON
15 1 2 RAIL (5140134-68) 9282 RON
16 1 4 CAP (5140134-69) 1452 RON
17 1 1 TABLE (5140134-70) 129966 RON
18 1 1 SHAFT SA (5140134-71) 5591 RON
19 1 1 BUSHING (5140134-72) 893 RON
20 1 1 SHAFT (5140134-73) 5591 RON
21 1 1 PIN (5140032-21) 781 RON
22 1 1 SCREW (5140032-22) 781 RON
23 1 1 LEVER LOCK (5140032-23) 3466 RON
24 1 1 WASHER (5140134-74) 558 RON
25 1 1 NUT M6 (5140032-25) 781 RON
26 1 3 NUT M5 (5140032-13) 781 RON
27 1 1 WASHER (5140032-70) 781 RON
28 1 2 WASHER M8 (5140032-15) 781 RON
29 1 1 SPRING (5140134-75) 105 RON
30 1 1 ADJUSTER (5140032-17) 190 RON
31 1 1 NUT M8 (5140134-76) 558 RON
32 1 1 REAR BRACKET (1004695-75) 5591 RON
33 1 2 NUT (5140134-78) 558 RON
34 1 3 WASHER M10 (5140032-27) 781 RON
35 1 1 KNOB (5140134-79) 1788 RON
36 1 5 PINION GEAR (5140032-29) 190 RON
37 1 2 BRACKET (5140134-80) 105 RON
38 1 2 COVER (5140134-81) 2347 RON
39 1 4 LOCKING RING (5140032-33) 781 RON
40 1 2 PIN (5140032-34) 781 RON
41 1 1 ROD (1004695-76) 9282 RON
42 1 2 BEARING BLOCK (5140032-36) 781 RON
43 1 2 SPRING (5140032-37) 781 RON
44 1 4 SCREW.SPECIAL (5140134-83) 558 RON
46 1 37 SCREW.SPECIAL (5140061-77) 893 RON
47 1 2 GUARD (5140134-85) 1788 RON
49 1 3 PLATE (5140032-77) 781 RON
50 1 2 PLATE (5140134-87) 781 RON
51 1 1 CABLE (5140134-88) 5591 RON
52 1 1 BRACKET (5140134-89) 105 RON
53 1 1 WASHER M4 (5140032-06) 781 RON
54 1 3 SCREW.SPECIAL (5140134-90) 558 RON
55 1 1 BUSHING (5140134-91) 781 RON
56 1 1 HANDLE (5140134-92) 3466 RON
57 1 2 CORD CLAMP (5140134-93) 558 RON
58 1 1 ARBOR (5140134-94) 20467 RON
59 1 1 KEY (5140134-95) 893 RON
60 1 1 GEARCASE COVER (5140033-10) 4137 RON
61 1 1 O RING (5140033-11) 893 RON
62 1 1 BEARING (1004695-91) 5031 RON
63 1 1 RING (5140033-13) 781 RON
64 1 1 RETAINER (5140010-11) 781 RON
65 1 1 GEAR (1004695-96) 14315 RON
65 1 1 GEAR (5140134-97) 17335 RON
66 1 1 BEARING (1004695-92) 4137 RON
67 1 1 O RING (5140033-16) 781 RON
68 1 1 1004697-15 - Indisponibil
69 1 1 O RING (5140033-18) 781 RON
70 1 2 BRUSH 230V (1002805-00) 2347 RON
70 1 1 BRUSH 115-120V (1002806-00) 2347 RON
71 1 2 BRUSH HOLDER (5140033-20) 3466 RON
72 1 2 BRUSH CAP (5140033-21) 781 RON
73 1 1 FIELD CASE (5140033-22) 11519 RON
74 1 4 SCREW.SPECIAL (5140134-99) 558 RON
75 1 1 BEARING (5140117-81) 3466 RON
76 1 1 ARMATURE 220/240V (1002807-00) 117887 RON
76 1 1 ARMATURE 115/120V (1004695-93) 102451 RON
77 1 1 FIELD 220 / 240V (1004695-97) 49771 RON
77 1 1 FIELD 115V (1004695-94) 40599 RON
78 1 2 SCREW (5140135-02) 781 RON
79 1 1 BUFFER (5140033-29) 1117 RON
79 1 1 BUFFER (1004695-95) 1229 RON
80 1 1 BEARING (5140118-21) 3466 RON
81 1 1 GROMMET (429991-43) 3466 RON
82 1 2 SCREW (5140011-87) 781 RON
83 1 1 1004696-74 - Indisponibil
84 1 4 SCREW (5140033-39) 781 RON
85 1 1 RIVING KNIFE (1004695-77) 14315 RON
85 1 1 RIVING KNIFE (1004695-77) 14315 RON
86 1 1 SHAFT (5140135-06) 3018 RON
87 1 1 PIN (5140135-07) 558 RON
88 1 1 SPRING (5140135-08) 105 RON
89 1 1 HOLDER (5140135-09) 1229 RON
90 1 1 BUSHING (5140135-10) 1788 RON
91 1 3 SCREW.SPECIAL (5140135-11) 781 RON
92 1 1 SPRING (5140135-12) 2124 RON
93 1 1 WASHER (5140135-13) 558 RON
94 1 1 CLIP (5140135-14) 558 RON
95 1 1 MOUNT (5140135-15) 9282 RON
96 1 1 SCREW.SPECIAL (5140135-16) 781 RON
97 1 6 SCREW (5140135-17) 781 RON
98 1 1 BRACKET (5140135-18) 1229 RON
99 1 2 CLIP (5140135-19) 558 RON
100 1 1 SHAFT (5140135-20) 105 RON
101 1 1 LEVER (5140135-21) 190 RON
102 1 1 1004697-12 - Indisponibil
103 1 1 NUT M5 (5140135-23) 781 RON
104 1 1 1004697-13 - Indisponibil
105 1 1 BRACKET SA (5140135-25) 7940 RON
106 1 2 DOWEL (5140033-40) 781 RON
107 1 16 SCREW.SPECIAL (5140135-26) 558 RON
108 1 1 BRACKET (5140135-27) 2795 RON
109 1 1 COVER (5140135-28) 1788 RON
110 1 4 SCREW.SPECIAL (5140135-29) 781 RON
111 1 1 BRACKET SA (5140135-30) 7940 RON
112 1 4 SCREW.SPECIAL (5140135-31) 781 RON
113 1 1 COVER (5140034-65) 2347 RON
114 1 1 CASTING (5140135-32) 37579 RON
115 1 2 SCREW.SPECIAL (5140135-33) 893 RON
116 1 1 WASHER OUTER CLAMP (1004695-83) 2124 RON
116 1 1 WASHER OUTER CLAMP (1004695-83) 2124 RON
117 1 1 LOCK-NUT (1004695-84) 3018 RON
118 1 1 BRACKET (5140135-34) 9282 RON
119 1 1 COVER (5140135-35) 7940 RON
120 1 2 WASHER (5140135-36) 558 RON
121 1 1 SPRING (5140135-37) 781 RON
122 1 1 SHAFT (5140135-38) 7940 RON
123 1 1 SHAFT (5140135-39) 6821 RON
124 1 1 BEVEL GEAR (5140118-05) 190 RON
125 1 1 BRACKET (5140135-40) 3466 RON
126 1 2 WASHER THRUST (5140135-41) 558 RON
127 1 1 CONTROL SCREW (5140135-42) 6821 RON
128 1 2 KEY (5140032-50) 781 RON
129 1 1 BUSHING (5140135-43) 893 RON
130 1 1 WASHER SPECIAL (5140135-44) 558 RON
131 1 1 BRACKET (5140135-45) 893 RON
132 1 1 BRACKET (5140135-46) 2795 RON
133 1 1 WASHER (5140135-47) 558 RON
134 1 1 POINTER (5140135-48) 1229 RON
135 1 2 SCREW (5140135-49) 558 RON
136 1 1 WASHER (5140135-50) 781 RON
137 1 1 HANDLE SA (5140135-51) 4137 RON
138 1 1 WHEEL SA (5140135-52) 4137 RON
142 1 1 RING (5140032-52) 781 RON
143 1 1 BUSHING (5140135-54) 781 RON
144 1 1 BRACKET (5140135-55) 5031 RON
145 1 2 O RING (5140135-56) 558 RON
146 1 1 SCREW (5140135-57) 2795 RON
147 1 2 WASHER (5140135-58) 781 RON
148 1 1 LOCK NUT (5140135-59) 2795 RON
149 1 4 SCREW.SPECIAL (5140135-60) 781 RON
150 1 1 NUT (5140135-61) 558 RON
151 1 1 SHAFT (5140135-62) 5031 RON
152 1 1 FRAME (5140135-63) 70239 RON
153 1 16 SCREW.SPECIAL (5140135-64) 558 RON
154 1 16 NUT M5 (5140095-74) 781 RON
155 1 4 FOOT SA (1004696-21) 5591 RON
156 1 1 PLATE (5140135-66) 1229 RON
157 1 2 SCREW (5140135-67) 558 RON
158 1 1 UPPER MOULDING (5140135-68) 5591 RON
159 1 1 UPPER MOULDING (5140135-69) 5031 RON
160 1 1 CORD CLAMP (5140061-66) 105 RON
161 1 2 SCREW.SPECIAL (5140135-70) 558 RON
162 1 1 PLATE (5140135-71) 1452 RON
163 1 1 INSERT (5140135-72) 781 RON
164 1 1 SPRING (5140135-73) 781 RON
165 1 4 SCREW.SPECIAL (5140135-74) 781 RON
166 1 4 BUMPER (5140135-75) 781 RON
167 1 4 PLATE (5140135-76) 781 RON
168 1 1 HANDLE (5140135-77) 3466 RON
169 1 1 PLATE (1004695-86) 3018 RON
169 1 1 PLATE (1004695-86) 3018 RON
170 1 4 SCREW (5140135-79) 558 RON
171 1 1 KNOB (5140135-80) 105 RON
172 1 1 PIN (5140135-81) 1117 RON
173 1 1 WASHER (5140135-82) 558 RON
174 1 1 PLATE (5140135-83) 2124 RON
175 1 1 SHAFT (5140135-84) 1229 RON
176 1 1 SPRING (5140135-85) 105 RON
177 1 1 BRACKET (5140135-86) 2347 RON
177 1 1 BRACKET (5140135-86) 2347 RON
178 1 6 SCREW (5140135-87) 558 RON
179 1 1 PANEL FRONT (5140135-88) 9282 RON
180 1 2 WASHER (5140033-04) 781 RON
181 1 3 SCREW (5140135-89) 558 RON
182 1 1 PLATE (5140135-90) 4137 RON
183 1 2 SCREW (5140135-91) 781 RON
185 1 1 PADDLE (1004695-98) 2124 RON
187 1 1 SWITCH 240V (1004696-01) 20467 RON
187 1 1 SWITCH (5140135-94) 17335 RON
188 1 1 PIN (5140135-95) 1117 RON
189 1 1 SWITCH COVER (1004696-02) 2795 RON
190 1 1 SWITCHBOX (5140135-97) 5031 RON
191 1 4 SCREW (1004696-04) 558 RON
192 1 1 SLEEVE (5140061-67) 190 RON
193 1 1 CORDSET (M/PLUG) GB (1004695-88) 22144 RON
193 1 1 CORDSET (1004695-89) 37579 RON
200 1 1 SHAFT (1004696-00) 781 RON
201 1 1 PROTECTOR (1004696-03) 3018 RON
202 1 1 PCB (1004696-05) 3466 RON
203 1 1 LEADWIRE (1004696-06) 1229 RON
204 1 1 LEADWIRE (1004696-07) 1229 RON
205 1 2 SCREW (1004695-79) 781 RON
206 1 2 WASHER (1004695-80) 558 RON
207 1 1 EXTENSION (1004695-78) 49771 RON
209 1 4 Washer Lock (1004695-81) 558 RON
210 1 4 WASHER (1004695-82) 558 RON
220 1 1 N406801 - Indisponibil
220 1 1 N406803 - Indisponibil
221 1 1 N196813 - Indisponibil
222 1 1 N196812 - Indisponibil
223 1 1 SCALE (N196912) 3466 RON
223 1 1 SCALE (N196912) 3466 RON
224 1 1 LABEL (1004696-08) 781 RON
230 1 2 BUSHING (1004696-09) 558 RON
231 1 2 WASHER SPECIAL (1004696-10) 558 RON
232 1 1 LATCH (1004696-11) 1229 RON
233 1 1 CLIP (1004696-12) 781 RON
234 1 2 SCREW (1004696-14) 558 RON
235 1 1 LATCH (1004696-13) 3466 RON
236 1 2 SPRING (1004696-15) 781 RON
237 1 4 SCREW (1004696-16) 558 RON
238 1 2 WASHER (1004696-17) 105 RON
239 1 1 LATCH (1004696-18) 3466 RON
240 1 1 CLIP (1004696-19) 781 RON
241 1 1 LATCH (1004696-20) 1229 RON
249 1 1 RIVING KNIFE (1004695-69) 1891 RON
249 1 1 RIVING KNIFE (1004695-69) 1891 RON
251 1 1 GUARD SA (1004695-68) 34336 RON
251 1 1 GUARD SA (1004695-68) 34336 RON
252 1 1 FENCE SA (1004695-70) 102451 RON
254 1 1 MITRE FENCE (1004696-25) 25164 RON
255 1 1 PUSHROD (5140033-44) 3466 RON
256 1 2 WRENCH SPECIAL (1004695-85) 4472 RON
257 1 1 DUST PORT (1004695-90) 2795 RON
270 1 1 TABLE INSERT (5140034-46) 3466 RON
271 1 4 SCREW (5140033-53) 781 RON
273 1 1 SCREW (5140033-54) 781 RON
274 1 1 CAM (5140033-55) 893 RON
280 1 1 1004697-14 - Indisponibil
281 1 1 SCREW (5140033-39) 781 RON
