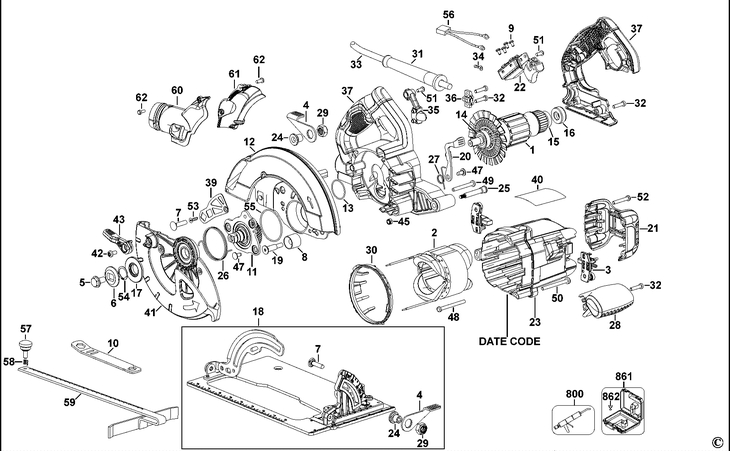

DWE575 CIRCULAR SAW Type 1
[DWE575 Type 1]
DWE575 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N420172 - Indisponibil
1 1 1 N399349 - Indisponibil
2 1 1 FIELD SA 230V (N225796) 23598 RON
2 1 1 FIELD 120V (N225800) 25164 RON
3 1 1 BRUSH HOLDER PAIR (N226137) 7940 RON
4 1 1 LEVER (145347-00) 105 RON
5 1 1 SCREW SPECIAL (145344-00) 781 RON
6 1 1 OUTER FLANGE (N120428) 1788 RON
6 1 1 OUTER FLANGE (N120428) 1788 RON
7 1 2 CARRIAGE BOLT (98128-90) 558 RON
8 1 1 BUMPER (381066-00) 558 RON
9 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
10 1 1 WRENCH SPECIAL (N165861) 1452 RON
10 1 1 WRENCH SPECIAL (N165861) 1452 RON
11 1 1 SPINDLE SA (N219393) 12861 RON
12 1 1 GEARCASE SA (N237899) 15993 RON
13 1 1 O RING (N100358) 558 RON
14 1 1 BEARING BALL (330003-64) 4137 RON
15 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
16 1 1 RUBBER BOOT (N136311) 781 RON
17 1 1 WASHER INNER CLAMP (N084137) 190 RON
18 1 1 SHOE SA (N241119) 26730 RON
19 1 1 SCREW (N086135) 558 RON
20 1 1 LEVER LOCK (N090570) 190 RON
21 1 1 END CAP (N090678) 2347 RON
22 1 1 SWITCH SA (N120421) 7940 RON
23 1 1 FIELDCASE (N168914) 9282 RON
23 1 1 FIELDCASE (N168914) 9282 RON
24 1 1 SCREW (N094731) 2347 RON
25 1 1 BOLT (N099101) 781 RON
26 1 1 SPRING (N100006) 893 RON
27 1 1 SPRING (N100123) 558 RON
28 1 1 HANDLE (N115554) 190 RON
29 1 1 STOP NUT (N117921) 781 RON
30 1 1 BAFFLE FAN (N123095) 1117 RON
31 1 1 CORD PROTECTOR (330005-02) 1117 RON
32 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
33 1 1 CORDSET (M/PLUG) GB (N142646) 12861 RON
33 1 1 CORDSET (N033743) 20467 RON
34 1 2 TERMINAL (395716-00) 558 RON
35 1 1 CORD CLAMP (N095539) 781 RON
36 1 1 CORD CLAMP (N127730) 558 RON
37 1 1 HANDLE SA (N137320) 14315 RON
37 1 1 HANDLE SA (N137320) 14315 RON
39 1 1 STRAP (N135988) 781 RON
40 1 1 RATING PLATE (N157828) 781 RON
40 1 1 RATING PLATE (N157829) 781 RON
41 1 1 GUARD LOWER (N152743) 15993 RON
42 1 1 098094-13 - Indisponibil
43 1 1 LEVER (N086628) 105 RON
43 1 1 LEVER (N086628) 105 RON
45 1 1 STOP NUT (N123103) 558 RON
47 1 4 SCREW (385915-04) 558 RON
48 1 2 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
49 1 1 SCREW TEMP (330045-19) 558 RON
50 1 3 SCREW (330045-21) 558 RON
51 1 2 SCREW (330019-10) 558 RON
52 1 4 SCREW (330019-45) 558 RON
53 1 1 SCREW (593515-00) 558 RON
54 1 1 RETAINER (N120426) 558 RON
55 1 1 O RING (N361499) 781 RON
56 1 1 SA CAPACITOR (632218-00) 558 RON
57 1 1 SCREW (N287119) 893 RON
58 1 1 SPRING (58287-00) 558 RON
59 1 1 FENCE (N074939) 4137 RON
60 1 1 DUST PORT (N108974) 105 RON
60 1 1 DUST PORT (N108974) 105 RON
61 1 1 DUST PORT (N168420) 781 RON
61 1 1 DUST PORT (N168420) 781 RON
62 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
62 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
861 1 1 KITBOX (N044228) 22144 RON
861 1 1 KITBOX (N044228) 22144 RON
862 1 1 spring clip from DC390KN-EC (605265-00) 558 RON
862 1 1 spring clip from DC390KN-EC (605265-00) 558 RON
