Top » Piese de schimb » PIESE DEWALT » DWE560 Type 1

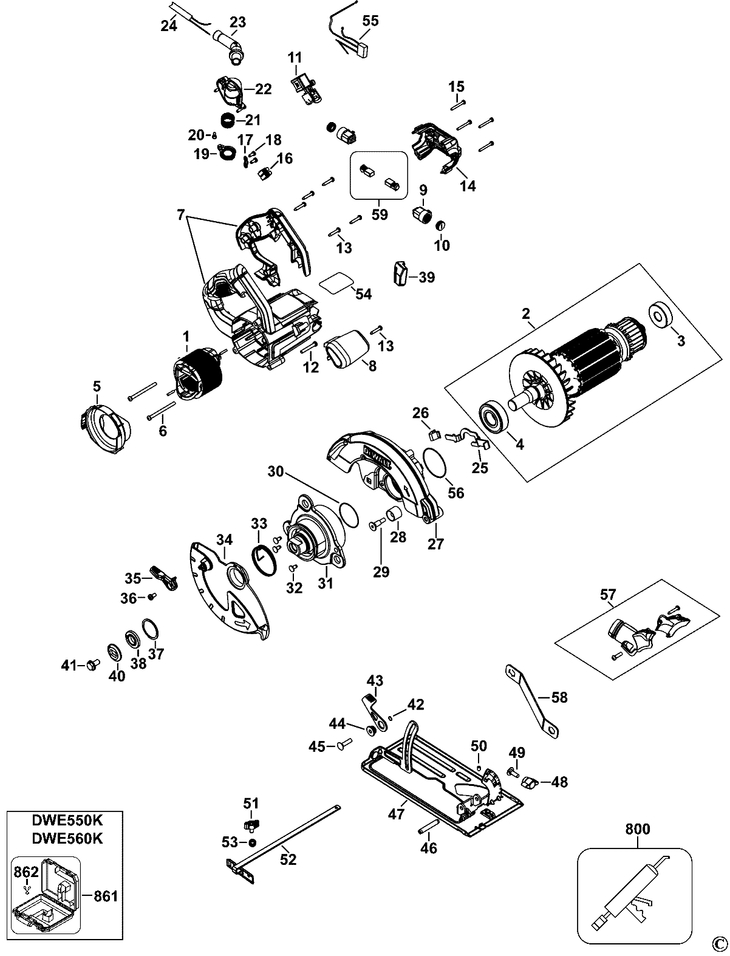

DWE560 CIRCULAR SAW Type 1
[DWE560 Type 1]
DWE560 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIELD SA 230V (N178802) 1891 RON
1 1 1 N178803 - Indisponibil
2 1 1 ARMATURE SA (N178804) 3124 RON
2 1 1 N178811 - Indisponibil
3 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
4 1 1 BEARING (605040-59) 2124 RON
5 1 1 BAFFLE (N083602) 781 RON
6 1 2 SCREW PLASTITE (330019-19) 781 RON
7 1 1 FIELDCASE SA (N112960) 12861 RON
8 1 1 HANDLE (N086362) 1117 RON
9 1 2 BRUSH HOLDER (N024450) 2347 RON
10 1 2 BRUSH CAP (N024448) 781 RON
11 1 1 SWITCH (N092201) 5031 RON
12 1 1 SCREW (330045-20) 781 RON
13 1 6 SCREW (330065-31) 558 RON
14 1 1 END CAP (N083601) 1452 RON
15 1 4 SCREW PLSTC THD FORM M3.5 X 30 (330065-27) 558 RON
16 1 1 BLOCK TERMINAL (320078-00) 1452 RON
16 1 1 BLOCK TERMINAL (320078-00) 1452 RON
17 1 1 CLAMP CORD (821070) 558 RON
18 1 2 PLASTIC SCREW (N017542) 558 RON
19 1 1 PROTECTOR (N105376) 781 RON
20 1 1 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
21 1 1 SPRING (N083610) 558 RON
22 1 1 HOLDER (N102412) 105 RON
23 1 1 CORD PROTECTOR (N083609) 105 RON
24 1 1 CORDSET (M/PLUG) GB (N114590) 10512 RON
24 1 1 CORDSET (N114591) 12861 RON
25 1 1 SPINDLE LOCK (N083584) 1788 RON
26 1 1 SPRING (N130051) 558 RON
27 1 1 GEARCASE SA (N177902) 1891 RON
28 1 1 BUMPER (381066-00) 558 RON
29 1 1 SCREW (N086355) 558 RON
30 1 1 O RING (N134472) 558 RON
31 1 1 SPINDLE SA (N183366) 11519 RON
32 1 3 SCREW (385915-04) 558 RON
33 1 1 SPRING (N083599) 893 RON
34 1 1 GUARD LOWER (N083598) 7940 RON
35 1 1 LEVER (N086628) 105 RON
36 1 1 098094-13 - Indisponibil
37 1 1 RETAINER (N152544) 558 RON
38 1 1 INNER FLANGE (N112958) 1229 RON
38 1 1 INNER FLANGE (N112958) 1229 RON
39 1 1 RUBBER SEAL (N191811) 893 RON
40 1 1 WASHER OUTER CLAMP (145343-01) 893 RON
40 1 1 WASHER OUTER CLAMP (145343-01) 893 RON
41 1 1 SCREW SPECIAL (145344-00) 781 RON
42 1 1 RING (152211-00) 558 RON
43 1 1 LEVER (N112955) 1117 RON
44 1 1 NUT (N111116) 190 RON
45 1 1 CARRIAGE BOLT (N143277) 558 RON
46 1 1 PIN (389562-00) 781 RON
47 1 1 SHOE SA (N136649) 12861 RON
48 1 1 WING NUT (N116044) 893 RON
49 1 1 N038133 - Indisponibil
50 1 1 SCREW (N094309) 558 RON
51 1 1 KNOB (N116069) 781 RON
52 1 1 FENCE (N083612) 2347 RON
53 1 1 SPRING (N170858) 558 RON
54 1 1 RATING PLATE (N141340) 558 RON
54 1 1 RATING PLATE (N141341) 558 RON
55 1 1 CAPACITOR (N106861) 1117 RON
55 1 1 CAPACITOR (N106861) 1117 RON
56 1 1 O RING (N100358) 558 RON
57 1 1 DUST PORT (N195215) 1788 RON
57 1 1 DUST PORT (N195215) 1788 RON
58 1 1 SPANNER (N035355) 1117 RON
59 1 1 BRUSH PAIR 230V (N179042) 2124 RON
59 1 1 BRUSH PAIR 115V (N179043) 2347 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
861 1 1 KITBOX (N044228) 22144 RON
862 1 1 spring clip from DC390KN-EC (605265-00) 558 RON
