DWE46101 GRINDER Type 2
[DWE46101 Type 2]

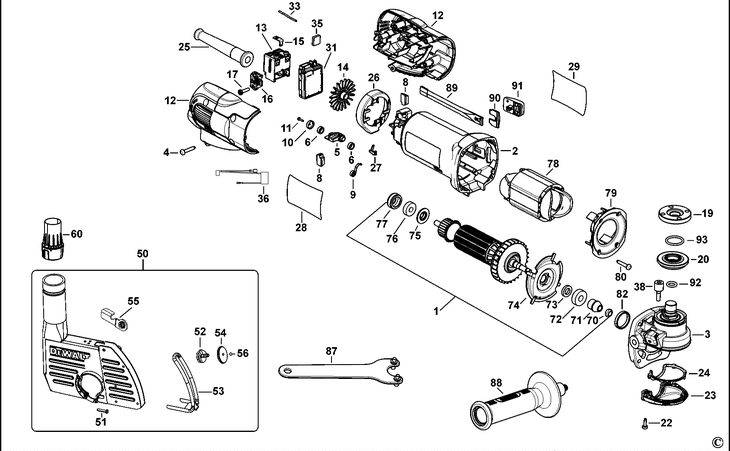

DWE46101 GRINDER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (N186484) 28296 RON
1 1 1 ARMATURE SA (N186483) 28296 RON
2 1 1 FIELDCASE (626992-02) 4472 RON
2 1 1 FIELDCASE (626992-02) 4472 RON
3 1 1 GEARCASE SA (N157455) 15993 RON
4 1 9 SCREW (330065-31) 558 RON
5 1 2 ARM (648743-00) 1229 RON
6 1 4 SEAL (623592-00) 558 RON
8 1 1 BRUSH PAIR 230V CUT OFF ( cod vechi 1003857-00 ) BRUSH 230V CUT OFF (640491-03) 5031 RON
8 1 1 BRUSH PAIR 115V (N186485) 4137 RON
9 1 2 BRUSH SPRING (636760-00) 781 RON
10 1 2 CAP (623591-00) 558 RON
11 1 2 SCREW (593685-00) 558 RON
12 1 1 CLAMSHELL SET (N215273) 4472 RON
13 1 1 SWITCH (945614-01) 4472 RON
14 1 1 SEPARATOR (N055787) 781 RON
15 1 1 TERMINAL (634599-00) 781 RON
16 1 1 CORD CLAMP (628398-00) 558 RON
17 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
19 1 1 OUTER FLANGE (622613-02) 2795 RON
20 1 1 INNER FLANGE SA (633257-00SV) 2795 RON
22 1 4 SCREW (385676-01) 558 RON
23 1 1 GEARCASE COVER (623562-00) 2347 RON
24 1 1 GASKET (623618-00) 105 RON
25 1 1 CORDSET (M/PLUG) GB (562226-63) 10512 RON
25 1 1 CORDSET (562226-60) 20467 RON
26 1 1 BAFFLE (627283-00) 781 RON
27 1 2 TERMINAL (623593-00) 781 RON
28 1 1 LABEL (628885-00) 781 RON
29 1 1 RATING PLATE (N264721) 558 RON
29 1 1 RATING PLATE (N264722) 558 RON
31 1 1 CONTROL MODULE SA (N215275) 23598 RON
31 1 1 CONTROL MODULE SA (N215274) 23598 RON
33 1 1 LEAD SA D28136 (631028-00) 893 RON
35 1 1 SEAL (633391-00) 558 RON
36 1 1 CAPACITOR SA (637251-00) 2347 RON
38 1 1 SCREW STOP (N033051) 558 RON
50 1 1 SHROUD SA (N175386) 107597 RON
51 1 1 SCREW (N178989) 558 RON
52 1 1 BOLT (N179021) 4137 RON
53 1 1 GUIDE SA (N179023) 7940 RON
54 1 1 NUT (N179024) 14315 RON
55 1 1 LEVER SA (N179025) 5591 RON
56 1 1 LOCKING RING (N179030) 1452 RON
60 1 1 CONNECTOR (N071898) 7940 RON
70 1 1 NUT (604484-00) 558 RON
71 1 1 PINION (657180-00) 2795 RON
72 1 1 BEARING BALL (605040-11) 190 RON
73 1 1 FELT SEAL (623617-00) 558 RON
74 1 1 ETAINER (623580-00) 1788 RON
75 1 1 WASHER (623613-00) 558 RON
76 1 1 BEARING (605040-02) 1788 RON
77 1 1 SLEEVE (641823-00) 558 RON
78 1 1 FIELD 230V (627125-04) 14315 RON
78 1 1 FIELD 115V (627125-01) 1891 RON
79 1 1 BAFFLE FAN (623572-00) 105 RON
80 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
82 1 1 SLEEVE (611492-00) 558 RON
87 1 1 WRENCH PIN (N079326) 190 RON
88 1 1 N405107 - Indisponibil
89 1 1 LINK (627001-00) 190 RON
90 1 1 BAR LOCKING (644326-00) 781 RON
91 1 1 BUTTON START (623608-00) 781 RON
92 1 1 O RING (633045-00) 781 RON
93 1 1 O RING (633043-00) 781 RON
