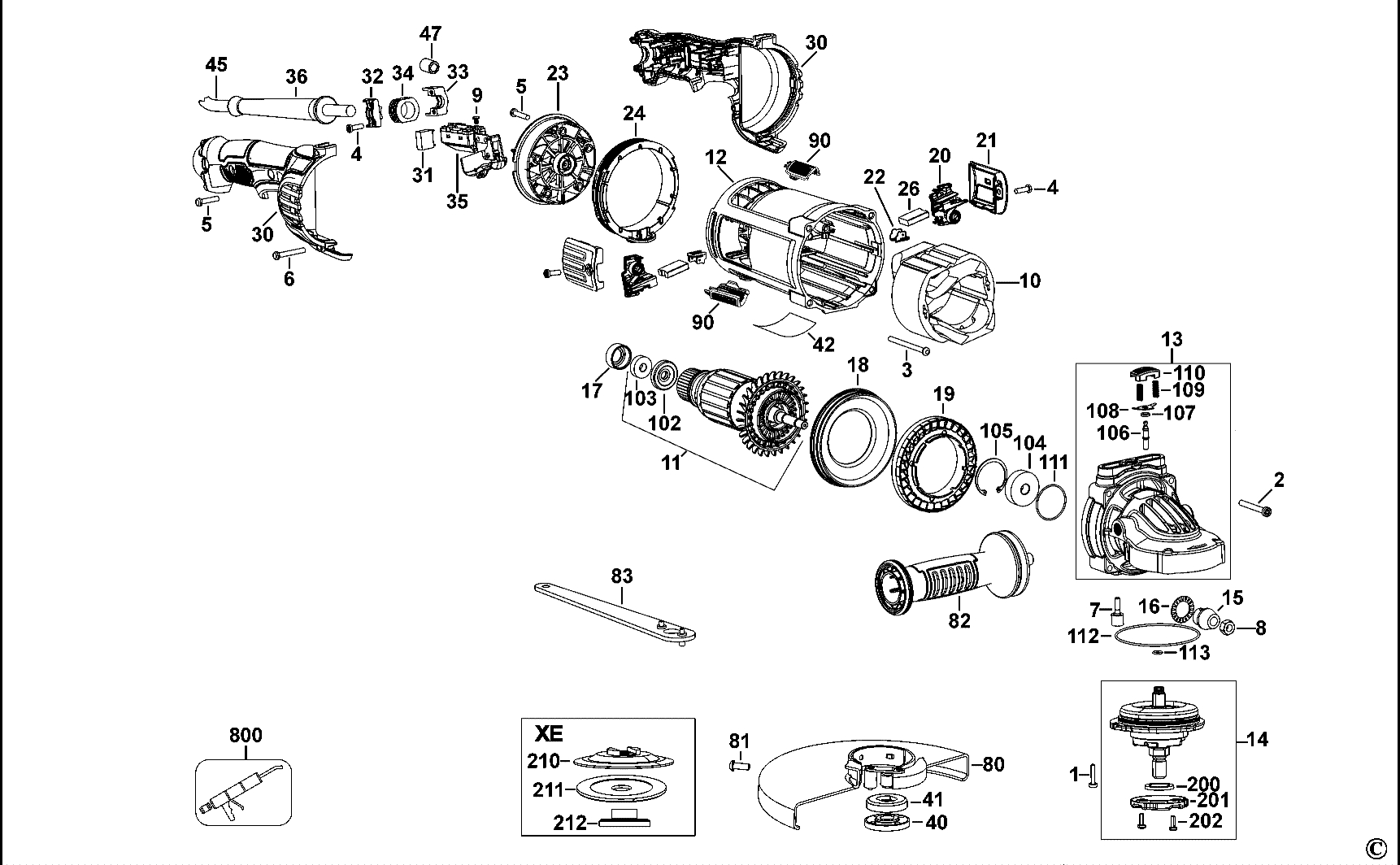

DWE4557 ANGLE GRINDER Type 1
[DWE4557 Type 1]
DWE4557 ANGLE GRINDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-07) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 4 screw dw744 (330019-12) 558 RON
5 1 11 SCREW PLASTITE (330019-32) 558 RON
6 1 2 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
7 1 1 SCREW STOP (N033051) 558 RON
8 1 1 NUT HEX (330015-03) 558 RON
9 1 4 SCREW (N111595) 558 RON
10 1 1 FIELD 230V (N203633) 3124 RON
10 1 1 FIELD 120V (N203636) 32770 RON
11 1 1 ARMATURE 230V (N203631) 45297 RON
12 1 1 FIELDCASE (N096025) 12861 RON
13 1 1 GEARCASE SA (N252619) 25164 RON
14 1 1 GEARCASE COVER SA (N203623) 22144 RON
15 1 1 PINION (N112754) 5031 RON
16 1 1 WASHER SPECIAL (N132602) 558 RON
17 1 1 CUP RUBBER (609970-00) 558 RON
18 1 1 BAFFLE FAN (N094853) 1117 RON
19 1 1 FAN (N094854) 893 RON
20 1 2 BRUSH HOLDER SA (N106196) 3018 RON
21 1 2 BRUSH COVER (N111898) 105 RON
22 1 2 TERMINAL (N139735) 893 RON
23 1 1 FAN SA (N252621) 5591 RON
24 1 1 RING (N110984) 2347 RON
26 1 1 BRUSH PAIR 230V (N253999) 6821 RON
30 1 1 HANDLE SA (N145819) 10512 RON
31 1 1 CAPACITOR (N144788) 1452 RON
32 1 1 CORD CLAMP (N142099) 558 RON
33 1 1 CORD CLAMP (N104732) 781 RON
34 1 1 SHOCK ABSORBER (N135624) 781 RON
35 1 1 SWITCH SA (N122893) 9282 RON
36 1 1 CORD PROTECTOR (604118-00) 190 RON
40 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
41 1 1 WASHER CLAMP INNER (403150-01) 2347 RON
42 1 1 RATING PLATE (N145025) 781 RON
45 1 1 N144811 - Indisponibil
47 1 1 SUPPRESSOR (647865-00) 893 RON
80 1 1 SA GUARD LAG KEYLESS 180M FLAT (N036831) 6821 RON
81 1 1 SCREW MACHINE PAN HD M6 * 1.0 * 25 (606863-00) 558 RON
82 1 1 SIDE HANDLE (N241543) 12861 RON
83 1 1 WRENCH PIN (635261-00) 2795 RON
90 1 2 N398650 - Indisponibil
102 1 1 SHIELD DUST (393238-00) 781 RON
103 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
104 1 1 N389509 - Indisponibil
105 1 1 RETAINER (N173539) 781 RON
106 1 1 LOCK PIN (N173538) 105 RON
107 1 1 O RING (N173540) 558 RON
108 1 1 PLATE (N108422) 781 RON
109 1 2 SPRING (N110675) 558 RON
110 1 1 BUTTON (N110236) 781 RON
111 1 1 O RING (N226986) 1452 RON
112 1 1 O RING (397031-00) 781 RON
113 1 1 O RING (660143-00) 558 RON
200 1 1 FELT (N103732) 781 RON
201 1 1 CAP (N095989) 190 RON
202 1 4 SCREW (N247325) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
