Top » Piese de schimb » PIESE DEWALT » DWD221 Type 1

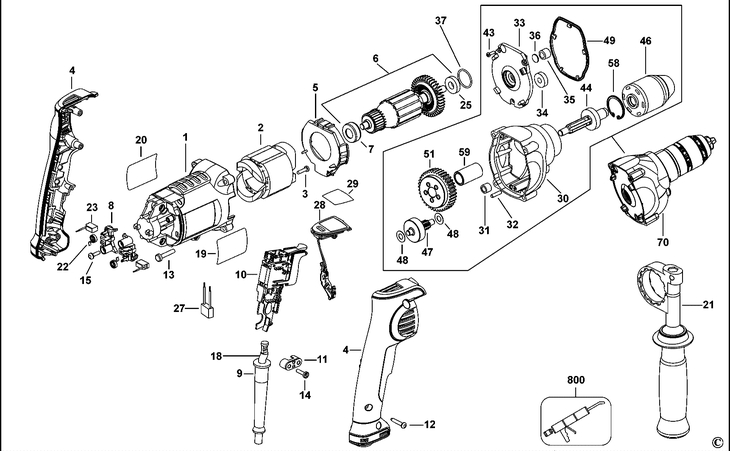

DWD221 DRILL Type 1
[DWD221 Type 1]
DWD221 DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIELD CASE (639593-01) 4137 RON
3 1 2 SCREW (N068183) 558 RON
4 1 1 CLAMSHELL SET (N028547) 7940 RON
5 1 1 BAFFLE FAN (641824-00) 105 RON
7 1 1 SA BEARING AND BOOT (391032-00) 2795 RON
8 1 1 BRUSH HOLDER (N028784) 5031 RON
9 1 1 PROTECTOR CORD (330005-01) 105 RON
11 1 1 CORD CLAMP (655058-00) 781 RON
12 1 4 SCREW (330065-31) 558 RON
13 1 4 Screw Metal (330045-15) 781 RON
14 1 2 SCREW (330065-07) 558 RON
15 1 2 SCREW (176951-00) 558 RON
19 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
22 1 2 SPRING (662999-01) 781 RON
25 1 1 BEARING (N024085) 2795 RON
28 1 1 MODULE (656320-00) 5591 RON
30 1 1 GEARCASE SA (N194711) 107597 RON
31 1 1 000000-00 - Indisponibil
32 1 1 000000-00 - Indisponibil
33 1 1 GEARCASE COVER (645400-05SV) 12861 RON
34 1 1 BEARING (605040-02) 1788 RON
35 1 1 BEARING NEEDLE (330004-02) 1229 RON
36 1 1 THRUST PLATE (652185-00) 558 RON
37 1 1 O RING (99014-04) 558 RON
43 1 3 SCREW.TEMP (98102-13) 558 RON
46 1 1 CHUCK KEYLESS (586200-12) 34336 RON
47 1 1 INTER SHAFT SA (656364-00) 14315 RON
48 1 2 WASHER THRUST (659185-00) 558 RON
49 1 1 SEAL (648761-00) 781 RON
58 1 1 000000-00 - Indisponibil
59 1 1 000000-00 - Indisponibil
800 1 1 GREASE (761995-01) 23598 RON
800 1 1 GREASE (286436-00) 70239 RON
