Top » Piese de schimb » PIESE DEWALT » DW952K Type 2

DW952K CORDLESS DRILL Type 2
[DW952K Type 2]
DW952K CORDLESS DRILL Type 2

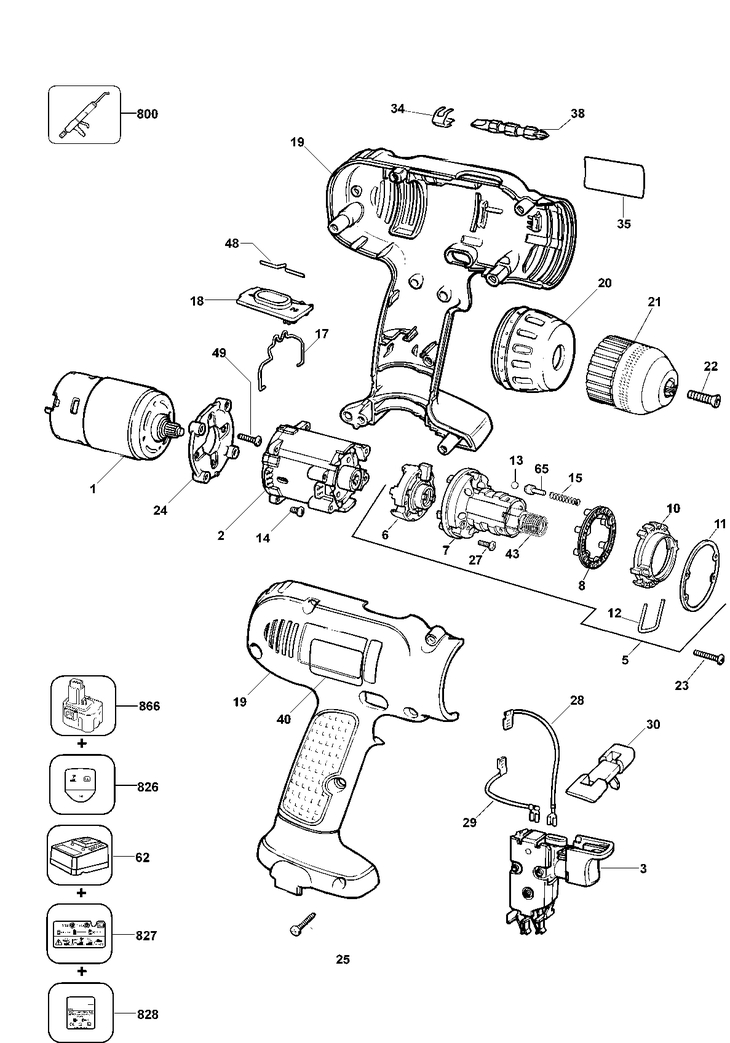

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
3 1 1 SWITCH SA (N034934) 1891 RON
5 1 1 CLUTCH MECHANISM ( SERVICE ) (573121-00) 26730 RON
6 1 1 SA END CAP (370506-00) 2795 RON
7 1 1 000000-00 - Indisponibil
8 1 1 PLATE DETENT (380792-00) 781 RON
10 1 1 NUT (798709-00) 781 RON
11 1 1 WASHER FLANGE (805004-00) 558 RON
12 1 1 CLIP BEARING (798959-00) 558 RON
13 1 7 BALL STEEL (386690-00) 558 RON
14 1 4 SCREW M3 * 10mm (798486) 558 RON
15 1 6 SPRING CLUTCH (798707) 558 RON
17 1 1 SPRING. GEARCHANGE (799024) 781 RON
18 1 1 000000-00 - Indisponibil
19 1 1 000000-00 - Indisponibil
20 1 1 000000-00 - Indisponibil
21 1 1 CHUCK KEYLESS (330075-46) 14315 RON
22 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
23 1 4 SCREW NO.4*18 POZI (733886) 558 RON
24 1 1 000000-00 - Indisponibil
25 1 7 SCREW (747329) 558 RON
27 1 4 SCREW M3 * 10mm PLAST (808821) 558 RON
28 1 1 000000-00 - Indisponibil
29 1 1 LEAD WIRE DW954K (151523-01) 1117 RON
30 1 1 000000-00 - Indisponibil
34 1 1 RETAINER BIT (798453) 558 RON
35 1 1 BRAND LABEL (578760-00) 558 RON
38 1 1 BIT INSERT PH NO2 (297757-02) 893 RON
40 1 1 000000-00 - Indisponibil
43 1 1 SA SPINDLE ( SERVICE ) (573146-00) 15993 RON
48 1 1 SPRING (144658-00) 1117 RON
49 1 2 SCREW TAPTITE (156179-00) 558 RON
62 1 1 XRP3 CHARGER 240V UK (572576-00) 42277 RON
65 1 6 PIN (380793-00) 558 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
826 1 1 LABEL IDENTITY (578763-01) 893 RON
827 1 1 LABEL (EURO) IDENTIF DE9116 (643500-00) 558 RON
828 1 1 NAMEPLATE CHARGER (583471-05) 781 RON
866 1 1 SA BATTERY PACK 9.6V (SERVICE) (582803-00) 45185 RON
