Top » Piese de schimb » PIESE DEWALT » DW935K Type 1-2

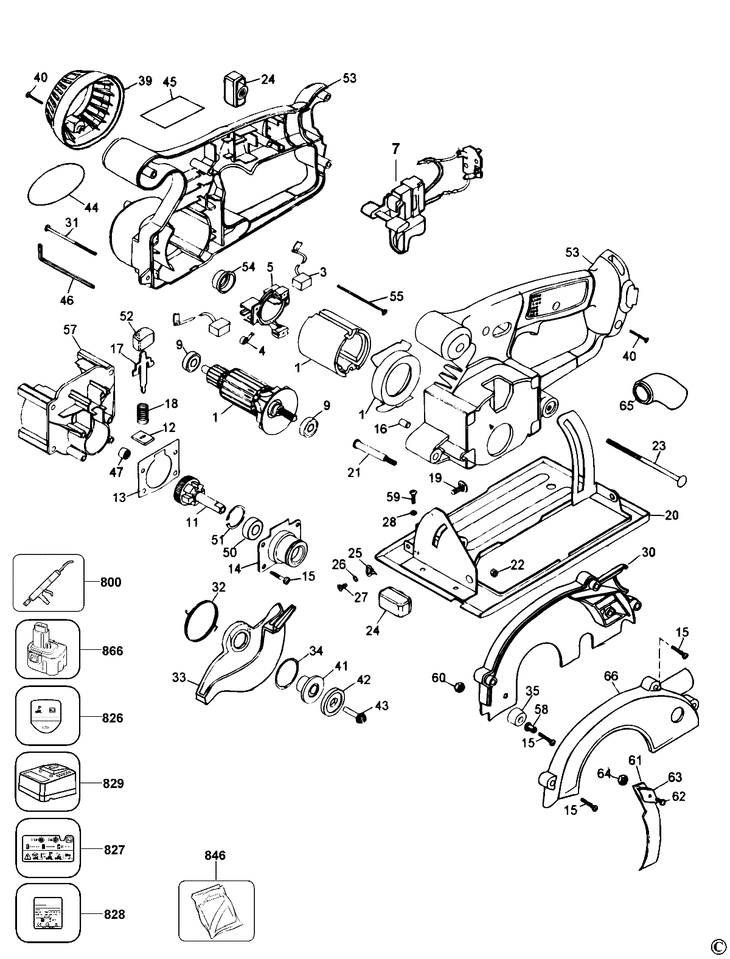

DW935K TRIM SAW Type 1-2
[DW935K Type 1-2]
DW935K TRIM SAW Type 1-2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (429906-00) 29862 RON
3 1 2 BRUSH & LEAD (387558-01) 2124 RON
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING BRUSH (382178-01) 1229 RON
7 1 1 000000-00 - Indisponibil
9 1 2 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 1 GEARSHAFT SA (384936-00SV) 9282 RON
11 1 1 GEARSHAFT SA (384936-00SV) 9282 RON
12 1 1 WIPER (393004-00) 558 RON
13 1 1 GASKET (150181-00) 781 RON
14 1 1 GEARCASE COVER (150392-00) 3466 RON
14 1 1 000000-00 - Indisponibil
15 1 8 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
16 1 1 PLUG (32731-00) 558 RON
17 1 1 SPINDLE LOCK (150389-00) 781 RON
18 1 1 SPRING (58698-00) 558 RON
19 1 1 CARRIAGE BOLT (98128-15) 558 RON
20 1 1 SHOE SA (380045-02) 10512 RON
21 1 1 SCREW (396631-00) 558 RON
22 1 1 LOCK NUT (148641-00) 558 RON
23 1 1 BOLT (98128-97) 781 RON
24 1 2 SA KNOB (395889-00) 781 RON
25 1 1 POINTER (145341-00) 558 RON
26 1 1 WASHER (98197-03) 558 RON
27 1 1 000000-00 - Indisponibil
28 1 1 NUT (330015-01) 558 RON
30 1 1 GUARD UPPER (380047-00) 12861 RON
31 1 4 SCREW (398987-00) 558 RON
32 1 1 000000-00 - Indisponibil
32 1 1 SPRING (150067-00) 781 RON
33 1 1 GUARD LOWER (381130-00) 3018 RON
33 1 1 KIT PROTECTEUR & CARTER (287983-00) 12861 RON
34 1 1 RETAINER (150383-00) 781 RON
35 1 1 BUMPER (445625-01) 781 RON
39 1 1 END CAP (150386-00) 190 RON
40 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
41 1 1 WASHER INNER CLAMP (150369-02) 105 RON
42 1 1 000000-00 - Indisponibil
43 1 1 BLADE BOLT (150384-00) 105 RON
44 1 1 NAMEPLATE (150385-01) 558 RON
45 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
46 1 1 HEX KEY 4MM (98000-09) 781 RON
47 1 1 NEEDLE BEARING (93128-00) 1229 RON
50 1 1 BALL BEARING (330003-08) 3018 RON
51 1 1 RETAINER (37464-00) 558 RON
52 1 1 BUTTON (145350-00) 558 RON
53 1 1 housing repair kit dw935k (429738-00) 1891 RON
53 1 1 000000-00 - Indisponibil
54 1 1 SLEEVE (445217-02) 781 RON
55 1 2 SCREW (448269-00) 558 RON
57 1 1 GEARCASE (150374-00) 12861 RON
58 1 1 EYELET (91963-13) 558 RON
59 1 1 SCREW (98003-11) 558 RON
59 1 1 SCREW (98003-16) 558 RON
60 1 1 NUT (330021-00) 558 RON
61 1 1 RIVING KNIFE (380041-00) 2795 RON
62 1 1 SCREW (98023-17) 2347 RON
63 1 1 PLATE (380042-00) 558 RON
64 1 1 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
65 1 1 NOZZLE (380043-00) 2347 RON
66 1 1 GUARD COVER (380048-00) 10512 RON
800 1 1 GREASE (761995-01) 23598 RON
826 1 1 LABEL IDENTITY (578763-03) 105 RON
827 1 1 LABEL (EURO) IDENTIF DE9116 (643500-00) 558 RON
828 1 1 NAMEPLATE CHARGER (583471-05) 781 RON
829 1 1 XRP3 CHARGER 240V UK (572576-00) 42277 RON
846 1 1 WING NUT (84317-00) 781 RON
866 1 1 SA BATTERY PACK 14.4V (582807-00) 58942 RON
