Top » Piese de schimb » PIESE DEWALT » DW914K Type 4

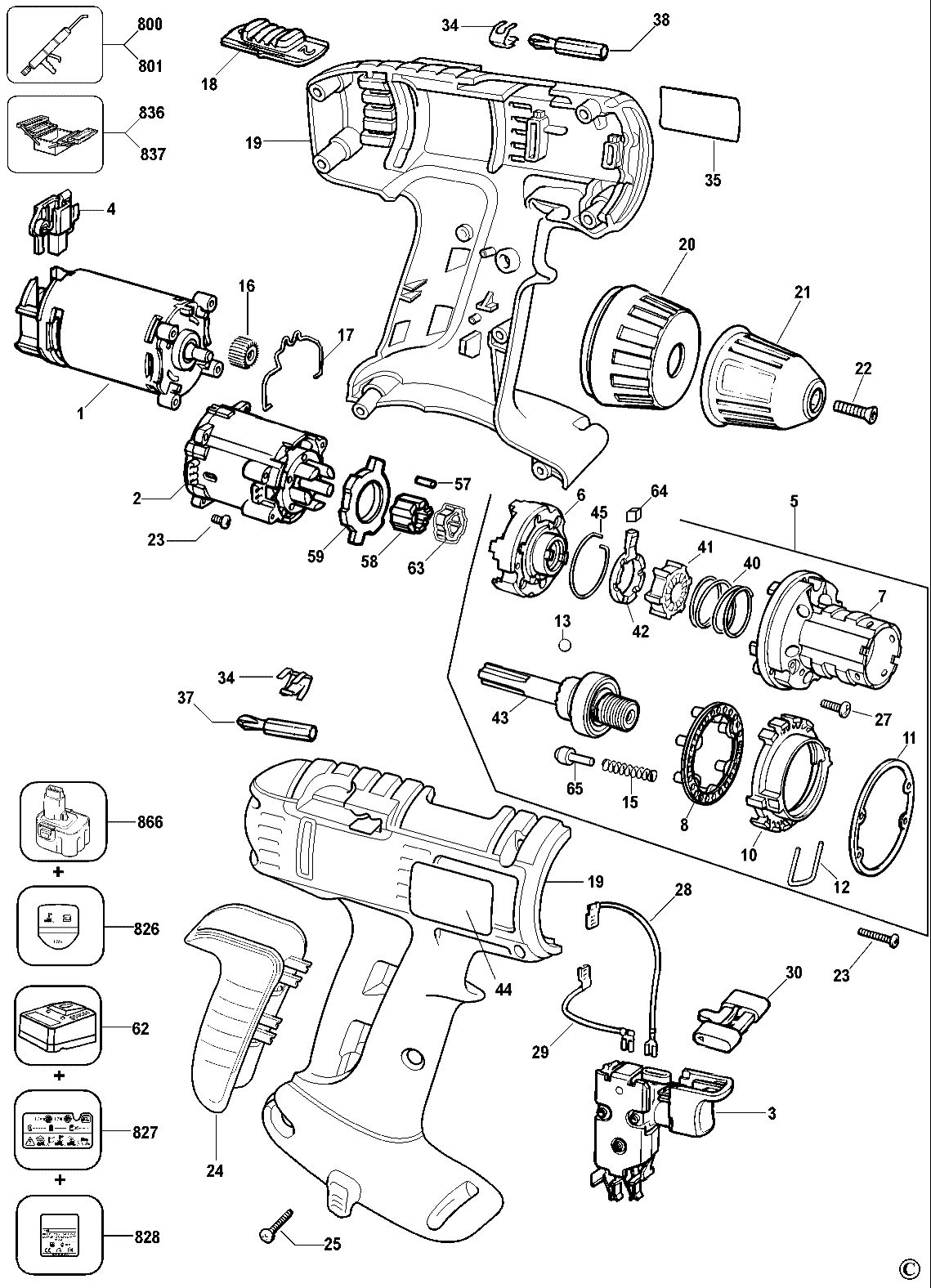

DW914K CORDLESS DRILL Type 4
[DW914K Type 4]
DW914K CORDLESS DRILL Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (SERVICE) (580920-11) 28296 RON
2 1 1 SA GEARBOX PACKED ( SERVICE) (372610-12) 20467 RON
3 1 1 SA SWITCH SERVICE (368832-06) 42277 RON
4 1 1 BRUSH PAIR 230V SA (373091-02) 7940 RON
5 1 1 COMBI MECHANISM ( SERVICE ) (573120-00) 34336 RON
6 1 1 SA END CAP (370506-01) 2795 RON
7 1 1 000000-00 - Indisponibil
8 1 1 PLATE DETENT (380792-00) 781 RON
10 1 1 NUT (798709-00) 781 RON
11 1 1 WASHER FLANGE (805004-00) 558 RON
12 1 1 CLIP BEARING (798959-00) 558 RON
13 1 7 BALL STEEL (386690-00) 558 RON
15 1 6 SPRING CLUTCH (798707) 558 RON
16 1 1 PINION MOTOR (380325-02) 781 RON
17 1 1 SPRING. GEARCHANGE (799024) 781 RON
18 1 1 SLIDER GEARCHANGE (799025-04) 1452 RON
19 1 1 000000-00 - Indisponibil
20 1 1 NOSE RING ( COMBI ) (799013-01) 4137 RON
21 1 1 CHUCK KEYLESS 13MM ROHM (576703-01) 26730 RON
22 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
22 1 1 000000-00 - Indisponibil
23 1 8 SCREW NO.4*18 POZI (733886) 558 RON
24 1 1 SOFT GRIP SBA71K/DW912/4K (376091) 2347 RON
25 1 7 SCREW (747329) 558 RON
27 1 2 SCREW M3 * 10mm PLAST (808821) 558 RON
28 1 1 BRUSH PAIR 230V SA (373091-02) 7940 RON
29 1 1 BRUSH PAIR 230V SA (373091-02) 7940 RON
30 1 1 SLIDER FORWARD / REVERSE (806057-06) 1117 RON
34 1 2 RETAINER BIT (798453) 558 RON
35 1 1 BRAND LABEL (578760-00) 558 RON
37 1 1 BIT SLOTTED (297564) 1452 RON
38 1 1 BIT POZIDRIVE (297565) 1229 RON
40 1 1 SPRING (799981-00) 558 RON
41 1 1 RATCHET FIXED (799980) 1788 RON
42 1 1 CAM RING (799978) 781 RON
43 1 1 SA SPINDLE ( SERVICE ) (573146-00) 15993 RON
44 1 1 000000-00 - Indisponibil
45 1 1 SPRING RETURN (805002) 558 RON
57 1 5 NEEDLE ROLLER LOCK (809740) 558 RON
58 1 1 SPINDLE LOCK ANVIL (372061) 1117 RON
59 1 1 LOCK RING (371983) 190 RON
62 1 1 XRP3 CHARGER 240V UK (572576-00) 42277 RON
63 1 1 ANVIL DAMPER (372063) 1229 RON
64 1 1 CAM EXTENDER (373853) 558 RON
65 1 6 PIN (380793-00) 558 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
801 1 1 GREASE 3KG (805639) 39145 RON
826 1 1 LABEL IDENTITY (578763-03) 105 RON
827 1 1 LABEL (EURO) IDENTIF DE9116 (643500-00) 558 RON
828 1 1 NAMEPLATE CHARGER (583471-05) 781 RON
836 1 1 000000-00 - Indisponibil
837 1 1 559504-99 - Indisponibil
866 1 1 SA BATTERY PACK 14.4V (582807-00) 58942 RON
