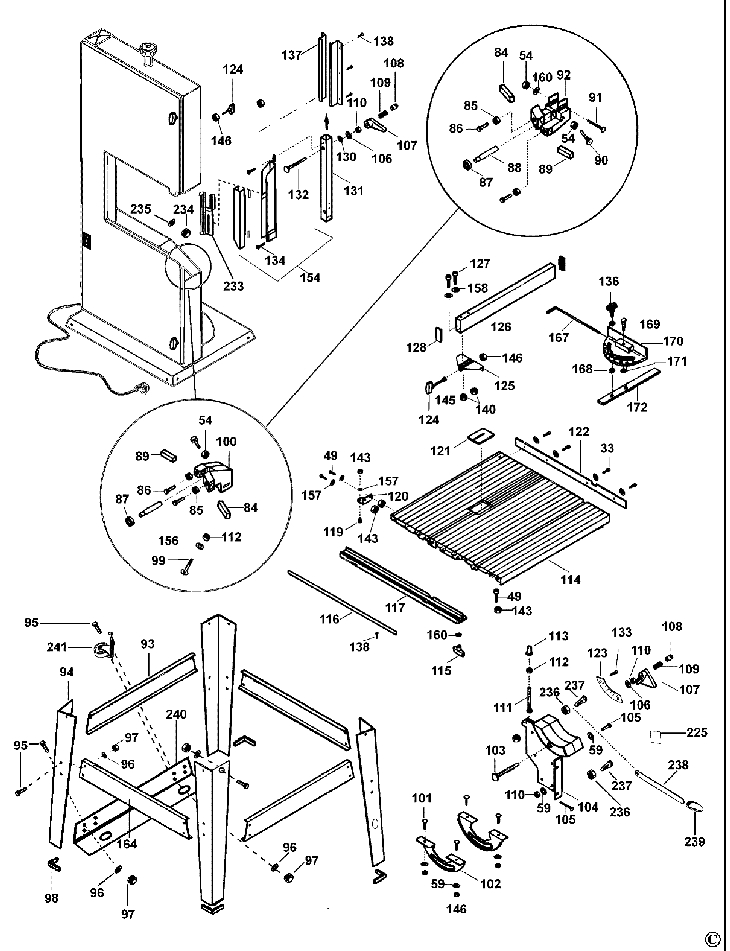

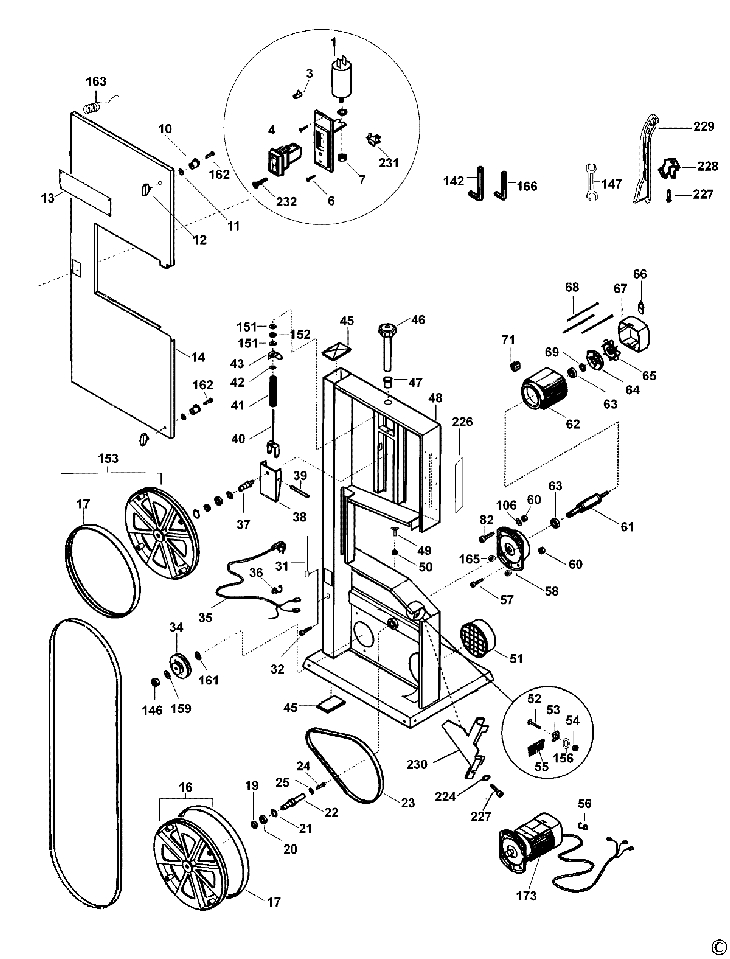

DW876 BANDSAW Type 2
[DW876 Type 2]
DW876 BANDSAW Type 2
Click pentru a mari
Imagini suplimentare
DW876 BANDSAW Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CAPACITOR (861429-07) 4472 RON
3 1 1 CLAMP E25 (861257-00) 781 RON
4 1 1 SWITCH (869173-00) 12861 RON
6 1 1 SCREW CTSKPHAB 3.9X13 UNI6956 (860428-04) 558 RON
7 1 1 SWITCH SUPPORT (861424-01) 2347 RON
10 1 2 CAM COVER CLOS.3700 (861399-01) 2124 RON
11 1 4 WASHER FLAT 8.4X14 UNI6592 ZN (860073-08) 558 RON
12 1 2 TURNED SCREW (869174-00) 3018 RON
13 1 1 BRAND LABEL (861498-02) 2347 RON
14 1 1 FRAME COVER DW876 (861397-02) 57488 RON
16 1 1 VOLANO CONDUT.+AN.GO 3601 (861487-90) 26730 RON
17 1 1 WHEEL RUBBER RING (861411-00) 9282 RON
19 1 1 BEARING (861721-02) 2347 RON
20 1 1 BEARING 6202 (861721-04) 2347 RON
21 1 1 SEEGER RING (861471-00) 893 RON
22 1 1 AXLE DRIVING BANDWHEEL (861470-00) 10512 RON
23 1 1 `RIVING BELT DW876 (N230397) 11519 RON
24 1 1 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON
25 1 1 WASHER (861483-00) 558 RON
32 1 1 RIVET DW876 (868443-00) 558 RON
33 1 4 SCREW PAN.PHAB 4.2X32 UNI6954 (860084-07) 558 RON
34 1 1 MOTOR PULLEY (862185-02) 7940 RON
35 1 1 CABLE+PLUG UK H07 (861432-12) 15993 RON
36 1 1 INLET (861433-01) 2124 RON
37 1 1 AXLE DRIVEN BANDWHEEL (861469-00) 6821 RON
38 1 1 UPPER BAND WHEEL BRACKET (861402-00) 5591 RON
39 1 1 PIN 8X80 (861473-00) 1117 RON
40 1 1 YOKE TENSION 3700 (861401-00) 4472 RON
41 1 1 SPRING (861474-00) 3018 RON
42 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
43 1 1 POINTER BLADE TENSION (861403-00) 3018 RON
45 1 1 CAP FRAME 3700 (861398-00) 2124 RON
46 1 1 KNOB TENSION+NUT (861400-00) 6821 RON
47 1 1 BUSH GUIDE D20 EBS3700 (861449-00) 2124 RON
48 1 1 FRAME DW876 (BLACK) (861395-02) 216872 RON
49 1 1 SCREW HEX M.6X20 UNI5739 BLCK (860085-09) 558 RON
50 1 1 NUT M6 (860083-12) 558 RON
51 1 1 SUCTION INLET 3700 (861428-00) 3018 RON
52 1 1 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
53 1 1 BRUSH HOLDER (861427-00) 2124 RON
54 1 1 NUT M6 (860083-12) 558 RON
55 1 1 BRUSH (863378-00) 2347 RON
56 1 1 BUSHING HEYCO 1247-SR-7W-2 (33821-00) 781 RON
57 1 1 SCREW HEX M.8X40 UNI 5737 (860086-03) 781 RON
58 1 1 FRONT CALOTTE (862211-02) 14315 RON
59 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
60 1 2 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
61 1 1 SA ROTOR DW876 (868519-00) 39145 RON
62 1 1 STATOR + HOUSING (868556-00) 165534 RON
63 1 2 BEARING 6202 2RS HRB (861721-01) 2347 RON
64 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
65 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
66 1 1 CAP FOR FAN COVER GUARD DW320 (863112-00) 558 RON
67 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
68 1 1 MOTOR TIE ROD-DW320 (863015-00) 781 RON
69 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
71 1 1 BUSHING CABLE MOTOR DW 320 (860447-00) 4137 RON
82 1 1 SCREW CUP SQUARE M8X25UNI5732 (860301-01) 781 RON
84 1 1 GUIDE BLOCK 45 (861450-01) 1452 RON
85 1 1 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
86 1 4 SCREW M4X8 (860093-25) 558 RON
87 1 1 BEARING 608 (861721-05) 190 RON
88 1 1 BEARING PIN (863795-00) 190 RON
89 1 1 GUIDE BLOCK 90 (861450-00) 1229 RON
90 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
91 1 1 SCREW (931997-00) 558 RON
92 1 1 BAND SAW GUIDE BLOCK-UPPER (861408-00) 5031 RON
93 1 1 CROSS BRACE DW876 (861426-03) 9282 RON
94 1 1 LEG DW876 (861425-01) 10512 RON
95 1 32 SCREW (860085-07) 558 RON
96 1 32 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
97 1 32 NUT M6 (860083-12) 558 RON
98 1 4 RUBBER FOOT (862419-00) 2795 RON
99 1 1 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
100 1 1 BAND SAW GUIDE BLOCK-LOWER (861409-00) 5031 RON
101 1 1 SQUARE HEAD BUTTON SCREW (949891-01) 558 RON
102 1 1 TILTING CRESCENT (861414-00) 4137 RON
103 1 1 SCREW (861484-00) 1117 RON
104 1 1 TABLE SUPPORT (861413-00) 1891 RON
105 1 1 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
106 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
107 1 1 LOCKING LEVER M8 1712USA (863320-00) 1229 RON
108 1 1 CAP FOR LOCKING LEVER (863073-00) 781 RON
109 1 1 SPRING (760483-00) 558 RON
110 1 9 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
111 1 1 HEX.HD.SCREW M6X50 (941959-00) 558 RON
112 1 1 NUT M6 (860083-12) 558 RON
113 1 1 FOOT GUMMY D.6XD.12X16 (860760-00) 893 RON
114 1 1 TABLE (861415-01) 190812 RON
115 1 1 KNOB (861464-00) 1229 RON
116 1 1 SCALE TABLE 3700 (861419-00) 2347 RON
117 1 1 GUIDE TABLE FENCE (861417-00) 1891 RON
119 1 1 PIN (861494-00) 190 RON
120 1 1 GUIDE SUPPORT FENCE 3700 (861420-00) 2347 RON
121 1 1 TABLE INSERT (861416-00) 1229 RON
122 1 1 REINFORCEMENT REAR TABLE 3700 (861418-00) 3466 RON
123 1 1 SCALE 0-45 (861740-00) 190 RON
124 1 1 KNOB (861452-00) 1788 RON
125 1 1 FENCE SUPPORT-DW711 (861421-01) 5031 RON
126 1 1 FENCE (861422-00) 14315 RON
127 1 1 SOCKET HEAD SCREW (949886-11) 558 RON
128 1 1 END CAP (861423-00) 781 RON
130 1 1 WASHER NYLON (861477-00) 2795 RON
131 1 1 BAND SAW GUIDE ROD 3700 (861405-00) 7940 RON
132 1 1 SCREW (861478-00) 781 RON
133 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
134 1 1 SCREW PAN.PHAB 3.5X9.5UNI6954 (860084-05) 558 RON
136 1 1 KNOB (861452-01) 781 RON
137 1 1 SQUARE (861406-00) 2795 RON
138 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
140 1 1 NUT HEX THIN M.6 UNI5589 ZINC (860083-13) 558 RON
142 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
143 1 1 NUT HEX THIN M.6 UNI5589 ZINC (860083-13) 558 RON
145 1 1 SPACER (861453-00) 781 RON
146 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
147 1 1 SPANNER 10/13 DW50-55 (949751-07) 190 RON
151 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
152 1 1 BEARING (861475-00) 2347 RON
153 1 1 WHEEL S/A (861486-90) 3124 RON
154 1 1 SA BLADE PROTECTION (861479-01) 17335 RON
156 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
157 1 1 WASHER FLAT 6.4X11 UNI6592 ZN (860073-07) 558 RON
158 1 1 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
159 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
160 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
161 1 1 WASHER-TRST 10X16X1 2 DIN 988 (860076-03) 558 RON
162 1 2 NUT M5 (860092-03) 558 RON
163 1 1 SPRING (861508-00) 2124 RON
164 1 1 CROSS BRACE DW876 (861426-02) 7940 RON
165 1 1 SLIDE ROLLER (760298-01) 558 RON
166 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
167 1 1 GAUGE (863844-00) 1229 RON
168 1 2 WASHER (949876-06) 558 RON
169 1 1 LOCK KNOB BS1310-DW100 (863851-00) 190 RON
170 1 1 "SCALE DW738-9 ""A2""" (862007-01) 5591 RON
171 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
172 1 1 BAR (863803-00) 6821 RON
173 1 1 MOTOR DW876 (868572-00) 301765 RON
224 1 1 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
225 1 1 WARNING LABEL (625450-00) 893 RON
226 1 1 WARNING LABEL (861709-02) 1452 RON
227 1 2 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
228 1 1 HOLDER (391358-01) 1117 RON
229 1 1 PUSH STICK (860610-01) 3466 RON
230 1 1 LOWER GUARD DW876 A2 (869167-00) 3018 RON
231 1 1 TERMINAL BLOCK [RATED 25A 600V] (326057-00) 893 RON
232 1 2 SCREW (949896-12) 558 RON
233 1 1 BLADE GUARD DW876 A2 (869168-00) 2347 RON
234 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
235 1 1 NUT M5 (860092-03) 558 RON
236 1 2 BUSHING DW876 A2 (869172-00) 3018 RON
237 1 2 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
238 1 1 "LEVA DW876 ""A2""" (869170-00) 6821 RON
239 1 1 HANDLE(SLOT 3.5X26)BLACK (860367-00) 893 RON
240 1 1 SHORT CROSS MACH.SUPP. DW876 (869171-00) 17335 RON
241 1 2 RUOTA D80 (868865-01) 4137 RON
