Top » Piese de schimb » PIESE DEWALT » DW872 Type 2

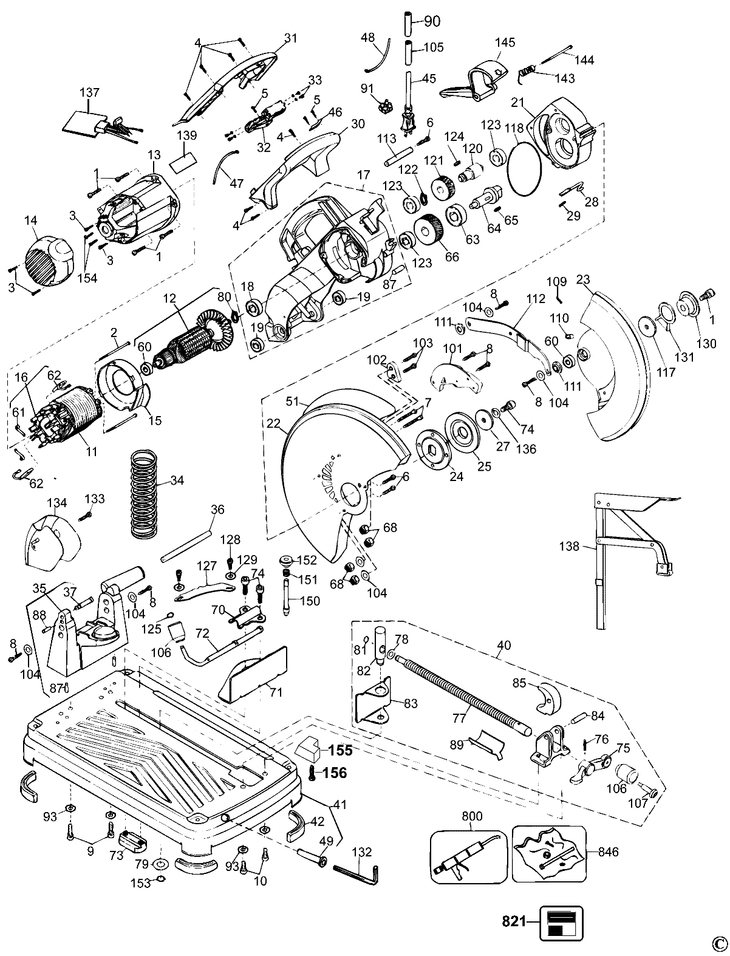

DW872 CHOP SAW - METAL CUTTING Type 2
[DW872 Type 2]
DW872 CHOP SAW - METAL CUTTING Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 5 Screw Metal (330045-16) 558 RON
2 1 2 SCREW (330019-33) 558 RON
3 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
4 1 7 SCREW (330019-14) 558 RON
5 1 3 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
6 1 4 SCREW (330045-50) 558 RON
7 1 2 SCREW (330045-51) 558 RON
8 1 6 SCREW (330045-49) 558 RON
9 1 2 SCREW CAP SOCKET (098123-25) 558 RON
10 1 2 SCREW (098123-16) 558 RON
11 1 1 SA FIELD 230V (624158-03) 34336 RON
11 1 1 FIELD 115V (383170-04) 15993 RON
12 1 1 ARMATURE (383652-10) 43731 RON
12 1 1 ARMATURE 115V (383652-06) 45297 RON
13 1 1 FIELD CASE (383151-00) 5591 RON
14 1 1 END CAP (392284-00) 1788 RON
15 1 1 BAFFLE FAN (383167-00) 1117 RON
16 1 1 BRUSH HOLDER SA (383685-01) 9282 RON
16 1 1 BRUSH HOLDER 115V (383685-00) 7940 RON
17 1 1 GEARCASE SA (386628-00) 34336 RON
18 1 1 BEARING 6202 (868768-07) 4137 RON
19 1 1 BEARING BALL (330003-64) 4137 RON
21 1 1 GEARCASE COVER (385286-01) 9282 RON
22 1 1 GUARD UPPER (383164-02) 15993 RON
23 1 1 GUARD LOWER (388432-00) 20467 RON
24 1 1 INNER FLANGE (607173-00) 3466 RON
25 1 1 OUTER FLANGE (395925-00) 2795 RON
27 1 1 WASHER (396972-00) 893 RON
28 1 1 LOCKING PIN (387544-00) 1788 RON
29 1 1 COMPR. SPRING (384716-00) 558 RON
30 1 1 HANDLE HALF (383159-00) 2795 RON
30 1 1 HANDLE HALF (383159-00) 2795 RON
31 1 1 HANDLE COVER (383160-00) 2124 RON
32 1 1 SWITCH KIT (621514-02) 14315 RON
32 1 1 SWITCH KIT (621514-02) 14315 RON
33 1 4 Switch Screw (387746-00) 558 RON
34 1 1 Compr spring (387282-00) 3466 RON
35 1 1 PIVOT (388431-00) 3592 RON
36 1 1 PIVOT SHAFT (383118-00) 2124 RON
37 1 1 LOCK-DOWN PIN (383148-00) 1117 RON
40 1 1 CLAMP SA (395929-00) 23598 RON
41 1 1 BASE SA (606269-00) 51337 RON
42 1 4 FOOT (383243-00) 893 RON
45 1 1 CABLE SA (330060-73) 15993 RON
45 1 1 CABLE SA (330061-17) 29862 RON
46 1 1 CORD CLAMP (386540-00) 558 RON
47 1 1 LEAD WIRE (386465-00) 781 RON
47 1 1 LEAD WIRE (386465-00) 781 RON
48 1 1 LEAD WIRE (386466-00) 781 RON
48 1 1 LEAD WIRE (386466-00) 781 RON
49 1 1 HOLDER TOOL (386765-00) 1452 RON
51 1 1 BRAND LABEL (397340-00) 1788 RON
60 1 1 BEARING BALL (CE) (330003-17) 2795 RON
61 1 2 TORSION SPRING (384612-00) 558 RON
62 1 2 BRUSH ASSEMBLY (384613-01) 2795 RON
62 1 2 BRUSH SA (384613-00) 2347 RON
63 1 1 BALL BEARING (330003-49) 6821 RON
64 1 1 SPINDLE (395842-00) 12861 RON
65 1 1 WOODRUFF KEY (382675-01) 781 RON
66 1 1 GEAR (382680-00) 39145 RON
68 1 4 LOCK NUT (148641-00) 558 RON
70 1 1 PLATE LOCK (391459-00) 190 RON
71 1 1 FENCE SA (395930-01) 22144 RON
72 1 1 FENCE SA (395930-01) 22144 RON
73 1 1 BLOCK (383254-00) 4137 RON
74 1 3 SCREW (383450-00) 781 RON
75 1 1 HANDLE (389658-00) 4472 RON
76 1 1 ROLLPIN (330036-15) 558 RON
77 1 1 SPINDLE (398475-00) 9282 RON
78 1 1 WASHER (384365-00) 558 RON
79 1 1 WASHER (607592-00) 558 RON
80 1 2 SEAL RING (144803-00) 781 RON
81 1 1 Rataining Ring (383169-00) 558 RON
82 1 1 PIN (603988-00) 2347 RON
83 1 1 Jaw vise (607278-00) 3018 RON
84 1 1 Pin Dowel (386525-01) 781 RON
85 1 1 LOCKING DEVICE (398474-00) 4137 RON
87 1 5 DOWEL PIN (386525-00) 558 RON
88 1 1 PLUG RUBBER (033055-00) 558 RON
89 1 1 Saddle (383451-00) 781 RON
90 1 1 TUBING PVC (386998-00) 893 RON
91 1 1 BLOCK TERMINAL (320078-00) 1452 RON
93 1 4 Washer Lock (098197-09) 558 RON
101 1 1 MOUNT (388046-00) 4472 RON
102 1 1 PLATEN (388041-00) 2795 RON
103 1 2 SCREW (098013-16) 558 RON
104 1 6 WASHER (388354-00) 558 RON
105 1 1 TUBING (386491-00) 3466 RON
106 1 2 KNOB (390567-00) 781 RON
107 1 1 SCREW (395240-00) 781 RON
109 1 1 SPRING (388056-00) 558 RON
110 1 1 STOP RUBBER (388048-00) 558 RON
111 1 2 SLEEVE (388049-00) 558 RON
112 1 1 LINK (388055-00) 4472 RON
113 1 1 SPACER (388434-00) 2347 RON
117 1 1 WASHER PLASTIC (383154-00) 558 RON
118 1 1 O-RING (391485-00) 781 RON
120 1 1 PINION (382682-00) 14315 RON
121 1 1 GEAR (386277-00) 14315 RON
122 1 1 RETAINER (045012-00) 558 RON
123 1 3 BEARING BALL (330003-09) 2795 RON
124 1 1 SQUARE KEY (382675-00) 558 RON
125 1 1 CIRCLIP (37653-00) 558 RON
127 1 1 PLATE THRUST (390570-00) 105 RON
128 1 2 SCREW.TEMP (330045-04) 558 RON
129 1 2 WASHER PLAIN (330016-01) 558 RON
130 1 1 RETAINING PLATE (391039-00) 781 RON
131 1 1 COVER (389894-00) 781 RON
132 1 1 Hex Wrench (384717-00) 893 RON
133 1 1 SCREW (330045-23) 781 RON
134 1 1 DEFLECTOR (390096-00) 3018 RON
136 1 1 Washer Lock (98197-07) 558 RON
137 1 1 MODULE (N271039) 17335 RON
137 1 1 CAPACITOR SA (393465-01) 25164 RON
138 1 1 CLAMP (391526-00) 5591 RON
139 1 1 WARNING LABEL (394188-00) 558 RON
143 1 1 SPRING (383171-00) 558 RON
144 1 1 BOLT (383172-00) 558 RON
145 1 1 LEVER LOCK (388051-00) 893 RON
150 1 1 PIN (395847-00) 1117 RON
151 1 1 FENCE SA (395930-01) 22144 RON
152 1 1 CAP (395848-00) 893 RON
153 1 1 Ring Retaining (398605-00) 558 RON
154 1 2 SCREW (562097-10) 558 RON
155 1 1 STOP RUBBER (390839-00) 190 RON
156 1 1 SCREW (330045-49) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
821 1 1 RATING PLATE (N055928) 781 RON
821 1 1 RATING PLATE (N055931) 781 RON
846 1 1 CLAMP (395833-00) 2347 RON
