DW871 CHOP SAW Type 2
[DW871 Type 2]

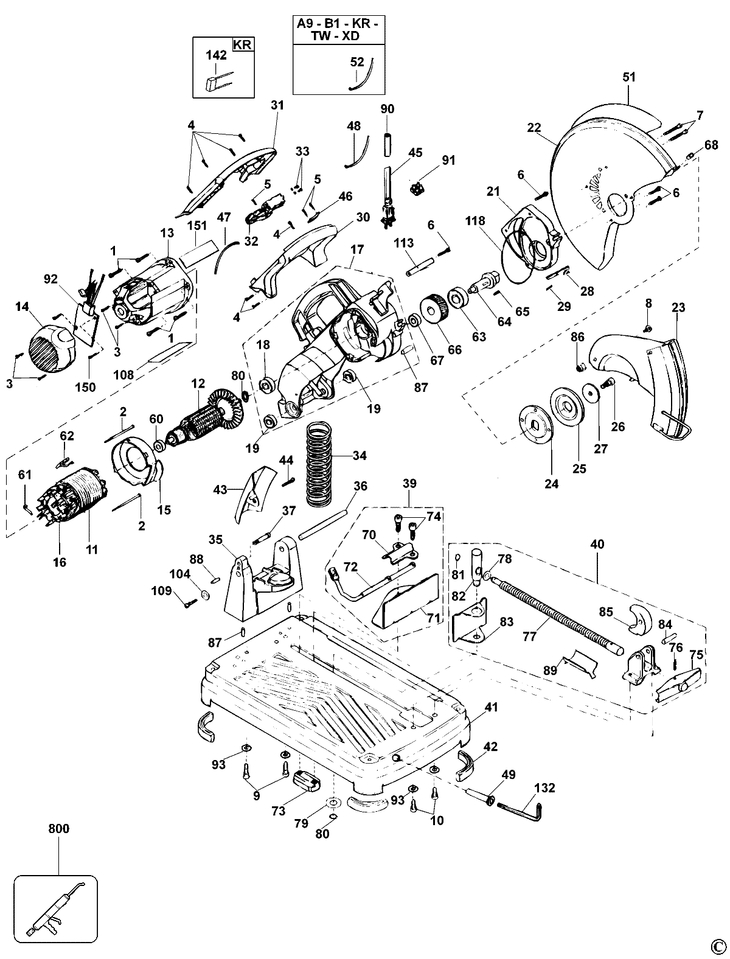

DW871 CHOP SAW Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 Screw Metal (330045-16) 558 RON
2 1 2 SCREW (330019-33) 558 RON
3 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
4 1 7 SCREW (330019-14) 558 RON
5 1 3 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
6 1 4 SCREW (330045-17) 558 RON
7 1 2 SCREW (330045-20) 781 RON
8 1 1 SPECIAL SCREW (384844-00) 1452 RON
9 1 2 SCREW CAP SOCKET (098123-25) 558 RON
10 1 2 SCREW (098123-16) 558 RON
11 1 1 SA FIELD 230V (624158-01) 3124 RON
11 1 1 000000-00 - Indisponibil
12 1 1 ARMATURE SA (383652-09) 45297 RON
12 1 1 ARMATURE SA (383652-08) 59725 RON
13 1 1 FIELDCASE (383151-02) 5591 RON
14 1 1 END CAP (392284-00) 1788 RON
15 1 1 BAFFLE FAN (383167-00) 1117 RON
16 1 1 BRUSH HOLDER SA (383685-01) 9282 RON
16 1 1 BRUSH HOLDER 115V (383685-00) 7940 RON
17 1 1 GEARCASE SA (386628-00) 34336 RON
18 1 1 BEARING 6202 (868768-07) 4137 RON
19 1 2 BEARING BALL (330003-64) 4137 RON
21 1 1 GEARCASE COVER SA (383158-00) 3124 RON
22 1 1 GUARD ASSY. (386527-02) 26730 RON
23 1 1 GUARD COVER (383175-00) 11519 RON
24 1 1 INNER FLANGE (607173-00) 3466 RON
25 1 1 CLAMP OUTER (382884-00) 2347 RON
26 1 1 SCREW (383286-00) 781 RON
27 1 1 WASHER (383246-00) 781 RON
28 1 1 BLADE LOCK PIN (383966-00) 1788 RON
29 1 1 COMPR. SPRING (384716-00) 558 RON
30 1 1 HANDLE HALF (383159-01) 3018 RON
31 1 1 HANDLE COVER (383160-00) 2124 RON
32 1 1 SWITCH KIT (621514-02) 14315 RON
33 1 4 Switch Screw (387746-00) 558 RON
34 1 1 Compr spring (387282-00) 3466 RON
35 1 1 SA PIVOT BRACKET-DW871 (383168-00) 17335 RON
36 1 1 PIVOT SHAFT (383118-00) 2124 RON
37 1 1 LOCK-DOWN PIN (383148-00) 1117 RON
39 1 1 SA FENCE-D28871 (384137-00) 15993 RON
40 1 1 VISE ASSEMBLY (384180-00) 37579 RON
41 1 1 BASE (382366-01) 43731 RON
42 1 4 FOOT (383243-00) 893 RON
43 1 1 Spark Deflector (384159-00) 1788 RON
44 1 1 SCREW (330045-23) 781 RON
45 1 1 CABLE SA (330060-73) 15993 RON
45 1 1 CABLE SA (330061-17) 29862 RON
46 1 1 CORD CLAMP (386540-00) 558 RON
47 1 1 LEAD WIRE (386465-00) 781 RON
48 1 1 LEAD WIRE (386466-00) 781 RON
49 1 1 HOLDER TOOL (386765-00) 1452 RON
51 1 2 LABEL (384771-00) 3018 RON
52 1 1 LEAD (386474-00) 558 RON
60 1 1 BEARING BALL (CE) (330003-17) 2795 RON
61 1 2 TORSION SPRING (384612-00) 558 RON
62 1 2 BRUSH ASSEMBLY (384613-01) 2795 RON
62 1 2 BRUSH SA (384613-00) 2347 RON
63 1 1 BALL BEARING (330003-49) 6821 RON
64 1 1 SPINDLE (382882-00) 10512 RON
65 1 1 SQUARE KEY (382675-00) 558 RON
66 1 1 GEAR (386277-00) 14315 RON
67 1 1 BEARING BALL (330003-09) 2795 RON
68 1 1 STOP RUBBER (386526-00) 558 RON
70 1 1 PLATE LOCK (391459-00) 190 RON
71 1 1 FENCE (382677-00) 6821 RON
72 1 1 LEVER (382540-00) 4137 RON
73 1 1 BLOCK (383254-00) 4137 RON
74 1 2 SCREW (383450-00) 781 RON
75 1 1 Vise Handle (383252-00) 1117 RON
76 1 1 ROLL PIN (330036-08) 558 RON
77 1 1 Threaded Rod (395856-00) 7940 RON
78 1 1 WASHER (384365-00) 558 RON
79 1 1 WASHER (607592-00) 558 RON
80 1 2 SEAL RING (144803-00) 781 RON
81 1 1 Rataining Ring (383169-00) 558 RON
82 1 1 PIN (5140000-11) 2795 RON
83 1 1 Jaw vise (607278-00) 3018 RON
84 1 1 Pin Dowel (386525-01) 781 RON
85 1 1 Lock Vise (383828-00) 4137 RON
86 1 1 LOCK NUT (148641-00) 558 RON
87 1 5 DOWEL PIN (386525-00) 558 RON
88 1 1 PLUG RUBBER (033055-00) 558 RON
89 1 1 Saddle (383451-00) 781 RON
90 1 1 TUBING (386491-00) 3466 RON
91 1 1 BLOCK TERMINAL (320078-00) 1452 RON
92 1 1 MODULE (N271039) 17335 RON
92 1 1 CAPACITOR SA (393465-01) 25164 RON
93 1 4 Washer Lock (098197-09) 558 RON
104 1 2 WASHER (388354-00) 558 RON
108 1 1 IDENTITY LABEL (387535-00) 781 RON
109 1 2 SCREW (330045-49) 558 RON
113 1 1 SPACER (391740-00) 781 RON
118 1 1 O-RING (391485-00) 781 RON
132 1 1 Hex Wrench (384717-00) 893 RON
142 1 1 392648-00 - Indisponibil
150 1 1 SCREW (562097-01) 558 RON
151 1 1 WARNING LABEL (394492-00) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
