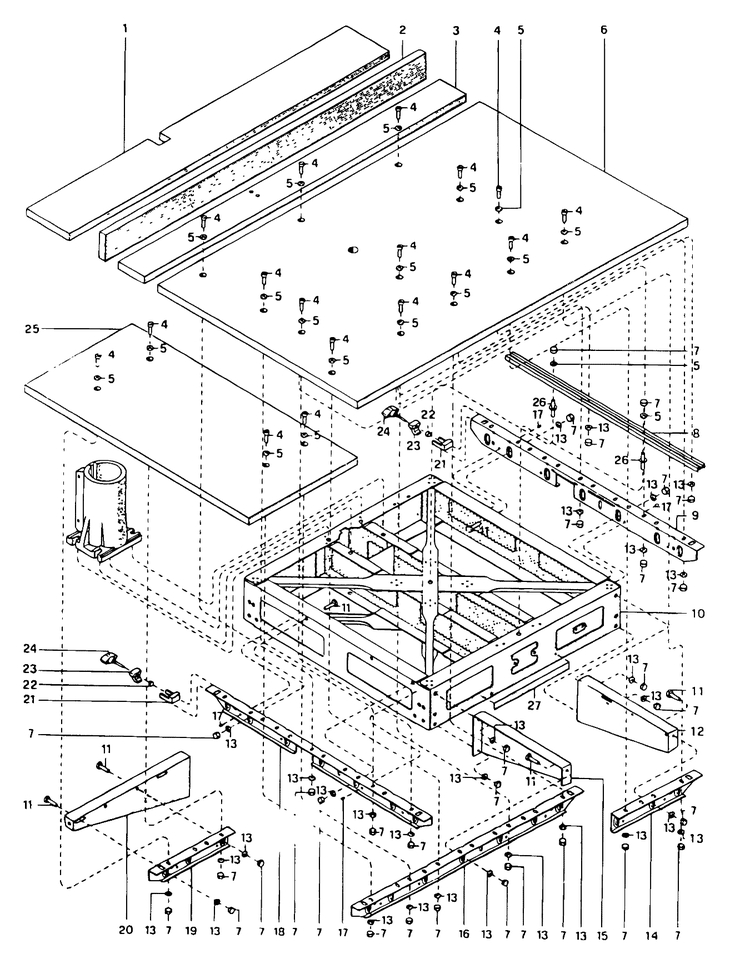

DW8101----B RADIAL ARM SAW Type 1
[DW8101----B Type 1]
DW8101----B RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOARD TABLE MOBILE 150 DW8100 (860913-00) 15993 RON
4 1 17 SCREW FIL.HD M.8X30 UNI6107 (860089-31) 558 RON
5 1 19 WASHER D.8 4X24X2 (941602-00) 558 RON
6 1 1 BOARD TABLE FIXED DW8100 (860912-00) 46863 RON
7 1 30 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
8 1 1 000000-00 - Indisponibil
9 1 1 000000-00 - Indisponibil
10 1 1 FRAME (860216-06) 107597 RON
11 1 6 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON
12 1 1 000000-00 - Indisponibil
13 1 27 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
14 1 1 CROSSPIECE EXT.TABLE LH BLACK (860903-01) 4472 RON
15 1 1 BRACKET LH L.300 1751-14 BLCK (860781-03) 23598 RON
16 1 1 000000-00 - Indisponibil
17 1 4 000000-00 - Indisponibil
18 1 1 BAR MITRE LH L.750 BLACK (860222-00) 20467 RON
19 1 1 CROSSPIECE EXT.TABLE RH BLACK (860904-01) 4137 RON
20 1 1 BRACKET (861238-02) 17335 RON
21 1 2 SLIDE CLAMP TABLE (860069-00) 893 RON
22 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
23 1 2 BRACKET CLAMP TABLE (860070-00) 1452 RON
24 1 1 WING KNOB+SCREW M6X50 (863310-00) 1117 RON
26 1 2 STUD SET M.8X47 (860010-00) 9282 RON
27 1 1 000000-00 - Indisponibil
28 1 99 000000-00 - Indisponibil
29 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
30 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
31 1 2 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
32 1 1 000000-00 - Indisponibil
33 1 1 000000-00 - Indisponibil
