Top » Piese de schimb » PIESE DEWALT » DW8003----C Type 1

DW8003----C RADIAL ARM SAW Type 1
[DW8003----C Type 1]
DW8003----C RADIAL ARM SAW Type 1
Click pentru a mari

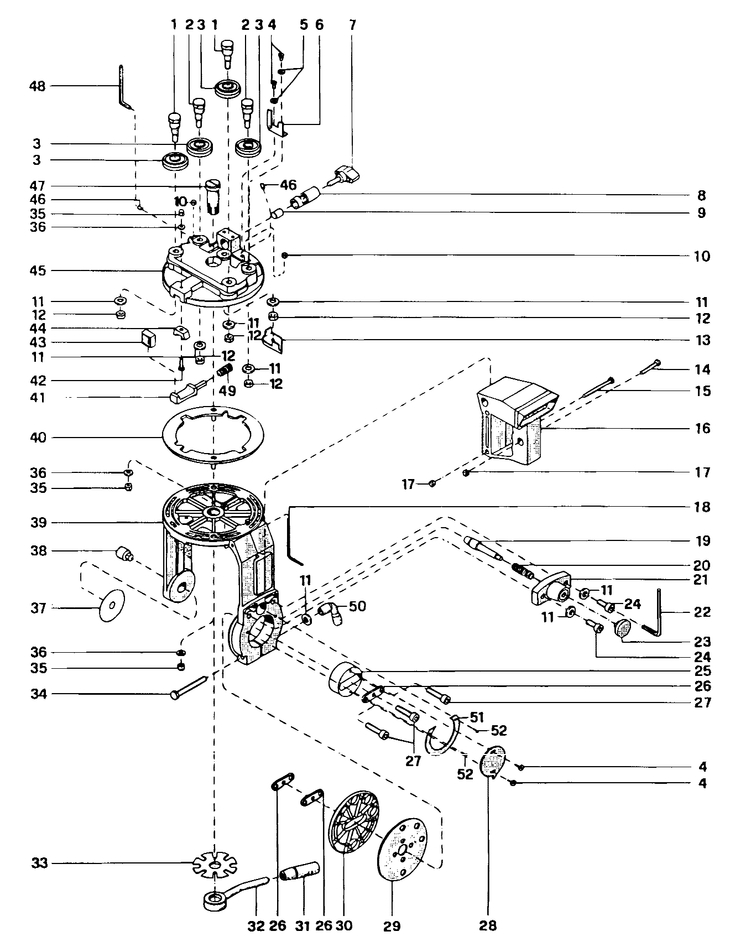

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW CONCENTRIC BEARING 1712 (760421-00) 3466 RON
2 1 1 BEARING SHAFT-ECCENTRIC DW125- (760417-00) 4137 RON
3 1 4 BEARING SPECIAL SKF 614432-B (860154-00) 25164 RON
4 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
5 1 4 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
6 1 1 000000-00 - Indisponibil
7 1 1 KNOB D.40X16-M8X23-BLACK (862427-00) 781 RON
8 1 1 RIP LOCK (SLEEVE) (860121-00) 5031 RON
10 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
11 1 5 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
12 1 4 NUT HEX THICK M.8X1 UNI 5587 (860083-08) 558 RON
13 1 1 CAP FOR ROLLERHEAD (860817-01) 1229 RON
14 1 1 RD.HD.SCREW M.5X25 (949701-12) 558 RON
15 1 1 SCREW FIL.HD M5X60 UNI 6107 (860089-39) 558 RON
16 1 1 000000-00 - Indisponibil
17 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
18 1 1 WRENCH (949882-01) 781 RON
19 1 1 LOCATING PLUG (863977-00) 14315 RON
20 1 1 SPRING PUSHER D13XD1 2X39 (860112-11) 1788 RON
21 1 1 000000-00 - Indisponibil
22 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
23 1 1 KNOB (946469-00) 781 RON
24 1 2 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
25 1 1 HUB FRONT YOKE D.54 BLANK (860119-01) 6821 RON
26 1 1 PLATE FOR HUBE (860120-00) 105 RON
27 1 3 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
28 1 1 000000-00 - Indisponibil
29 1 1 PLATE INDEX YOKE-MOTOR DW1251 (860830-00) 2347 RON
30 1 1 GASKET FOR YOKE HUBE DW1251 (860827-00) 2124 RON
31 1 1 HANDLE D.20X67XD.10 BLACK (860796-01) 1229 RON
32 1 1 CLAMP YOKE/ROLLER HEAD (864057-01) 10512 RON
33 1 1 ADJUSTER SPRING WASHER (860113-00) 3018 RON
34 1 1 SCREW HEX M.8X75 UNI 5737 (860086-11) 893 RON
35 1 2 NUT M5 (860092-03) 558 RON
36 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
37 1 1 DISC (864160-00) 893 RON
38 1 1 SUPPORT SCREW DW125-111-1370 (864058-00) 4137 RON
39 1 1 GRAY YOKE DW1251 (860823-02) 3124 RON
40 1 1 THRUST RING + SCREWS (863157-00) 5591 RON
41 1 1 LOCATING CATCH DW125 (860818-01) 2347 RON
42 1 1 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
43 1 1 CAP FOR LOCATING CATCH 1712US (760427-00) 781 RON
44 1 1 INSERT ROLLERHEAD ADJUSTMENT (860816-00) 781 RON
45 1 1 000000-00 - Indisponibil
46 1 2 SOCKET SCREW TYPE-E (941880-00) 558 RON
47 1 1 PIVOT M.18X1.5 L.50 (860123-00) 5031 RON
48 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
49 1 1 000000-00 - Indisponibil
50 1 1 HANDLE M.8 LOCKING ARM-YOKE (860825-00) 3466 RON
51 1 1 SCALE BEVEL DW1251 (860829-00) 190 RON
52 1 2 SCREW TSPPH (860205-06) 558 RON
