Top » Piese de schimb » PIESE DEWALT » DW771 Type 1

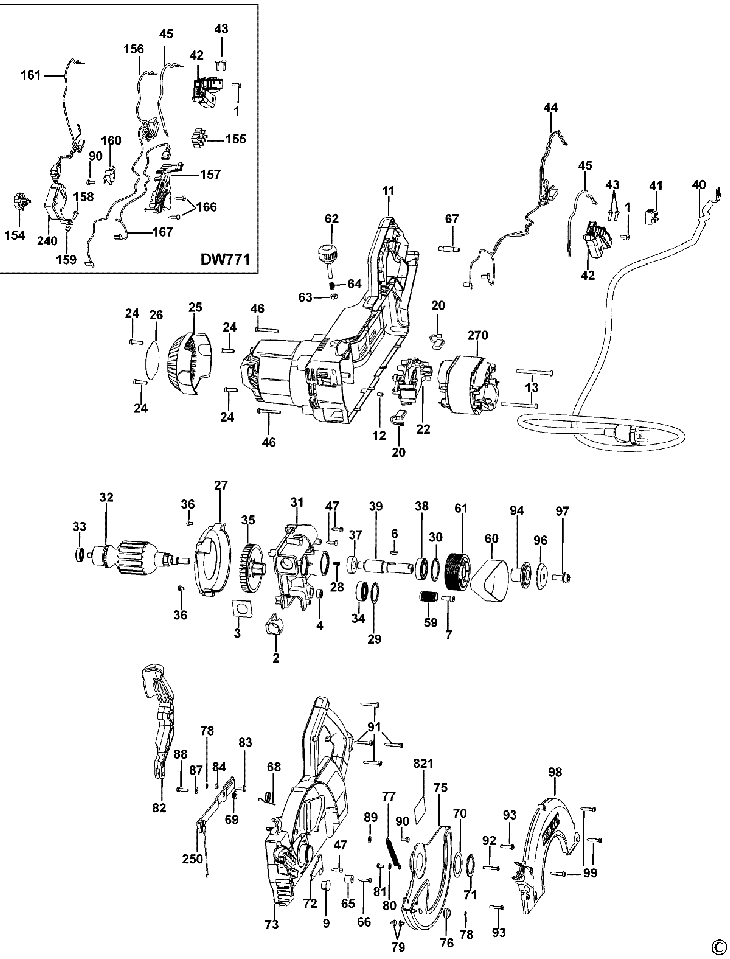

DW771 MITRE SAW Type 1
[DW771 Type 1]
DW771 MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW771 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
2 1 1 SLIDING BLOCK (947018-00) 1229 RON
3 1 1 SEAL (947638-00) 781 RON
4 1 1 ADJUSTER (946874-00) 558 RON
5 1 1 SPRING DW777 (869142-00) 190 RON
6 1 1 TAB (940441-00) 781 RON
7 1 1 SCREW (949886-26) 781 RON
9 1 1 PLUG (947067-00) 781 RON
10 1 1 WASHER (869163-01) 558 RON
11 1 1 MOTOR HOUSING DW771 (869159-01) 17335 RON
12 1 1 RUBBER PLUG (145312-00) 558 RON
13 1 2 SCREW PLASTITE (330019-19) 781 RON
20 1 1 BRUSH PAIR SA (659512-00) 6821 RON
20 1 1 BRUSH PAIR SA (659512-00) 6821 RON
22 1 1 BRUSH PAIR SA AND BRUSH BOX (659513-00) 12861 RON
22 1 1 BRUSH PAIR SA AND BRUSH BOX (659513-00) 12861 RON
24 1 4 SCREW M4 55X19 (330013-13) 558 RON
25 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
26 1 1 DW712 LABEL (610722-00) 781 RON
27 1 1 DEFLECTOR DW771 (869138-01) 190 RON
28 1 1 SPRING DW743N (869246-00) 781 RON
29 1 1 STOP RING (949729-02) 558 RON
30 1 1 RETAINING RING D.35 (949729-03) 558 RON
31 1 1 SA TROLLEY+BUSCHES DW777 SERVICE (869312-02) 3592 RON
32 1 1 SA ARMATURE 230V. DW777 SERVICE (869302-00) 43731 RON
32 1 1 SA ARMATURE 115V. DW777 service (869302-01) 46863 RON
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
34 1 1 BEARING 6201 2RS ISB (861721-13) 3018 RON
35 1 1 FAN DW777 (869139-00) 893 RON
36 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
37 1 1 BEARING (605040-59) 2124 RON
38 1 1 BEARING 6003 2RS ISB (861721-10) 2124 RON
39 1 1 BLADE SPINDLE DW777 SERVICE (869316-00) 7940 RON
40 1 1 N411968 - Indisponibil
40 1 1 N411969 - Indisponibil
42 1 1 SWITCH 1269.3201-03 cod vechi 394375-02 (394375-02P) 10512 RON
43 1 2 SCREW MACHINE PAN HD (384127-01) 558 RON
45 1 1 CABLE DW777 (869277-00) 1229 RON
46 1 4 SCREW PAN PH/TT M.4X36 (869191-00) 558 RON
47 1 4 SCREW (949896-12) 558 RON
48 1 1 SA RAILS+SUPPORT DW777 SERVICE (869318-00) 4825 RON
49 1 1 PIN (869144-00) 4137 RON
50 1 1 WING NUT M8 (869203-00) 1117 RON
51 1 1 SCREW ST M8X10 (330022-17) 558 RON
52 1 1 SCREW (760242-00) 781 RON
53 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
54 1 1 GASKET DW250-DW252 (949746-02) 558 RON
56 1 1 CROSS (947613-00) 2795 RON
57 1 1 SHOCK ABSORBER DW777 (869275-00) 558 RON
58 1 2 SCREW (949609-03) 558 RON
59 1 1 PULLEY DW777 (869147-00) 2347 RON
60 1 1 BELT DW777 (869150-00) 6821 RON
61 1 1 PULLEY (869149-00) 4472 RON
62 1 1 LOCKING KNOB (869140-00) 1117 RON
63 1 1 NUT M6 (860083-12) 558 RON
64 1 1 SPRING (868082-00) 558 RON
65 1 1 BUMPER (761306-00) 781 RON
66 1 1 SELF TAPPING SCREW (949896-13) 558 RON
67 1 1 PIVOT (760296-01) 781 RON
68 1 1 SPRING TORSION DW777 (869161-00) 781 RON
69 1 1 BUSHING DW777 (869192-00) 781 RON
70 1 1 ROSETTA D30.3X42X0.1 (760270-01) 781 RON
71 1 1 RETAINING RING D.30 (949727-04) 558 RON
72 1 1 PLATE DW777 (869166-00) 781 RON
73 1 1 COVER MOT.HOUSING DW777 (N295980) 14315 RON
75 1 1 GUARD DW777 (869154-00) 10512 RON
76 1 1 GUARD ROLLER DW777 (861367-02) 558 RON
77 1 1 SPRING DW777 (760295-01) 105 RON
78 1 2 RING SPRING S.LOCK D.4 (860077-01) 558 RON
79 1 2 SLIDE ROLLER (760298-01) 558 RON
80 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
81 1 1 SCREW 3 5x10 UNI8112 (943022-01) 558 RON
82 1 1 LEVER DW777 (869155-00) 2347 RON
83 1 1 PIN DW777 (869156-00) 893 RON
84 1 1 BUSHING X LEVER D.6 DW777 (869295-00) 558 RON
87 1 1 WASHER (939625-00) 558 RON
88 1 1 VITE TCB 4 2X16 B 6954 (930076-01) 558 RON
89 1 1 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
90 1 3 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
91 1 5 SCREW (949896-10) 558 RON
92 1 1 SCREW (949894-04) 558 RON
93 1 2 SCREW M4X20 (860094-10) 558 RON
94 1 1 N292720 - Indisponibil
96 1 1 869292-00 (869292-00) 4472 RON
97 1 1 SCREW (869245-00) 4137 RON
98 1 1 UPPER GUARD DW777 (869158-00) 9282 RON
99 1 1 SCREW (761304-01) 558 RON
100 1 1 RING D.100 (947614-00) 1788 RON
101 1 1 FENCE DWS778 (N136428) 17335 RON
102 1 1 KNOB (869195-00) 1452 RON
103 1 1 NUT M5 (860092-03) 558 RON
104 1 4 RUBBER FEET (868777-00) 558 RON
105 1 1 YELLOW TABLE BASE INSERT (868688-01) 190 RON
106 1 2 SCREW PAN PH/TT M.4X14 UNI8112 (860205-08) 558 RON
107 1 1 SPRING (868778-00) 558 RON
108 1 1 BALL 6 3 mm (868708-00) 558 RON
109 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
110 1 1 Carter bloccaggio DW707 N.T. (868737-00) 1117 RON
114 1 4 SCREW (98093-76) 558 RON
115 1 2 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
116 1 1 NUT LOCKING M12X1 25 (860092-07) 558 RON
117 1 2 WASHER (949705-01) 558 RON
118 1 2 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
119 1 1 SCALE DW777 (869091-00) 190 RON
120 1 3 SCREW (98093-76) 558 RON
121 1 2 SCREW (949743-02) 781 RON
122 1 2 SCREW (949894-12) 558 RON
123 1 1 SA SEGMENT DW777 SERVICE (869319-00) 26730 RON
125 1 1 LEVER (861840-03) 2795 RON
126 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
127 1 2 SCREW (330045-26) 893 RON
128 1 1 SCALE (868677-00) 6821 RON
129 1 4 SCREW (330045-49) 558 RON
130 1 1 WASHER (869163-00) 558 RON
131 1 1 NUT M14 X 1 5 (860092-09) 781 RON
132 1 2 WRENCH (868682-00) 893 RON
133 1 1 PROTECTION DW777 (N295979) 1788 RON
134 1 1 CORD CLAMP DW777 (869310-00) 781 RON
135 1 1 BUSH (947620-00) 105 RON
136 1 1 ADAPTOR (174231903) (760312-00) 1229 RON
154 1 1 CONTROL KNOB (392131-00) 105 RON
155 1 1 CONNECTOR BOX 3 POLES 4 SQMM (860468-00) 190 RON
155 1 1 CONNECTOR (658093-00) 190 RON
156 1 1 SA CAPACITOR+CABLES 230V. DW771 SERVICE (869317-02) 6821 RON
156 1 1 SA CAPACITOR+CABLES 115V. DW771 SERVICE (869317-03) 6821 RON
157 1 1 Support potentiometer DW771 (869296-00) 781 RON
158 1 1 SCREW M4X16 (860093-19) 558 RON
159 1 1 NUT (861340-00) 558 RON
160 1 1 KIT POTENTIOMETER DW771 SERVICE (659514-00) 3466 RON
161 1 1 SA CABLES DW771 SERVICE (659515-00) 4472 RON
166 1 2 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
167 1 1 S/A CABLE WHITE 230V.DW771 (869137-00) 2124 RON
167 1 1 SA CABLE 115V. DW771 (869137-01) 2124 RON
169 1 1 WASHER (249233-00) 558 RON
200 1 1 BASE DW777 SERVICE (869313-00) 59725 RON
220 1 1 ROTARY TABLE DW777 SERVICE (869313-01) 43731 RON
230 1 1 LOCKING DEVICE (868943-02) 4137 RON
240 1 1 S/A MODULE 230V. DW771 SERVICE KIT (N034006) 39145 RON
240 1 1 CONFIGURED MODULE 115V.DW771 SERVICE (657766-01) 42277 RON
250 1 1 SA LEVER DW777 (869194-00) 4472 RON
260 1 1 FENCE (868743-02) 6821 RON
270 1 1 SA FIELD 230/240V DW771 SERVICE (869045-03) 29862 RON
270 1 1 STATORE 115 V G95 MM. (869045-01) 39145 RON
821 1 1 RATING PLATE DW771 230V. (868751-05) 781 RON
821 1 1 RATING PLATE DW771 115V. (868751-06) 781 RON
