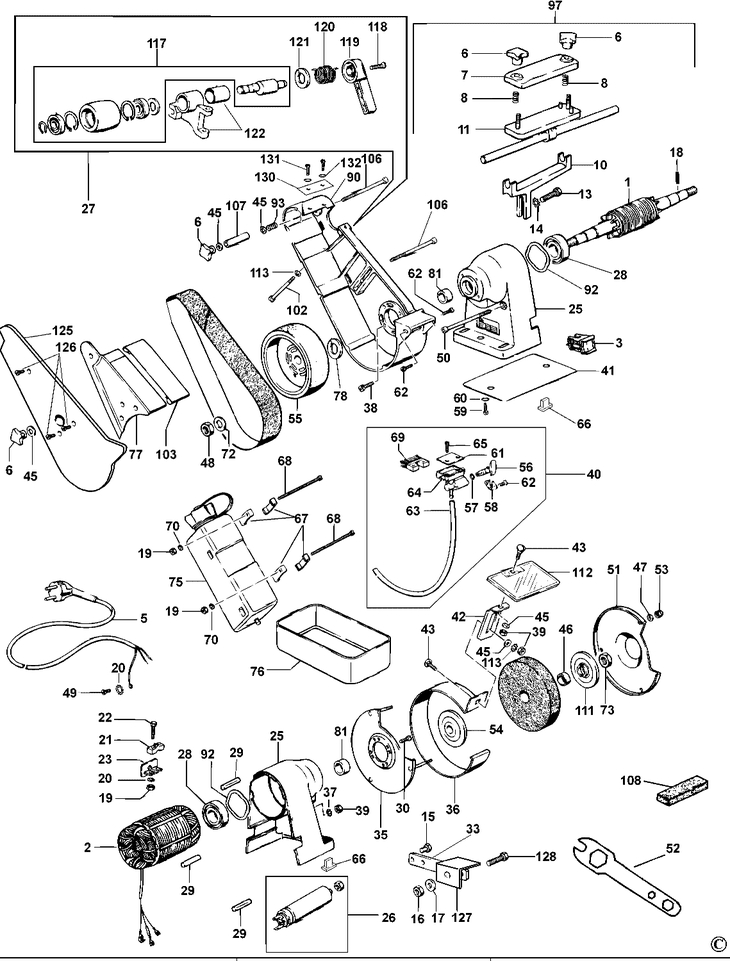

DW755 BENCH GRINDER Type 2
[DW755 Type 2]
DW755 BENCH GRINDER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR (378881) 28296 RON
2 1 1 STATOR (378891) 80865 RON
3 1 1 SWITCH (378787-03) 9282 RON
5 1 1 CORDSET (378893-01) 14315 RON
6 1 4 KNOB SA (744324) 2124 RON
7 1 1 STRIP (744231) 9282 RON
8 1 2 SPRING (742243) 781 RON
10 1 1 HOLDER (744230) 12861 RON
11 1 1 SUPPORT SA (744232) 1891 RON
13 1 1 SCREW (742047) 558 RON
14 1 1 WASHER M8 (742046) 558 RON
15 1 2 SCREW (378908) 893 RON
16 1 1 NUT (725187) 781 RON
17 1 1 WASHER (742172) 781 RON
18 1 1 PIN (742053) 558 RON
19 1 4 NUT (725698) 558 RON
20 1 3 WASHER (725163) 558 RON
21 1 1 CABLE CLAMP (379684) 558 RON
22 1 2 SCREW (742041) 558 RON
23 1 1 CABLE CLAMP (742125) 781 RON
25 1 2 HOUSING (378791-20) 3124 RON
26 1 1 CAPACITOR (378892) 5031 RON
27 1 1 LEVER SA (744371) 74937 RON
28 1 2 BEARING (107301) 4137 RON
29 1 3 PIN (742168) 781 RON
30 1 4 SCREW (378795-01) 558 RON
33 1 1 SUPPORT (744234) 3018 RON
35 1 1 PLATE (744236) 10512 RON
36 1 1 GUARD (744238) 5031 RON
37 1 2 WASHER (743415) 781 RON
38 1 4 SCREW (378788) 781 RON
39 1 4 NUT M6 (725125) 558 RON
40 1 1 HOSE SA (742273) 45297 RON
41 1 1 PLATE (378841) 3018 RON
42 1 1 BRACKET (744188) 3018 RON
43 1 2 SCREW (725184) 558 RON
45 1 5 WASHER (880391) 558 RON
46 1 1 BUSH (742134) 893 RON
47 1 1 WASHER (725269) 558 RON
48 1 1 NUT (742887) 105 RON
49 1 1 SCREW (378795-01) 558 RON
50 1 2 SCREW (378907) 1117 RON
51 1 1 GUARD (744237) 4472 RON
52 1 1 SPANNER (742511) 5591 RON
53 1 3 NUT (146823100) 558 RON
54 1 1 SLEEVE (742298) 5591 RON
55 1 1 PULLEY (742199) 34336 RON
56 1 1 GRIP (742275) 1117 RON
57 1 1 SEAL (742282) 558 RON
58 1 1 FLANGE (742279) 893 RON
59 1 2 ANS. VIBROCHEN BBA520 SCREW (726430) 89253 RON
60 1 1 WASHER (725165) 558 RON
61 1 1 COVER (742166) 781 RON
62 1 4 SCREW (742051) 558 RON
63 1 1 TUBE (742278) 2124 RON
64 1 1 HOLDER (742280-00) 3466 RON
65 1 2 SCREW (742050) 558 RON
66 1 4 FOOT (378738) 1229 RON
67 1 4 CLAMP (742299) 1229 RON
68 1 2 SCREW (742300) 781 RON
69 1 1 WIRE BRUSH (742276) 6821 RON
70 1 2 WASHER (725163) 558 RON
72 1 1 WASHER (742054) 558 RON
73 1 1 NUT (742140) 105 RON
75 1 1 WATER BOTTLE (742274) 15993 RON
76 1 1 TRAY SCALE (742283) 5591 RON
77 1 1 SUPPORT (379719) 10512 RON
78 1 1 WASHER (379989) 558 RON
81 1 2 BUSH (742153) 3018 RON
90 1 1 COVER (744235-10) 25164 RON
92 1 2 WASHER MWA67 (113933000) 1452 RON
93 1 1 SPRING (742233) 781 RON
97 1 1 CLAMP KIT (744253) 43731 RON
102 1 1 SCREW (742231) 1452 RON
103 1 1 PLATE (742290) 3466 RON
106 1 2 SCREW (379844) 190 RON
107 1 1 SPACER (742228-10) 190 RON
108 1 1 STONE (742240) 14315 RON
111 1 1 OUTER CLAMP (742066) 3466 RON
112 1 1 VISOR (742133) 2124 RON
113 1 2 WASHER (742040) 558 RON
117 1 1 REPAIR KIT (742212) 46863 RON
118 1 1 SCREW WASHER SET FOR CNF35U (744308) 558 RON
119 1 1 LEVER (744245) 6821 RON
120 1 1 SPRING (742222) 893 RON
121 1 1 WASHER (742218) 893 RON
122 1 1 BRACKET (743814) 20467 RON
125 1 1 COVER (379685) 4137 RON
126 1 3 SCREW (378795-01) 558 RON
127 1 1 SUPPORT RH (379717) 2347 RON
128 1 1 SCREW (379712) 781 RON
130 1 1 PLATE (379912) 893 RON
131 1 2 SCREW FLAT WASHER 13X6X1 C10RC (726477) 558 RON
132 1 2 WASHER 5 3X10/1DI (249222-00) 558 RON
