DW754 BENCH GRINDER Type 2
[DW754 Type 2]

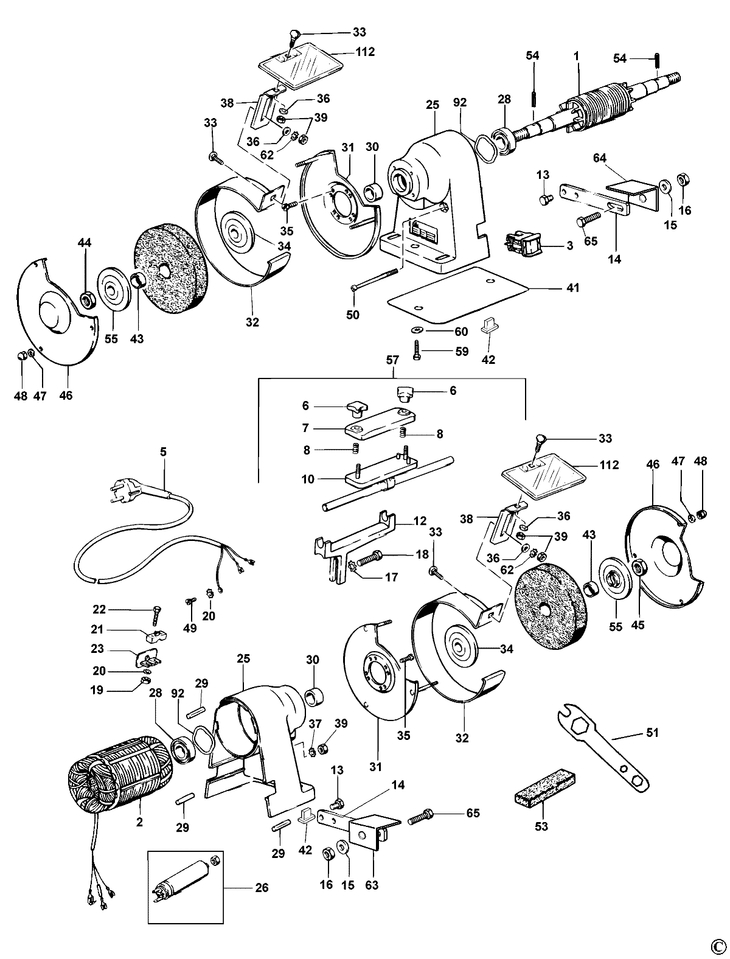

DW754 BENCH GRINDER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR (378881) 28296 RON
2 1 1 STATOR (378891) 80865 RON
3 1 1 SWITCH (378787-03) 9282 RON
5 1 1 CORDSET (378893-01) 14315 RON
6 1 4 KNOB SA (744324) 2124 RON
7 1 1 STRIP (744231) 9282 RON
8 1 2 SPRING (742243) 781 RON
10 1 1 SUPPORT SA (744232) 1891 RON
12 1 1 HOLDER (744230) 12861 RON
13 1 2 SCREW (378908) 893 RON
14 1 1 SUPPORT (744234) 3018 RON
15 1 2 WASHER (742172) 781 RON
16 1 2 NUT (725187) 781 RON
17 1 1 WASHER M8 (742046) 558 RON
18 1 1 SCREW (742047) 558 RON
19 1 2 NUT (725698) 558 RON
20 1 3 WASHER (725163) 558 RON
21 1 1 CABLE CLAMP (379684) 558 RON
22 1 2 SCREW (742041) 558 RON
23 1 1 CABLE CLAMP (742125) 781 RON
25 1 2 HOUSING (378791-20) 3124 RON
26 1 1 CAPACITOR (378892) 5031 RON
28 1 2 BEARING (107301) 4137 RON
29 1 3 PIN (742168) 781 RON
30 1 2 BUSH (742153) 3018 RON
31 1 2 PLATE (744236) 10512 RON
32 1 2 GUARD (744238) 5031 RON
33 1 4 SCREW (725184) 558 RON
34 1 2 SLEEVE (742298) 5591 RON
35 1 8 SCREW (378795-01) 558 RON
36 1 4 WASHER (880391) 558 RON
37 1 2 WASHER (743415) 781 RON
38 1 2 BRACKET (744188) 3018 RON
39 1 6 NUT M6 (725125) 558 RON
41 1 1 PLATE (378841) 3018 RON
42 1 4 FOOT (378738) 1229 RON
43 1 2 BUSH (742134) 893 RON
44 1 1 NUT (742887) 105 RON
45 1 1 NUT (742140) 105 RON
46 1 2 GUARD (744237) 4472 RON
47 1 6 WASHER (725269) 558 RON
48 1 6 NUT (146823100) 558 RON
49 1 1 SCREW (378795-01) 558 RON
50 1 2 SCREW (378907) 1117 RON
51 1 1 SPANNER (742511) 5591 RON
53 1 1 STONE (742240) 14315 RON
54 1 2 PIN (742053) 558 RON
55 1 2 OUTER CLAMP (742066) 3466 RON
57 1 1 CLAMP KIT (744253) 43731 RON
59 1 2 ANS. VIBROCHEN BBA520 SCREW (726430) 89253 RON
60 1 2 WASHER (725165) 558 RON
62 1 2 WASHER (742040) 558 RON
63 1 1 SUPPORT RH (379717) 2347 RON
64 1 1 SUPPORT LH (379718) 2347 RON
65 1 2 SCREW (379712) 781 RON
92 1 2 WASHER MWA67 (113933000) 1452 RON
112 1 1 VISOR (742133) 2124 RON
