Top » Piese de schimb » PIESE DEWALT » DW753 Type 2

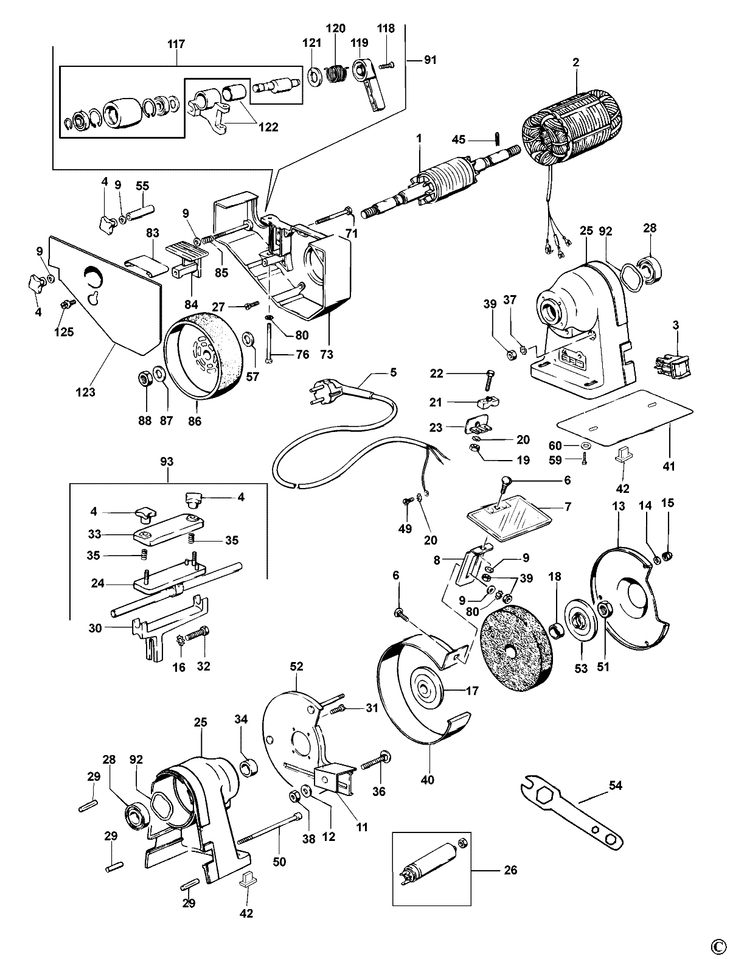

DW753 BENCH GRINDER Type 2
[DW753 Type 2]
DW753 BENCH GRINDER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR (378881) 28296 RON
2 1 1 STATOR (378891) 80865 RON
3 1 1 SWITCH (378787-03) 9282 RON
4 1 4 KNOB SA (744324) 2124 RON
5 1 1 CORDSET (378893-01) 14315 RON
6 1 2 SCREW (725184) 558 RON
7 1 1 VISOR (742133) 2124 RON
8 1 1 BRACKET (744188) 3018 RON
9 1 5 WASHER (880391) 558 RON
11 1 1 SUPPORT RH (379710) 2347 RON
12 1 1 WASHER (742172) 781 RON
13 1 1 GUARD (379009) 5031 RON
14 1 3 WASHER (725269) 558 RON
15 1 3 NUT (146823100) 558 RON
16 1 1 WASHER M8 (742046) 558 RON
17 1 1 SLEEVE (742298) 5591 RON
18 1 1 PIN (742053) 558 RON
19 1 4 NUT (725698) 558 RON
20 1 3 WASHER (725163) 558 RON
21 1 1 CABLE CLAMP (379684) 558 RON
22 1 2 SCREW (742041) 558 RON
23 1 1 CABLE CLAMP (742125) 781 RON
24 1 1 SUPPORT SA (744232) 1891 RON
25 1 2 HOUSING (378791-20) 3124 RON
26 1 1 CAPACITOR (378892) 5031 RON
27 1 4 SCREW (378788) 781 RON
28 1 2 BEARING (107301) 4137 RON
29 1 3 PIN (742168) 781 RON
30 1 1 HOLDER (744230) 12861 RON
31 1 4 SCREW (378795-01) 558 RON
32 1 1 SCREW (742047) 558 RON
33 1 1 STRIP (744231) 9282 RON
34 1 1 BUSH (742153) 3018 RON
35 1 2 SPRING (742243) 781 RON
36 1 1 SCREW (379712) 781 RON
37 1 2 WASHER (743415) 781 RON
38 1 1 NUT (725187) 781 RON
39 1 4 NUT M6 (725125) 558 RON
40 1 1 RING (379711) 5031 RON
41 1 1 PLATE (378841) 3018 RON
42 1 1 FOOT (378738) 1229 RON
45 1 1 PIN (742053) 558 RON
49 1 1 SCREW (378795-01) 558 RON
50 1 2 SCREW (378907) 1117 RON
51 1 1 NUT (742887) 105 RON
52 1 1 COVER RH (744228) 11519 RON
53 1 1 OUTER CLAMP (742066) 3466 RON
54 1 1 SPANNER (742511) 5591 RON
55 1 1 SPACER (742228-10) 190 RON
57 1 1 WASHER (743185) 2795 RON
59 1 2 ANS. VIBROCHEN BBA520 SCREW (726430) 89253 RON
60 1 2 WASHER (725165) 558 RON
71 1 1 SCREW (742055) 781 RON
73 1 1 HOUSING (379708) 29862 RON
76 1 1 SCREW (742231) 1452 RON
80 1 2 WASHER (742040) 558 RON
83 1 1 SPRING (742232) 4472 RON
84 1 1 SUPPORT (742227) 4472 RON
85 1 1 SPRING (742233) 781 RON
86 1 1 PULLEY (742199) 34336 RON
87 1 1 WASHER (742054) 558 RON
88 1 1 NUT (742140) 105 RON
91 1 1 LEVER SA (744371) 74937 RON
92 1 2 WASHER MWA67 (113933000) 1452 RON
93 1 1 CLAMP KIT (744253) 43731 RON
117 1 1 REPAIR KIT (742212) 46863 RON
118 1 1 SCREW WASHER SET FOR CNF35U (744308) 558 RON
119 1 1 LEVER (744245) 6821 RON
120 1 1 SPRING (742222) 893 RON
121 1 1 WASHER (742218) 893 RON
122 1 1 BRACKET (743814) 20467 RON
123 1 1 COVER (379686) 3466 RON
125 1 1 SCREW (379713) 558 RON
