DW746 TABLE SAW Type 1
[DW746 Type 1]
DW746 TABLE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW746 TABLE SAW Type 1
Click pentru a mari
DW746 TABLE SAW Type 1
Click pentru a mari
DW746 TABLE SAW Type 1
Click pentru a mari

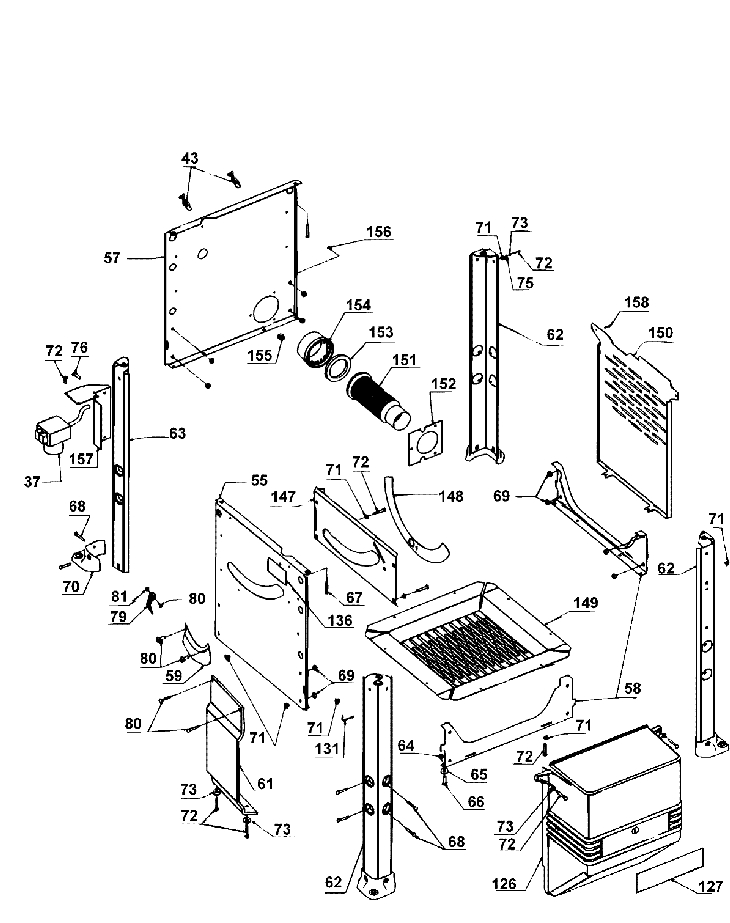

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE (389839-00) 338563 RON
3 1 2 SCREW (153576-01) 1229 RON
4 1 1 REAR TRUNNION (387164-01) 29862 RON
5 1 6 SCREW (330045-39) 781 RON
6 1 1 FRONT BRACKET (389615-00) 70239 RON
7 1 2 DRIVE SHAFT (388410-00) 14315 RON
8 1 4 ROLL PIN (330036-08) 558 RON
9 1 4 WASHER (389355-00) 781 RON
10 1 2 SLEEVE BEARING (85903-00) 558 RON
11 1 2 WASHER SPRING (389297-00) 558 RON
12 1 2 SLEEVE (391048-00) 1452 RON
14 1 2 WASHER (389355-00) 781 RON
15 1 1 BRACKET SA (389875-01) 216872 RON
16 1 1 SPRING WASHER (448373-00) 558 RON
17 1 1 CIRCLIP (389057-00) 558 RON
18 1 1 ARBOR (387158-01) 39145 RON
19 1 1 SPINDLE SA (388313-01) 32770 RON
20 1 2 PULLEY (389298-00) 2795 RON
21 1 2 WASHER (330016-05) 781 RON
22 1 2 NUT (330021-08) 781 RON
23 1 1 WASHER SPRING (388932-00) 781 RON
24 1 1 BALL BEARING (330003-16) 3466 RON
27 1 2 PLATE (153404-02) 190 RON
28 1 1 BEVEL GEAR (387160-00) 5484 RON
29 1 1 COVER (388315-00) 2347 RON
30 1 1 SHROUD (388314-00) 5591 RON
31 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
32 1 4 Mach screw (153778-01) 2347 RON
33 1 1 SPRING (389254-00) 190 RON
37 1 1 SWITCHBOX & CABLE (389838-00) 91714 RON
37 1 1 SWITCHBOX & CABLE (389838-01) 65989 RON
40 1 1 MOTOR SA 1PH (389888-01) 477144 RON
40 1 1 MOTOR SA 3PH (389892-00) 398067 RON
41 1 2 PULLEY (389281-00) 3018 RON
42 1 1 SPACER (389077-00) 781 RON
43 1 3 CLIP (388301-00) 781 RON
46 1 2 SLEEVE (153443-01) 781 RON
47 1 1 BOLT (392457-00) 1452 RON
48 1 1 LOCK NUT (392458-00) 558 RON
49 1 1 DUST EXTRACTOR (388316-01) 3018 RON
50 1 1 V-BELT (389226-00) 6821 RON
50 1 1 LINK BELT (391471-00) 29862 RON
51 1 1 FLANGE DW744 (386764-02) 2795 RON
52 1 1 NUT (388956-00) 3018 RON
53 1 2 CABLE TIE (149138-03) 781 RON
55 1 1 PANEL.FRONT (388284-00) 23598 RON
57 1 1 PANEL LH (388293-02) 28296 RON
58 1 2 BRACE (388297-00) 10512 RON
59 1 1 BEVEL SCALE (388289-00) 4472 RON
60 1 8 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
61 1 1 COVERPLATE (389835-00) 10512 RON
62 1 3 LEG (388298-00) 12861 RON
63 1 1 LEG FRONT LEFT HAND (391100-00) 37579 RON
64 1 4 NUT GLC2000 (330015-02) 781 RON
65 1 4 WASHER (98198-05) 558 RON
66 1 4 BOLT (489128-00) 558 RON
67 1 4 SCREW (330045-39) 781 RON
68 1 24 SCREW (330045-32) 781 RON
69 1 24 NUT FLANGE PREVAILING TORQUE (389118-00) 558 RON
70 1 4 FOOT (388300-00) 14315 RON
71 1 17 GROMMET (389147-00) 558 RON
72 1 22 SCREW (330019-37) 558 RON
73 1 5 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
75 1 1 BUSH (153669-00) 558 RON
76 1 2 SCREW (330045-24) 558 RON
77 1 2 HANDLE SA (388306-00) 17335 RON
78 1 2 LOCK KNOB (388308-00) 3466 RON
79 1 1 POINTER (388309-00) 190 RON
80 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
81 1 1 NUT (389046-00) 558 RON
82 1 1 PLATE SA (388292-01SV) 3592 RON
83 1 1 CAM DW744 (390858-00) 1229 RON
84 1 1 screw dw744 (330019-12) 558 RON
85 1 2 EXTENSION TABLE (390955-00) 53015 RON
86 1 1 RAIL (389685-04) 129966 RON
87 1 1 000000-00 - Indisponibil
88 1 2 END CAP (388256-00) 190 RON
89 1 2 BUTTON (380105-03) 781 RON
90 1 1 RAIL REAR (388253-00) 23598 RON
91 1 1 FENCE HEAD SA (389837-01) 286554 RON
92 1 1 SCALE (389238-00) 3466 RON
93 1 1 SCREW (153460-03) 781 RON
94 1 3 SCREW (98106-01) 781 RON
95 1 1 HANDLE (389645-00) 74937 RON
96 1 2 BRACKET (389687-00) 1117 RON
97 1 2 SLEEVE (153443-01) 781 RON
98 1 2 SCREW (330045-32) 781 RON
99 1 2 CAM LEVER (388225-00) 1788 RON
100 1 2 SPRING (389043-00) 781 RON
101 1 1 FENCE BEAM (388979-00) 45297 RON
102 1 1 FENCE (397285-00) 59725 RON
103 1 1 CAP (388238-00) 3018 RON
104 1 1 RETAINER (390484-00) 1229 RON
105 1 4 KNOB (147107-08) 893 RON
106 1 3 WASHER (389354-00) 558 RON
107 1 1 PLATE SA (392947-00) 12861 RON
109 1 1 RETAINER (390478-00) 893 RON
110 1 1 GUARD SA (389883-00) 5484 RON
111 1 1 MITRE FENCE (389858-01) 216872 RON
112 1 1 washer dw744 (99361-14) 3466 RON
113 1 3 SCREW (98003-25) 558 RON
114 1 3 NUT (98155-03) 558 RON
115 1 4 CARRIAGE BOLT (98130-20) 558 RON
116 1 4 SCREW (98204-30) 781 RON
117 1 4 SUPPORT BRACKET (388257-00) 2795 RON
118 1 2 BOLT (98026-35) 558 RON
119 1 8 BOLT (98026-25) 781 RON
120 1 4 Washer Lock (098197-09) 558 RON
121 1 4 NUT HEX (330015-03) 558 RON
122 1 14 Washer Lock (98197-07) 558 RON
123 1 18 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
124 1 8 NUT (330015-05) 781 RON
125 1 1 COVERPLATE (389229-00) 3466 RON
126 1 1 MOTOR COVER (388299-00) 22144 RON
127 1 1 IDENTITY LABEL (388294-00) 1452 RON
128 1 2 SCREW (153460-02) 558 RON
129 1 2 WASHER (389686-00) 781 RON
130 1 2 WASHER SPRING (390671-00) 781 RON
131 1 1 HOOK (389874-00) 781 RON
132 1 1 SHIM (388317-00) 781 RON
132 1 1 SHIM (388317-01) 893 RON
132 1 1 SHIM (388317-02) 893 RON
132 1 1 SHIM (388317-03) 781 RON
132 1 1 SHIM (388317-04) 893 RON
132 1 1 SHIM (388317-05) 893 RON
132 1 1 SHIM (388317-06) 893 RON
133 1 1 STRIP (429902-00) 4137 RON
134 1 1 PIN (390672-00) 1229 RON
135 1 1 RETAINER (391382-00) 1117 RON
136 1 1 LABEL (390573-00) 1117 RON
138 1 2 WASHER (392459-00) 105 RON
140 1 1 SUPPORT BRACKET (389598-00) 74937 RON
141 1 1 RETAINER (389065-00) 1117 RON
142 1 2 SCREW (389719-00) 781 RON
143 1 4 SHIM ETS744 (153403-01) 781 RON
144 1 1 LINK (389540-00) 6821 RON
145 1 2 SHOULDER SCREW (153639-00) 781 RON
146 1 1 SCREW (98208-01) 781 RON
147 1 1 PLATE (390030-00) 29862 RON
148 1 1 SHEATH (390249-00) 4472 RON
149 1 1 BOTTOM PLATE (388302-00) 37579 RON
150 1 1 COVER REAR (389671-00) 49771 RON
151 1 1 HOSE (389843-00) 20467 RON
152 1 1 HOSE PLATE (389845-00) 7940 RON
153 1 1 FOAM (389832-00) 190 RON
154 1 1 DUST PORT (389833-00) 6821 RON
155 1 3 NUT (389147-01) 558 RON
156 1 3 SCREW .TEMP (330019-20) 558 RON
157 1 1 BRACKET (389689-00) 14315 RON
158 1 1 SCREW (391160-00) 558 RON
159 1 1 RIVING KNIFE (389541-00) 25164 RON
160 1 1 FENCE (389294-01) 23598 RON
170 1 2 FOOT (429898-08) 190 RON
171 1 2 NUT HEX (330015-03) 558 RON
172 1 1 LEG STAND (392311-00) 12861 RON
173 1 1 LOCK NUT (429901-00) 781 RON
174 1 1 BUTTON (380105-04) 190 RON
175 1 10 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
176 1 2 NUT WING (429901-01) 105 RON
177 1 1 BOLT (429901-02) 781 RON
178 1 10 NUT (330015-05) 781 RON
179 1 12 Washer Lock (98197-07) 558 RON
180 1 2 BRACKET (389918-00) 1117 RON
181 1 6 BOLT (98026-25) 781 RON
182 1 4 BRACKET (392331-00) 2795 RON
183 1 2 BOLT (429901-03) 781 RON
184 1 4 BOLT (98026-35) 558 RON
190 1 1 000000-00 - Indisponibil
191 1 1 000000-00 - Indisponibil
207 1 1 PUSHROD (389276-00) 10512 RON
208 1 1 PUSH BLOCK (393104-00) 3124 RON
800 1 1 GREASE (429698-00) 62298 RON
801 1 1 KEY DW744 (153430-00) 190 RON
802 1 1 WRENCH SPECIAL (389339-00) 4137 RON
836 1 1 233802-00 - Indisponibil
837 1 1 SERVICE TOOL (233802-01) 216872 RON
838 1 1 SERVICE TOOL (233802-02) 102451 RON
839 1 1 SERVICE TOOL (233802-03) 3592 RON
840 1 1 559614-99 - Indisponibil
841 1 1 559615-99 - Indisponibil
846 1 1 PARTS PACK (389642-01) 26730 RON
