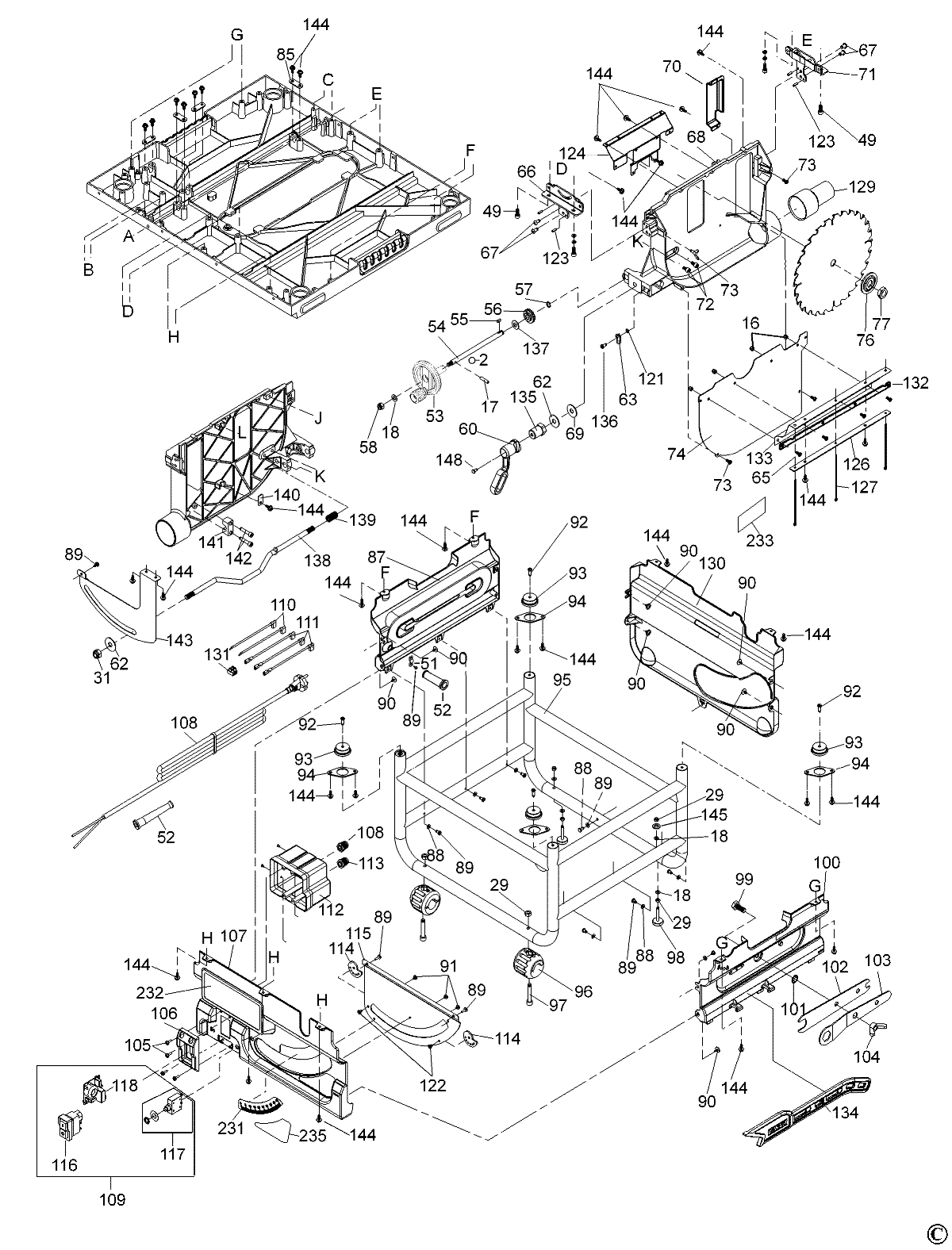

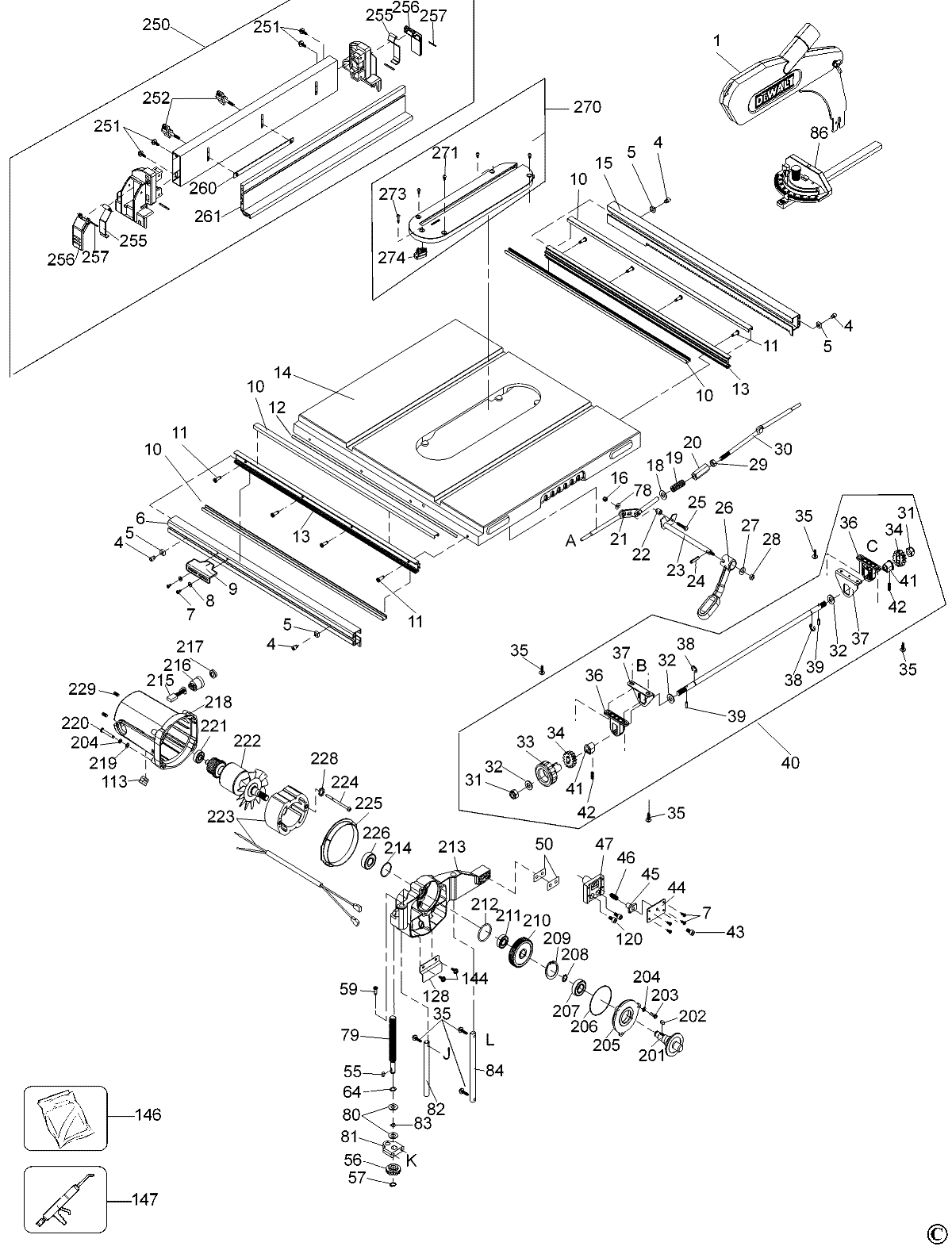

DW745 TABLE SAW Type 1
[DW745 Type 1]
DW745 TABLE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW745 TABLE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GUARD SA (5140034-41) 3466 RON
2 1 1 O RING (1004549-04) 781 RON
4 1 4 PIN (5140032-02) 781 RON
5 1 4 NUT M6 (5140032-03) 781 RON
6 1 1 FRONT BRACKET (5140032-04) 17335 RON
7 1 6 SCREW.SPECIAL (1004549-00) 781 RON
8 1 3 WASHER M4 (5140032-06) 781 RON
9 1 1 POINTER (5140032-07) 2124 RON
10 1 4 CAP (5140032-08) 105 RON
11 1 8 SCREW.SPECIAL (1002765-00) 781 RON
12 1 1 SCALE (1003778-00) 2347 RON
13 1 2 RAIL (5140032-10) 10512 RON
14 1 1 TABLE (5140034-47) 190812 RON
15 1 1 RAIL (5140032-12) 22144 RON
16 1 1 NUT M5 (5140032-13) 781 RON
17 1 1 PIN (1002766-00) 781 RON
18 1 6 WASHER M8 (5140032-15) 781 RON
19 1 1 SPRING (5140032-16) 893 RON
20 1 1 ADJUSTER (5140032-17) 190 RON
21 1 1 SHAFT SA (5140034-48) 7940 RON
22 1 1 BUSHING (5140032-19) 781 RON
23 1 1 SHAFT (5140032-20) 5031 RON
24 1 2 PIN (5140032-21) 781 RON
25 1 1 SCREW (5140032-22) 781 RON
26 1 1 LEVER LOCK (5140032-23) 3466 RON
27 1 5 WASHER M6 (5140032-24) 781 RON
28 1 1 NUT M6 (5140032-25) 781 RON
29 1 7 NUT (429989-57) 558 RON
30 1 1 SHAFT SA (5140034-49) 5591 RON
31 1 3 LOCK NUT (429901-00) 781 RON
32 1 3 WASHER M10 (5140032-27) 781 RON
33 1 1 FENCE KNOB (5140032-28) 2124 RON
34 1 2 PINION GEAR (5140032-29) 190 RON
35 1 7 SCREW.SPECIAL (1002767-00) 781 RON
36 1 2 BRACKET (5140032-31) 1452 RON
37 1 2 GUARD (1002768-00) 5591 RON
38 1 2 LOCKING RING (5140032-33) 781 RON
39 1 2 PIN (5140032-34) 781 RON
40 1 1 ROD (5140034-50) 7940 RON
41 1 2 BEARING BLOCK (5140032-36) 781 RON
42 1 2 SPRING (5140032-37) 781 RON
43 1 1 SCREW (5140034-51) 105 RON
44 1 1 COVER (1004485-00) 781 RON
45 1 1 LOCK PIN (1004486-00) 1229 RON
46 1 1 LEAF SPRING (5140032-41) 781 RON
47 1 1 BASE (5140034-52) 2124 RON
49 1 4 SCREW.SPECIAL (1002769-00) 893 RON
50 1 5 SPACER (5140032-45) 781 RON
51 1 1 CORD CLAMP (1002771-00) 781 RON
52 1 1 CORD PROTECTOR (1002772-00) 893 RON
53 1 1 WHEEL SA (1004549-07) 5591 RON
54 1 1 SHAFT (5140032-49) 4137 RON
55 1 2 KEY (5140032-50) 781 RON
56 1 2 BEVEL GEAR (5140061-65) 1788 RON
57 1 2 RING (5140032-52) 781 RON
58 1 1 NUT (429898-00) 558 RON
59 1 1 SCREW.SPECIAL (1002773-00) 781 RON
60 1 1 LOCK HANDLE (1004452-00) 3466 RON
62 1 2 Washer Lock (5140032-57) 893 RON
63 1 1 INDICATOR (5140032-58) 1117 RON
64 1 1 RING (1002774-00) 781 RON
65 1 4 SCREW.SPECIAL (1002775-00) 781 RON
66 1 1 TRUNION (5140032-60) 5591 RON
67 1 4 SCREW.SPECIAL (1002776-00) 893 RON
68 1 1 SHROUD (1002777-00) 74937 RON
69 1 1 WASHER PLASTIC (1002778-00) 781 RON
70 1 1 GUARD REAR (5140032-64) 1788 RON
71 1 1 BRACKET (5140032-65) 5591 RON
72 1 2 SCREW.SPECIAL (1002779-00) 105 RON
73 1 4 SCREW WING (5140032-67) 893 RON
74 1 1 SHROUD (1002780-00) 6821 RON
76 1 1 WASHER CLAMP (5140034-53) 2124 RON
77 1 1 NUT (429989-94) 105 RON
78 1 1 WASHER (5140032-70) 781 RON
79 1 1 SCREW (5140100-03) 5591 RON
80 1 2 WASHER THRUST (5140032-72) 781 RON
81 1 1 BLOCK (5140032-73) 3466 RON
82 1 1 SHAFT (5140032-74) 3018 RON
83 1 1 WASHER BOW (5140032-75) 781 RON
84 1 1 SHAFT (5140032-76) 4137 RON
85 1 4 PLATE (5140032-77) 781 RON
86 1 1 MITRE FENCE (5140034-54) 15993 RON
87 1 1 PANEL LH (5140032-79) 5591 RON
88 1 7 WASHER (1002781-00) 893 RON
89 1 7 SCREW (1002782-00) 893 RON
90 1 8 SCREW.SPECIAL (1002783-00) 781 RON
91 1 3 SCREW (1002784-00) 781 RON
92 1 4 SCREW (1002785-00) 781 RON
93 1 4 BUMPER (5140032-84) 781 RON
94 1 4 PLATE (5140032-85) 781 RON
95 1 1 CAGE (1002786-00) 80865 RON
96 1 2 FEET (5140032-87) 5031 RON
97 1 2 SCREW (5140032-88) 781 RON
98 1 2 FEET (5140032-89) 1452 RON
99 1 1 SCREW (1002787-00) 781 RON
100 1 1 PANEL RH (5140032-91) 5591 RON
101 1 1 NUT (1002788-00) 1788 RON
102 1 1 WRENCH SPECIAL (1002789-00) 4472 RON
103 1 1 WRENCH SPECIAL (1002790-00) 5031 RON
104 1 1 WING NUT (5140032-95) 1117 RON
105 1 4 SCREW (1002791-00) 893 RON
106 1 1 SWITCH COVER (5140034-55) 2124 RON
107 1 1 1004697-35 - Indisponibil
108 1 1 CORDSET GB (5140034-85) 26730 RON
108 1 1 CORDSET (1002795-00) 3124 RON
109 1 1 SWITCH KIT 230V (1003705-00) 23598 RON
109 1 1 SWITCH 115V (1002796-00) 22144 RON
110 1 2 LEAD SA (5140034-57) 3466 RON
111 1 3 LEAD SA (5140034-58) 3466 RON
112 1 1 SWITCHBOX (5140034-59) 3124 RON
113 1 2 GROMMET (429991-43) 3466 RON
114 1 2 WASHER (5140033-04) 781 RON
115 1 1 SUPPORT PLATE (5140033-05) 7940 RON
116 1 1 SWITCH (1003685-00) 23598 RON
116 1 1 SWITCH 115V (1003687-00) 20467 RON
117 1 1 OVERLOAD PROTECTOR (1003686-00) 5031 RON
117 1 1 OVERLOAD PROTECTOR (1003688-00) 5591 RON
118 1 1 PCB 230V (1003703-00) 11519 RON
118 1 1 PCB 230V (1003703-00) 11519 RON
120 1 2 SCREW (1002797-00) 893 RON
121 1 4 WASHER (5140033-38) 781 RON
122 1 2 SCREW (5140033-39) 781 RON
123 1 4 DOWEL (5140033-40) 781 RON
124 1 1 COVER (5140034-65) 2347 RON
126 1 1 PLATE (5140034-66) 2124 RON
127 1 3 CABLE TIE (5140034-67) 190 RON
128 1 1 GUARD (5140034-68) 1117 RON
129 1 1 DUST PORT (5140034-69) 2124 RON
130 1 1 PANEL.REAR (5140034-70) 7940 RON
131 1 1 TERMINAL BLOCK (5140034-71) 2124 RON
132 1 1 PLATE (1004549-02) 2124 RON
133 1 1 COVER (5140034-72) 11519 RON
134 1 1 PUSHROD (5140033-44) 3466 RON
135 1 1 LOCK NUT (5140034-73) 3018 RON
136 1 1 SCREW (1002798-00) 893 RON
137 1 1 WASHER (5140033-42) 781 RON
138 1 1 SHAFT (5140034-74) 6821 RON
139 1 1 SPRING (5140034-75) 893 RON
140 1 1 PLATE (5140034-76) 781 RON
141 1 1 PLATE (5140034-77) 3018 RON
142 1 2 SCREW (1002799-00) 1117 RON
143 1 1 PLATE LOCK (5140034-79) 5591 RON
144 1 42 SCREW (1002800-00) 781 RON
145 1 2 Washer Lock (1002801-00) 781 RON
146 1 2 GREASE TUBE (583534-00) 29862 RON
147 1 1 SERVICE KIT (1002803-00) 1117 RON
148 1 1 SCREW (1002804-00) 781 RON
201 1 1 ARBOR (5140103-68) 7940 RON
202 1 1 KEY (5140010-15) 893 RON
203 1 3 SCREW (5140032-09) 781 RON
204 1 7 Washer Lock (5140033-09) 781 RON
205 1 1 GEARCASE COVER (5140033-10) 4137 RON
206 1 1 O RING (5140033-11) 893 RON
207 1 1 BEARING (5140033-12) 7940 RON
208 1 1 RING (5140033-13) 781 RON
209 1 1 RETAINER (5140010-11) 781 RON
210 1 1 GEAR (5140033-14) 17335 RON
211 1 1 BEARING (5140033-15) 5591 RON
212 1 1 O RING (5140033-16) 781 RON
213 1 1 GEARCASE (1004683-44) 25164 RON
214 1 1 O RING (5140033-18) 781 RON
215 1 2 BRUSH 230V (1002805-00) 2347 RON
215 1 2 BRUSH 115-120V (1002806-00) 2347 RON
216 1 2 BRUSH HOLDER (5140033-20) 3466 RON
217 1 2 BRUSH CAP (5140033-21) 781 RON
218 1 1 FIELD CASE (5140033-22) 11519 RON
219 1 4 WASHER (5140033-23) 781 RON
220 1 4 SCREW (5140033-24) 781 RON
221 1 1 BEARING (5140033-25) 5591 RON
222 1 1 ARMATURE 220/240V (1002807-00) 117887 RON
222 1 1 ARMATURE 115/120V (1002808-00) 107597 RON
223 1 1 FIELD 220/240V (1002809-00) 4825 RON
223 1 1 FIELD 115V (1002810-00) 43731 RON
224 1 2 SCREW.SPECIAL (5140033-28) 781 RON
225 1 1 BUFFER (5140033-29) 1117 RON
226 1 1 BEARING (5140033-30) 4137 RON
228 1 1 Washer Lock (5140033-43) 781 RON
229 1 2 SCREW (5140011-87) 781 RON
231 1 1 BEVEL SCALE (5140033-31) 1788 RON
232 1 1 LABEL (5140033-32) 2124 RON
233 1 1 WARNING LABEL (1002815-00) 2124 RON
235 1 1 RATING PLATE (N044449) 2124 RON
235 1 1 RATING PLATE (N044450) 2124 RON
250 1 1 FENCE SA (5140034-42) 49771 RON
251 1 4 BOLT (1002814-00) 781 RON
252 1 2 SCREW WING (5140034-43) 1229 RON
255 1 2 LEAF SPRING (5140033-51) 2124 RON
256 1 2 PADDLE (5140033-49) 190 RON
257 1 2 PIN (5140033-50) 781 RON
260 1 1 PLATE LOCK (5140034-44) 2124 RON
261 1 1 RIP FENCE (5140034-45) 32770 RON
270 1 1 TABLE INSERT (5140034-46) 3466 RON
271 1 4 SCREW (5140033-53) 781 RON
273 1 1 SCREW (5140033-54) 781 RON
274 1 1 CAM (5140033-55) 893 RON
