DW744XP TABLE SAW Type 3
[DW744XP Type 3]
DW744XP TABLE SAW Type 3
Click pentru a mari
Imagini suplimentare
DW744XP TABLE SAW Type 3
Click pentru a mari

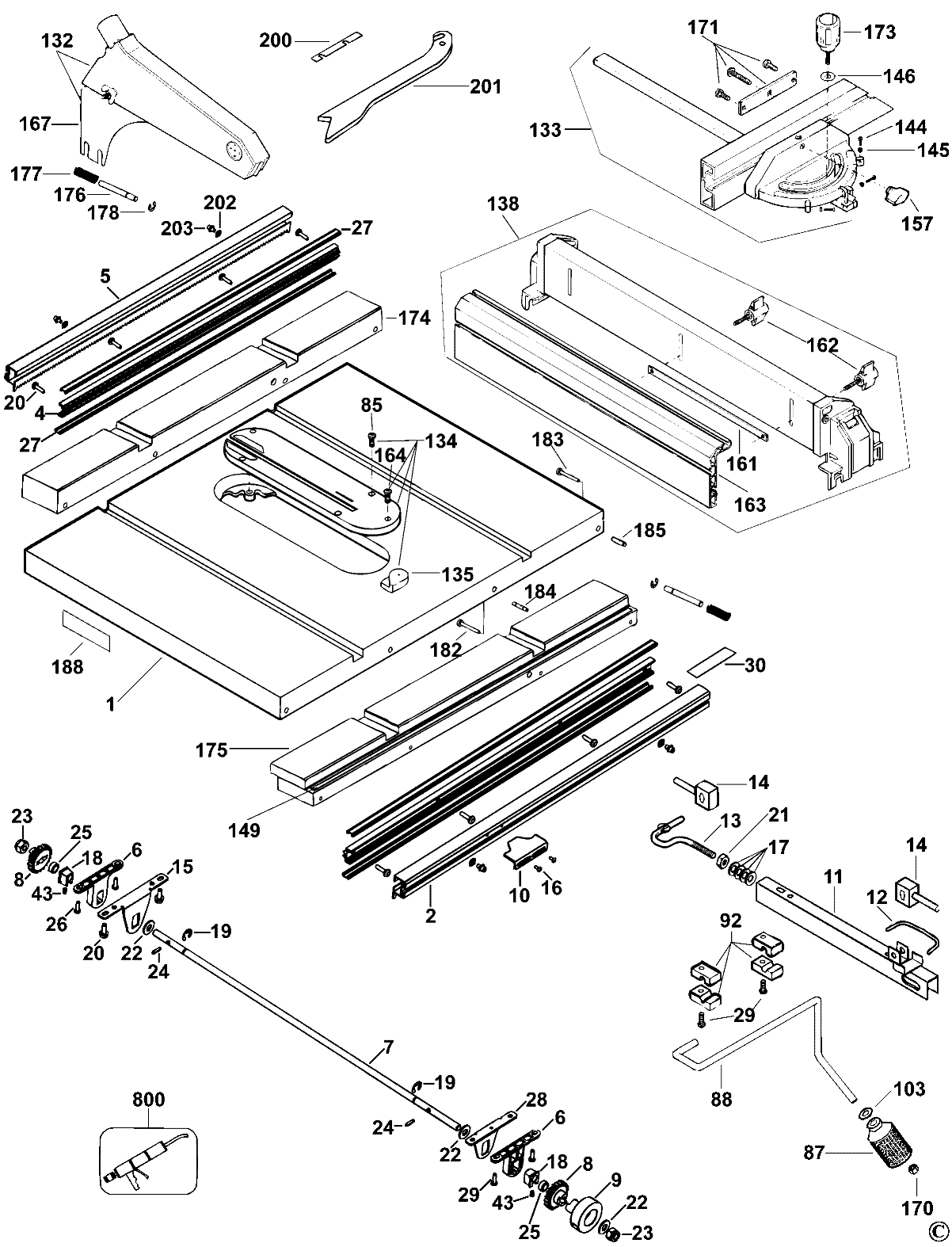

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE (622684-01) 338563 RON
2 1 1 RAIL (N032655) 14315 RON
3 1 5 SCREW (330045-13) 558 RON
4 1 2 RAIL (N037254) 15993 RON
5 1 1 RAIL REAR (N030378) 12861 RON
6 1 2 BRACKET (N037641) 2347 RON
7 1 1 SHAFT (N034099) 5591 RON
8 1 2 PINION (N030380) 190 RON
9 1 1 KNOB DW744 (153433-01) 190 RON
10 1 1 SCALE (N037238) 3018 RON
11 1 1 ARM DW744 (153381-01) 3466 RON
12 1 1 CLIP DW744 (153384-00) 781 RON
13 1 1 PIN DW744 (153385-00) 2795 RON
14 1 2 LOCKING PIN (604177-00) 105 RON
15 1 1 REAR BRACKET (N038363) 1788 RON
16 1 14 screw dw744 (153460-00) 558 RON
17 1 6 washer dw744 (153537-00) 558 RON
18 1 2 BEARING BLOCK (N036447) 190 RON
19 1 2 RETAINER (N027485) 558 RON
20 1 10 SCREW (330045-24) 558 RON
21 1 1 NUT LOCK M6 (385137-00) 558 RON
22 1 2 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
23 1 4 NUT DW744 (330021-03) 558 RON
24 1 1 PIN DW744 (98162-18) 558 RON
25 1 1 SPACER (N034157) 1229 RON
26 1 4 SCREW (330045-14) 558 RON
27 1 4 CAP (N037814) 2795 RON
28 1 1 FRONT BRACKET (N037640) 1788 RON
29 1 2 Screw Metal (330045-16) 558 RON
30 1 1 LABEL (N037590) 781 RON
31 1 1 PLATE DW744 (153547-01) 70239 RON
32 1 1 ATTACH DW744 (153419-00) 3018 RON
33 1 1 SPACER DW744 (153449-00) 781 RON
34 1 1 SCREW (330045-47) 558 RON
35 1 1 SPRING DW744 (153447-00) 2124 RON
36 1 1 BUTTON DW744 (386158-00) 2347 RON
37 1 1 screw dw744 (153473-00) 1891 RON
38 1 1 stop dw744 (153446-00) 1229 RON
39 1 1 washer dw744 (153441-00) 558 RON
40 1 1 WASHER (380061-00) 1452 RON
41 1 1 washer dw744 (153442-00) 558 RON
42 1 1 roller dw744 (153443-00) 558 RON
43 1 2 SPRING (N038011) 558 RON
44 1 1 BEARING BLOCK (153424-01) 4472 RON
45 1 1 ROLL PIN (330036-08) 558 RON
46 1 1 GEARCASE COVER SA (153476-08) 80865 RON
47 1 5 SHIM ETS744 (153403-01) 781 RON
48 1 1 PLATE DW744 (153404-01) 893 RON
49 1 2 SCREW (N043051) 2124 RON
50 1 1 153389-00 - Indisponibil
51 1 1 GEAR CASE DW744X MOT.BLACK (605671-00) 17335 RON
52 1 1 SEAL (701297-00) 558 RON
53 1 1 SEAL DW290 (99180-24) 558 RON
54 1 4 SHOE DW744 (153431-00) 781 RON
55 1 4 SUPPORT DW744 (153432-00) 558 RON
56 1 1 BEARING (85931-00) 781 RON
57 1 1 PIN DW744 (153402-00) 781 RON
60 1 1 RUBBER PLUG (145312-00) 558 RON
61 1 1 FIELDCASE (391317-00) 7940 RON
62 1 4 SCREW (98094-55) 558 RON
63 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
66 1 1 ARMATURE 230V (632015-00SV) 59725 RON
67 1 1 SEAL RING (144803-00) 781 RON
68 1 1 BEARING BALL (330003-13) 4137 RON
69 1 1 BEARING BALL (330003-60) 190 RON
71 1 1 FIELD 230V (630994-00SV) 23598 RON
72 1 1 BAFFLE (391375-00) 1788 RON
73 1 2 BRUSH-LEAD (381028-08) 4137 RON
74 1 2 BRUSH HOLDER NYLON 6-ULTRAMID A3X2G5 (389512-01) 10512 RON
76 1 2 SCREW PLASTITE (330019-19) 781 RON
77 1 1 BUSHING HEYCO 1247-SR-7W-2 (33821-00) 781 RON
79 1 2 STOP (618084-00) 105 RON
80 1 1 PANEL.FRONT (N109457) 14315 RON
82 1 2 screw dw744 (153637-01) 558 RON
84 1 1 POINTER (153401-02) 1117 RON
85 1 6 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
86 1 2 SUPPORT DW744 (153518-00) 1229 RON
87 1 1 KNOB (153417-01) 190 RON
88 1 1 LEVER (391821-00) 4472 RON
89 1 2 NUT HEX (330015-03) 558 RON
90 1 1 CRANK KIT (153412-00) 4137 RON
91 1 1 HANDLE (153420-01) 3466 RON
92 1 4 RAIL LOCK LEVER (153379-00) 781 RON
94 1 1 clamp dw744 (153423-00) 5591 RON
95 1 1 SUPPORT DW744 (153405-00) 3018 RON
97 1 2 CAM DW744 (153421-00) 893 RON
99 1 2 washer dw744 (153450-00) 558 RON
100 1 1 BEARING THRUST (153451-00) 781 RON
102 1 1 NUT DW744 (153439-00) 1788 RON
103 1 1 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
105 1 1 SHROUD (648899-00SV) 53015 RON
106 1 1 adaptor dw744 (153528-00) 190 RON
109 1 14 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
111 1 1 WASHER INNER CLAMP (153478-01) 3018 RON
112 1 1 OUTER FLANGE (647400-00) 5031 RON
113 1 1 BASE (153351-04) 53015 RON
114 1 4 FOOT DW744 (153496-00) 781 RON
115 1 1 IDENTITY LABEL (627282-00) 2124 RON
116 1 1 KEY DW744 (153430-00) 190 RON
117 1 1 NUT WING DW744 (392666-00) 893 RON
118 1 1 screw dw744 (153502-00) 893 RON
119 1 1 NUT DW744 (153503-00) 558 RON
120 1 1 KEY DW744 (153512-00) 2124 RON
121 1 4 screw dw744 (153460-01) 558 RON
122 1 1 SWITCH SA (631903-02) 42277 RON
123 1 1 SWITCH COVER (609916-01) 2124 RON
124 1 3 Screw M3.5X16 T15 (330019-03) 558 RON
125 1 2 WASHER (330016-07) 558 RON
126 1 2 LOCK NUT (148641-00) 558 RON
127 1 1 SWITCH COVER (631901-00) 2347 RON
128 1 1 CORDSET (330060-98) 23598 RON
130 1 1 SWITCH COVER (N377629) 190 RON
131 1 1 PULSANTE OFF ROSSO (609918-00) 781 RON
132 1 1 GUARD SA (386606-02) 32770 RON
133 1 1 MITRE FENCE (391923-00SV) 59725 RON
134 1 1 PLATE SA (388292-01SV) 3592 RON
135 1 1 CAM DW744 (390858-00) 1229 RON
136 1 1 PULSANTE ON VERDE (609919-00) 781 RON
137 1 2 INSERTO PULSANTI (610021-00) 558 RON
138 1 1 FENCE SA (N038868) 45297 RON
139 1 2 SPRING D27105 (609681-00) 558 RON
141 1 1 PIN (385989-00) 558 RON
142 1 1 CONTROL MODULE SA (N034004) 4825 RON
144 1 3 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
145 1 3 NUT (330015-01) 558 RON
146 1 1 washer dw744 (99361-14) 3466 RON
149 1 1 SCALE DW744 (386617-00) 4137 RON
150 1 1 SCREW.TEMP (330045-05) 558 RON
151 1 1 GUARD DW744 (385969-00) 1117 RON
153 1 1 GUARD DW744 (387435-00) 1788 RON
156 1 1 ADAPTOR (386756-00) 5031 RON
157 1 1 KNOB (147107-08) 893 RON
159 1 1 screw dw744 (388062-00) 558 RON
160 1 1 NUT (386823-00) 1788 RON
161 1 1 PLATE DW744 (386615-00) 190 RON
162 1 2 BUTTON DW744 (147107-04) 3466 RON
163 1 1 FENCE (386616-01) 22144 RON
164 1 1 screw dw744 (330019-12) 558 RON
165 1 1 CABLE CLAMP (631902-00) 781 RON
166 1 2 clamp dw744 (71025-00) 558 RON
167 1 1 RIVING KNIFE (386604-00) 7940 RON
168 1 12 SCREW (389198-00) 893 RON
170 1 1 NUT FLANGE PREVAILING TORQUE (389118-00) 558 RON
171 1 1 PLATE KIT (429915-00) 5591 RON
173 1 1 KNOB (429966-00) 2795 RON
174 1 1 EXTENSION (631822-00) 51337 RON
175 1 1 EXTENSION (631823-00) 49771 RON
176 1 2 ROD (624021-00) 3466 RON
177 1 2 SPRING (096723-00) 781 RON
178 1 2 RETAINER (624038-00) 558 RON
180 1 2 NUT GLC2000 (330015-02) 781 RON
181 1 1 LAP WASHER (153781-00) 781 RON
182 1 2 SCREW (330045-26) 893 RON
183 1 4 SCREW TAPTITE M6 * 45 (330045-29) 2347 RON
184 1 2 PIN (647398-00) 1452 RON
185 1 2 PIN (639752-00) 1117 RON
186 1 1 MOTOR CABLE (632373-00) 1891 RON
187 1 3 SCREW (330019-05) 558 RON
188 1 1 WARNING LABEL (642669-00) 781 RON
189 1 1 CAPACITOR (632361-00) 4472 RON
190 1 1 COVER (632077-02) 1452 RON
191 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
192 1 2 clamp dw744 (48822-00) 558 RON
193 1 1 CORD PROTECTOR (330005-02) 1117 RON
194 1 1 BACKPLATE (650693-00) 10512 RON
195 1 2 RETAINER (N043200) 558 RON
196 1 2 99386-05 - Indisponibil
200 1 1 SUPPORT DW744-ETS744 (385369-00) 17335 RON
201 1 1 PUSH STICK (860610-01) 3466 RON
202 1 4 NUT M6 (N038012) 558 RON
203 1 4 PIN (N038013) 781 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
