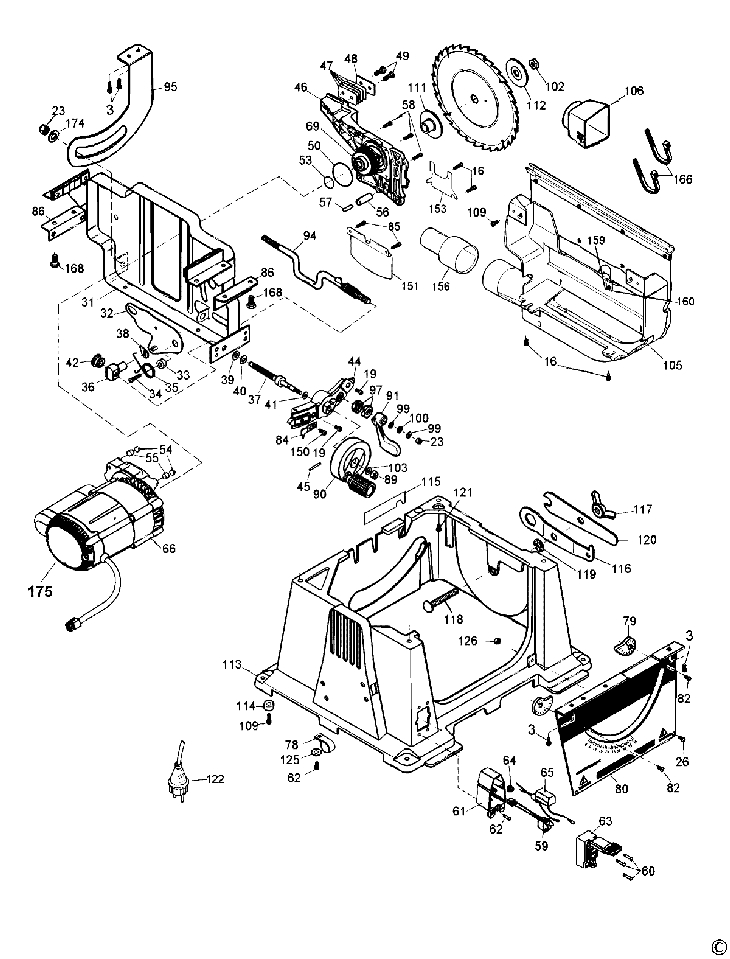

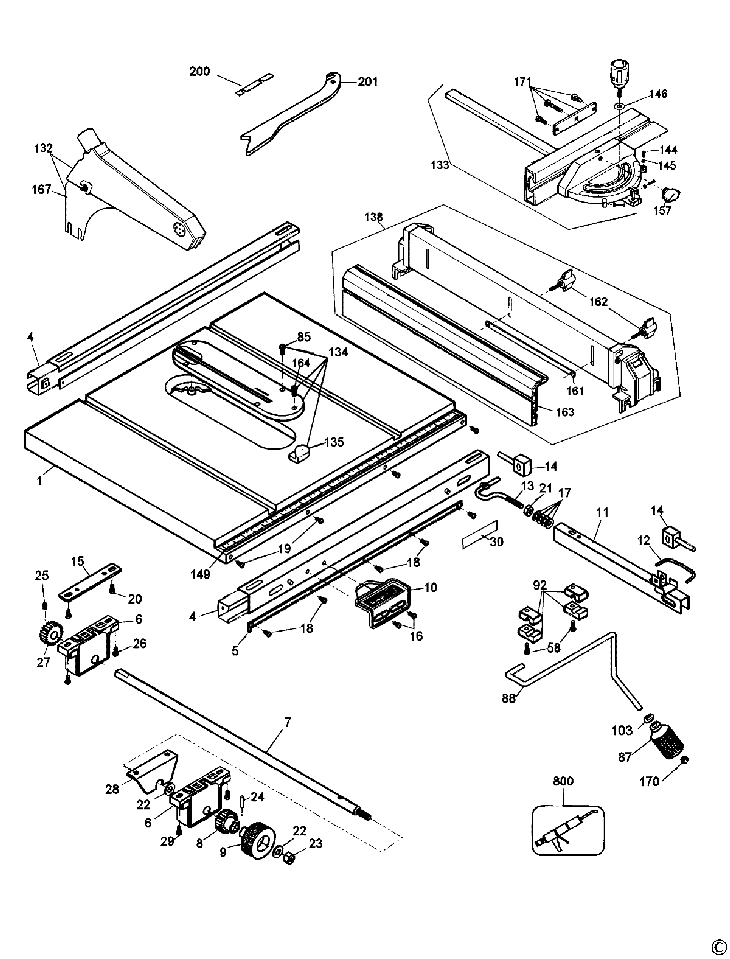

DW744XP TABLE SAW Type 1
[DW744XP Type 1]
DW744XP TABLE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW744XP TABLE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE SA (153524-08) 165534 RON
3 1 9 SCREW (330045-13) 558 RON
4 1 2 GUIDE DW744 (387689-00) 34336 RON
5 1 2 GUIDE DW744 (387689-00) 34336 RON
6 1 2 BRG Asy Pinion (153453-00) 7940 RON
7 1 1 ARBRE DW744 (153472-00) 4137 RON
8 1 1 PINION DW744 (153434-00) 1117 RON
9 1 1 KNOB DW744 (153433-01) 190 RON
10 1 1 INDICATOR DW744 (153499-02) 6821 RON
11 1 1 ARM DW744 (153381-01) 3466 RON
12 1 1 CLIP DW744 (153384-00) 781 RON
13 1 1 PIN DW744 (153385-00) 2795 RON
14 1 2 LOCKING PIN (604177-00) 105 RON
15 1 1 PLATE DW744 (153406-00) 190 RON
16 1 9 screw dw744 (153460-00) 558 RON
17 1 4 washer dw744 (153537-00) 558 RON
18 1 10 screw dw744 (330045-12) 558 RON
19 1 10 SCREW (330045-24) 558 RON
20 1 2 screw dw744 (153459-01) 558 RON
21 1 1 NUT LOCK M6 (385137-00) 558 RON
22 1 3 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
23 1 3 NUT DW744 (330021-03) 558 RON
24 1 1 PIN DW744 (98162-18) 558 RON
25 1 1 screw dw744 (330022-02) 558 RON
26 1 4 SCREW (330045-14) 558 RON
27 1 1 PINION DW744 (386420-01) 3018 RON
28 1 1 BRACKET (153541-00) 1788 RON
29 1 4 Screw Metal (330045-15) 781 RON
30 1 1 LABEL (153543-00) 781 RON
31 1 1 PLATE DW744 (153547-01) 70239 RON
32 1 1 ATTACH DW744 (153419-00) 3018 RON
33 1 1 SPACER DW744 (153449-00) 781 RON
34 1 1 SPRING DW744 (153447-00) 2124 RON
35 1 1 SCREW (330045-32) 781 RON
36 1 1 BUTTON DW744 (386158-00) 2347 RON
37 1 1 screw dw744 (153473-00) 1891 RON
38 1 1 stop dw744 (153446-00) 1229 RON
39 1 1 washer dw744 (153441-00) 558 RON
40 1 1 WASHER (380061-00) 1452 RON
41 1 1 washer dw744 (153442-00) 558 RON
42 1 1 roller dw744 (153443-00) 558 RON
44 1 1 SUPPORT DW744 (153424-00) 3466 RON
45 1 1 ROLL PIN (330036-08) 558 RON
46 1 1 GEARCASE COVER SA (153476-06) 70239 RON
47 1 5 SHIM ETS744 (153403-01) 781 RON
48 1 1 PLATE DW744 (153404-01) 893 RON
49 1 2 SCREW (397423-00) 781 RON
50 1 1 153389-00 - Indisponibil
53 1 1 SEAL DW290 (99180-24) 558 RON
54 1 4 SHOE DW744 (153431-00) 781 RON
55 1 4 SUPPORT DW744 (153432-00) 558 RON
56 1 1 BEARING (85931-00) 781 RON
57 1 1 PIN DW744 (153402-00) 781 RON
58 1 7 Screw Metal (330045-16) 558 RON
59 1 1 SWITCH (609915-00) 17335 RON
60 1 3 SCREW (330019-05) 558 RON
61 1 1 HOUSING SWITCH (605493-00) 558 RON
62 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
63 1 1 SWITCH SA (614495-00) 7940 RON
64 1 1 BLOCK TERMINAL (320078-00) 1452 RON
65 1 1 MODULE (610822-00) 14315 RON
66 1 1 000000-00 - Indisponibil
69 1 2 BEARING BALL (330003-09) 2795 RON
78 1 1 clamp dw744 (153511-00) 558 RON
79 1 2 stop dw744 (153398-00) 1788 RON
80 1 1 PANEL FRONT (153427-09) 23598 RON
82 1 2 screw dw744 (153637-01) 558 RON
84 1 1 indexer dw744 (153401-00) 190 RON
85 1 6 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
86 1 2 SUPPORT DW744 (153518-00) 1229 RON
87 1 1 KNOB (153417-01) 190 RON
88 1 1 LEVER (391821-00) 4472 RON
89 1 2 NUT HEX (330015-03) 558 RON
90 1 1 CRANK KIT (153412-00) 4137 RON
91 1 1 handle dw744 (153420-00) 2347 RON
92 1 4 RAIL LOCK LEVER (153379-00) 781 RON
94 1 1 clamp dw744 (153423-00) 5591 RON
95 1 1 SUPPORT DW744 (153405-00) 3018 RON
97 1 2 CAM DW744 (153421-00) 893 RON
99 1 2 washer dw744 (153450-00) 558 RON
100 1 1 BEARING THRUST (153451-00) 781 RON
102 1 1 NUT DW744 (153439-00) 1788 RON
103 1 1 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
105 1 1 SHROUD (648899-00SV) 53015 RON
106 1 1 adaptor dw744 (153528-00) 190 RON
109 1 6 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
111 1 1 WASHER INNER CLAMP (153478-01) 3018 RON
112 1 1 FLANGE DW744 (386764-02) 2795 RON
113 1 1 SUPPORT (153351-01) 45297 RON
114 1 4 FOOT DW744 (153496-00) 781 RON
115 1 1 LABEL (386588-00) 2795 RON
116 1 1 KEY DW744 (153430-00) 190 RON
117 1 1 NUT WING DW744 (392666-00) 893 RON
118 1 1 screw dw744 (153502-00) 893 RON
119 1 1 NUT DW744 (153503-00) 558 RON
120 1 1 KEY DW744 (153512-00) 2124 RON
121 1 4 screw dw744 (153460-01) 558 RON
122 1 1 CORD POWER SUPPLY GB (330060-78) 1891 RON
125 1 2 WASHER (330016-07) 558 RON
126 1 2 LOCK NUT (148641-00) 558 RON
132 1 1 GUARD SA (386606-02) 32770 RON
133 1 1 FENCE DW744 (429801-00) 53015 RON
134 1 1 PLATE SA (388292-01SV) 3592 RON
135 1 1 CAM DW744 (390858-00) 1229 RON
138 1 1 000000-00 - Indisponibil
144 1 3 SCREW (98003-25) 558 RON
145 1 3 NUT (98155-03) 558 RON
146 1 1 washer dw744 (99361-14) 3466 RON
149 1 1 SCALE DW744 (386617-00) 4137 RON
150 1 1 SCREW.TEMP (330045-05) 558 RON
151 1 1 GUARD DW744 (385969-00) 1117 RON
153 1 1 GUARD DW744 (387435-00) 1788 RON
156 1 1 ADAPTOR (386756-00) 5031 RON
157 1 1 KNOB (147107-08) 893 RON
159 1 1 screw dw744 (388062-00) 558 RON
160 1 1 NUT (386823-00) 1788 RON
161 1 1 PLATE DW744 (386615-00) 190 RON
162 1 2 BUTTON DW744 (147107-04) 3466 RON
163 1 1 FENCE DW744 (386616-00) 17335 RON
164 1 1 screw dw744 (330019-12) 558 RON
166 1 2 clamp dw744 (71025-00) 558 RON
167 1 1 RIVING KNIFE (386604-00) 7940 RON
168 1 4 SCREW (389198-00) 893 RON
170 1 1 NUT FLANGE PREVAILING TORQUE (389118-00) 558 RON
171 1 1 PLATE KIT (429915-00) 5591 RON
174 1 1 LAP WASHER (153781-00) 781 RON
175 1 1 COPERCHIO CORPO BLACK BIRD NEUTRO DW744 (399125-01) 2124 RON
200 1 1 SUPPORT DW744-ETS744 (385369-00) 17335 RON
201 1 1 PUSHROD (389276-00) 10512 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
